Yamaha AG01 BL

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Yamaha Ag01 Bl - Microphone usb - Main picture
  • Yamaha Ag01 Bl - Microphone usb - Variation 1
  • Yamaha Ag01 Bl - Microphone usb - Variation 2
399.00 €
189,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 109044
Not available at this moment
contact us
Stock in store
Not available in store
I want to be notified by email
Other version(s) or associated product(s)

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.

Microphone buying guide

What microphone should you buy to record voice, guitar or drums? Everything is explained through this buying guide!

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Microphone usb

The Yamaha AG01 BL is a USB microphone designed for podcasting and streaming

Configuring a streaming setup from scratch can be a daunting task, particularly for users with little or no music production experience. The minimalist design of the AG01 takes this into account by combining a high-quality condenser microphone with DSP effects, a LOOPBACK function, flexible input connectivity, and a simple, intuitive mixer for stress-free streaming operation.

Simply connect to your computer or iOS/Android device along with the headphones of your choice, then set your levels and you’ve got a fully operational streaming station that can be up and running within minutes. If you’re an aspiring live streamer that requires a compact yet comprehensive, high quality all-in-one solution, the AG01 is ready when you are.Modern retro design
Yamaha AG01: Modern retro design
In most streaming applications your microphone is likely to feature prominently onscreen so it is important for it to complement your overall vision. With a unique and iconic design that blends classic and contemporary aesthetics, the AG01 looks as good as it sounds, offering both black and white-based models to suit your preference.Flexible connectivity and LOOPBACK function support various streaming applications

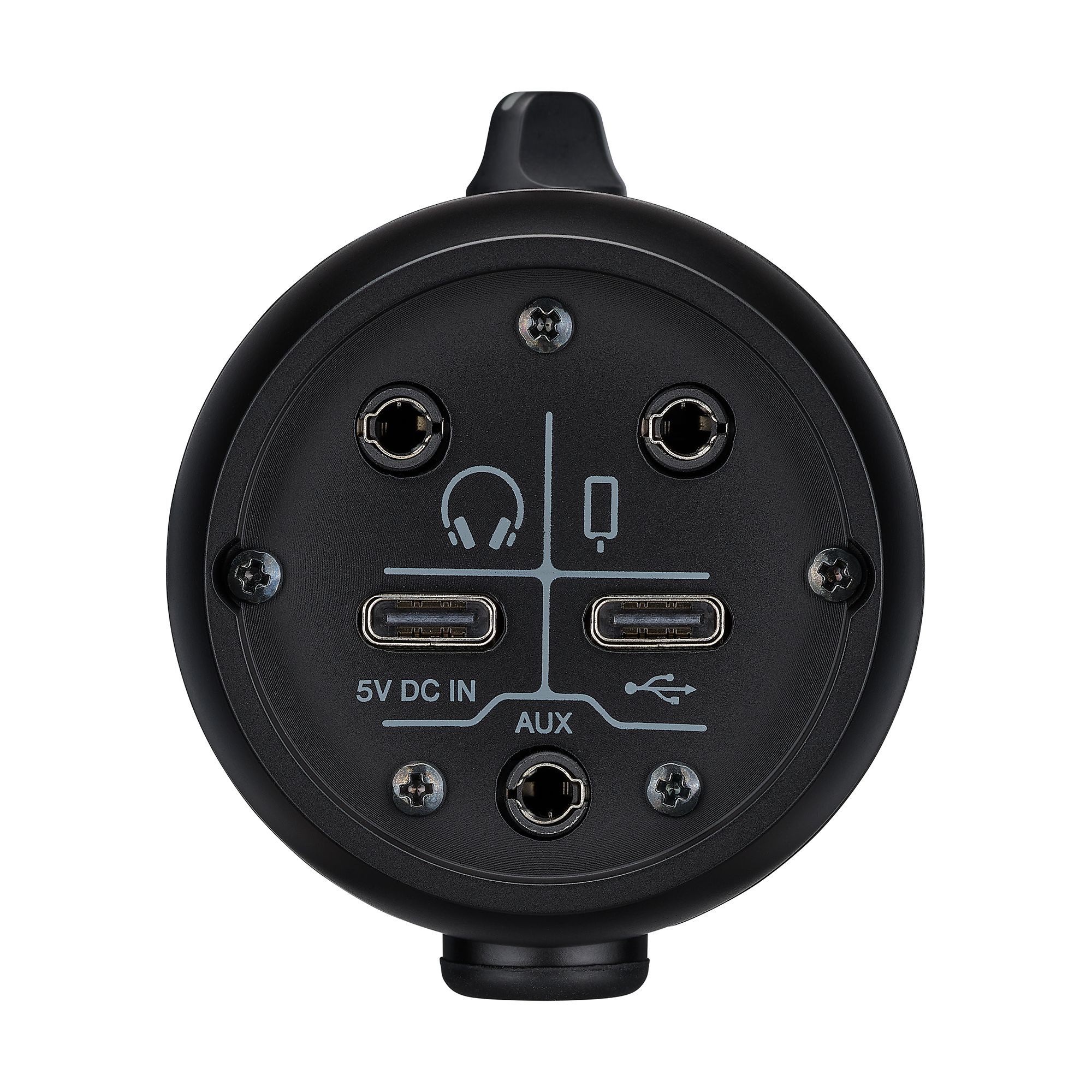

In addition to the condenser microphone audio input, the AG01 is equipped with a mini stereo line input jack, and an upgraded 4-pole mini jack (TRRS) for smartphones that allows input and output. You can also add audio from devices connected via USB in LOOPBACK mode. Combined with these features, this microphone-type model can cover a wide variety of streaming styles that could not be achieved in the past without a separate mixing device.Studio-quality cardioid condenser microphone
Yamaha AG01: Studio-quality cardioid condenser microphone
The AG01's high-performance condenser microphone utilizes a cardioid polar pattern that captures your voice or musical instrument performance precisely, and converts it into high resolution audio (192kHz, 24bit) while blocking out unwanted ambient noise from the rear or sides.Zero-latency DSP effects for a polished professional sound
The AG01 features high-quality DSP effects, allowing you to easily add COMP/EQ and REVERB to color and hone your audio and get the best sound possible to broadcast to your audience. What’s more, these tools are processed by the internal DSP chip so there is no delay, making the AG01 particularly valuable for live streaming, when real-time accuracy is required.

You can also turn these effects off completely to capture pure, raw recordings of the AG01's condenser microphone for music/audio production that will be edited by an engineer later.Simple and intuitive audio control
Yamaha AG01: Simple and intuitive audio control
There are many situations in live streaming where you may need to make audio adjustments on the fly. The carefully configured physical controls of the AG01 respond to these needs providing a simple operating experience that won’t detract from your live content or performances."AG Controller" provides precise control
AG Controller offers two modes, "Simple" and "Detail," which allow users with varying degrees of audio engineering experience to easily and precisely check and adjust the AG’s DSP processing from any Windows/Mac or iOS device connected via USB.
Lire la suite

Technical sheet

  • General specifications
  • Power requirements 5 V DC, 900 mA
  • Power consumption Max. 4.5 W
  • Dimensions W 116 mm (4.6")
  • H 281 mm (11.1")
  • D 118 mm (4.6")
  • Net weight 1.2 kg (2.6 lbs)
  • Included Accessories USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
  • Others Operating Temperature: 0 to + 40 ?
  • Microphone Unit
  • Polar Pattern Cardioid
  • Adress Type Side
  • Frequency Response 30 Hz - 20 kHz
  • Max Input SPL 110 dB (THD ?1.0% at 1 kHz)
  • Sensitivity -34 dB ± 3 dB (0 dB=1 V/Pa, at 1 kHz)
  • Connector USB Type-C
  • Outline
  • Input Channels Microphone 1 (Mono condenser microphone)
  • AUX 1 - Stereo mini
  • Smartphone 1 - 4-pole mini input/output (TRRS)
  • USB 1
  • Output Channels PHONES 1 - Stereo mini
  • Smartphone 1 - 4-pole mini input/output (TRRS)
  • USB 1
  • Bus 1 Stereo
  • On-board processors
  • DSP COMP/EQ, REVERB (SPX Reverb) *Detail is Controlled on AG Controller
  • USB USB Audio 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
  • USB DC Power input 1 - Type-C, 5 V DC, 900 mA
More specifications
Fewer specifications
