Active full-range speaker

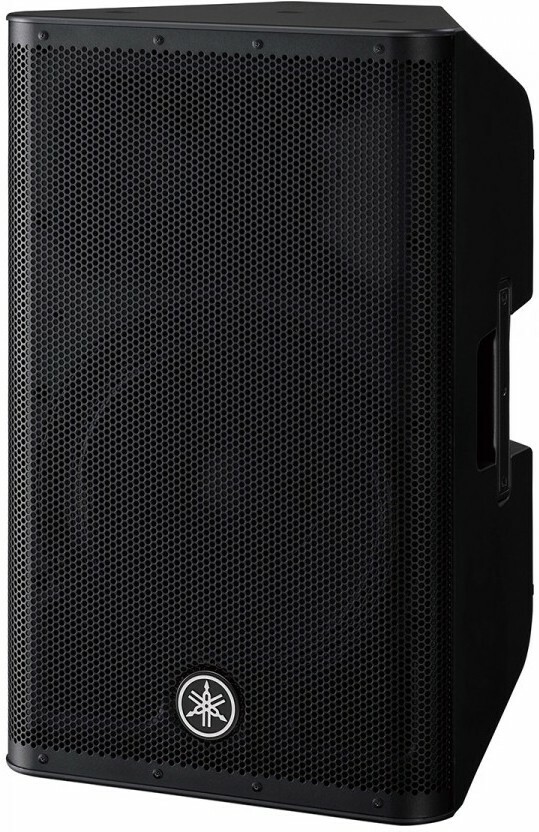

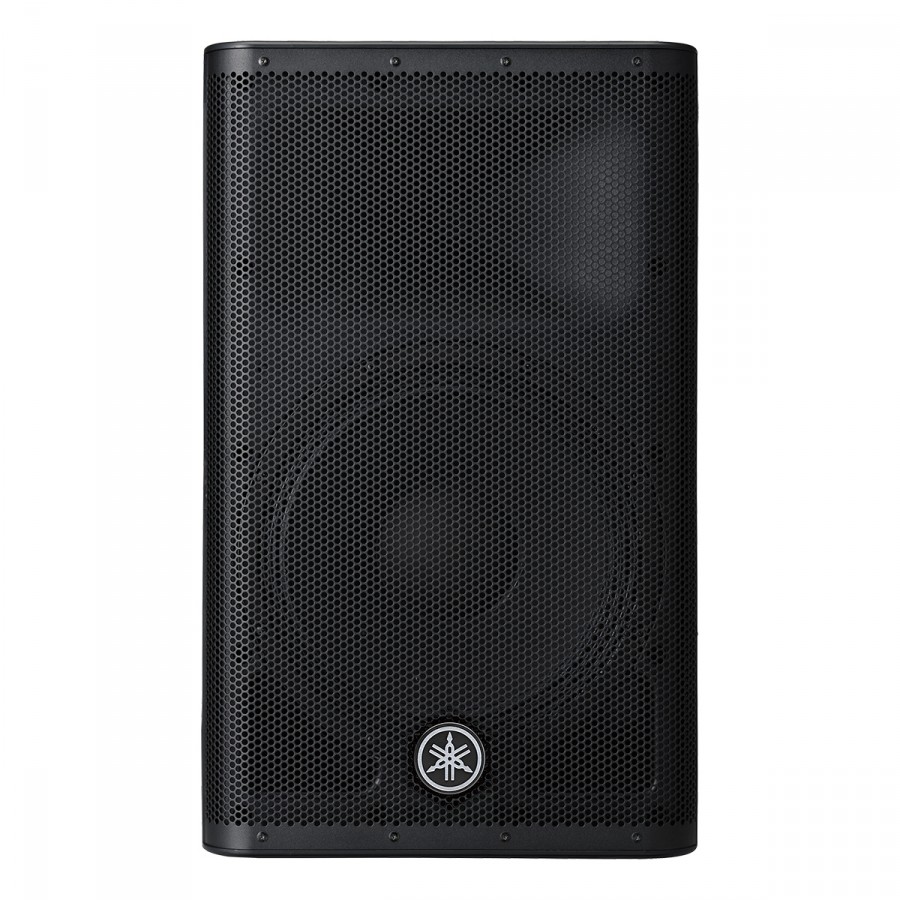

Yamaha DXR 12MK2:

Since its inception, the DRX 12 MKII has embodied the fusion of raw power and technological innovation. The amplified sound reinforcement speakers DRX 12 MKII are the enhanced models, delivering increased acoustic pressure with a lighter 1.75" Neodymium HF compression driver. These versatile speakers, perfect for DJ events, enhance high-definition sound and achieve acoustic pressure levels of 134 dB SPL in a compact design. The DRX 12 MKII series consists of four models suitable for main sound reinforcement, monitors, simple amplification, and more. By combining the series with DXS subwoofers, you gain versatile control over powerful bass.

Yamaha's ingenuity and NEXO's expertise unite for the new DRX 12 MKII lineup. Our team collaborated closely with NEXO, implementing improvements based on the evolving demands of sound reinforcement professionals. The DRX 12 MKII series seamlessly combines raw power with advanced DSP functions, ensuring reliability and outstanding clarity.

Less Weight, More Power

The custom-designed transducers of the DRX 12 MKII series deliver ultimate performance, with high-power output woofers producing low distortion and defined, deep bass. The newly equipped, larger yet lighter 1.75" Neodymium precision HF compression drivers offer accurate midrange and high frequencies up to 20 kHz with less weight.

Wide Dispersion Constant Directivity Horn: The larger HF transducer is mounted on a new 90° x 60° constant directivity horn, designed to minimize radiation pattern deterioration in oblique directions. This achieves a more ideal coverage area without irregularities, providing 90° horizontal x 60° vertical coverage, with wide-frequency sound projected to the edges of the coverage area.

Ultra-Precise 48-Bit DSP Processing = Hi-Fi Sound

The full-range models use FIR-X tuning™ digital filters that optimize phase response at the LF and HF transducer crossover frequency. The result is evident, providing precision and smoothness impossible to achieve with conventional filters. Signals are processed by 48-bit DSPs, ensuring accurate and dynamic sound.

Intelligent Dynamic Control = Clear Sound at All Levels

D-CONTOUR is an intelligent multiband compressor that ensures consistent power at all sound levels. It continuously calculates the best equalization to maintain clarity, musicality, and dynamics, even at extreme levels. The DRX series offers two basic settings: FOH/MAIN mode for front-of-house sound and MONITOR mode for stage monitor use.

Multiple Protections via DSP = Safety

In a passive speaker system composed of separate speakers, filters, and amplifiers, acoustic alignment remains a delicate issue. One advantage of active speakers is that filtering and equalization settings have already been factory-tuned for you. During the development of DRX, DXR, and DXS speakers, we measured and tested the performance and durability of transducers, filtering electronics, and amplifiers through a series of indoor and outdoor listening tests. The results allowed us to obtain optimal limiter settings for each speaker model through precise DSP control. Additionally, our speakers incorporate several DSP-managed protection circuits found in our professional amplifiers of the TXn series.

1100W Class D Amplifiers

New compact and powerful amplifier modules equip all DRX models. All DRX 12 MKII models feature the same Class D amplification module specially designed for HF and LF transducers. This amplifier delivers a power of 1100 watts and can provide an acoustic pressure of 133 dB. Power alone is not enough; an extremely fast response to transient signals contributes significantly to the accuracy and sound quality of the speaker. Universal Switching Power Supply The DRX speakers use a brand-new highly efficient switching power supply that accepts all mains voltages worldwide.

Integrated Three-Channel Mixer

All DRX speakers include a simple three-input mixer, perfect for amplifying a singer and two stereo instruments. Input 1: XLR micro/line with adjustable gain. In the micro position, a high-pass filter is automatically activated to remove unwanted low-frequency noise. Input 2: stereo 6.35mm jacks with separate volume control. Input 3: stereo RCA with separate volume control. HPF Filter: all DRX models have an adjustable high-pass filter (HPF) at 100Hz or 120Hz. This filter ensures proper connection of low-frequency components when using a subwoofer. THRU Output: sends the micro input (XLR) LINK Output: sends the mix of inputs to another speaker (daisy chain) or, in stereo mode, sends the right channel to another speaker for stereo playback (LINK MODE).

Compact ABS Enclosures = Reliability, Aesthetics

The enclosures of the full-range models are made of molded, non-resonant ABS, specifically designed to dampen vibrations and minimize distortion. DRX speakers come with painted metal grilles and ergonomic aluminum handles.

Beveled Design = Front/Rear Versatility

The enclosure design of the DXR12 and DXR15 allows mirror-mode monitor placement, creating a symmetrical sound field for the performer with a larger, more defined "sweet spot." Used in a balanced dual-mono configuration or a stereo monitor mix setup, mirror-mode floor monitoring can considerably enhance your performance.

Dual 35mm Poles = Optimized Coverage

DRX speakers feature two poles for mounting on 35mm tripods or stands. The second pole allows tilting the speaker 7 degrees downward for better coverage of the audience area when speakers are elevated.

Threaded Inserts, Lyre-Type Supports = Easy Integration

DRX speakers are equipped with threaded inserts for mounting with slings (eye bolts not provided). These same threads can be used to attach speakers to lyre-type supports (optional) horizontally or vertically.
Lire la suite

Technical sheet

  • PA power speaker 601 to 1000 watts RMS
  • Type of PA speaker Stage & FOH monitor
  • Frequency range: 52hz-20khz
  • Output power: dynamic: 1100W(LF:950wHF:150w)
  • Maximum output: 134db
  • I-O connectors: INPUT : XLR-3-3-3-31 x1 x1 x1, INPUT2 : smartphone x2, INPUT3 : RCA PIN x 2, THRU : XLR3-32 x 1 (parallel with INPUT 1), LINK OUT : XLR x 1
  • Power supply: 100V - 240V, 50Hz/60Hz
  • Dimensions:362mmx601mmx601mmx350mm
  • Weight: 18.6kg
