Active subwoofer

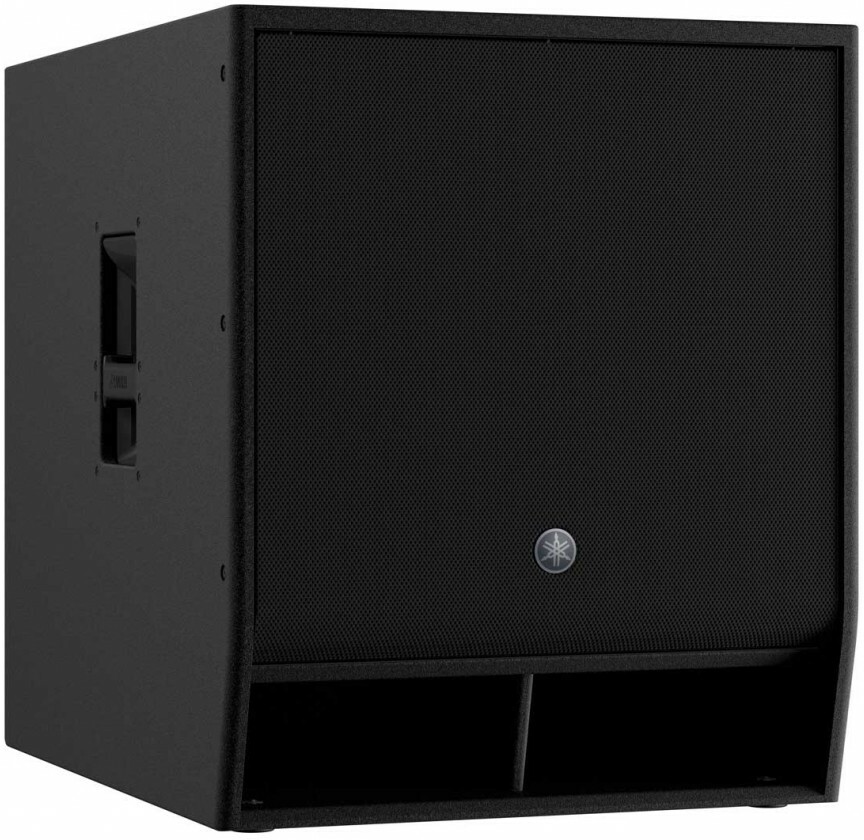

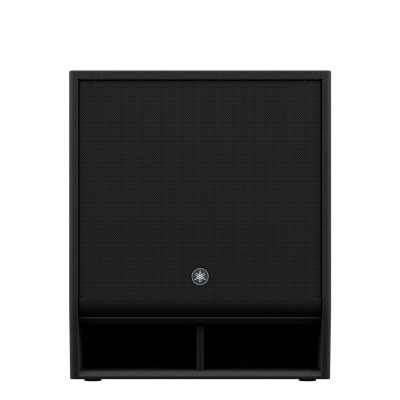

The Yamaha DXS18 XLF is a 1600W powered subwoofer.
The cabinet of the DXS XLF subwoofer has a durable Polyurea finish; this coating provides excellent scratch, impact and weather resistance.
Built-in D-XSUB subwoofer processing gives you full access to what's going on in the low frequencies: NORMAL mode gives a perfectly balanced bass response, while BOOST mode provides more controlled, accurate bass with even more punch. The XTENDED LF mode allows you to go even lower, for an even more pronounced sound foundation: the response curve then drops to incredible values for a subwoofer of these dimensions. Usually, the higher the sound pressure level, the more difficult it is to control the directionality of the bass energy. This can lead to the sound spreading out on stage, and can affect the overall sound quality. Configurations with two or more DXS XLF subwoofers allow you to work in cardioid mode, where the bass level radiated backwards on the stage side is seriously attenuated, while it is reinforced on the audience side. The result is a much cleaner sound on stage. Without a doubt, your full-range DZR speakers will take your performance to the next level if you complement them with powerful DXS XLF active subwoofers.
The cabinet of the DXS XLF subwoofer has a durable Polyurea finish; this coating provides excellent scratch, impact and weather resistance.
Built-in D-XSUB subwoofer processing gives you full access to what's going on in the low frequencies: NORMAL mode gives a perfectly balanced bass response, while BOOST mode provides more controlled, accurate bass with even more punch. The XTENDED LF mode allows you to go even lower, for an even more pronounced sound foundation: the response curve then drops to incredible values for a subwoofer of these dimensions. Usually, the higher the sound pressure level, the more difficult it is to control the directionality of the bass energy. This can lead to the sound spreading out on stage, and can affect the overall sound quality. Configurations with two or more DXS XLF subwoofers allow you to work in cardioid mode, where the bass level radiated backwards on the stage side is seriously attenuated, while it is reinforced on the audience side. The result is a much cleaner sound on stage. Without a doubt, your full-range DZR speakers will take your performance to the next level if you complement them with powerful DXS XLF active subwoofers.
Technical sheet
- PA power speaker 1001 to 1500 watts RMS
- Type of PA speaker FOH speaker
- Speaker type : Powered Subwoofer, bass-reflex
- Frequency range (-10dB) : 30Hz - 150Hz
- Sampling frequency rate : 96kHz and FIR Filter
- A/D D/A Converters : 96kHz AD/DA
- Maximum output level (1m; on axis) : 136dB SPL *1
- Power rating : Dynamic : 1600W
- Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
- USB2.0 Host 5V 500mA for USB memory DATA storage/load
- IEC AC inlet x1 (V-Lock)
- Amplifier class :Class-D
- Cooling : Fan cooling, Variable speeds
- Power consumption : 40W (Idle), 180W (1/8)
- Handle : Aluminium die-cast, Side x2
- Dimensions : W 550mm H 657 mm, D 720 mm.
- Weight :48.9 kg
