Active full-range speaker

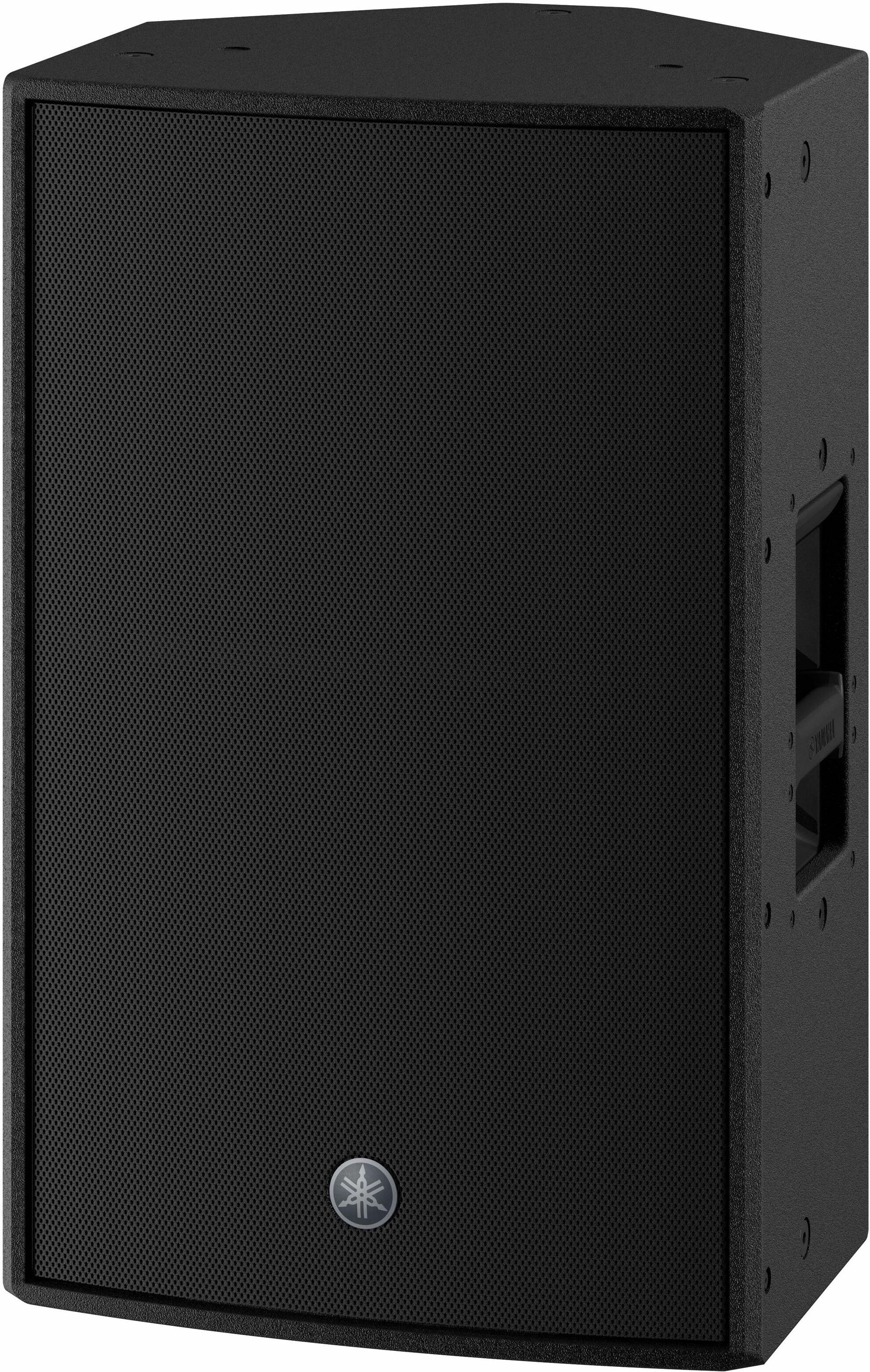

The Yamaha DZR 12 is an amplified speaker of 2000W in 12 ".
They benefit from 96KHZ DSP processing, advanced FIR-X Tuning filtering technology and 2-channel inputs allowing, among other things, the connection of microphones.

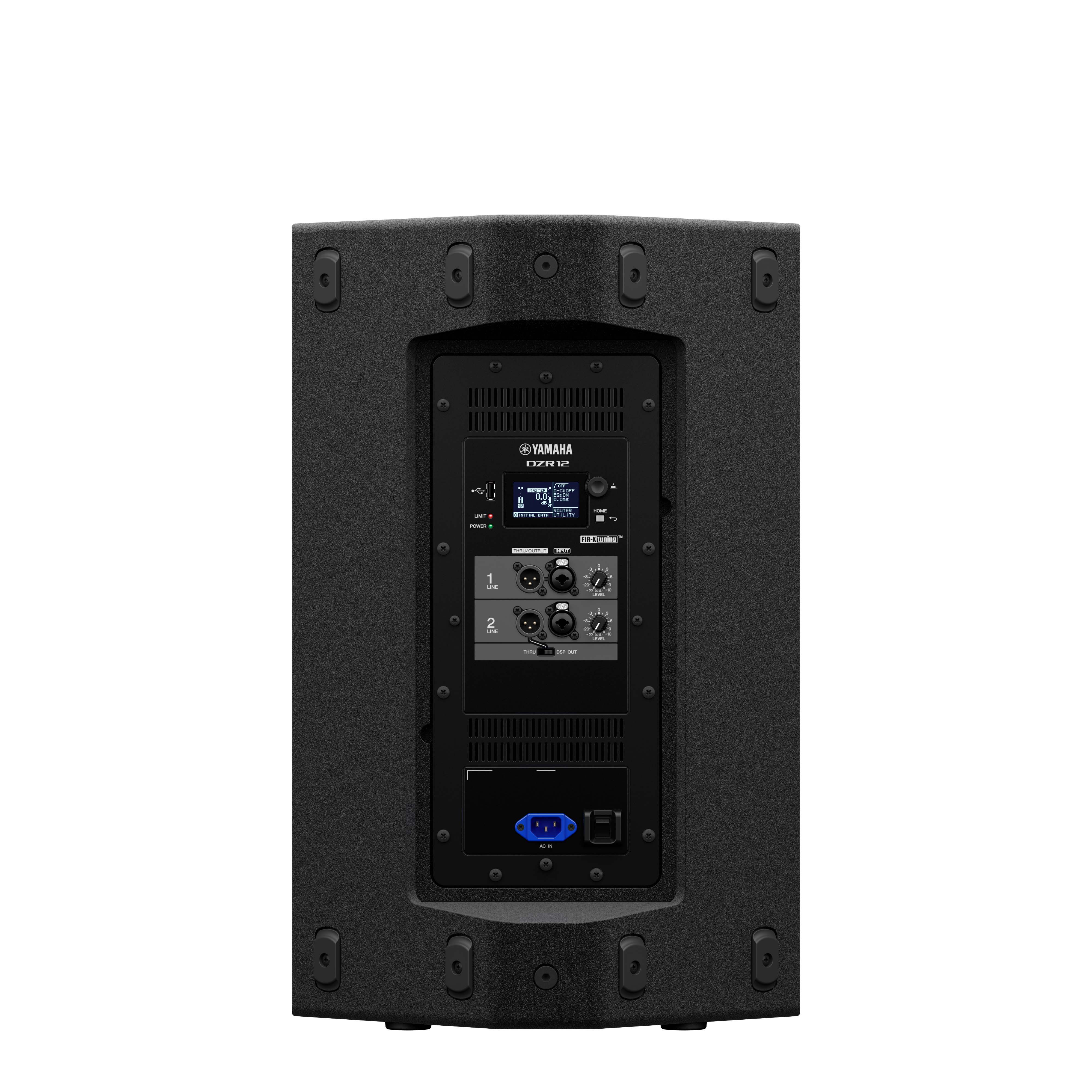

At the back an LCD screen to access all the information you need regarding settings, volume levels and more.
The DZR12 also features a constant directivity rotary horn for a variety of installation possibilities.
They benefit from 96KHZ DSP processing, advanced FIR-X Tuning filtering technology and 2-channel inputs allowing, among other things, the connection of microphones.
At the back an LCD screen to access all the information you need regarding settings, volume levels and more.
The DZR12 also features a constant directivity rotary horn for a variety of installation possibilities.
Lire la suite
Technical sheet
- PA power speaker Above 2001 watts RMS
- Type of PA speaker Stage & FOH monitor
- Type: 2-way speaker type Bass-Reflex
- Loudspeaker speaker: 12 "woofer with 3" spool
- High frequency loudspeaker: 1 "compression tweeter with 2" spool
- Frequency response: 39 Hz - 20 kHz
- Sound pressure level: 139 dB
- Amplifier type: class D
- Power of the amplifier: 1300 W RMS / 2000 W peak
- Woofer: 920 W RMS / 1000 W peak
- Tweeter: 380 W RMS / 1000 W peak
- Cover: 90 ° x 60 °, swiveling (H x V)
- Separation frequency: 1.8 kHz (FIR-X)
- Input Connectors: 2 x XLR / TRS combo
- Output connectors / Thru: 2 x XLR
- sampling frequency: 96 kHz and FIR filter
- Handles: 2 x cast aluminum
- Angle for backstage: 50 °, symmetrical
- Headers: 2 x 35 mm (0 ° or 7 °)
- Fixing points: 12 x M10
- Dimensions: 410 x 646 x 394 mm (W x H x D)
- Weight: 21.4 kg
