Active full-range speaker
the DZR 315 is a 15 "active speaker of 2000 Watts.

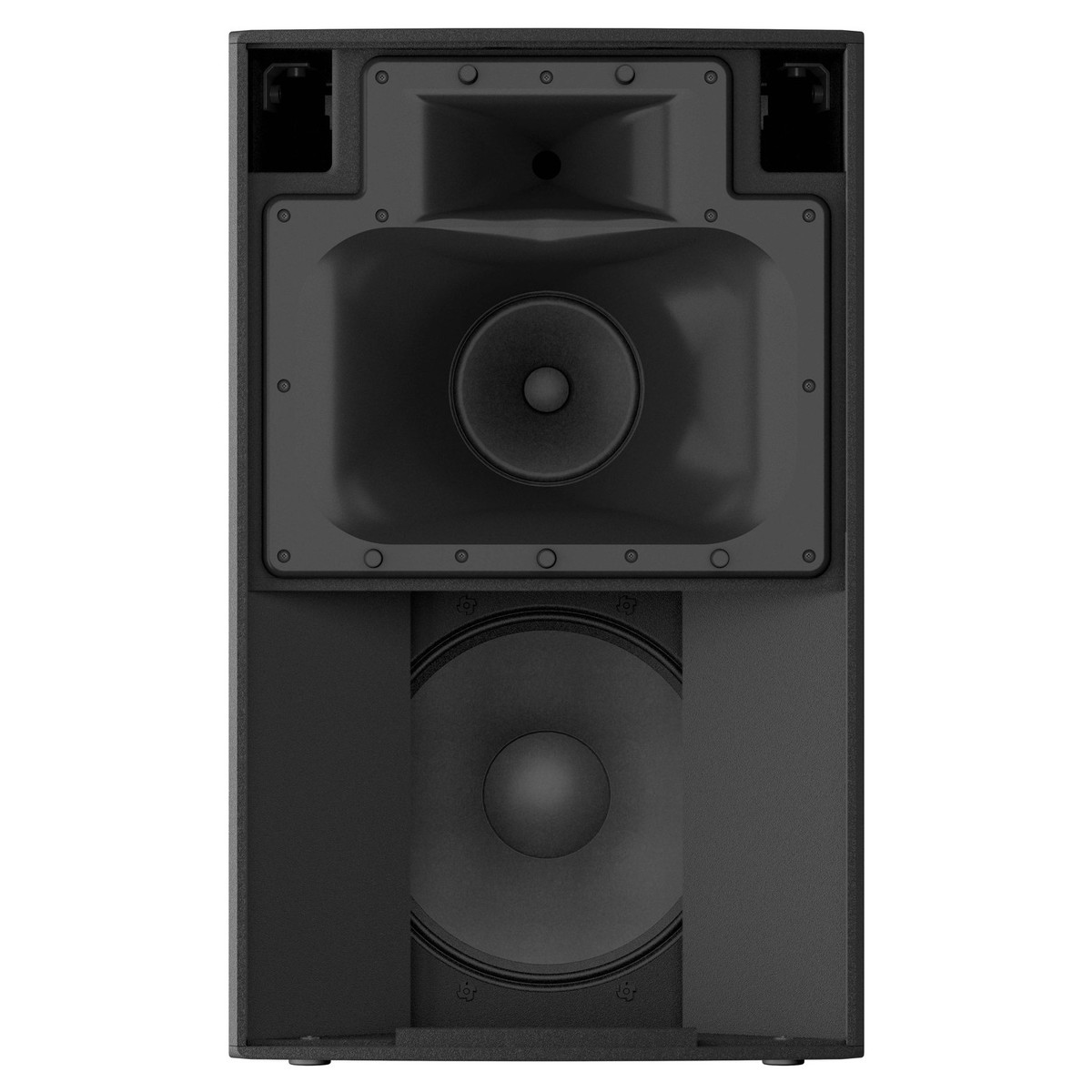

The Yamaha DZR315 is a 15 "3-way active sound system designed for commercial applications.
- 15-inch woofer, 8-inch midrange driver and 2-inch tweeter.
- Built-in class D amplifier, it delivers a power of 2 kW and a sound pressure level of 143 dB in peak.
Its speakers produce powerful bass, clear midrange and twinkling highs. The 96 kHz DSP processors that it is equipped with ensure high performance. - - Advanced FIR-X Tuning filter technology for exceptional sound quality and clarity. Its rear panel is equipped with an LCD screen with 2-channel inputs to allow you to control your input sources and parameters.
The Yamaha DZR315 is a 15 "3-way active sound system designed for commercial applications.
- 15-inch woofer, 8-inch midrange driver and 2-inch tweeter.
- Built-in class D amplifier, it delivers a power of 2 kW and a sound pressure level of 143 dB in peak.
Its speakers produce powerful bass, clear midrange and twinkling highs. The 96 kHz DSP processors that it is equipped with ensure high performance. - - Advanced FIR-X Tuning filter technology for exceptional sound quality and clarity. Its rear panel is equipped with an LCD screen with 2-channel inputs to allow you to control your input sources and parameters.
Lire la suite
Technical sheet
- PA power speaker 1001 to 1500 watts RMS
- Type of PA speaker Stage & FOH monitor
- Type: 3-way speaker type Bass-Reflex
- Loudspeaker speaker: 15 "woofer with 3" spool
- midrange speaker: 8 "transducer with 1.5" spool
- High frequency loudspeaker: 1 "compression tweeter with 2" spool
- Frequency response: 31 Hz - 20 kHz
- Sound pressure level: 143 dB
- Amplifier type: class D
- Power of the amplifier: 1300 W RMS / 2000 W peak
- Woofer: 920 W RMS / 1000 W peak
- Mediums / tweeter: 380 W RMS / 1000 W peak
- Coverage: 75 ° x 50 ° (H x V)
- Separation frequency: 700 Hz (FIR-X) / 2.5 kHz passive
- Input Connectors: 2 x XLR / TRS combo
- Output connectors / Thru: 2 x XLR
- sampling frequency: 96 kHz and FIR filter
- Handles: 2 x cast aluminum
- Fixing points: 16 x M10
- Dimensions: 550 x 897 x 520 mm (W x H x D)
- Weight: 41.6 kg
