Yamaha MG16XU

  • Read reviews (4)
  • Related accessories
  • Similar products

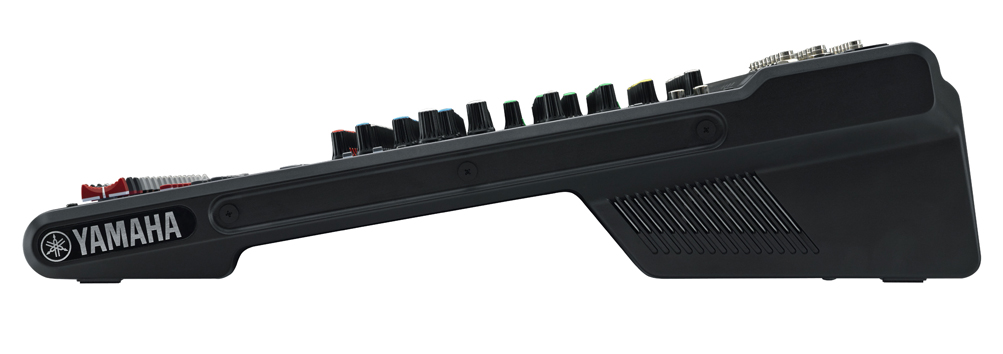

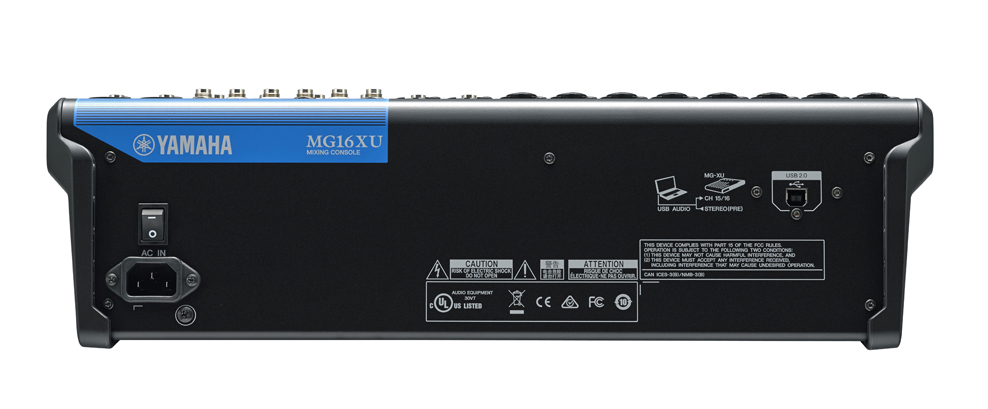

  • Yamaha Mg16xu - Analog mixing desk - Main picture
  • Yamaha Mg16xu - Analog mixing desk - Variation 1
  • Yamaha Mg16xu - Analog mixing desk - Variation 2
  • Yamaha Mg16xu - Analog mixing desk - Variation 3
  • Ref : 34663
549,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 2/3 days
Stock in store
See availability. Store
•
Star's Music Bordeaux
•
Star's Music Bruxelles
•
Star's Music Lille
•
Star's Music Lyon
•
Star's Music Toulouse
Variation(s) of this product.

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.
Logo Yamaha

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

Unveiling the third generation of Yamaha MG series with the Yamaha MG16XU mixing console, a model that packs quite a punch for its small size!

Its USB 2.0 interface allows 24-Bit/192kHz sampling for high resolution stereo recording.

These consoles offer serious presets and natural , soft and airy highs , very low distortion and an impressive bandwidth.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 10 to 22 channels
  • Number of channels 16 channels
  • Mixing capability
  • On-board processors
  • SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O: Phantom power +48 V
  • Digital I/O : USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
  • Input Channels
  • Mono[MIC/LINE]: 8
  • Mono/Stereo[MIC/LINE]: 2
  • Stereo[LINE] : 2
  • Output Channels
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES :1
  • AUX SEND: 4
  • GROUP OUT: 4
  • Bus
  • Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
  • Input Channel Function:
  • PAD: 26 dB (Mono)
  • HPF : 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
  • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • General specifications
  • Total harmonic distortion :0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk: -78 dB
  • Power requirements : AC 100 – 240 V, 50 / 60 Hz
  • Power consumption: 30 W
  • Dimensions
  • W: 444 mm (17.5")
  • H: 130 mm (5.1")
  • D: 500 mm (19.7")
  • Net weight: 6.8 kg (15.0 lbs.)
  • Accessories: Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
  • Others
  • Operating Temperature: 0 to +40?C
More specifications
Fewer specifications

User reviews : 4 notice

4,3 5
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
Leave review
posted 2022/03/04 09:55:49 KHAMSOUK H. Certified purchase
Livraison rapide, Super produit, le prix est très raisonnable, à recommander !
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
posted 2020/07/04 16:23:57 MATHIEU B. Certified purchase
Etant pianiste indépendant, mais nul en ce qui concerne la sono et les branchements, je recherchais une table SIMPLE d'utilisation permettant de brancher 4 périphériques maxi. J'ai trouvé dans cette table l'appareil idéal, c'est ultra simple il n'y a pas à se poser de question. Autre atout : l'appareil semble robuste (plus que ses concurrents du même prix). Trouvaille bien pratique : les orifices des lignes 1 et 2 qui permettent de mettre soit un jack ordinaire, soit un XLR. Attention ce modèle est dépourvu d'effets (pour cela voir le modéle "X").
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
posted 2019/09/03 09:29:11 CLAUDE M.
Excellent produit. Très fiable et facile et logique dans son utilisation.
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
posted 2019/01/04 13:06:08 OLIVIER P. Certified purchase
Cette table de mixage couplée avec la console DJ apporte un véritable plus en termes de puissance et d'effets. Excellent matériel.
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
Read all reviews
