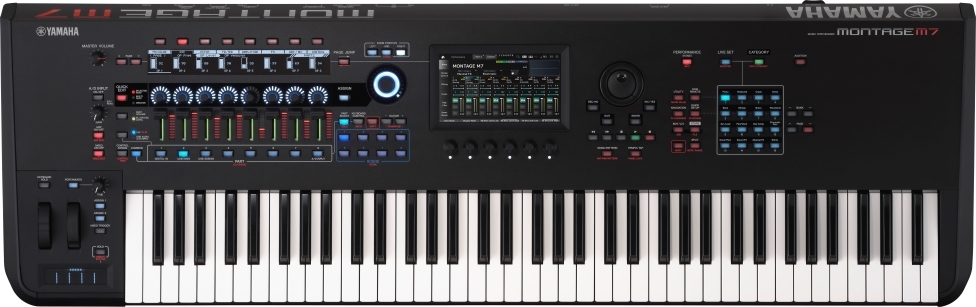

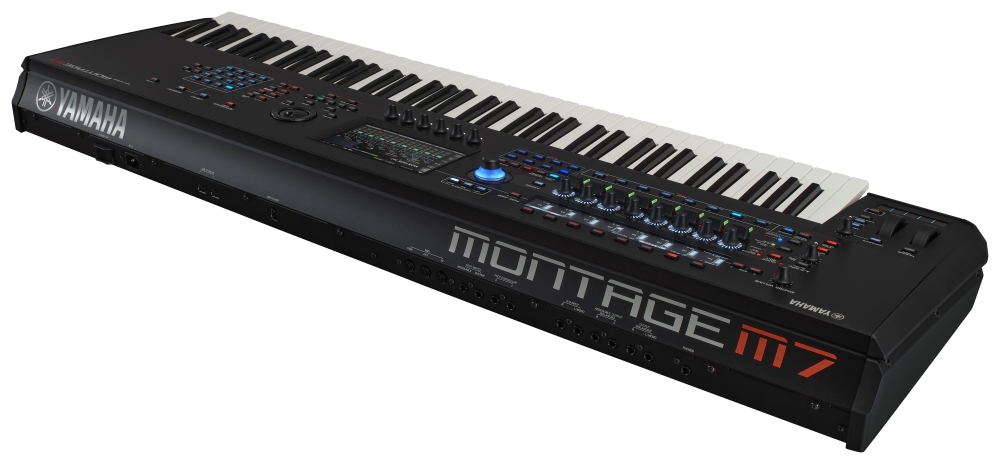

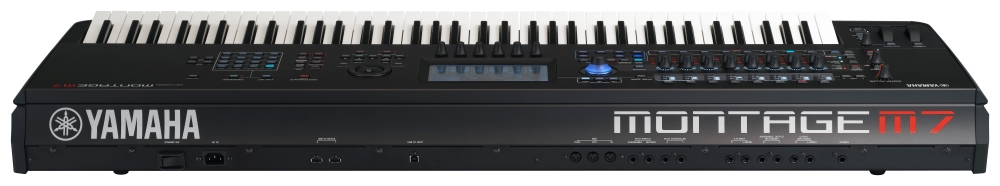

Yamaha Montage M7

For this product :

The Yamaha MONTAGE M7 is Yamaha's next-generation flagship synthesizer. It delivers incredible sound thanks to its three motors that recreate warm vintage analog synths, cutting-edge FM synths and ultra-realistic instruments. The Motion Control engine adds a unique fourth dimension of control to your musical creation.

Unlike traditional hardware synthesizers, MONTAGE M7 seamlessly links stage/studio workflows thanks to its computer connectivity and integration. Designed for professional keyboardists who need 76 keys for splits and overlays, MONTAGE M7 ushers in a new era of sound, control and workflow.

New AN-X engine

A revolution in authentic analog sound, control and behavior, the AN-X engine recreates the warm character of an analog synthesizer with a host of sophisticated modulation options.

• Three oscillators with 5 waveforms (Saw 1, Saw 2, Triangle, Square, Sine) + noise generator
• Two filters with 10 filter types
• Pulse width modulation (PWM)
• Oscillator self-synchronization
• Ring modulation, FM and wave shaper
• EG amplifier with drive, LFO for amplitude and filter
• Voltage drift and aging parameters to simulate vintage behavior
• Motion Control integration for expressive and unique analog sounds

Enhanced AWM2

Experience realism and detail with MONTAGE M's enhanced AWM2. With up to 128 elements per part, AWM2 delivers smoother transitions and ultra-high definition for pianos, strings, drums and more.

Total polyphony of 400 notes

A clear improvement on the 256 notes of the original MONTAGE: MONTAGE M reaches up to 400 notes spread over its three engines.

• 128 notes for AWM2 parts (predefined waveforms)
• 128 notes for AWM2 parts (user waveforms)
• 128 notes for FM-X parts
• 16 notes for AN-X parts

Global improvements and new content

Memory upgrade: Wave preset 9.97 GB (vs. 5.67 GB) and user flash memory 3.8 GB (vs. 1.75 GB). A host of new sounds and instruments: pianos, orchestra, drums and more.

FM-X, rotary VCM and drawbars

The 8-operator FM-X engine revives Yamaha's heritage for timbres ranging from clear "bell-like" to aggressive and evolving. The VCM rotary speaker effect and drawbar adjustment simulate the vintage behavior of classic organs.

Extensive management and libraries

16 library slots to host up to 10,240 additional performances (in addition to over 2,700 presets), with quick searches by category, name and attributes.

Pure Analog Circuit 2

The Pure Analog Circuit (PAC2) reduces noise and improves dynamic range, crosstalk, low-frequency phase and distortion, delivering a clearer sound at all volumes, with more detailed midrange/presence.

GEX action with polyphonic aftertouch (M8x MOUNT only)

Available exclusively on MONTAGE M8x: GEX and polyphonic aftertouch to modulate each note held independently, with grand piano-style key repeat behavior.

New performance controls

5-segment ribbon with dedicated HOLD button, new KEYBOARD HOLD button for holding chords while editing, plus dedicated portamento on/off and portamento time settings.

Dedicated keyboard, part and scene control

Dedicated keyboard, part and scene buttons to control 16 parts per performance: intuitive, efficient control, ideal for live performance.

High-resolution control and motion control

All controls (keyboard, faders, Super Knob, Sustain, motors) are now high-resolution for smoother, more analog behavior. The Motion Control engine includes Motion Sequencer, Super Knob, Envelope Follower, etc.

Improved lighting and interface

New LED lights and colors on faders, Performance, Live Set and Category Search for instant visual feedback and a vastly improved interface.

Softsynth ESP plugin (coming soon)

The Expanded Softsynth Plugin (ESP) reproduces MONTAGE M in your DAW. Free for registered owners, it lets you create, edit and mix performances without hardware.

Faster, more intuitive navigation

New 512×64 LCD display, 6 touchscreen buttons and PAGE JUMP send content to the large 7? TFT color touchscreen for in-depth editing. The dedicated navigation button offers performance preview and direct access to parameters.

USB MIDI and multi-channel audio interface

32-output / 6-input USB audio interface for streamlined MIDI recording, virtual instrument control and multitrack recording via a single cable.

MONTAGE M7 vs MONTAGE comparison

• Keyboard

  • MONTAGE M7: 76 keys for splits/superpositions, aftertouch
  • MONTAGE: 61/76/88 depending on version, aftertouch depending on model

• Sound engines

  • M7 ASSEMBLY: AN-X + enhanced AWM2 + FM-X
  • ASSEMBLY: AWM2 + FM-X (without AN-X)

• Polyphony

  • M7 ASSEMBLY: up to 400 notes
  • MONTAGE: up to 256 notes

• Memory

  • MONTAGE M7: Preset 9.97 GB + User Flash 3.8 GB
  • MONTAGE: Preset 5.67 GB + User Flash 1.75 GB

• Interface & display

  • MONTAGE M7: 512×64 LCD + 7? touch TFT + PAGE JUMP + 6 touch buttons
  • MONTAGE: 7? touch screen without PAGE JUMP

• Controls

  • MONTAGE M7: 5-segment ribbon, enhanced LEDs, dedicated portamento
  • ASSEMBLY: without 5-segment ribbon and enhanced LEDs

• Connectivity

  • MONTAGE M7: USB audio 32 out / 6 in, ESP plugin
  • MOUNT: USB audio 16 out / 3 in
