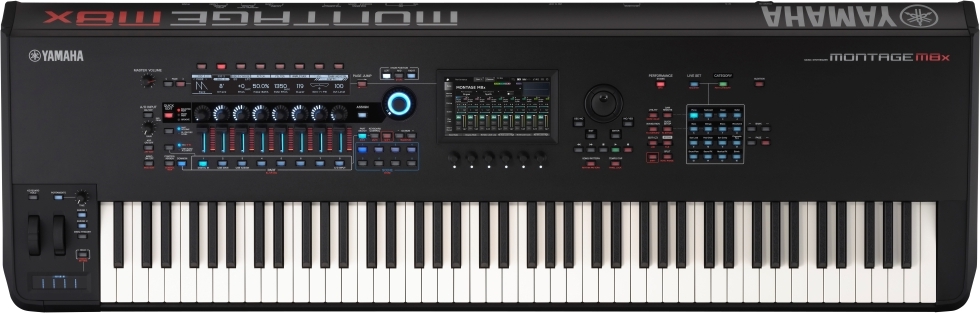

Yamaha Montage M8X

For this product :

The Yamaha MONTAGE M8x is Yamaha's next-generation flagship synthesizer. It delivers exceptional sound thanks to its three motors that recreate warm vintage analog synths, cutting-edge FM synths and ultra-realistic instruments. The Motion Control engine adds a unique fourth dimension of control to your musical creation.

Unlike traditional hardware synthesizers, MONTAGE M8x seamlessly links stage and studio workflows with computer connectivity and integration. Designed for pianists seeking weighted 88-key action and sound designers wanting expressive polyphonic aftertouch, MONTAGE M8x ushers in a new era of sound, control and workflow.

NEW AN-X MOTOR

A revolution in authentic analog sound, control and behavior, the AN-X engine recreates the warm, classic sound of an analog synthesizer with a host of sophisticated modulation options.

• Three oscillators with 5 waveforms (Saw 1, Saw 2, Triangle, Square, Sine) + noise generator
• Two filters with 10 filter types
• Pulse width modulation
• Oscillator self-synchronization
• Ring, FM and wave shaper modulation
• EG amplifier with drive
• LFO for amplitude and filter
• Voltage drift and aging parameters to simulate vintage behavior
• Integrated with Motion Control to create unique, expressive analog sounds

AWM2 IMPROVED

Experience realism and detail with MONTAGE M's enhanced AWM2. Offering up to 128 elements per part, AWM2 enables smoother transitions and ultra-high definition for pianos, strings, drums and more.

TOTAL POLYPHONY OF 400 NOTES

A significant improvement over the 256 notes of the original MONTAGE: MONTAGE M offers up to 400 notes of polyphony spread across its three engines.

• 128 notes for AWM2 parts (predefined waveforms)
• 128 notes for AWM2 parts (user waveforms)
• 128 notes for FM-X parts
• 16 notes for AN-X parts

Global improvements and new content

Memory upgrade: Wave preset increased to 9.97 GB (vs. 5.67 GB) and user flash memory to 3.8 GB (vs. 1.75 GB). A host of new sounds and instruments: pianos, orchestra, drums and more.

FM-X and VCM rotary/traction behavior

The 8-operator FM-X engine continues Yamaha's heritage for timbres ranging from clear "bell-like" to aggressive and evolving. The VCM rotary speaker effect and new drawbar fader setting simulate the vintage behavior of classic organs.

Extensive management and libraries

16 library slots to host up to 10,240 additional performances (in addition to over 2,700 presets), with quick searches by category, name and attributes.

PURE ANALOG CIRCUIT 2

Pure Analog Circuit 2 reduces noise and improves dynamic range, crosstalk, low-frequency phase and distortion, delivering a clearer sound at all volumes with more detailed midrange and presence.

GEX ACTION WITH POLYPHONIC AFTERTOUCH (M8x MOUNT ONLY)

Available exclusively on MONTAGE M8x: GEX Action with polyphonic aftertouch, a revered control found on the legendary CS-80 and DX1. Polyphonic Aftertouch lets you modulate held notes individually according to pressure, with a key-repetition behavior akin to a grand piano.

NEW PERFORMANCE CONTROLS

A 5-segment ribbon controller with HOLD button, a new KEYBOARD HOLD button for holding chords during editing, as well as a portamento on/off button and a dedicated portamento time button.

DEDICATED KEYBOARD, PART AND SCENE CONTROL

Dedicated keyboard, part and stage buttons to control 16 parts per performance: intuitive control, particularly effective for live performances.

HIGH-RESOLUTION CONTROL & MOTION CONTROL ENGINE

All performance controls - from keyboard and faders to Super Knob and Sustain, not forgetting the sound engine - are now in high-resolution, for smoother, more analog behavior. The Motion Control engine offers tempo-synchronized motion sequences, Super Knob, Envelope Follower and more.

ENHANCED LED LIGHTS AND COLORS

Enhanced LEDs on the faders, Performance, Live Set and Category Search provide clear, instant visual feedback, greatly improving the user interface.

SOFTSYNTH ESP PLUGIN (COMING SOON)

The Expanded Softsynth Plugin (ESP) reproduces MONTAGE M in your favorite DAW. Free for registered owners, it will enable you to create, edit and mix MONTAGE M performances without hardware.

FASTER, MORE INTUITIVE NAVIGATION

New 512 × 64 LCD screen, 6 touchscreen display buttons and PAGE JUMP button to send content to the 7? TFT color touchscreen for further editing. The dedicated navigation button previews a performance and provides direct access to parameters.

USB MIDI AND MULTICHANNEL AUDIO INTERFACE

32-output / 6-input USB audio interface for streamlining MIDI recording, virtual instrument control and multitrack audio via a single cable, so you can devote more time to creativity.

MONTAGE M8x vs MONTAGE M7 comparison

• Keyboard & mechanics

  • MONTAGE M8x: 88 weighted keys (GEX), piano feel, advanced key repeat
  • MONTAGE M7: 76 keys, light action for splits/superpositions

• Aftertouch

  • M8x ASSEMBLY: exclusive polyphonic aftertouch
  • M7 ASSEMBLY: channel aftertouch (classic)

• Motors & polyphony

  • M8x ASSEMBLY: AN-X + enhanced AWM2 + FM-X, up to 400 voices
  • M7 ASSEMBLY: same motors, up to 400 voices

• Memory & content

  • MONTAGE M8x: Preset 9.97 GB + User Flash 3.8 GB, new pianos/Orch/Drums
  • M7 ASSEMBLY: identical

• Controls & interface

  • MONTAGE M8x: 5-segment ribbon, enhanced LEDs, PAGE JUMP, dedicated navigation
  • MONTAGE M7: same interface improvements

• Connectivity

  • MONTAGE M8x: USB audio 32 out / 6 in, ESP plugin
  • MONTAGE M7: USB audio 32 out / 6 in, ESP plugin
