Active studio monitor

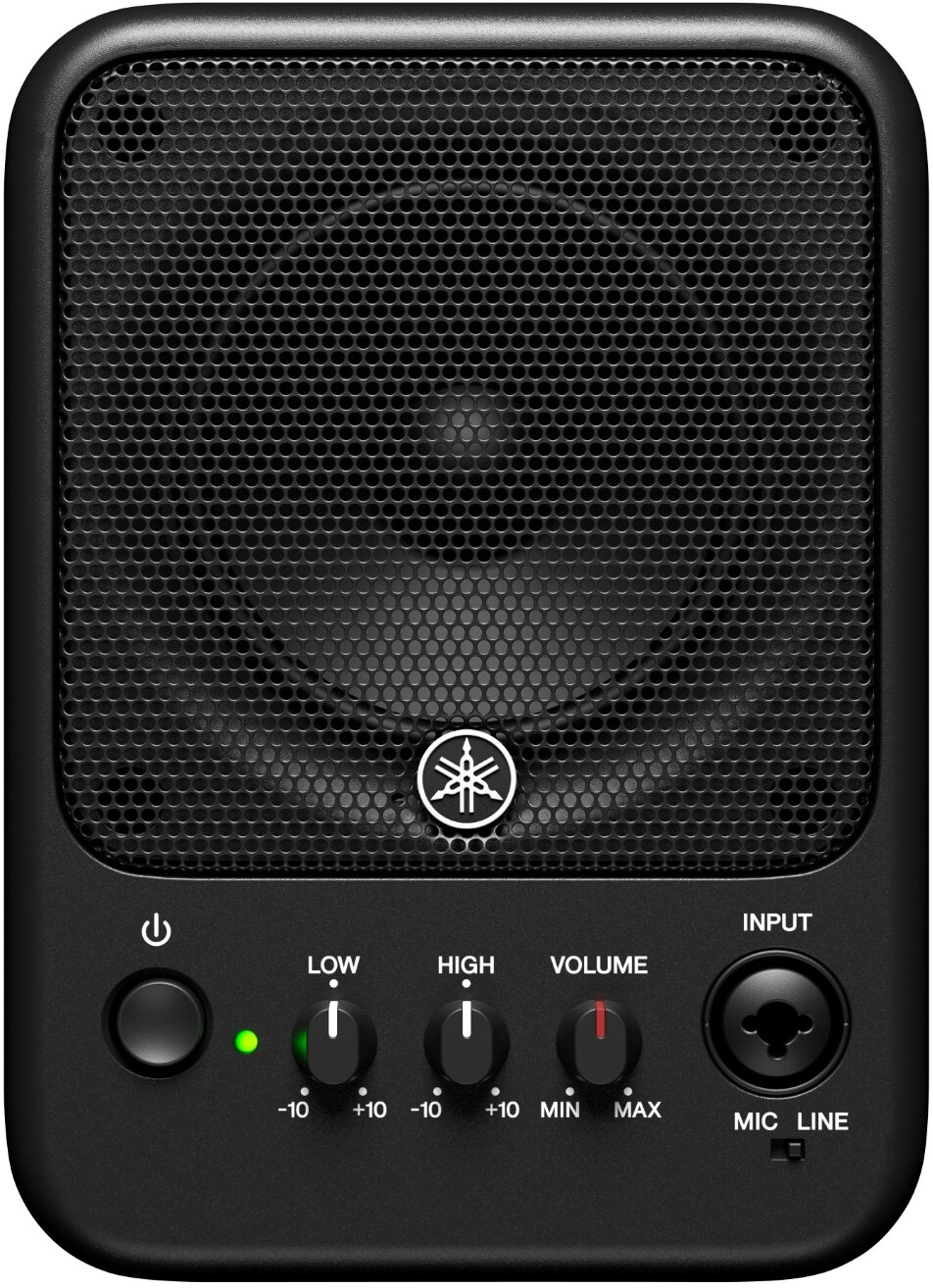

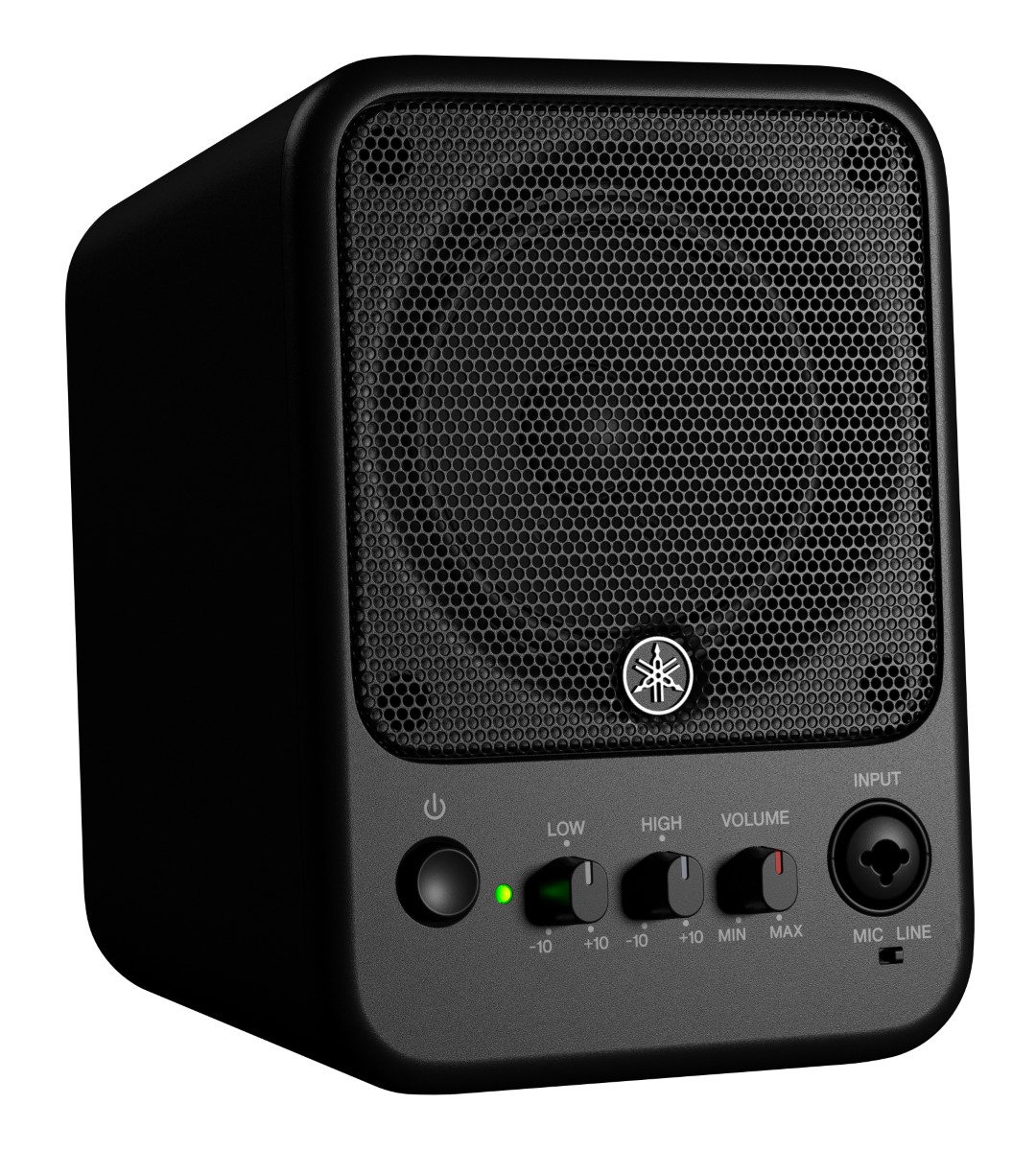

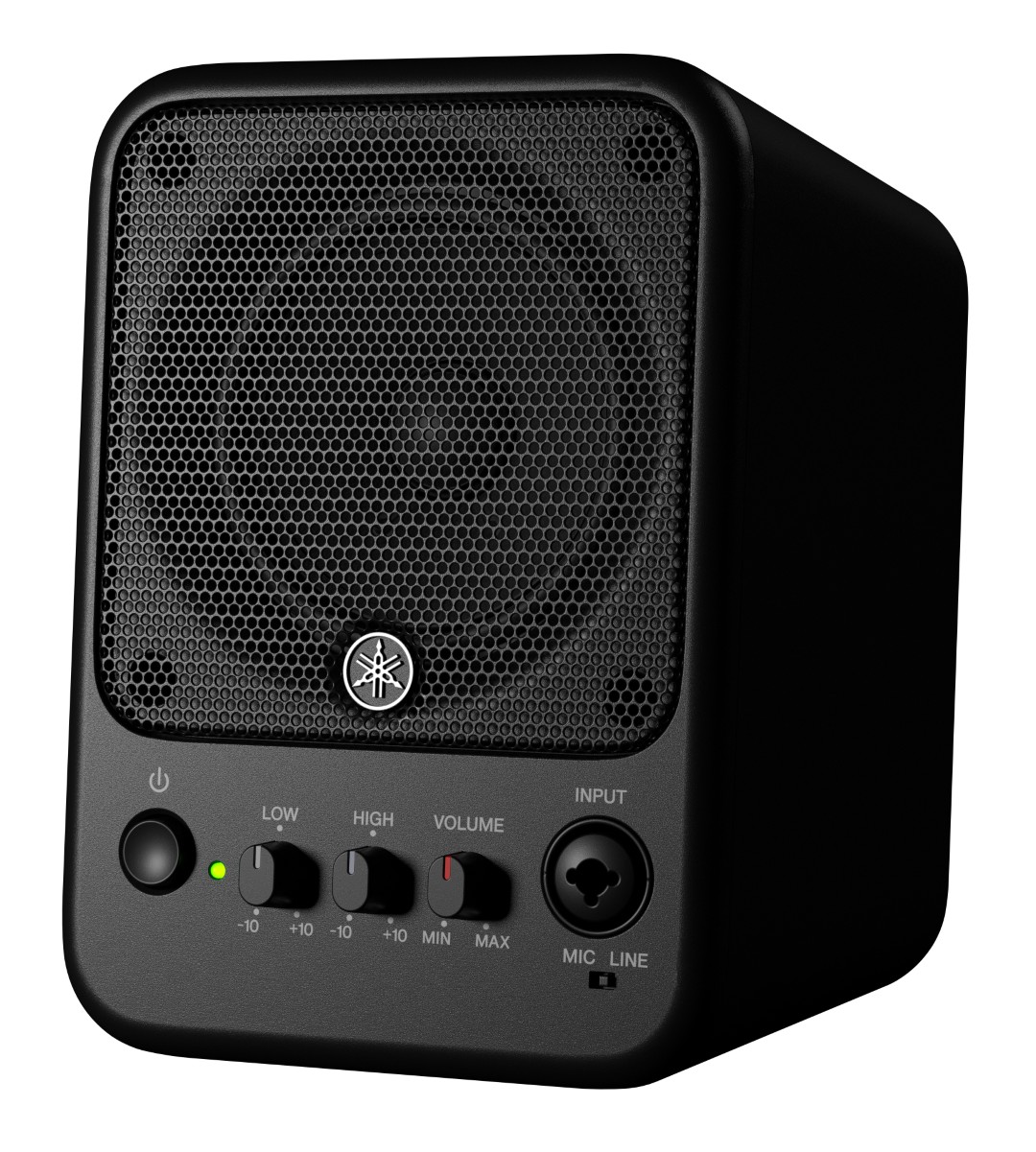

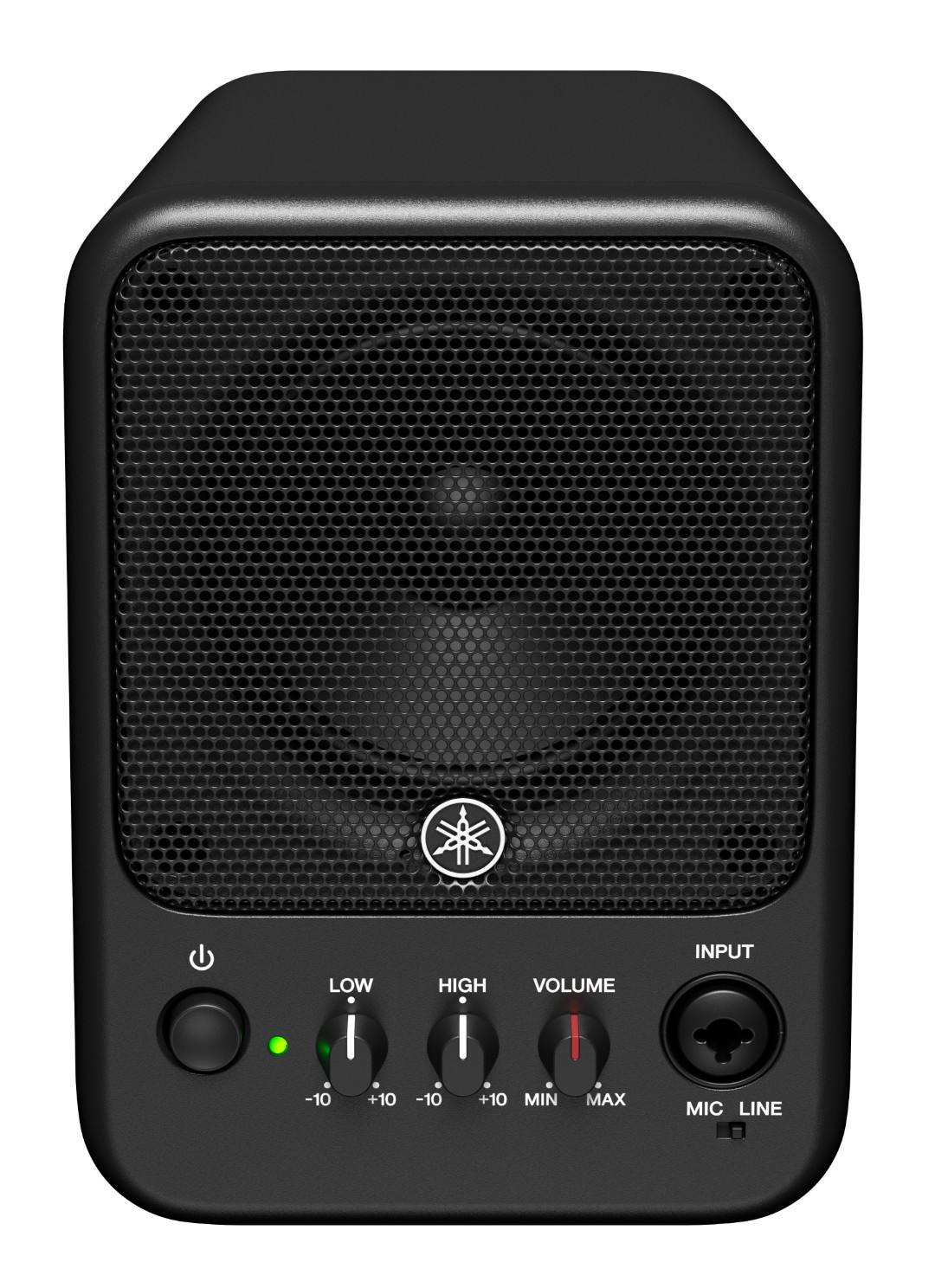

The Yamaha MS101-4 is a compact bass-reflex powered monitor speaker, ideal for studio, stage or professional audio applications.
It features a 4" full-range driver powered by a Class D amplifier delivering 20 W RMS (30 W peak), with a frequency response of 77 Hz to 20 kHz and a maximum SPL of 115 dB.
Versatile, it features XLR/TRS, 6.3 mm jack and 3.5 mm mini-jack combo inputs, all internally mixed, as well as volume and tone controls (bass/treble).
It features a 4" full-range driver powered by a Class D amplifier delivering 20 W RMS (30 W peak), with a frequency response of 77 Hz to 20 kHz and a maximum SPL of 115 dB.
Versatile, it features XLR/TRS, 6.3 mm jack and 3.5 mm mini-jack combo inputs, all internally mixed, as well as volume and tone controls (bass/treble).
Lire la suite
Technical sheet
- Monitor color Black
- Monitor conditioning One piece
- Frequency response
- 77 Hz - 20 kHz
- Sound pressure level (SPL max)
- 115 dB
- Amplifier type
- Class D
- Power
- 20 Watts RMS
- 30 Watts peak
- Subwoofer
- 4"
- Tweeter
- 1"
- Equalization
- 2-band EQ

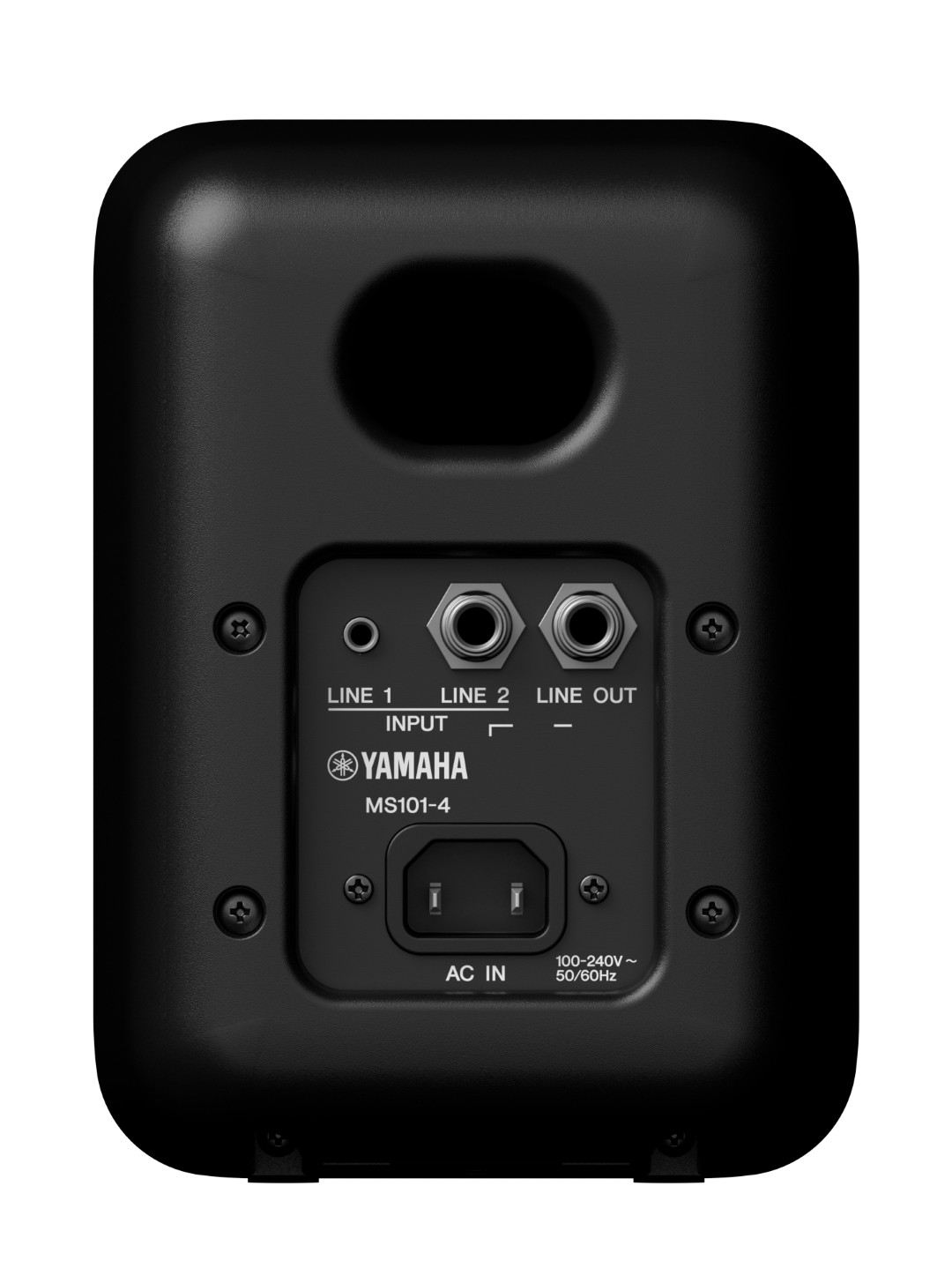

- Inputs
- 1x combo XLR / jack 6.3 mm
- 1x 6.3 mm jack
- 1x mini-jack 3.5 mm
- Output
- 1x 6.3 mm jack

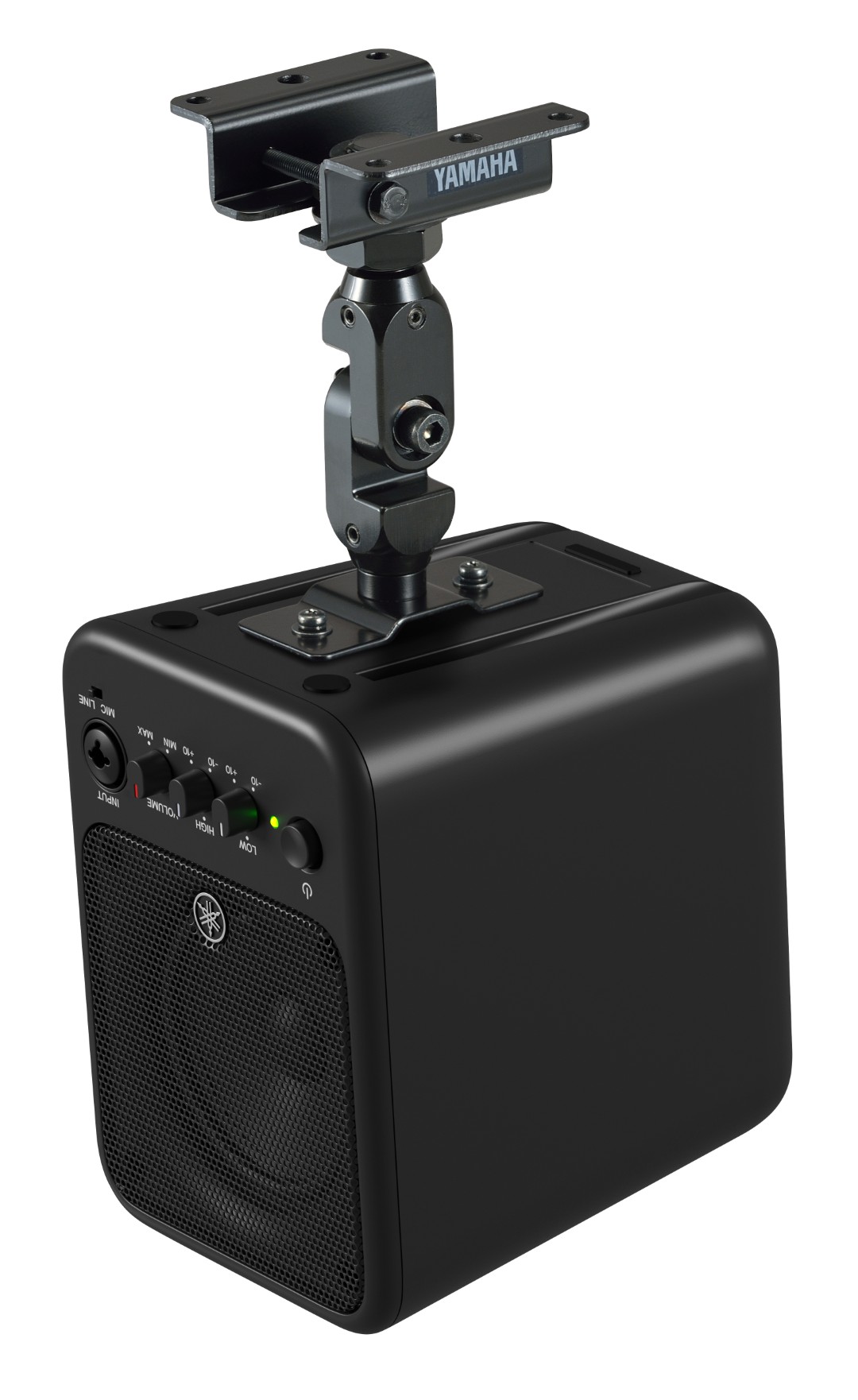

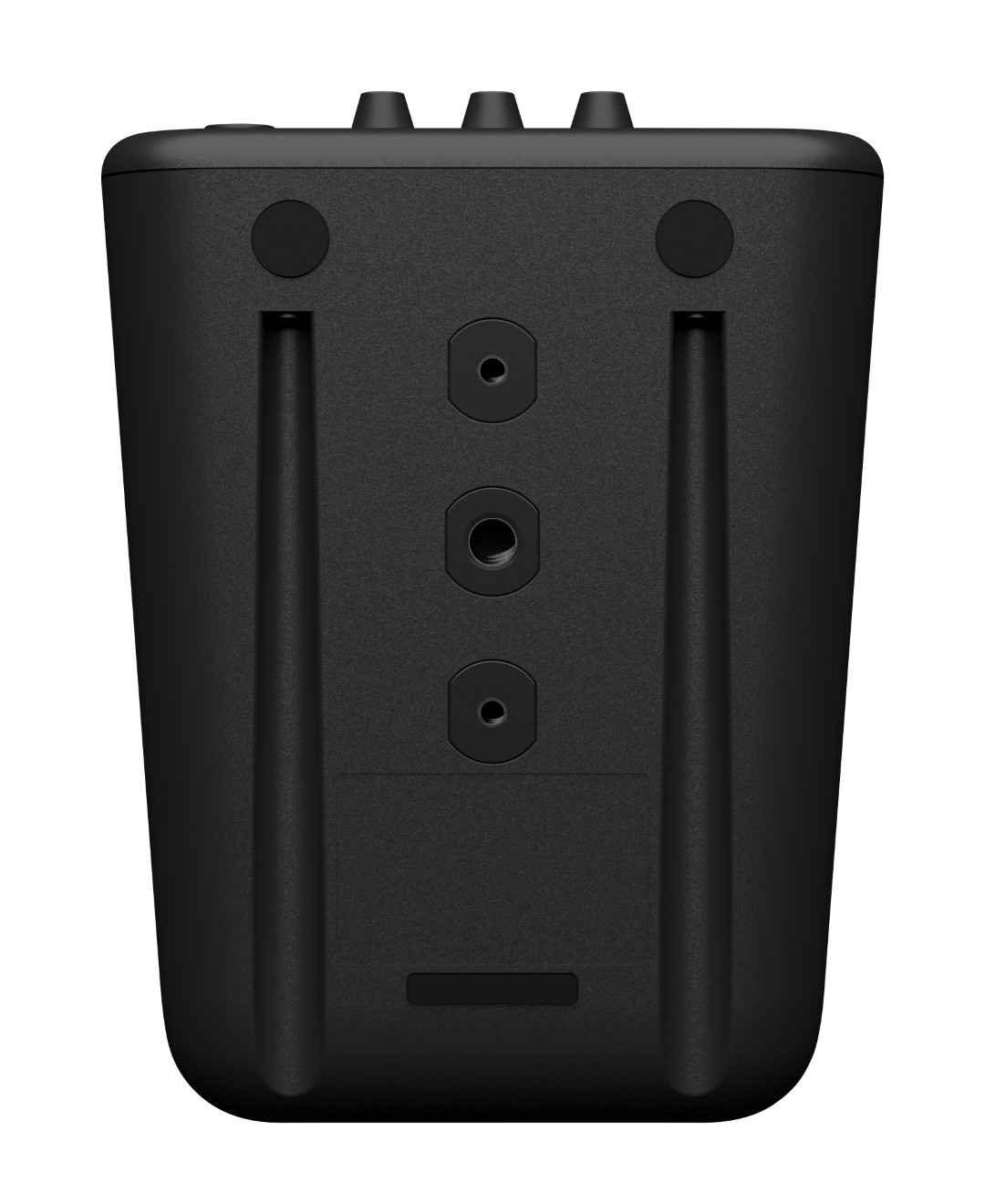

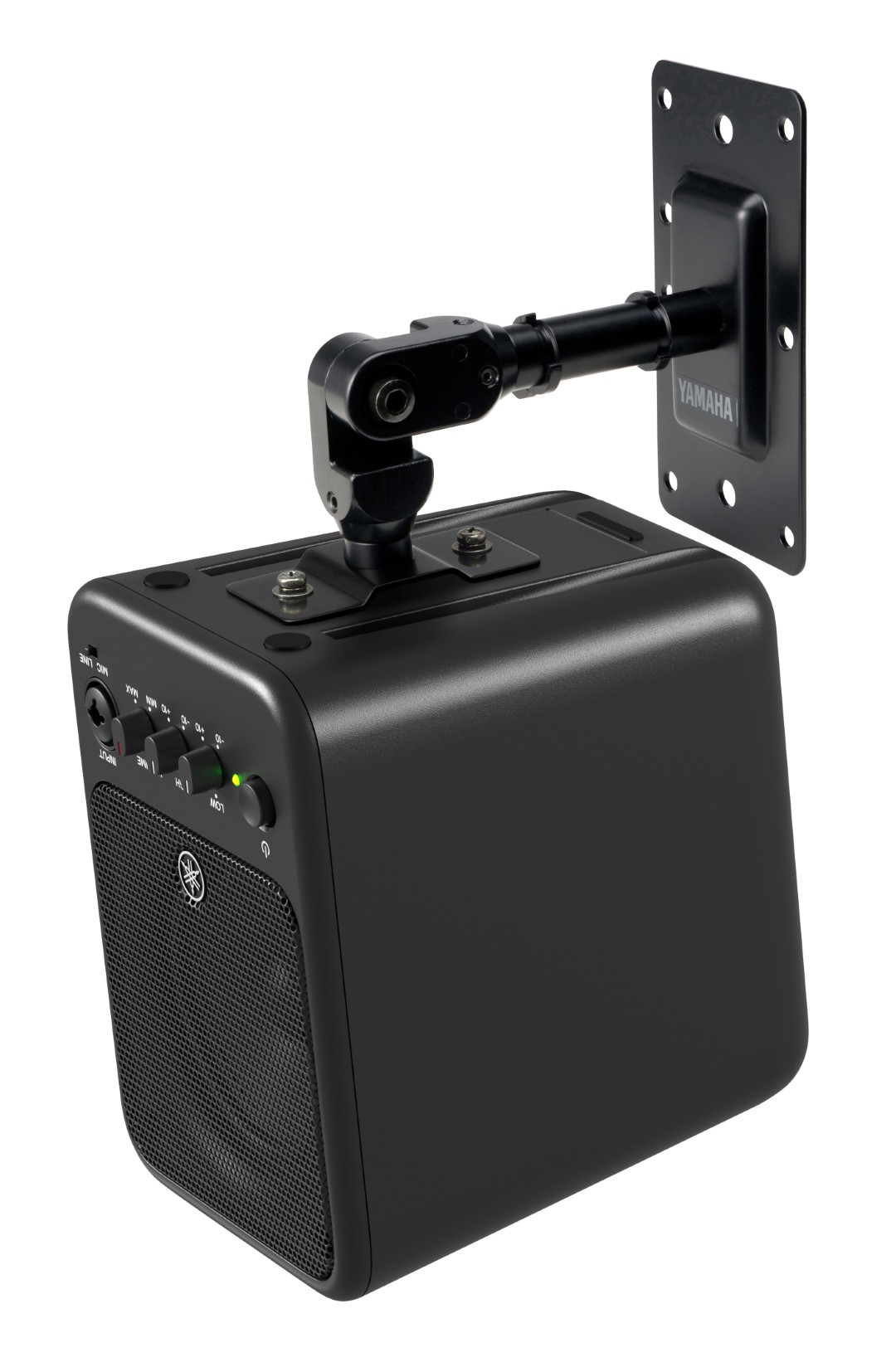

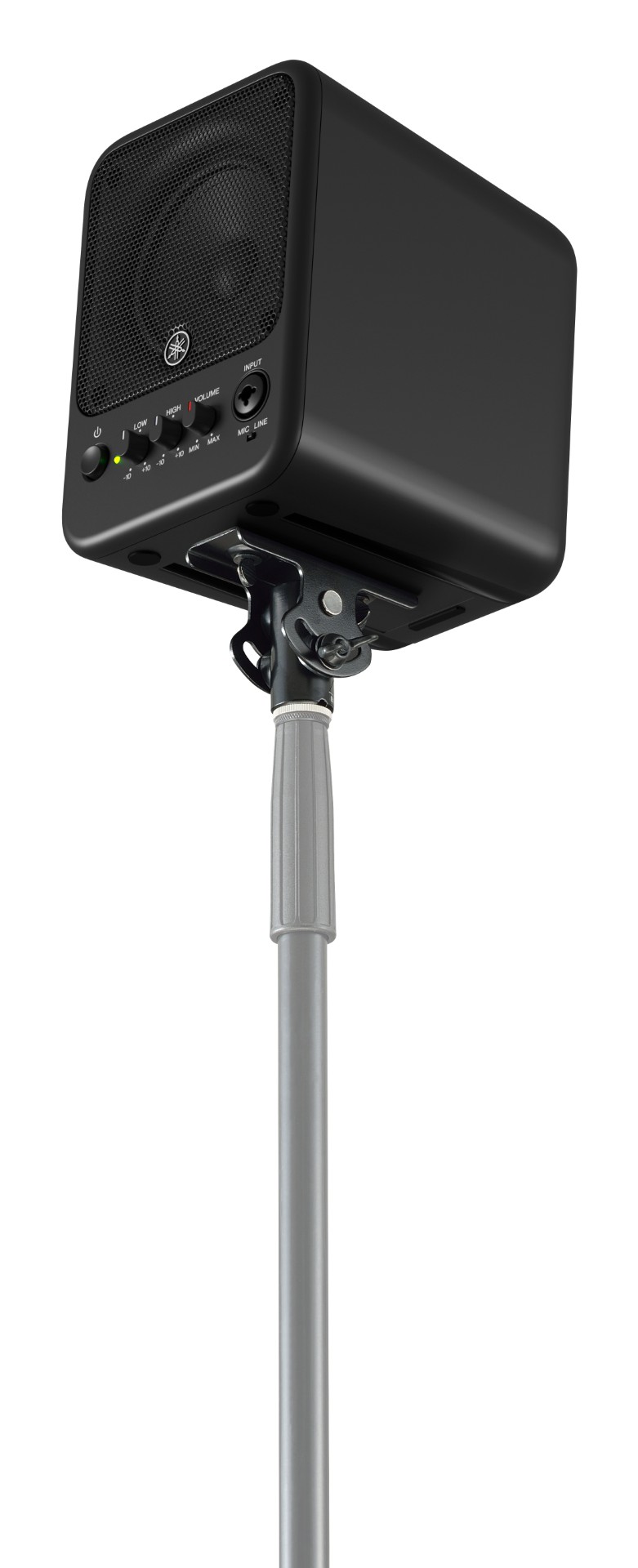

- Overhead mounting points
- 2x M5 threads
- 1x 3/8" thread
- Dimensions (W x H x D)
- 142 x 196 x 187 mm
- Weight
- 2.1 kg
- Color
- Black
