Active studio monitor

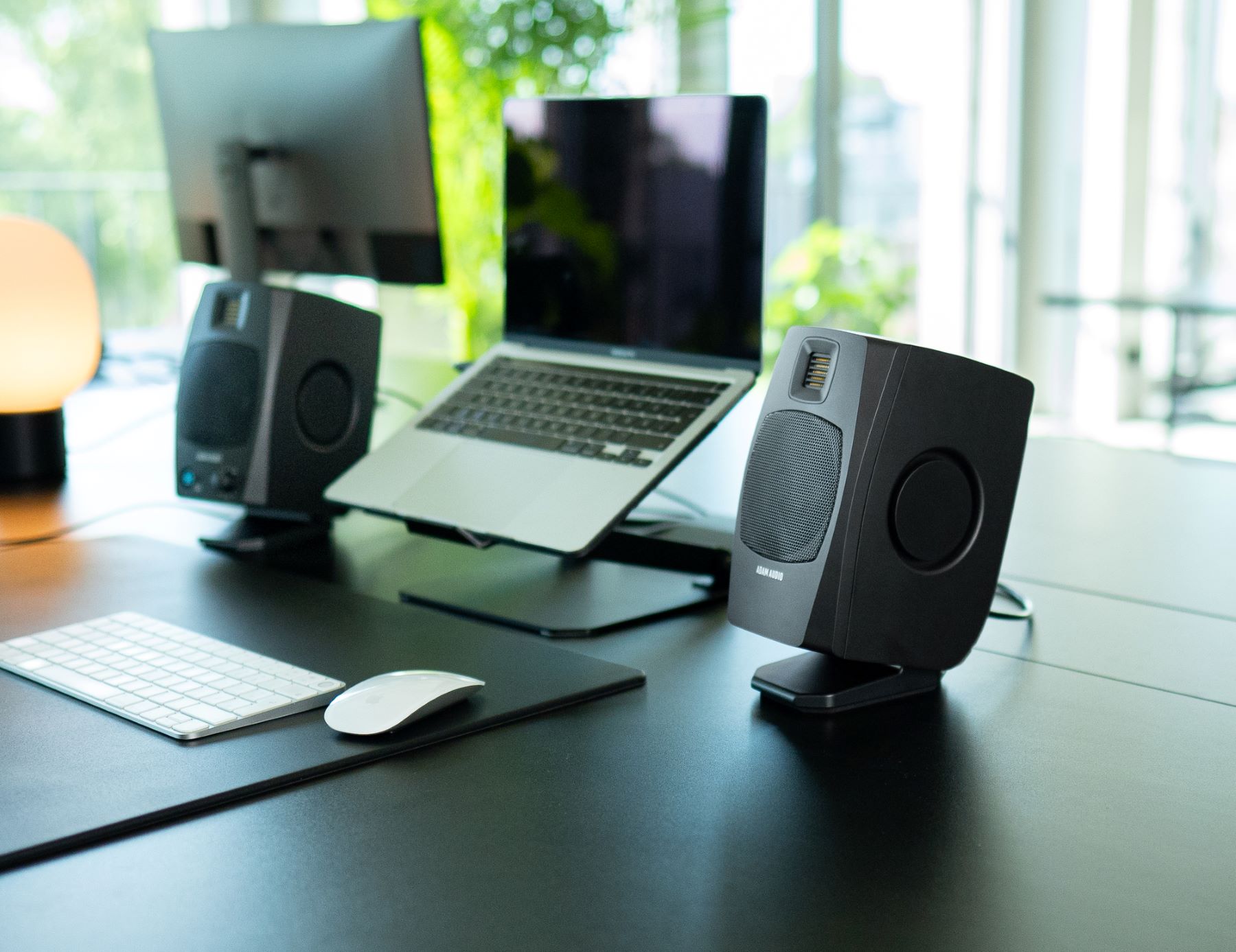

The D3V is a fully active desktop monitoring system designed for songwriters, producers and music lovers who want to enjoy ADAM Audio sound quality as conveniently as possible.
D3V highlights
- Speakers available in white or black with iconic gold ribbon tweeter.
- 3.5" aluminum woofers with passive radiators for extended response down to 45 Hz.
- Plug'n'play function thanks to USB-C input, making an audio interface unnecessary for digital playback.
- Active system with four separate amplifier channels and controlled DSP crossover.
- Headphone output and speaker stands angled at 15° for improved ergonomics.
Key features of the D3V
Superior ADAM Audio design

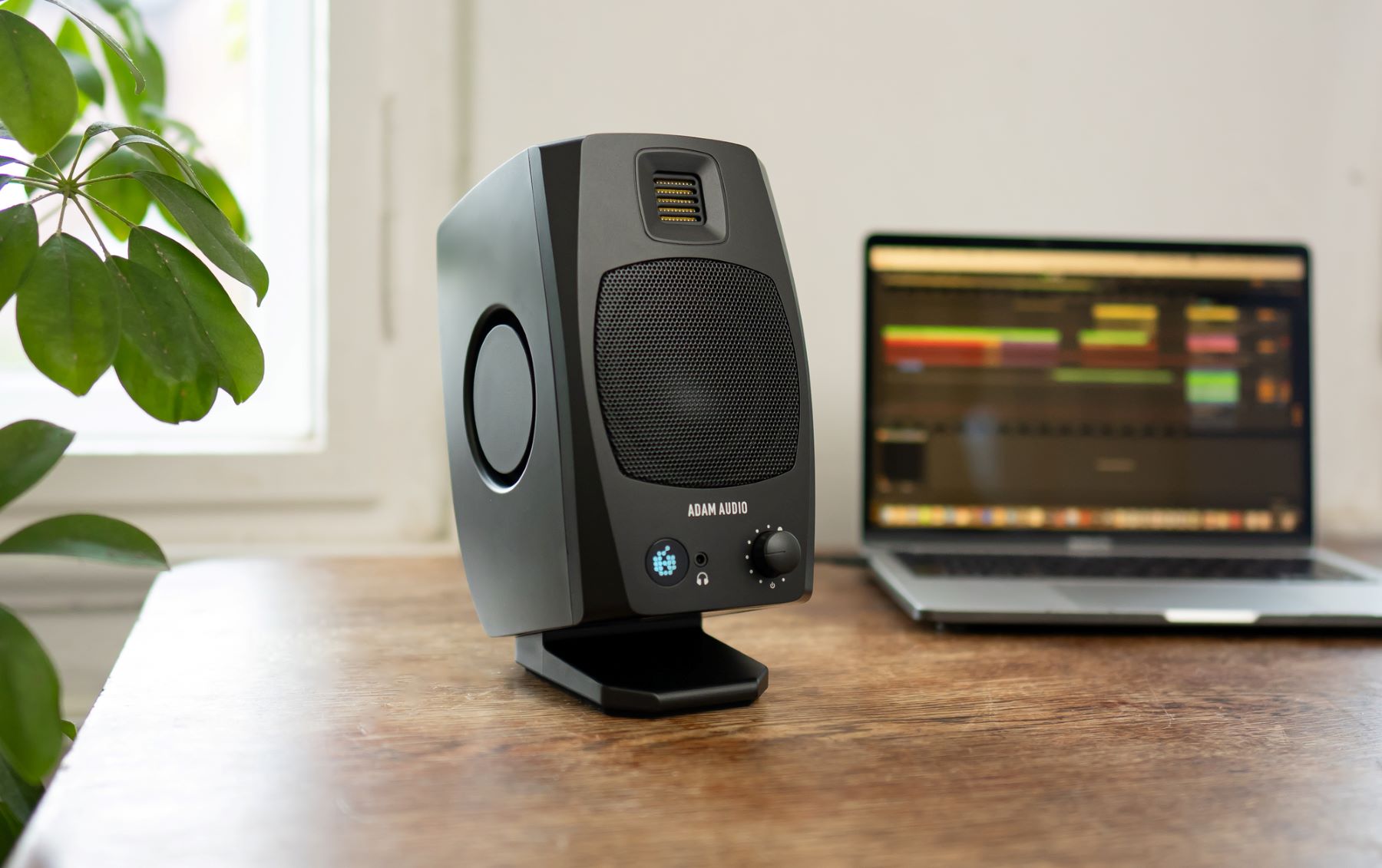

Available in white or black, the D3V stays true to ADAM Audio's German industrial design with iconic gold ribbon tweeters and aluminum woofers optimized for precise sound.
Easy connectivity
Thanks to the USB-C input, the D3V can be connected directly to a computer or mobile device, without compression or conversion, offering uncompromised digital sound quality.
Acoustic optimization
The D3V is equipped with several switches on the rear panel to adjust acoustics according to room position, desk surface or room conditions, ensuring optimal sound in every situation.
Active system with DSP
The system is fully active, with four amplifier channels and a DSP crossover, offering precise sound reproduction and flexibility for complex audio configurations.
Analog input and headphone output
In addition to the USB-C input, the D3V features a ¼" TRS balanced input for traditional analog equipment, as well as a convenient headphone output on the front panel.
Speaker brackets and mounting options
Speakers are supplied with 15° angled brackets for optimum listening angle, and standard threaded holes allow mounting on microphone stands.
Experts' opinions
- Impeccable ADAM Audio sound quality, ideal for creative studios.
- Multiple connections and flexibility with digital and analog equipment.
Technical sheet
- Monitor color Black
- Monitor conditioning One pair
- Acoustics
- Frequency response at -3 dB: 48 - 22.6 kHz
- Frequency response at -6 dB: 45 - 23.2 kHz
- Max. sound pressure level at 1 m: 92 / 96 dB SPL
- Crossover frequency: 4.0 kHz
- Speakers
- Passive radiator diameter: 2 x 3.5
- Woofer cone material: One-piece aluminum
- Woofer diameter: 3.5
- Woofer coil diameter: 1" (25 mm)
- Woofer grille: Painted steel
- Tweeter type: D-ART
- Tweeter transformation ratio: 4 to 1
- Audio input/output connectors
- Analog connectors: 2 x 6.3 mm balanced jacks
- Max. input Level: +9 dBu
- Digital connector: USB Type C
- Digital audio signal: USB 1.1 class-compliant
- Sampling frequencies: 32, 44.1, 48 kHz
- Bit depth: 24 bits
- Headphone output: 3.5 mm TRS mini-jack
- Headphone output impedance: 32 ohms
- Signal processing
- AN converter: 24-bit
- Internal sampling frequency: 48 kHz
- Internal bit depth: 28 bits
- Latency: 4.0 ms
- Protection: independent peak and thermal limiters
- Amplification
- Woofer amplifier Type: PWM
- Woofer peak power: 2 x 80 W (10% THD)
- Woofer RMS power: 2 x 70 W (1% THD)
- Tweeter amplifier Type: PWM
- Tweeter peak power: 2 x 40 W (10% THD)
- RMS tweeter power: 2 x 30 W (1% THD)
- Control options
- Input sensitivity: 0 dBu = 88 dB SPL at 1 m
- Level: volume knob controls speaker and headphone outputs
- Volume knob functions: mute, standby, input selection
- Input selection: analog, USB-C
- Channel order: normal, L/R permutation
- Rear panel adaptation - Position: 0, -3, -6 dB
- Rear panel adaptation - Desktop: 0, -3, -6 dB and 0, -2, -4 dB
- Backplate adaptation - Room acoustics: 0, -1.5, -3 dB
- Remote control options
- Connector: USB-C
- Connection type: USB 1.1 class-compliant
- General data
- Display: Multicolor logo on front panel
- Housing design: Dual passive radiator
- Housing material: Painted ABS polycarbonate
- Mounting options: Flat, 15-degree angle, 3/8" threaded insert
- AC input voltage: 100 - 240 V, 50/60 Hz
- Power rating: 60 W max
