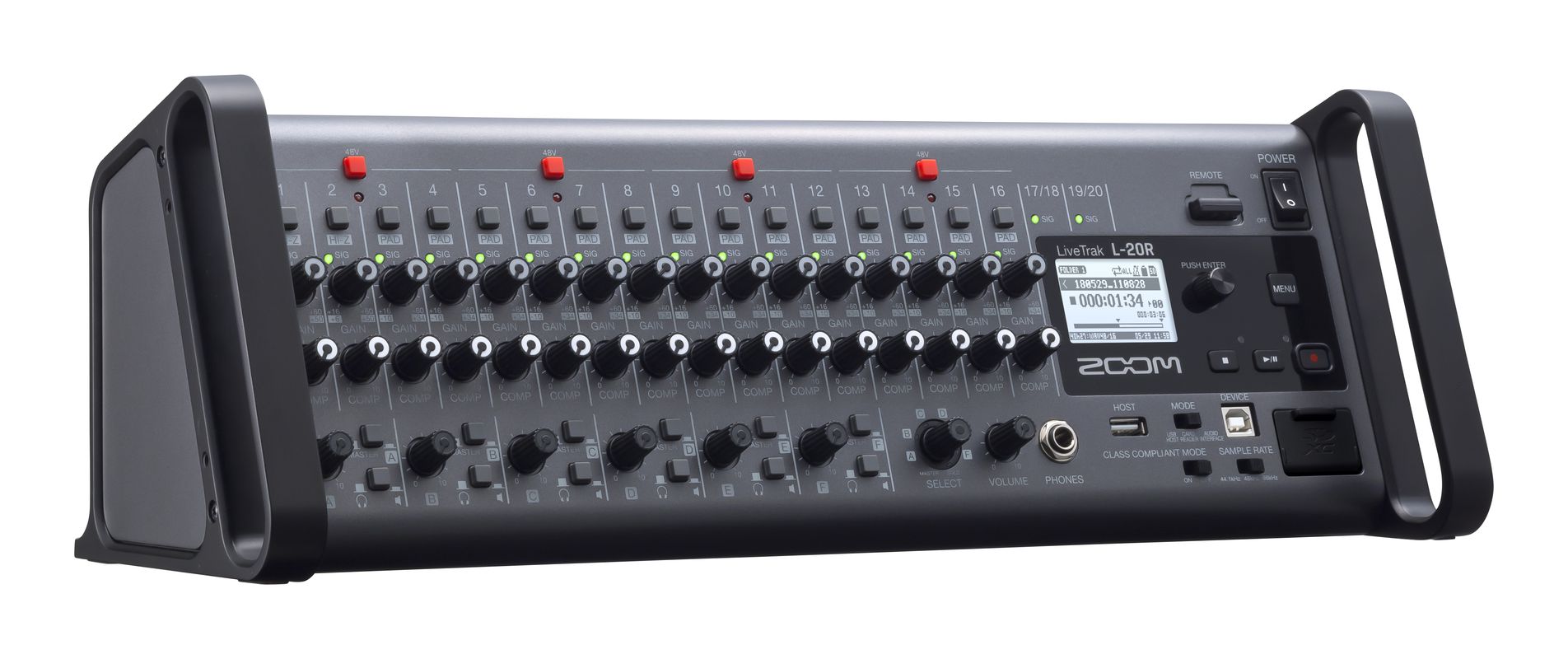

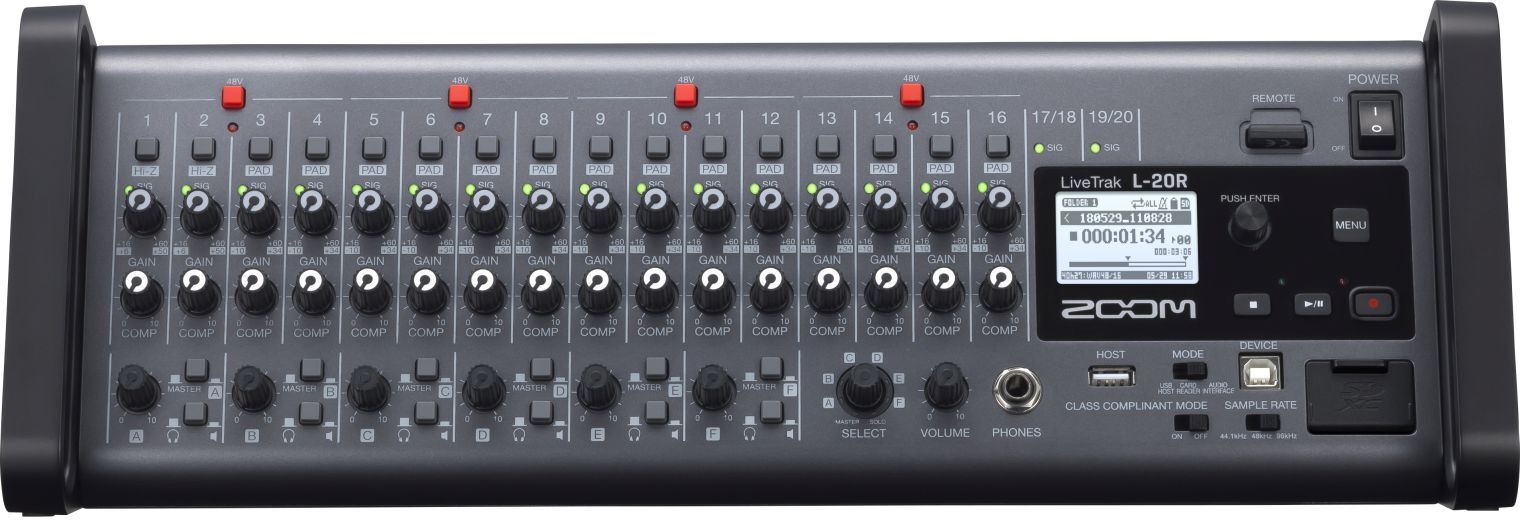

Zoom LiveTrak L-20R

The Zoom LiveTrak L-20R is designed for bands, sound engineers and technicians who need to manage a complete, stable and fast mix, both live and in the studio. You're looking for a rack console that can centralize everything, without the need for a computer. Just plug in, mix and record. It's an efficient all-in-one solution for serious configurations and controlled budgets.

Features

20 channels to manage a complete band

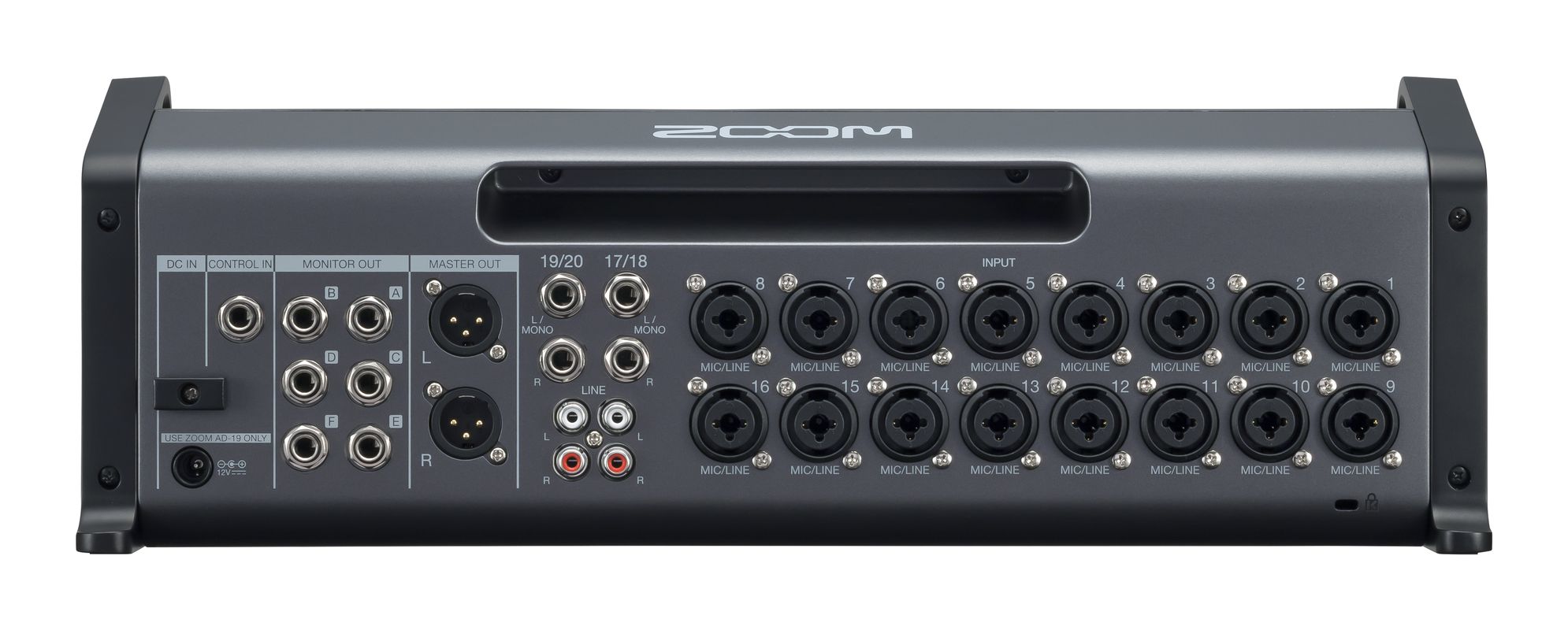

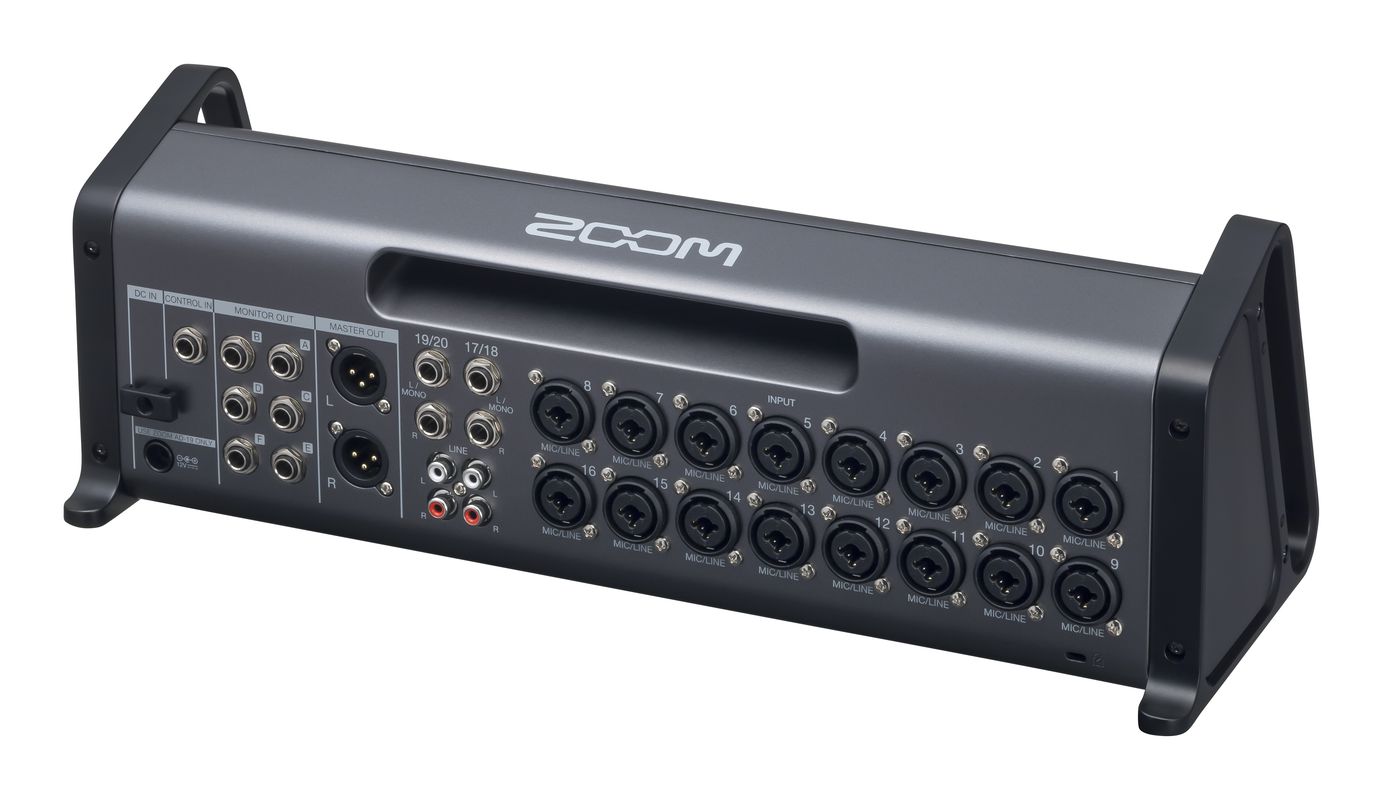

Connect your entire setup without compromise. The LiveTrak L-20R features 16 XLR/Jack combo inputs for microphones and instruments, plus 2 stereo channels. Ideal for a full band, live band or multi-source studio session, without the need for an external submix.

Mic and instrument inputs

Connect guitars and basses directly to channels 1 and 2 via Hi-Z inputs. Channels 3 to 16 feature a -26 dB pad to handle powerful sources. The +48 V phantom power supply, which can be activated in groups of 4, facilitates the safe use of condenser microphones.

Complete processing on every channel

You can fine-tune each source. Gain, 3-band EQ, panning, compressor and sends to two internal multi-effects are available per channel. Sculpt your mix directly from the console, without adding external processors.

6 independent monitor mixes

Each musician listens to his or her own mix. The console manages up to 6 configurable monitoring outputs, for use with headphones or as line outputs. In rehearsal or on stage, everyone hears what they need, without compromise.

Multi-track recording without a computer

Record up to 22 tracks simultaneously on SD card, then play back up to 20 tracks. Perfect for concerts, rehearsals or quick recordings. You keep a clean record of each channel, ready for mixing later.

Integrated USB audio interface

The LiveTrak L-20R also functions as a 22-in/4-out USB audio interface. You can easily integrate it into your DAW on Mac or PC. Ideal for switching from live to studio without changing equipment.

Simple, effective remote control

Control your mix from the Remote Mixer application on iPad. Levels, EQ, compression, effects, mute/solo, low-cut filter or phase inversion: everything is remotely accessible. Practical for adjusting a mix from the room or stage.

Time-saving scene memories

Save up to 9 complete scenes. Whether in concert or on location, you can instantly recall a mix. A real time-saver when several groups or configurations are in succession.

What we like / What we need to know

• Compact 19" rack format, ideal for fixed or mobile control rooms.
• Stand-alone multitrack recording on SD card, no computer required.
• 6 independent monitor mixes, ideal for live use.
• Complete processing per channel, without external hardware.
• Smooth, precise iPad remote control.
• Powerful USB audio interface for the studio.

FAQ

Is the Zoom LiveTrak L-20R suitable for live use?

Yes, it's designed for the stage, with 20 channels, 6 monitor mixes and scene memories. It's ideal for concerts, rehearsals and fixed installations.

Can I record without a computer?

Yes, the console records up to 22 tracks simultaneously directly to SD card, then enables multi-track playback. Ideal for live recordings or rehearsals.

Can it be used as an audio interface?

Yes, it works as a 22-in/4-out USB interface on Macs and PCs, compatible with all major DAWs for recording and mixing.

Can musicians have different returns?

Yes, the L-20R offers up to 6 independent monitoring mixes, configurable for headphones or line output, for personalized feedback.

Who is this model primarily intended for?

It's ideal for bands, sound engineers and studios looking for a compact, reliable and versatile console capable of handling live, recording and mixing with a single device.
