Multi tracks recorder

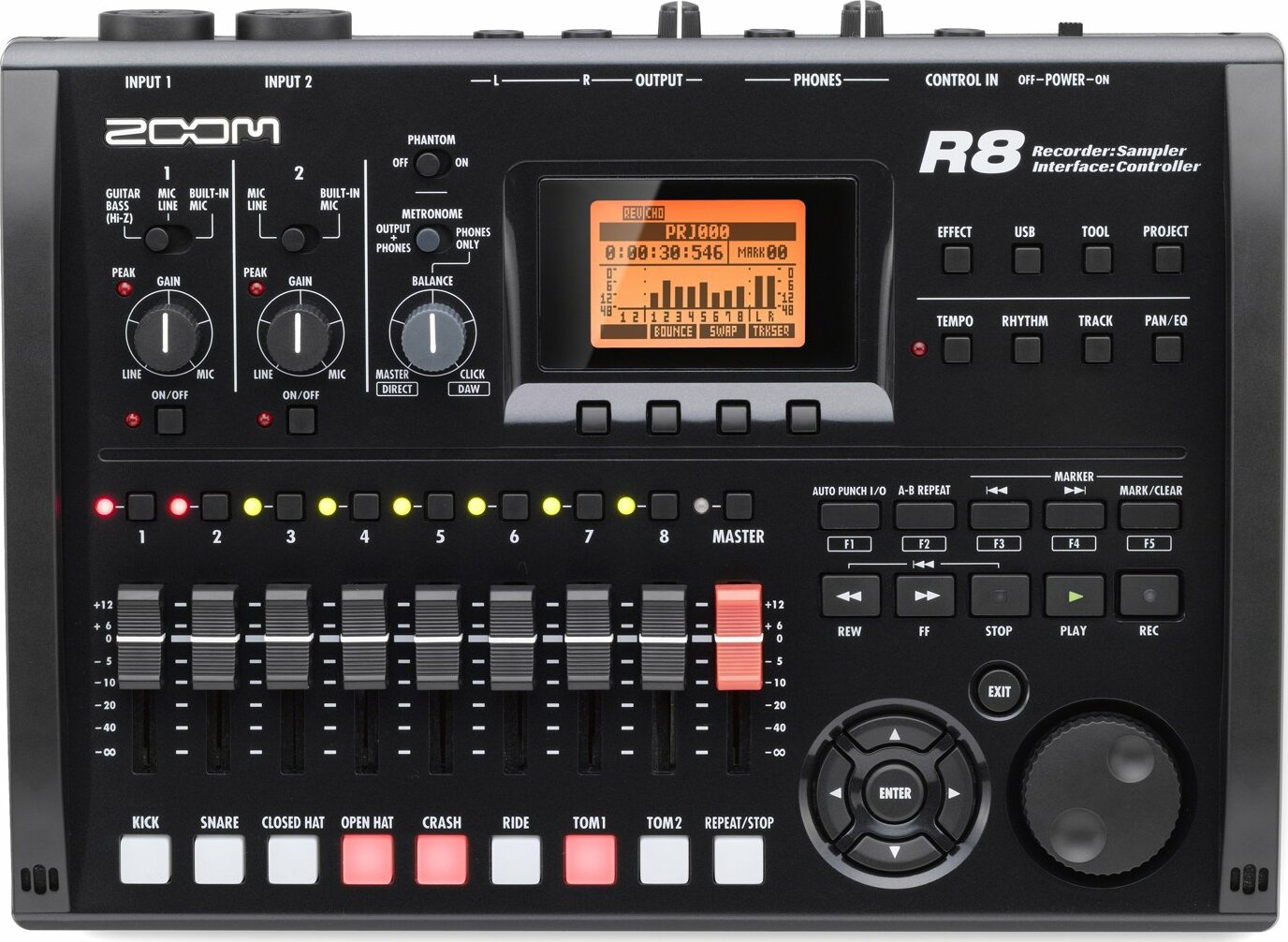

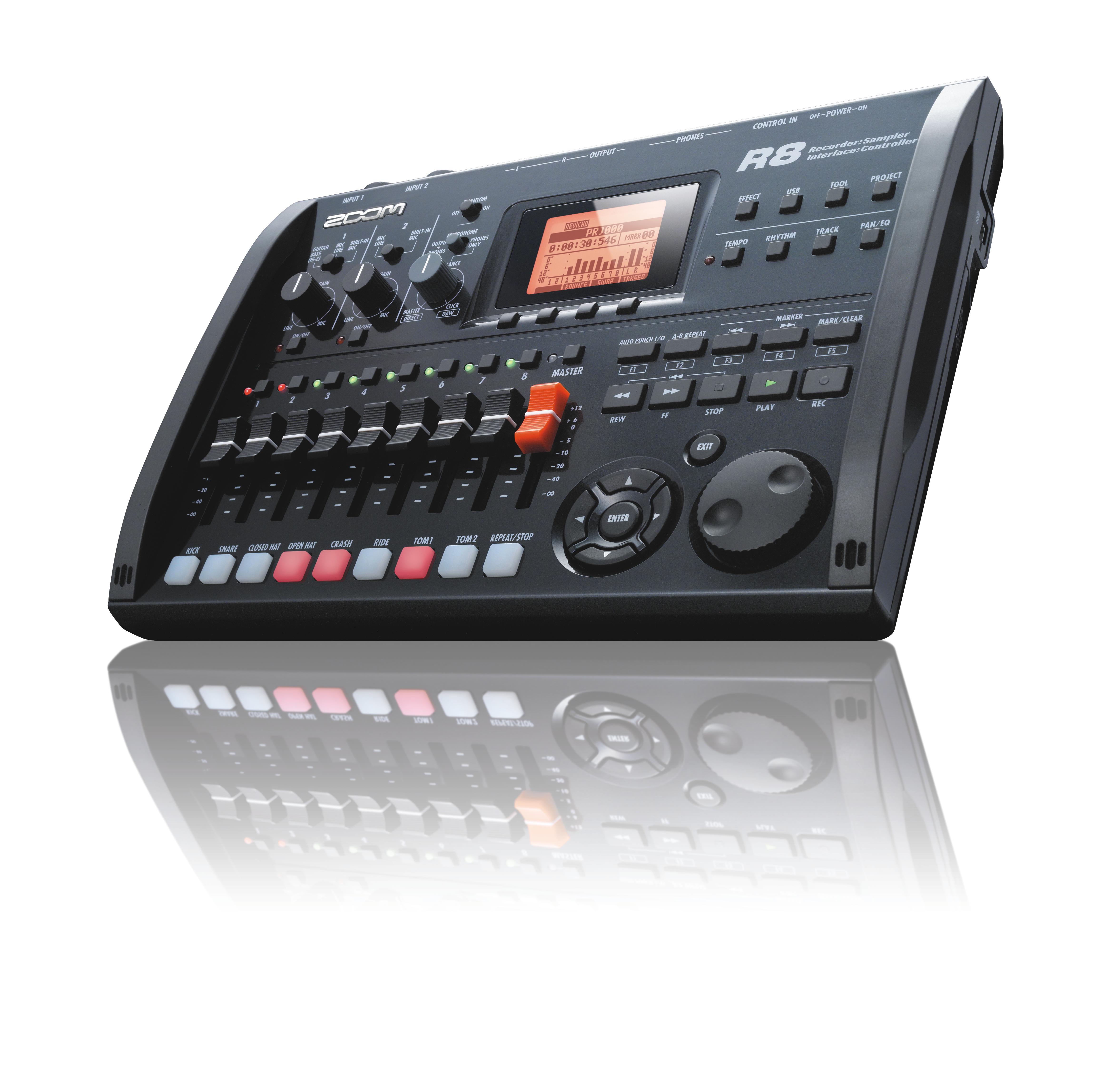

The Zoom R8 is a multi-track portable recorder that allows you to record (on SD card) 2 tracks at the same time and 8 for playback.
Equipped with 2 preamplified XLR-Combo Input, it also has 2 Stereo-Microphones.

This small devices has more to propose than meets the eye: it can be used as a control surface (MAC/PC) as well, compatible with most of the surfaces available on the market; or as a sampler/drum machine, controlled via 8 pads.

A DSP processing section has been integrated with no less than 146 effects (310 patches).

Light & compact, it functions with AA batteries, USB bus or on AC.

Technical sheet

Recorder
Track count: 8 (mono)
Maximum number of simultaneous recording tracks: 2
Maximum number of simultaneous playback tracks: 8 audio + metronome
Recording data format: 44.1 / 48 kHz, 16 / 24-bit WAV format
Maximum recording time: 200 minutes/1 GB (44.1 kHz 16-bit, mono tracks)
Projects: 1000
Markers: 100/project
Locator: Hours/minutes/seconds/milliseconds and bars/beats/ticks
File editing: Divide, trim
Track parameters: 3-band equalizer, pan (balance), effect send ×2, invert
Stereo link: Tracks 1 / 2 ~ 7 / 8 selectable in pairs
Other functions: Punch-in/out (manual, auto), Bounce, A-B repeat, Undo/Redo
Effects
Algorithms: 8 (CLEAN, DISTORTION, ACO/BASS SIM, BASS, MIC, DUAL MIC, STEREO, MASTERING)
Patches: 310 insert, 60 send-return
Effect modules: 7 insert , 2 send
Tuner
Type: Chromatic, guitar, bass, open A/D/E/G, D modal
Rhythm
Voices: 8
Format: 16-bit linear PCM
Drum kits: 10
Precision: 48 PPQN
Rhythm patterns: 511/project
Tempo: 40.0 ~ 250.0 BPM
Sampler
Playback formats: 44.1 / 48 kHz, 16 / 24-bit WAV files
Editing functions: Trim, time-stretch
Hardware
Recording media: SD card (16MB - 2 GB), SDHC card (4 - 32 GB)
Analog-digital conversion: 96kHz 24-bit delta-sigma ADC
Digital-analog conversion: 96kHz 24-bit delta-sigma DAC
Display: 128 x 64 pixel LCD (with backlight)
Inputs:
Input 1-8
Type: 8 XLR/TRS combo jacks
Input impedance: (Balanced input) 1KΩ balanced (2 hot), (Unbalanced input) 50 KΩ unbalanced (1 with Hi-Z input impedance 470 kΩ (Hi-Z on), 2 with phantom power)
Phantom Power: 48V, 24V
Input level: -50 dBm < continuous < +4 dBm
Built-in stereo microphones
Type: Omnidirectional condenser microphones
Gain: -50 dBm < continuous < +4 dBm
Outputs:
Output
Type: TRS phone (balanced)
Phones: Standard stereo phone jack 20 mW x 2 (32 Ω load)
Mixer faders: 9 (mono × 8, master × 1)
Pads: 8 (velocity-sensitive)
S/N ratio: 93 dB
Control input:
FS01
USB
Mini-B type (USB 2.0): Operation as audio interface/control surface and mass storage
USB audio interface
Number of recording channels: 2
Number of playback channels: 2
Bit rate: 24
Sampling frequency: 44.1, 48, 88.2, 96 kHz
Compatibility:
Windows® XP SP3 or later (32-bit)
Windows® Vista SP1 or later (32-bit, 64-bit)
Windows® 7 (32-bit, 64-bit)
32-bit: Intel® Pentium® 4 1.8 GHz or faster, RAM 1 GB or more
64-bit: Intel® Pentium® Dual Core 2.7 GHz or faster, RAM 2 GB or more
Mac OS X 10.5/10.6/10.7/10.8/10.9/10.10/10.11
with Intel® Core Duo 1.83 GHz or faster and RAM 1 GB or more
USB 2.0 compatible port, Intel chipsets recommended
Power
AC adapter: DC 5V 1A (ZOOM AD-17)
Batteries: 4 AA batteries (5.5-hour continuous operation time with backlight on and phantom power off)
Other
Dimensions: 257 mm (W) × 190 mm (D) × 51 mm (H)
Weight: 780 g

More specifications

Fewer specifications
