Das audio Vantec 12 A

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Das Audio Vantec 12 A - Active full-range speaker - Main picture
  • 1499.00 €
  • Ref : 117879
1198,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Pre-order
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Das audio

Learn more about the Das audio brand and discover the entire catalog.

How to choose your PR System Buying guide

Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

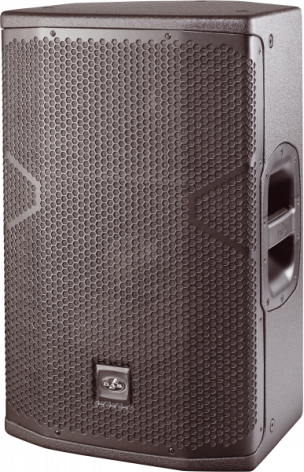

Active full-range speaker

The VANTEC-12A is an amplified loudspeaker with a 30 cm driver and a 1" motor for 750 W power. It can be controlled via DASlinkTM and DAScontrolTM, enabling fast, simple remote configuration. Dispersion 90°H x 50°V, stand-mounted with 0° or 10° tilt. 2 XLR connectors. Black.
Lire la suite

Technical sheet

  • PA power speaker 601 to 1000 watts RMS
  • Type of PA speaker Stage & FOH monitor
  • Performance
    • Frequency range (-10 dB): 60 Hz - 20 kHz
    • Horizontal coverage (-6 dB): 90º.
    • Vertical coverage: 50
    • Maximum SPL at 1 m: 135 dB
  • Electronics and connectors
    • Amplifier power rating (continuous): 750 W
    • Amplifier power rating (peak): 1500 W
    • Input type: Balanced
    • Input impedance: 20 kohms
    • Input sensitivity: 3 V (+12 dBu)
    • Audio input connectors: 2 x XLR female
    • AUX input: 1 x 3.5 mm mini-jack
    • Audio output connector (loop thru): 1 x XLR male
    • Control: DASlink™, DAScontrol™
    • Power consumption 230 V / 115 V: 1.2 A / 2.4 A
  • Loudspeaker
    • Construction: Birch plywood
    • Geometry: Trapezoidal
    • Attachment points: M10
    • Finish: ISO-flex paint
    • Color: Black
    • Dimensions (H x W x D) : 620 x 380 x 380 mm / 24.4 x 15.0 x 15.0 in
    • Net weight: 21.5 kg / 47.4 lb
  • Components
    • LF loudspeaker: 12F4
    • HF loudspeaker: M-28
    • Horn / Waveguide: BC-95
  • Shipping
    • Carton dimensions (H x W x D): 720 x 456 x 456 mm / 28.4 x 18.0 x 18.0 in
    • Shipping weight: 24.0 kg / 52.9 lb
