Active full-range speaker

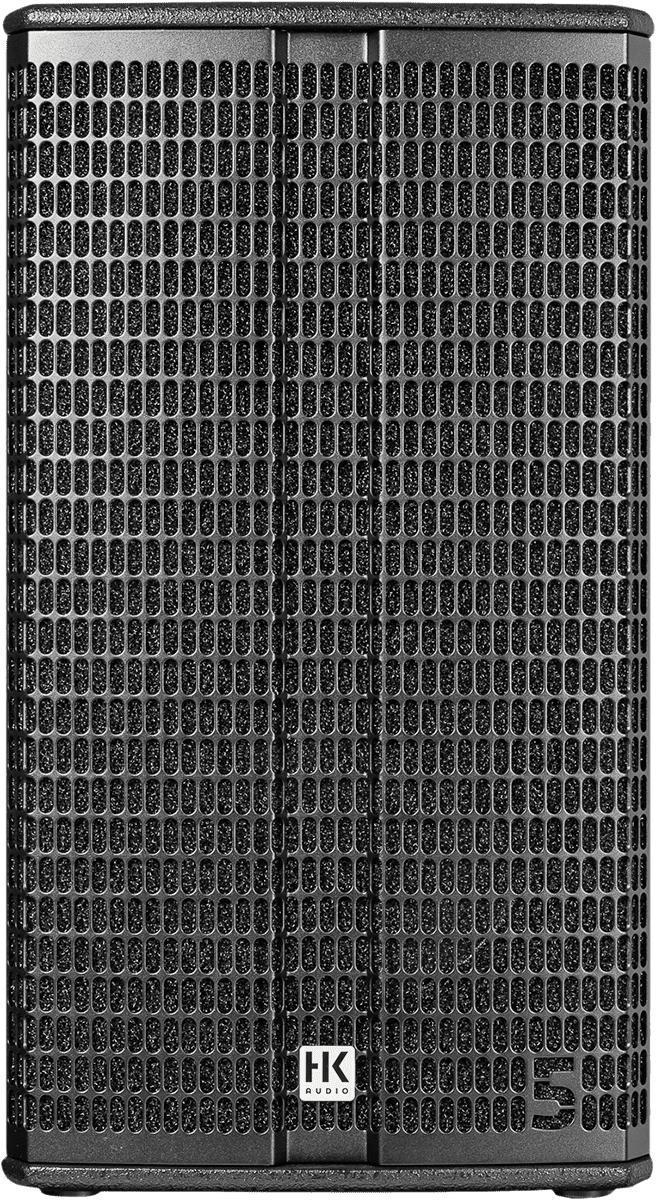

The HK audio L5MKII-112FA is a powered PA speaker.
- Bi-amplified Class D amplifier with a peak power of 1200 W
- Rotating horn with 60° x 40° dispersion pattern

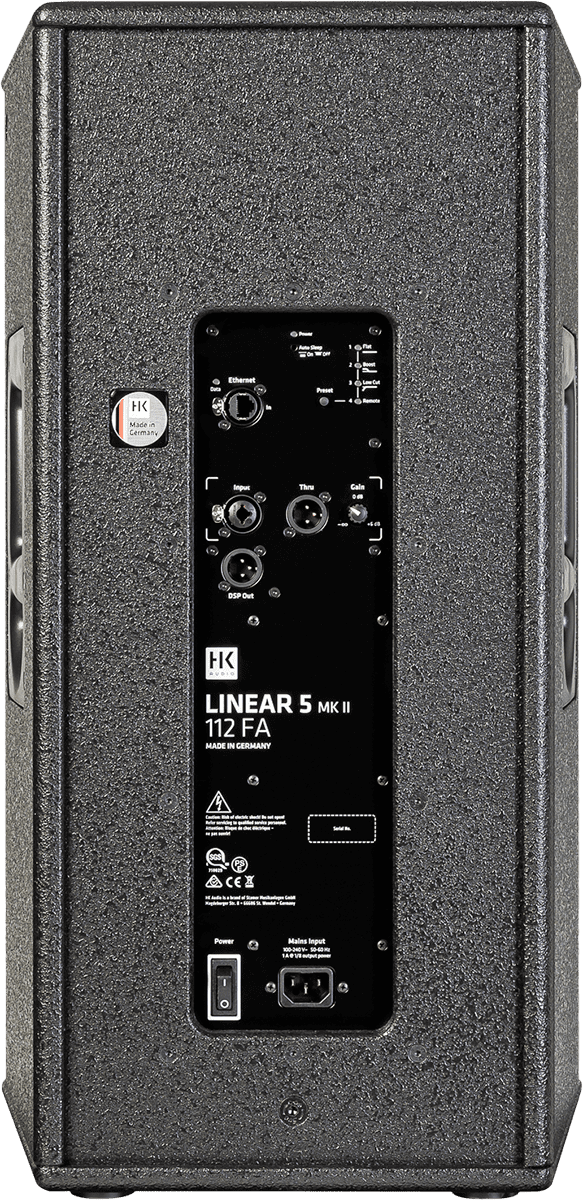

- XLR/TRS combo input, balanced XLR output for analogue loop-through to an additional loudspeaker
- Remote controllable high-performance DSP with directly selectable built-in presets for the most common applications: Flat, Boost, Low Cut, Remote
- Extensive DSP tools: fully parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
- Professional lockable EtherCon connector for connection to a Mac or PC for system control
- DSP Out: Balanced XLR output that transmits the processed signal from the speaker to a non-network compatible speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software.
- HK AUDIO DuoTilt with 3° or 7° tilt
- Three reinforced M8 (AP-8) mounting points, two HK Audio MultiGrip handles for TB-45N or TB-45NQ tilt mounts
- Lockable V-Lock power cable - Made in Germany
- Bi-amplified Class D amplifier with a peak power of 1200 W
- Rotating horn with 60° x 40° dispersion pattern
- XLR/TRS combo input, balanced XLR output for analogue loop-through to an additional loudspeaker
- Remote controllable high-performance DSP with directly selectable built-in presets for the most common applications: Flat, Boost, Low Cut, Remote
- Extensive DSP tools: fully parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
- Professional lockable EtherCon connector for connection to a Mac or PC for system control
- DSP Out: Balanced XLR output that transmits the processed signal from the speaker to a non-network compatible speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software.
- HK AUDIO DuoTilt with 3° or 7° tilt
- Three reinforced M8 (AP-8) mounting points, two HK Audio MultiGrip handles for TB-45N or TB-45NQ tilt mounts
- Lockable V-Lock power cable - Made in Germany
Lire la suite
Technical sheet
- PA power speaker 301 to 600 watts RMS
- Type of PA speaker Stage & FOH monitor
- Amplified : Yes
- Application: Front panel
- Bluetooth: No
- Category : Sound system
- Connections: Combo, Link XLR, XLR
- Controls: limiter, high-pass filter switch, reverse polarity, mute switch, low-pass filter control, delay, EQ
- DSP: Yes
- Diameter w/w: 12" (1.5")
- Dimensions (mm): 37 x 67 x 36.5 cm
- Dispersion (H x V): 80° x 60°.
- EQ: 10-band
- Inputs : XLR/jack combo, RJ45
- Finish: Black
- Base width: 35 mm
- Mixer : No
- Mounting : On 35 mm stand
- Number of channels : 2 channels
- Pan cut : No
- Weight (kg) : 21,90 kg
- SPL Max / peak : 135 dB
- RMS power / peak : 1 200 W
- RMS power : 600 W
- Max SPL : 128 dB
- Outputs : link XLR, XLR DSP
- Cabinet construction : multiply birch - MDF
- Transport : 2 handles
- Tweeter: 1,7" (1.7")
- Type : active speaker
- Insert type : M8
- Additional specs :
- Frequency response +/-3 dB: 70 Hz - 12 kHz
- Frequency response -10 dB: 55 Hz - 19 kHz
- Horn: 90° rotation possible
