Active full-range speaker

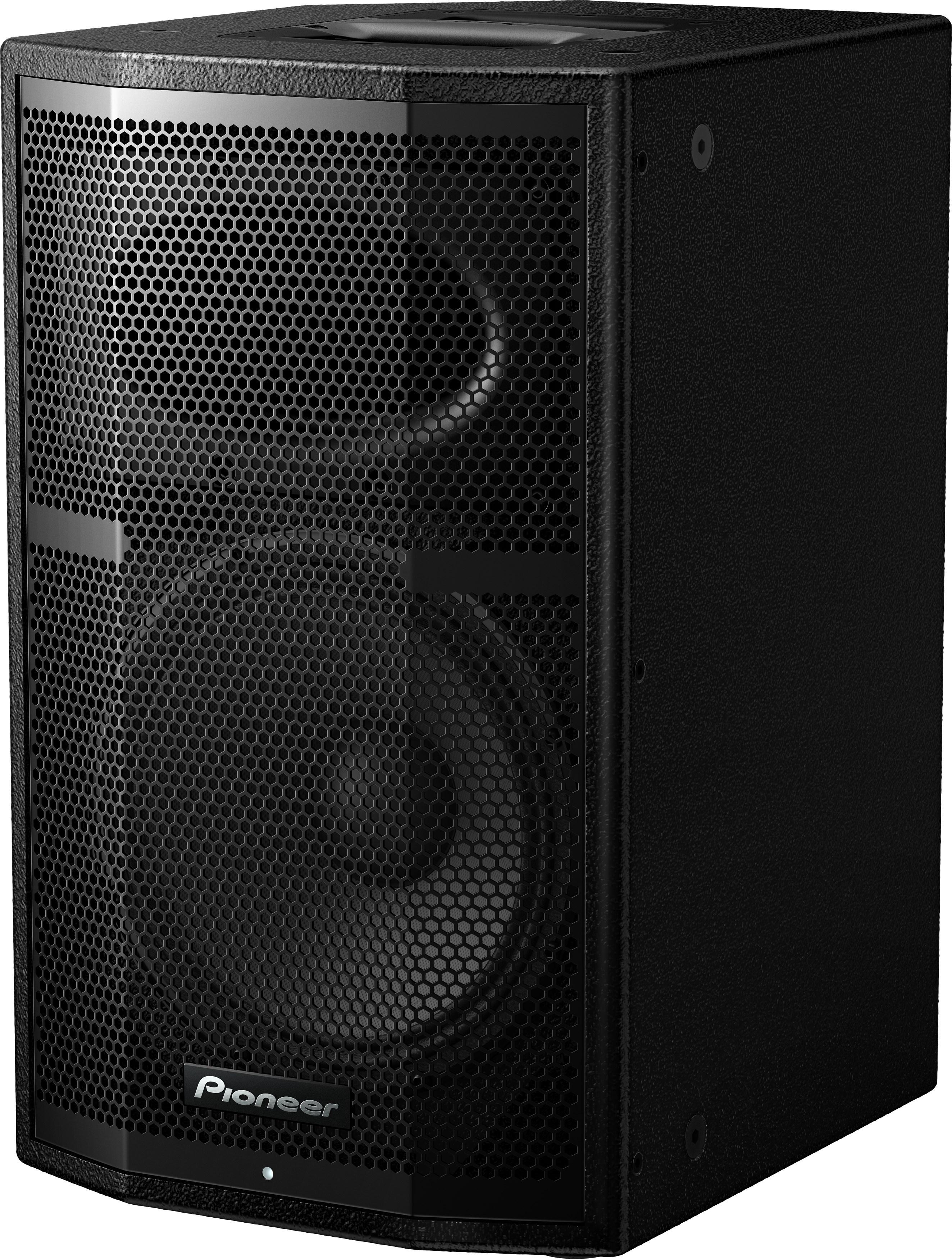

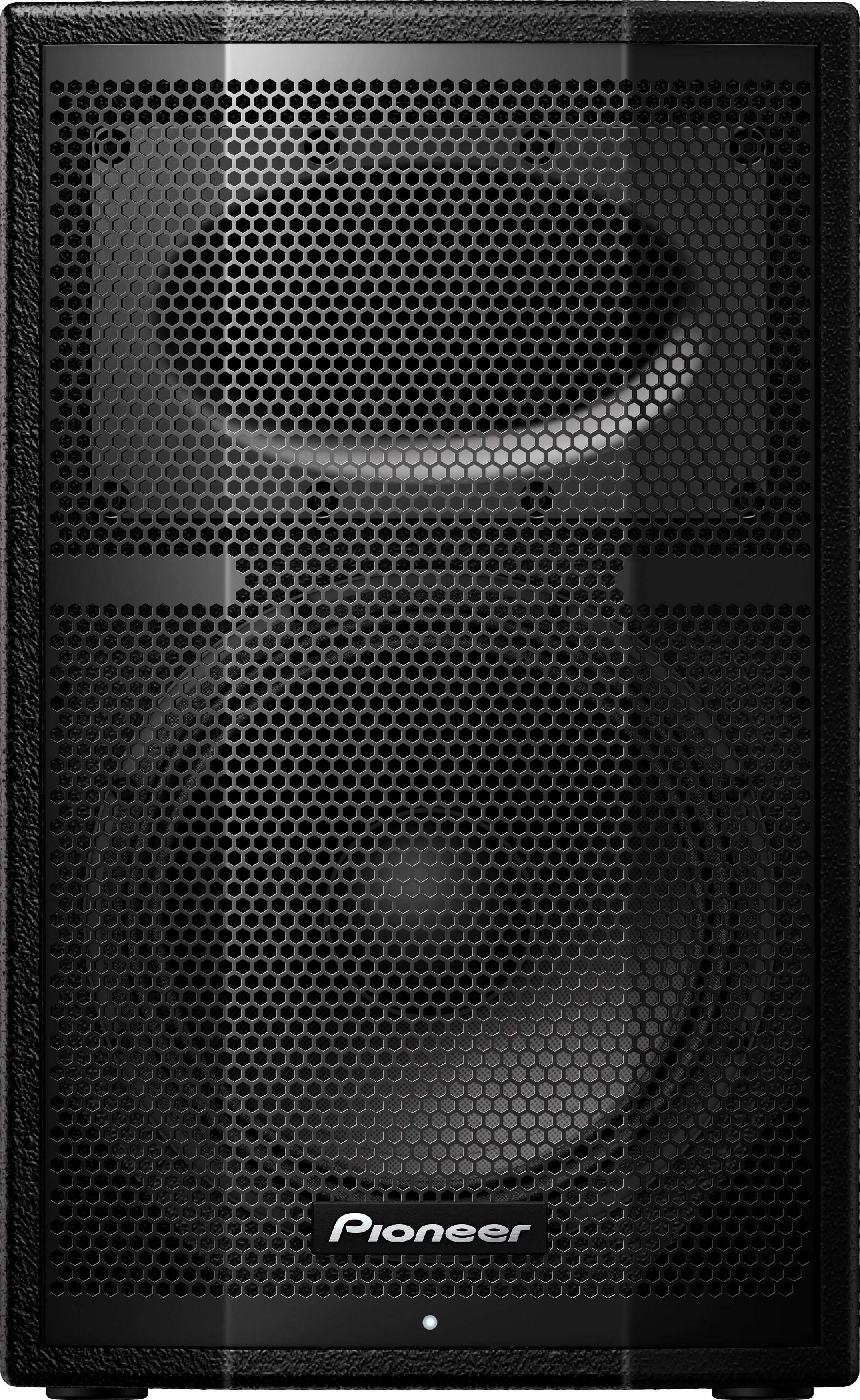

The XPRS10 single PA speaker combines a 10-inch ferrite LF driver, a 1.75-inch titanium diaphragm compression driver and Pioneer Pro Audio’s AFAST technology to deliver crystal clear audio with a deep bass range. Being compact, plug-and-play and easy to transport, this speaker is a reliable partner on the road, for any venue.
Technical sheet
- PA power speaker 1501 to 2000 watts RMS
- Type of PA speaker FOH speaker
- Specifications
- Width 12.6 in
- Height 20.47 in
- Depth 14.72 in
- Weight 41.67 lb
- Frequency Range 55 - 20000 Hz
- Power Consumption 162 W
- System characteristic
- Maximum Sound Pressure 134 dB
- Cross Over Frequency 2 kHz

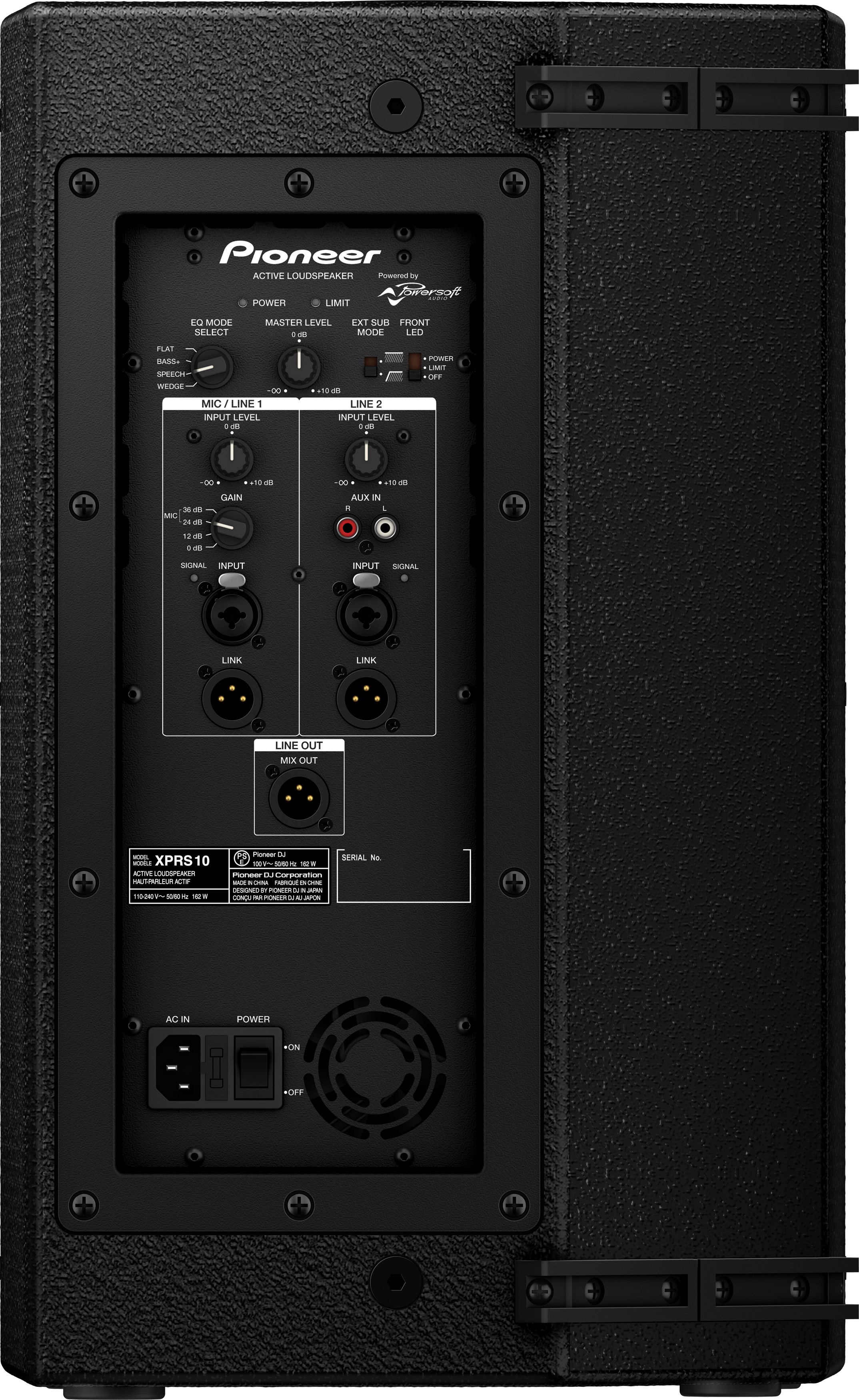

- Inputs
- 2 XLR/TRS Combo (balanced)
- 2 RCA (unbalanced)
- Outputs
- 2 Through output XLR (balanced)
- 1x Mixed output XLR (balanced)
- Amplifier
- Amplifier Output Class D 2400W peak / 1200W cont. (LF800W / HF400W)
- Impedance 10 kΩ
- Speaker
- 10 inch ferrite LF cone driver
- 1.75 inch titanium diaphragm neodymium compression driver
- Enclosure 15 mm birch plywood
