Overdrive, distortion & fuzz effect pedal

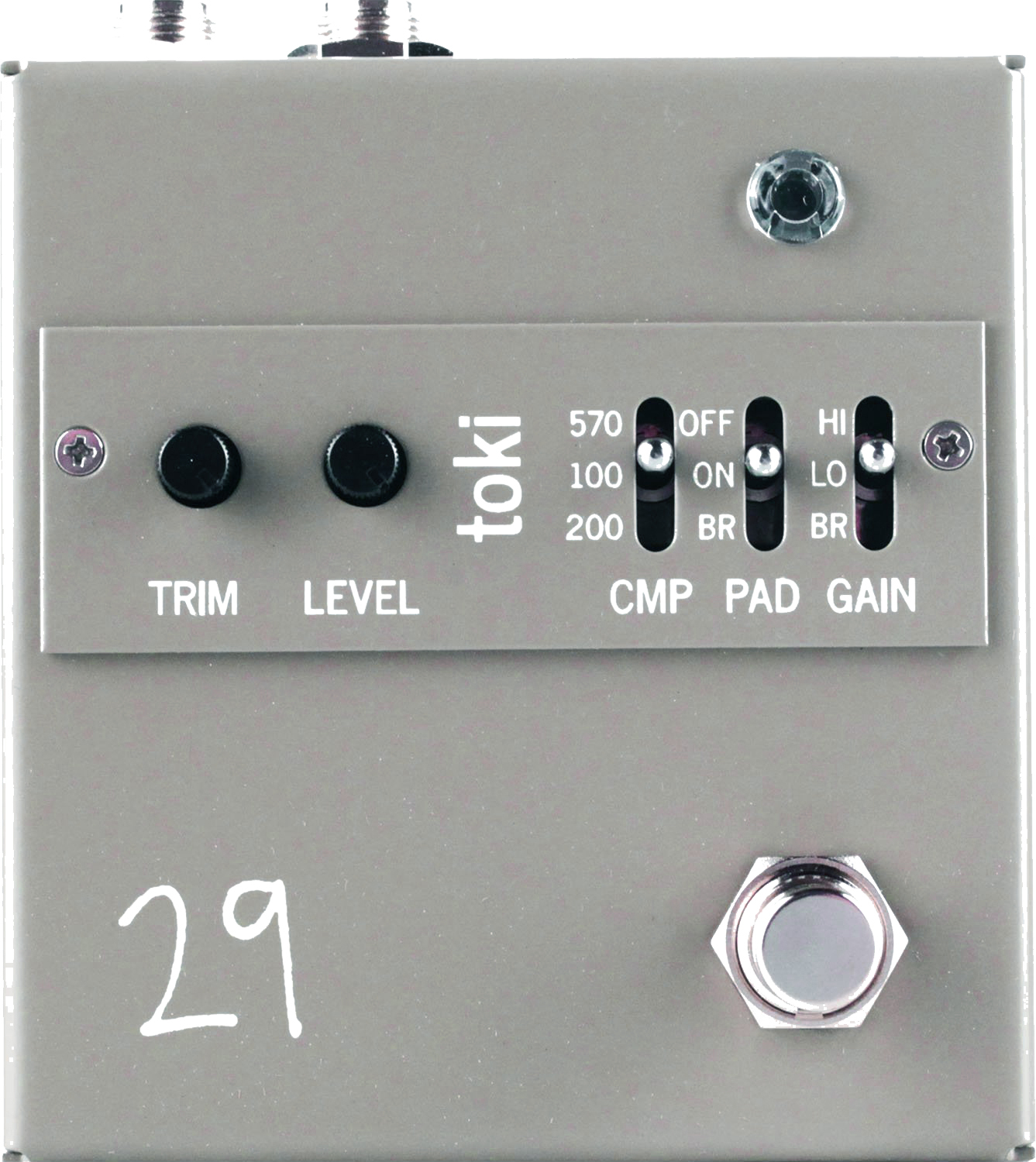

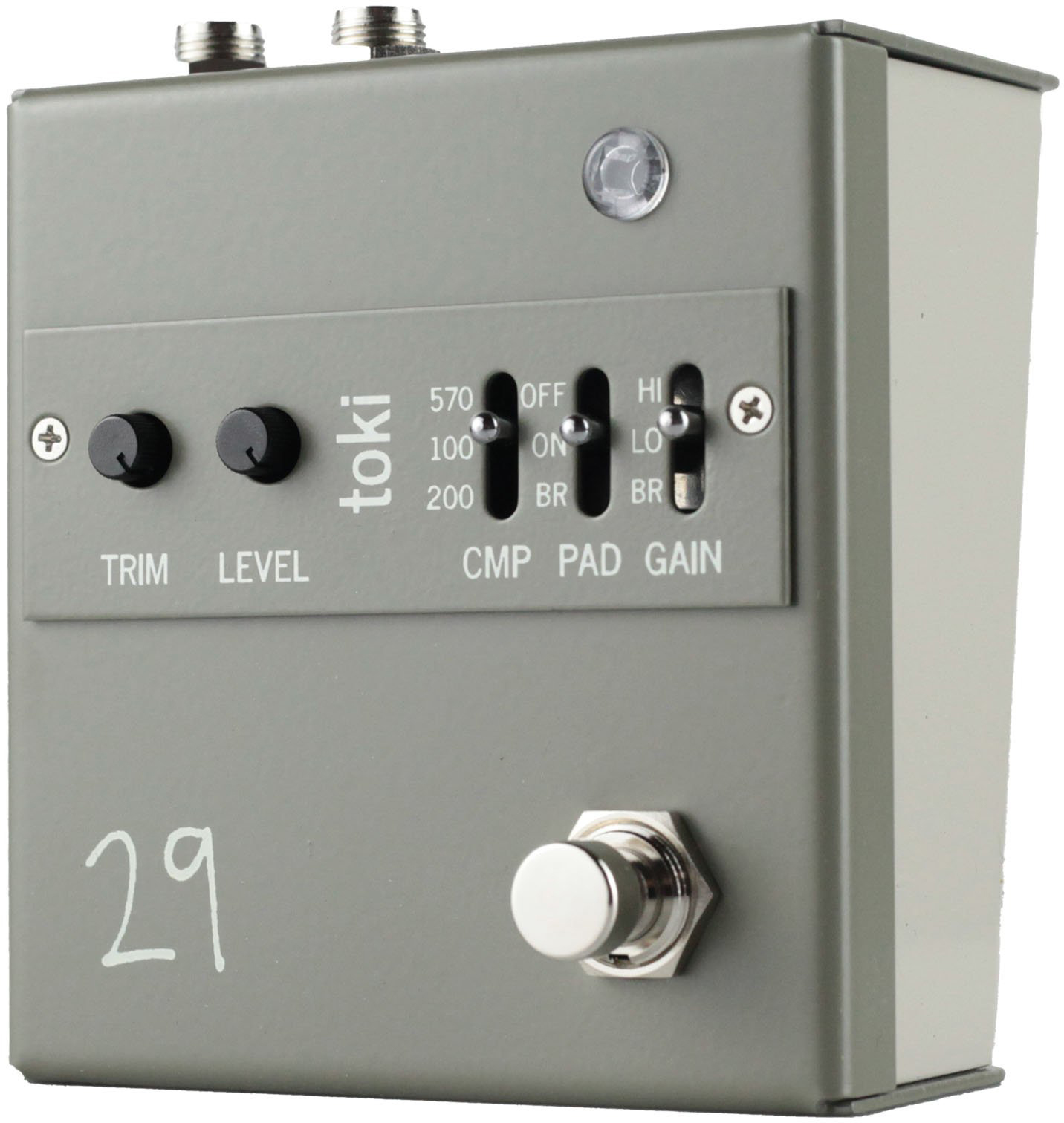

Crafted in California / USA, the 29 PEDALS Toki Fuzzy Driver delivers a wide range of studio quality textured gain sounds, from low-gain overdrive to thick fuzz.
TRIM is a passive pad at the beginning of the circuit. Use this control to create “fuzz as light overdrive” sounds, hit both bright switches for some 70s glam riffs, find somewhere in between where you want to hang out. Discrete front end and IC back end for a versatile hybrid-fuzz experience.
CMP is a capacitor load control that can tweak the top-end of the signal. PAD is a passive pad between discrete gain stages. GAIN adjusts the drive of the second discrete gain stage and LEVEL is the final output control. The output driver is after the level fader to ensure that output impedance remains consistent.
This pedal maxes out at about 57 dB input-to-output gain, although internally it’s making more than that. It draws a little less than 100mA.
It can be used after a buffer or input driver (like EUNA), and also can function as an always-on input driver at the beginning of the board if you like warm guitar tones. It stacks great with FLWR, JFET and OAMP. It will drive heavy loads, making it equally happy at the end of your board.
TRIM is a passive pad at the beginning of the circuit. Use this control to create “fuzz as light overdrive” sounds, hit both bright switches for some 70s glam riffs, find somewhere in between where you want to hang out. Discrete front end and IC back end for a versatile hybrid-fuzz experience.
CMP is a capacitor load control that can tweak the top-end of the signal. PAD is a passive pad between discrete gain stages. GAIN adjusts the drive of the second discrete gain stage and LEVEL is the final output control. The output driver is after the level fader to ensure that output impedance remains consistent.
This pedal maxes out at about 57 dB input-to-output gain, although internally it’s making more than that. It draws a little less than 100mA.
It can be used after a buffer or input driver (like EUNA), and also can function as an always-on input driver at the beginning of the board if you like warm guitar tones. It stacks great with FLWR, JFET and OAMP. It will drive heavy loads, making it equally happy at the end of your board.
Lire la suite
Technical sheet
- 29 PEDALS Toki Fuzzy Driver
- SKU 29 Pedals TOKI
- Low-gain overdrive / Fuzz
- Analog circuit
- 2x gain stages
- Controls : see pictures

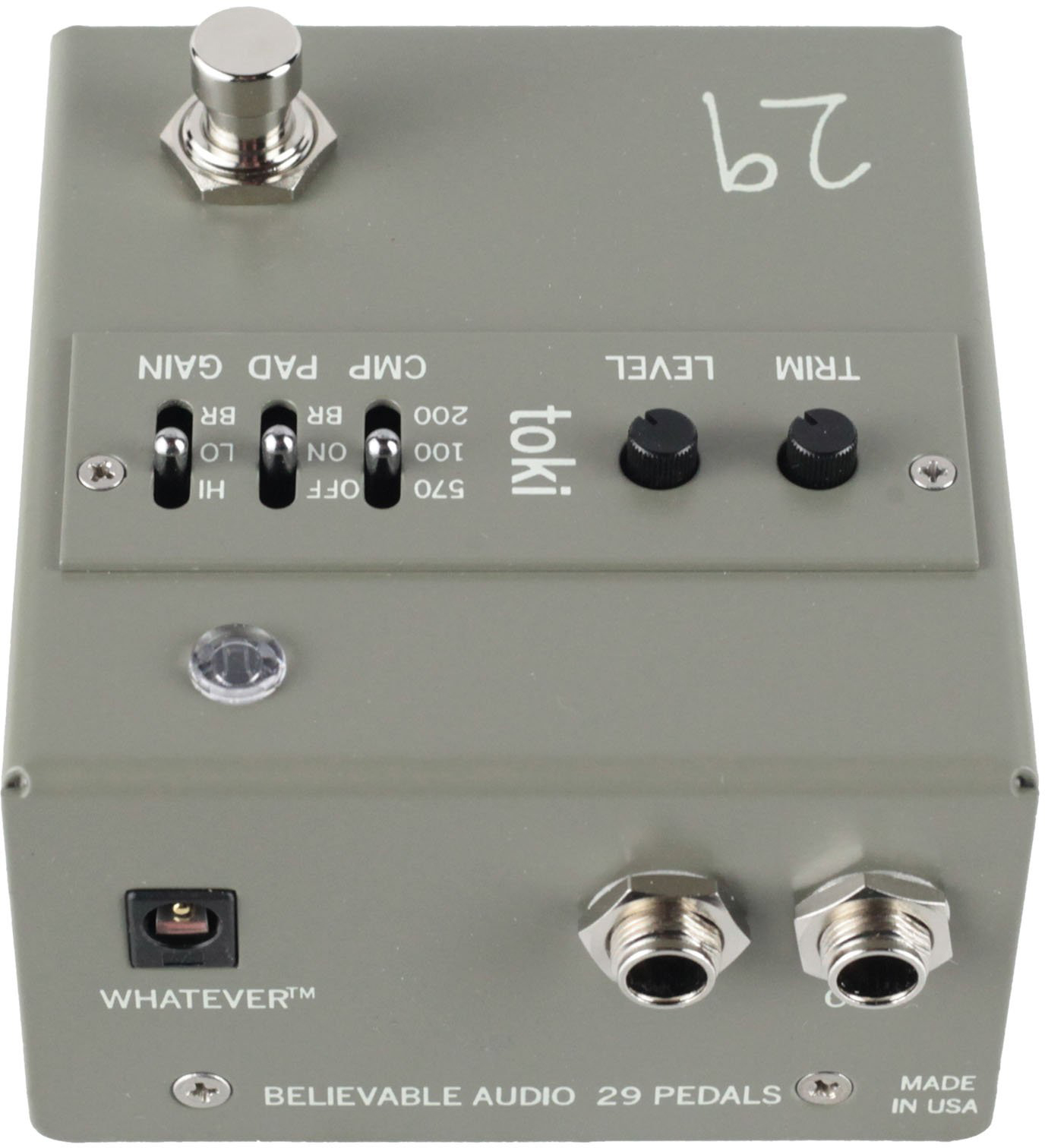

- Connections : see pictures
- True bypass
- Whatever power circuit can handle any optional power supply from 7.5 to 35V - both AC and DC (power consumption 100 mA, doesn't work on batteries)
