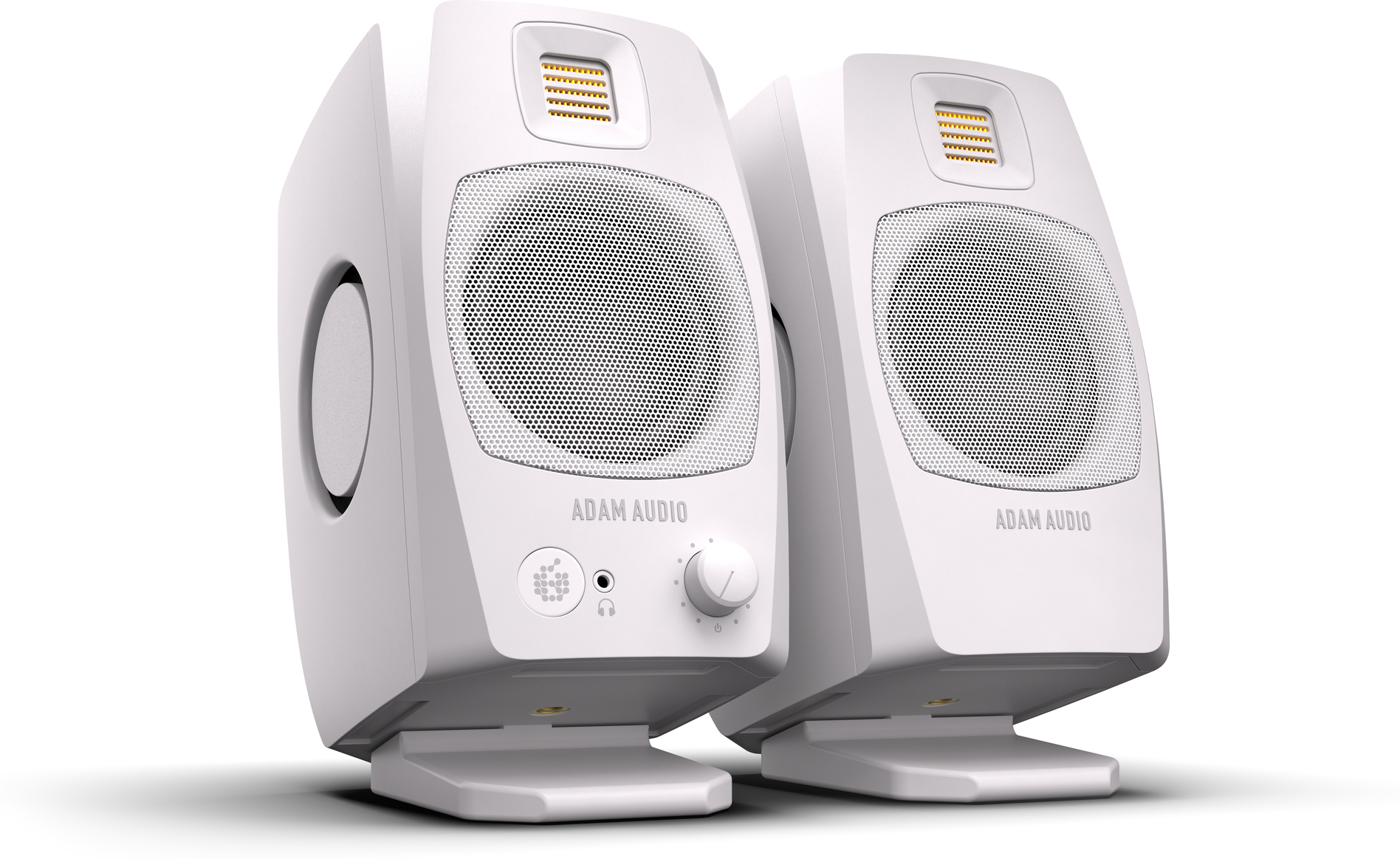

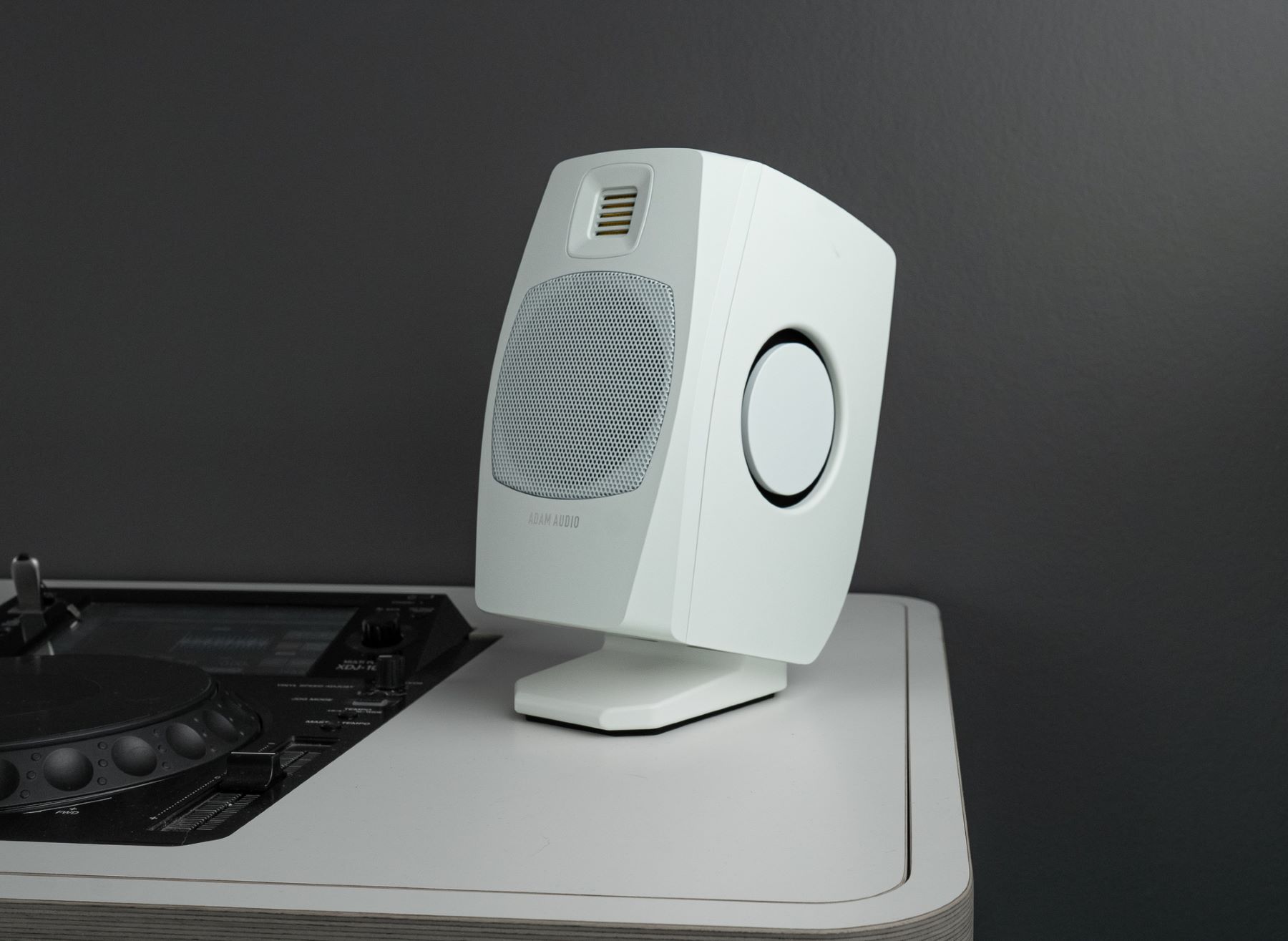

Adam D3V White - one pair

Read reviews (0)
Related accessories
Similar products

Ref : 113430

329,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

In stock

deliverable in 24 hours

Stock in store

See availability. Store

Star's Music Bordeaux

Star's Music Bruxelles

Star's Music Paris

The brand Adam

Learn more about the Adam brand and discover the entire catalog.

Discover

Monitor speaker buying guide

Consult this guide to make sure you don't go wrong when buying monitoring speakers!

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Active studio monitor

Technical sheet

Monitor color White
Monitor conditioning One pair

Acoustics
- Frequency response at -3 dB: 48 - 22.6 kHz
- Frequency response at -6 dB: 45 - 23.2 kHz
- Max. sound pressure level at 1 m: 92 / 96 dB SPL
- Crossover frequency: 4.0 kHz
Speakers
- Passive radiator diameter: 2 x 3.5
- Woofer cone material: One-piece aluminum
- Woofer diameter: 3.5
- Woofer coil diameter: 1" (25 mm)
- Woofer grille: Painted steel
- Tweeter type: D-ART
- Tweeter transformation ratio: 4 to 1
Audio input/output connectors
- Analog connectors: 2 x 6.3 mm balanced jacks
- Max. input Level: +9 dBu
- Digital connector: USB Type C
- Digital audio signal: USB 1.1 class-compliant
- Sampling frequencies: 32, 44.1, 48 kHz
- Bit depth: 24 bits
- Headphone output: 3.5 mm TRS mini-jack
- Headphone output impedance: 32 ohms
Signal processing
- AN converter: 24-bit
- Internal sampling frequency: 48 kHz
- Internal bit depth: 28 bits
- Latency: 4.0 ms
- Protection: independent peak and thermal limiters
Amplification
- Woofer amplifier Type: PWM
- Woofer peak power: 2 x 80 W (10% THD)
- Woofer RMS power: 2 x 70 W (1% THD)
- Tweeter amplifier Type: PWM
- Tweeter peak power: 2 x 40 W (10% THD)
- RMS tweeter power: 2 x 30 W (1% THD)
Control options
- Input sensitivity: 0 dBu = 88 dB SPL at 1 m
- Level: volume knob controls speaker and headphone outputs
- Volume knob functions: mute, standby, input selection
- Input selection: analog, USB-C
- Channel order: normal, L/R permutation
- Rear panel adaptation - Position: 0, -3, -6 dB
- Rear panel adaptation - Desktop: 0, -3, -6 dB and 0, -2, -4 dB
- Backplate adaptation - Room acoustics: 0, -1.5, -3 dB
Remote control options
- Connector: USB-C
- Connection type: USB 1.1 class-compliant
General data
- Display: Multicolor logo on front panel
- Housing design: Dual passive radiator
- Housing material: Painted ABS polycarbonate
- Mounting options: Flat, 15-degree angle, 3/8" threaded insert
- AC input voltage: 100 - 240 V, 50/60 Hz
- Power rating: 60 W max
