Algam lighting STAGEBAR-II

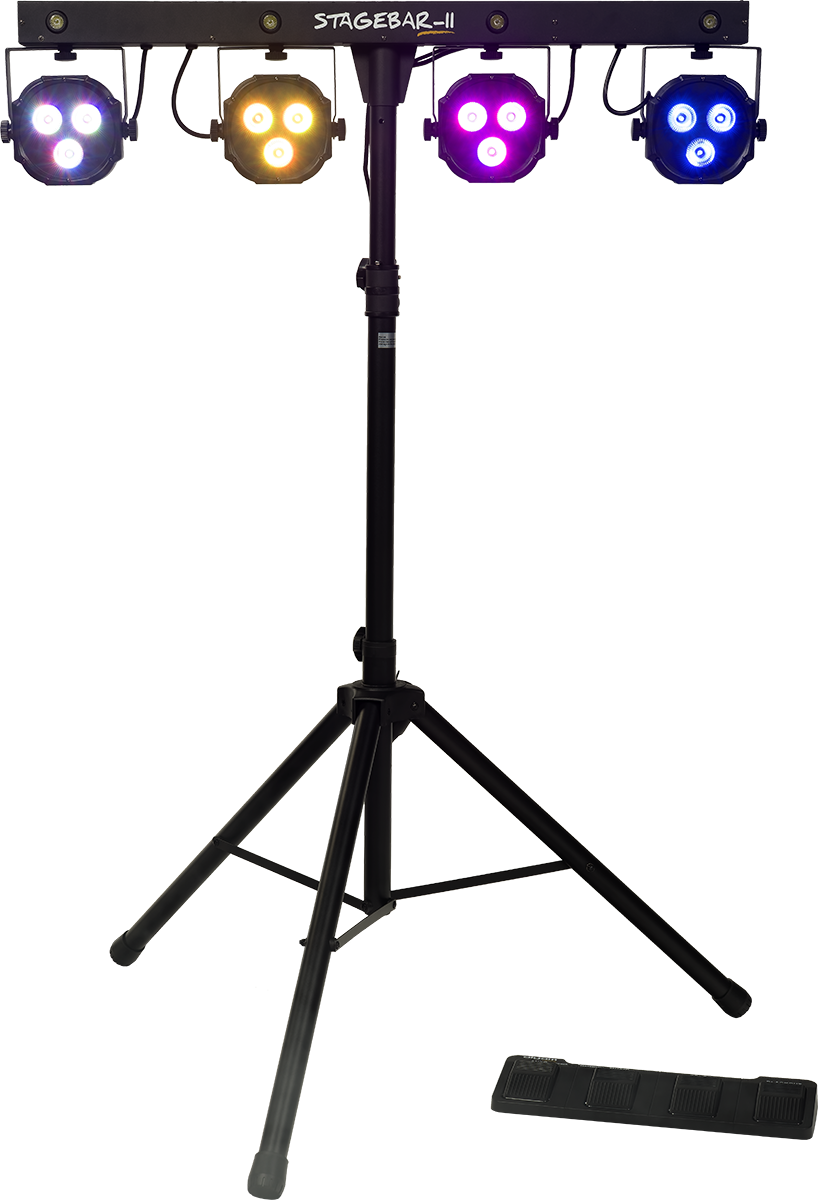

The Stagebar II is an all-in-one LED lighting system designed for DJs, bands and service providers looking for a complete, easy-to-use lighting solution. Comprising 4 PAR RGB LEDs and 4 white stroboscopic LEDs, it offers impressive light output, while its sturdy telescopic tripod guarantees fast, convenient installation.

A true turnkey solution, the Stagebar II installs in a matter of moments and offers a range of operating modes to suit all levels, from amateur DJ to professional. Thanks to its wireless footswitch and integrated microphone for music detection, you can control your lighting effects in total freedom, with no wiring constraints.

An all-in-one solution for your parties

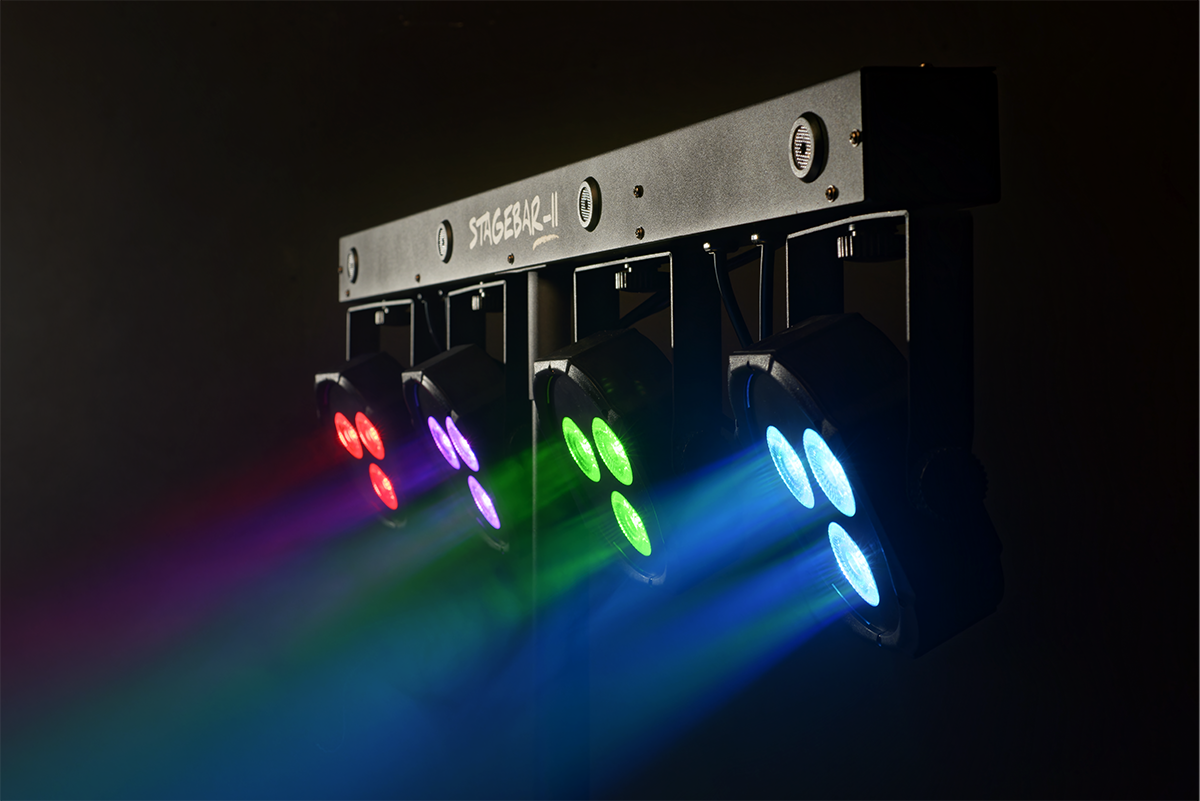

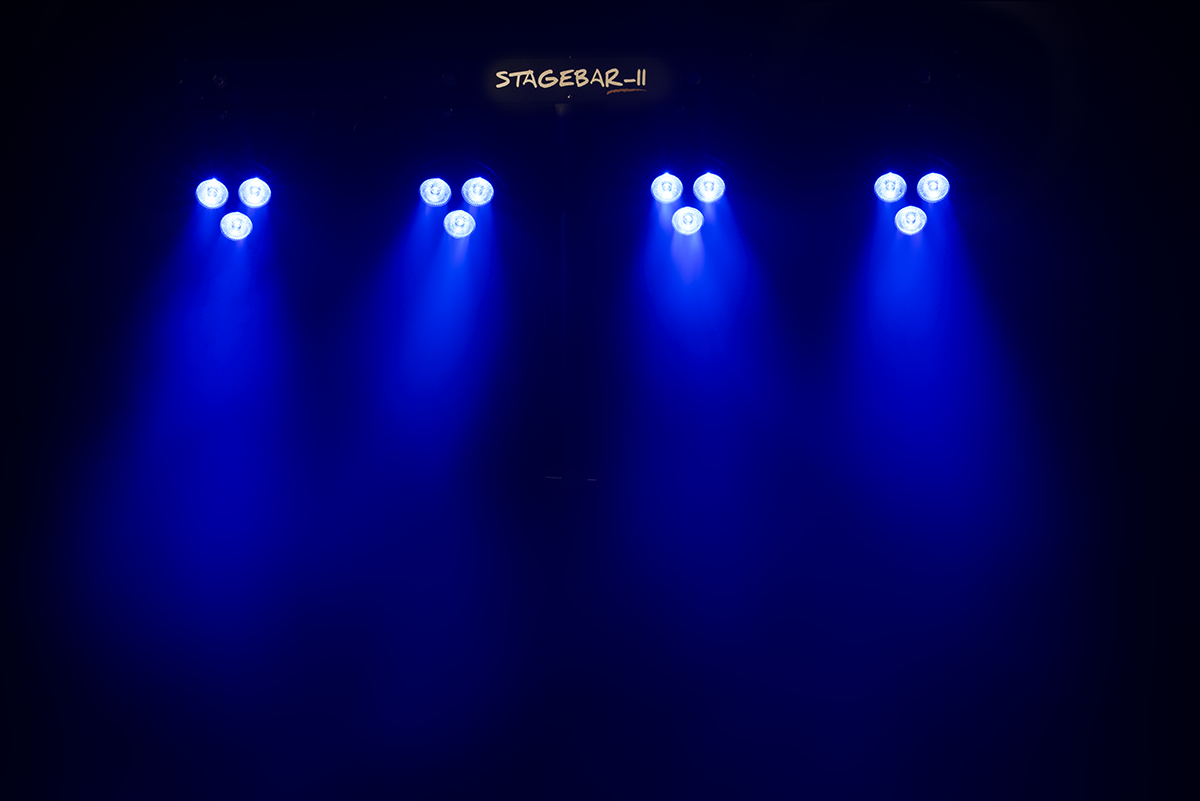

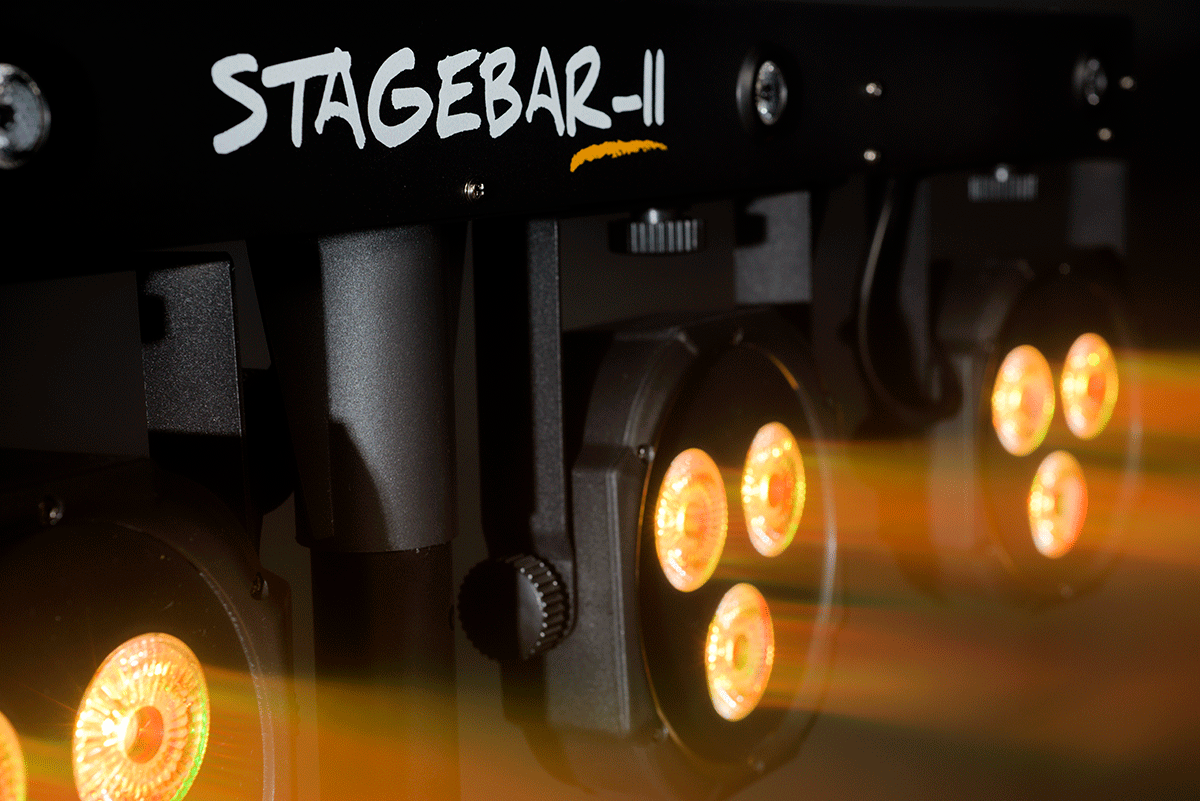

The Stagebar II has been designed to simplify your light shows as much as possible. Its system includes 4 PAR LED RGB spotlights with 12 x 3-in-1 LEDs of 9W each, ensuring powerful, even distribution with a 15° lighting angle.

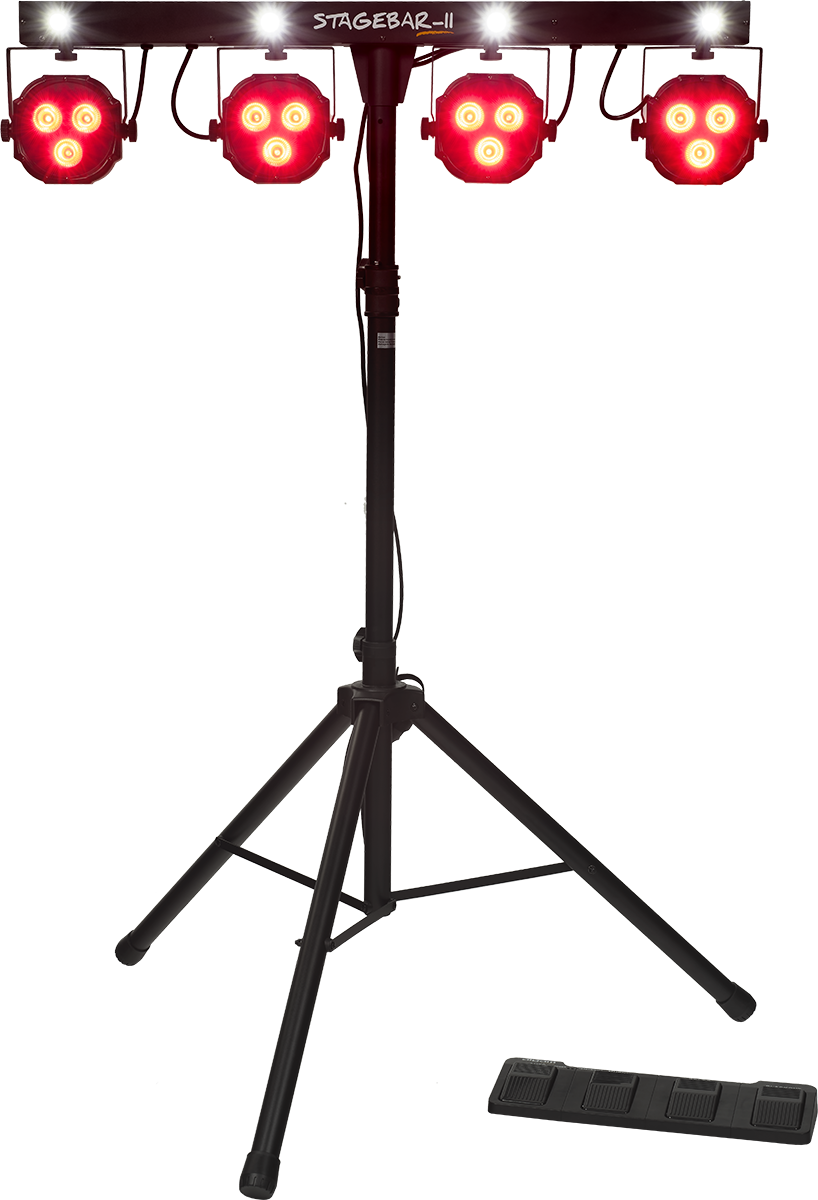

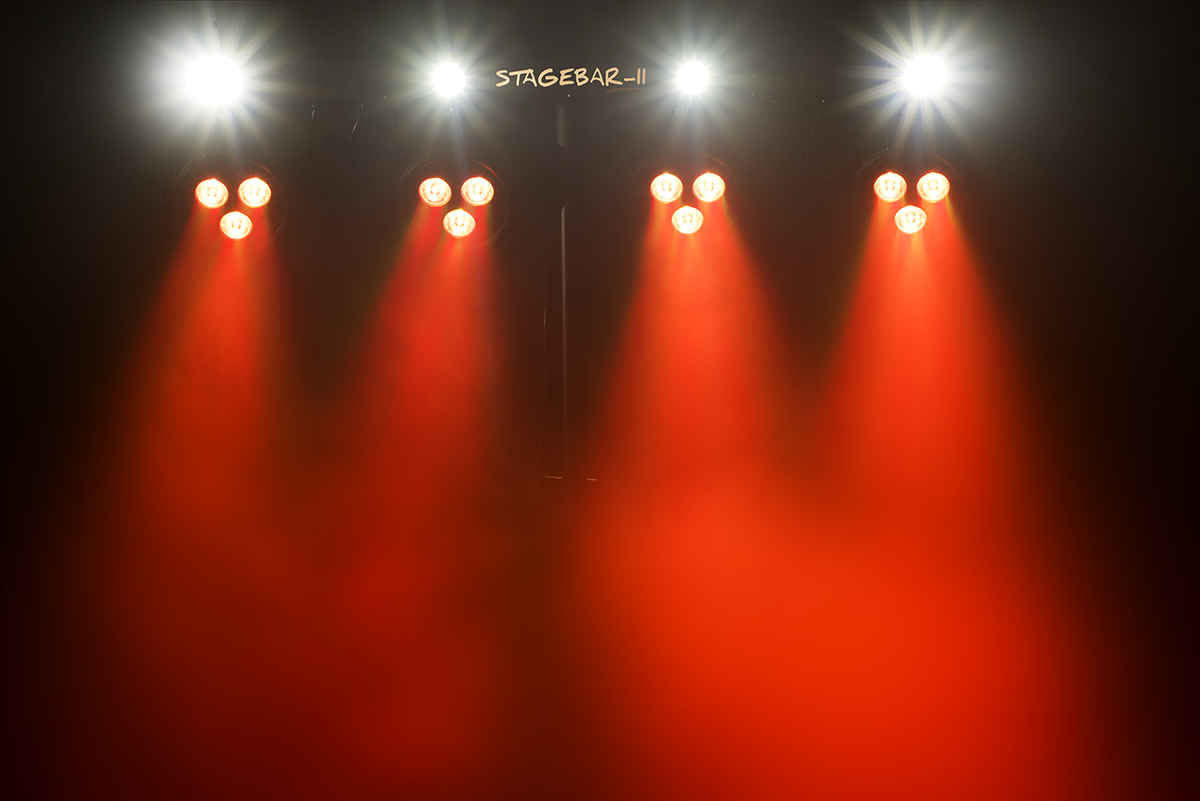

To complete the picture, 4 white 1W LEDs are integrated to create a striking strobe effect, ideal for energizing your shows and parties. The whole package is perfect for parties, weddings, concerts or professional events.

Flexible, intuitive operating modes

Whether you want automated operation or precise control, Stagebar II adapts to your needs. It features several operating modes: Auto, Musical with integrated microphone, Master/Slave and DMX mode for complete control from a console.

Its DMX interface is compatible with 3, 5 or 24 channels, allowing separate control of colors, effects and strobe. With the wireless footswitch, you keep control of the show at your feet, for optimum playing comfort.

Quick, easy and convenient installation

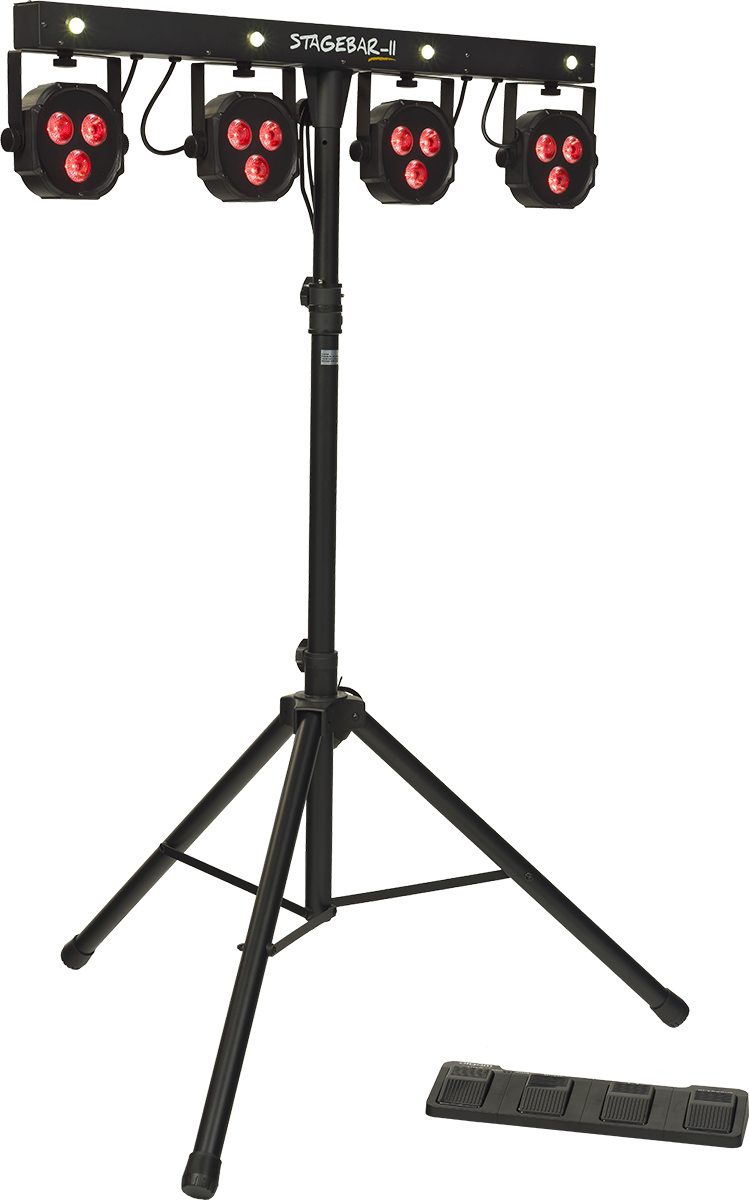

One of the Stagebar II 's greatest assets is its ease of installation. Supplied with a telescopic tripod, carrying case and all necessary accessories, it can be set up in just a few minutes.

Adjust the height of the tripod to between 1.5 and 2.5 meters, attach the LED bar, lock the unit in place and plug in the wireless footswitch: your system is ready to go. What's more, up to 20 devices can be daisy-chained thanks to the Power Out function, reducing the number of sockets required for your installations.

Power, control and reliability

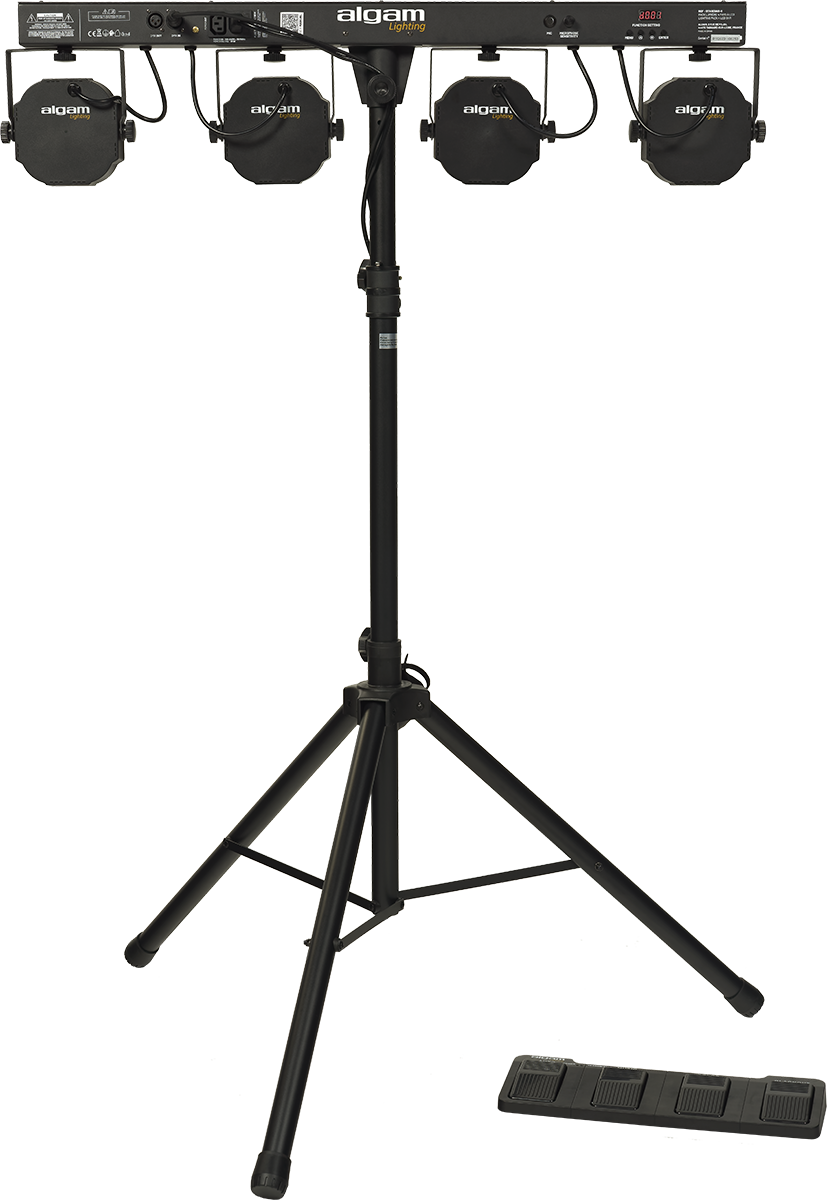

Thanks to its robust steel and plastic construction, the Stagebar II withstands the rigors of transport and repeated use. Its universal power supply (100-240V, 50/60 Hz) makes it compatible in all situations, and its 4-button digital display simplifies settings on stage.

Compact and powerful, it consumes just 84W and weighs just 10.2 kg. It's easy to transport and quick to install, without compromising on lighting performance.

Stagebar II technical specifications

• Light sources: 4 PAR LED RGB (3 LEDs of 9W each) + 4 white LEDs of 1W (strobe effect)
• Modes: Auto, Musical, Master/Slave and DMX
• Number of DMX channels: 3, 5 or 24 channels
• DMX input/output: XLR 3-pin
• Display: Digital display with 4 control buttons
• Chassis: steel and plastic
• Supply voltage: 100-240V 50/60 Hz
• Power consumption: 84W
• Cascade power supply: Up to 20 machines @240V
• Weight and dimensions: 10.2 kg - 1032 x 71 x 235 mm
• Protection rating: IP20 (indoor use)

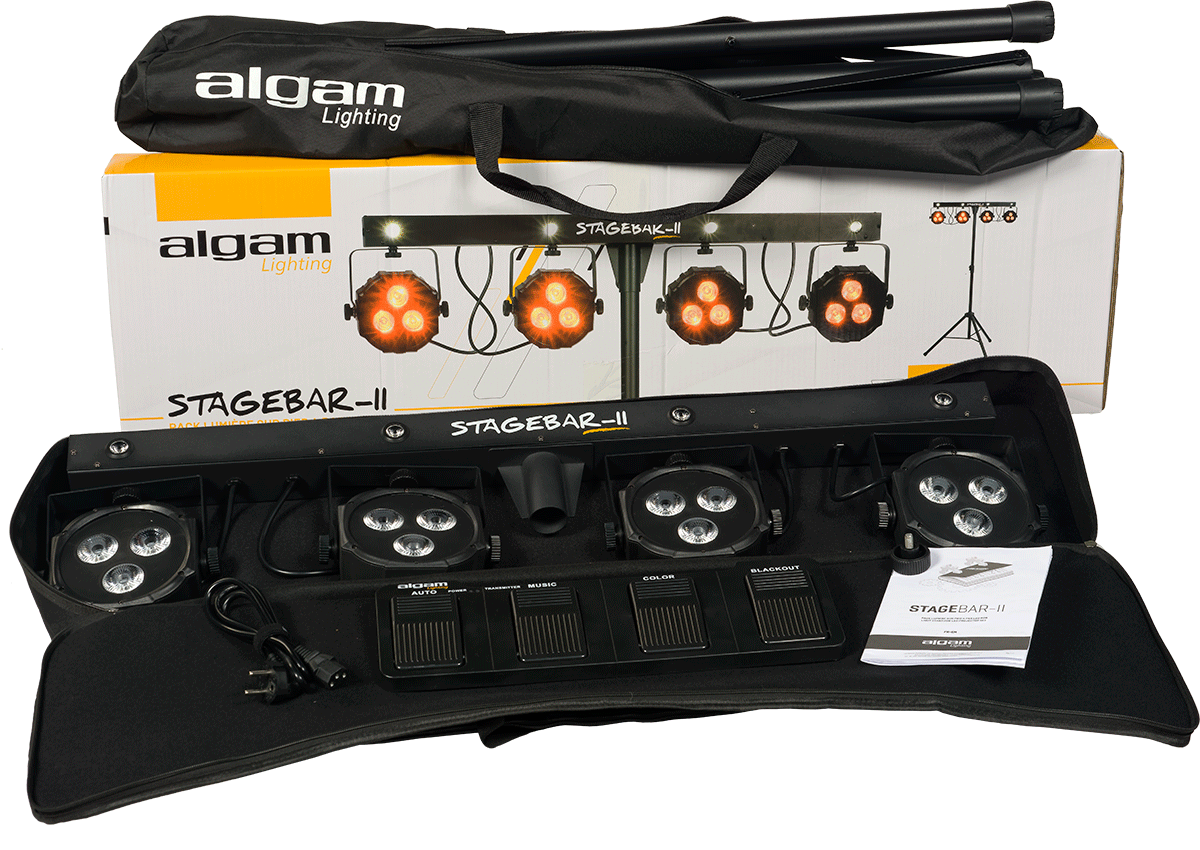

• Accessories included: Power cable, Velcro fastener, tripod, wireless pedal board, carrying case
• Tripod: Height-adjustable from 1.5 m to 2.5 m
