Antelope audio Discrete 4 + premium pack offert

Name: Discrete 4 + premium pack offert
Brand: Antelope audio
SKU: 77106
Availability: SoldOut
Rating: 5 (1 reviews)

Read reviews (1)
Related accessories
Similar products

VIDEO

This article is no longer available for sale.

Unavailable

Stock in store

Not available in store

The brand Antelope audio

Learn more about the Antelope audio brand and discover the entire catalog.

Discover

Sound card buying guide audio interface

Through this buying guide, you will find all the information you need to make your first audio interface purchase.

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Usb audio interface

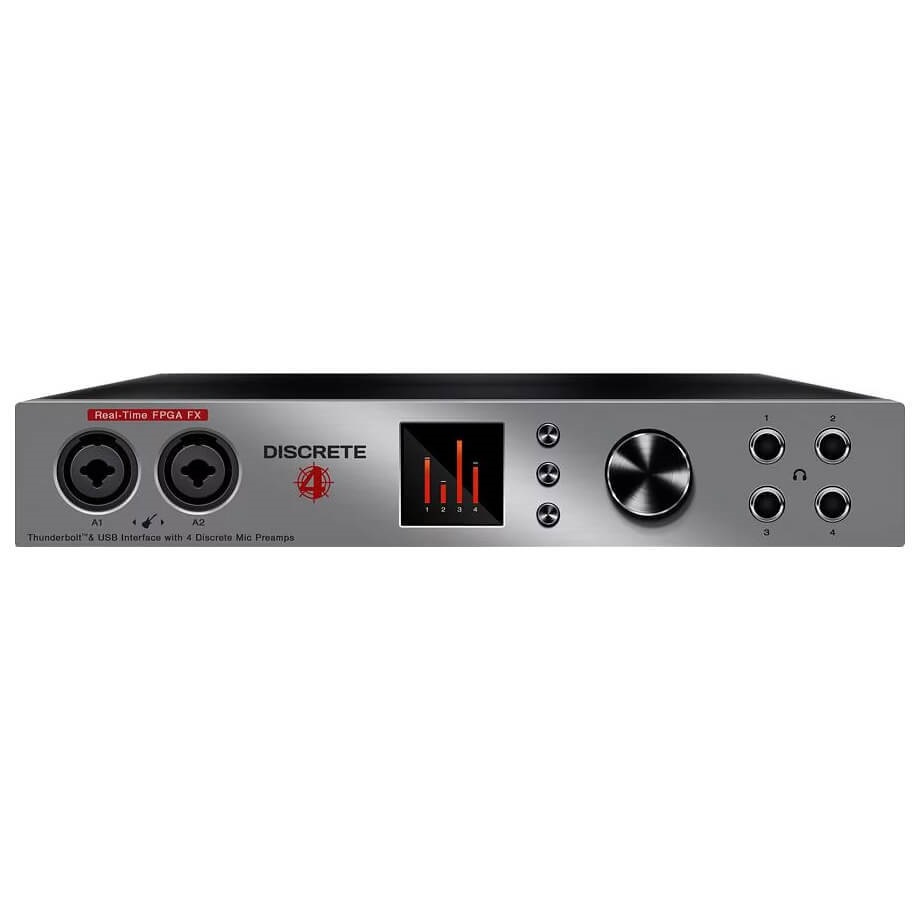

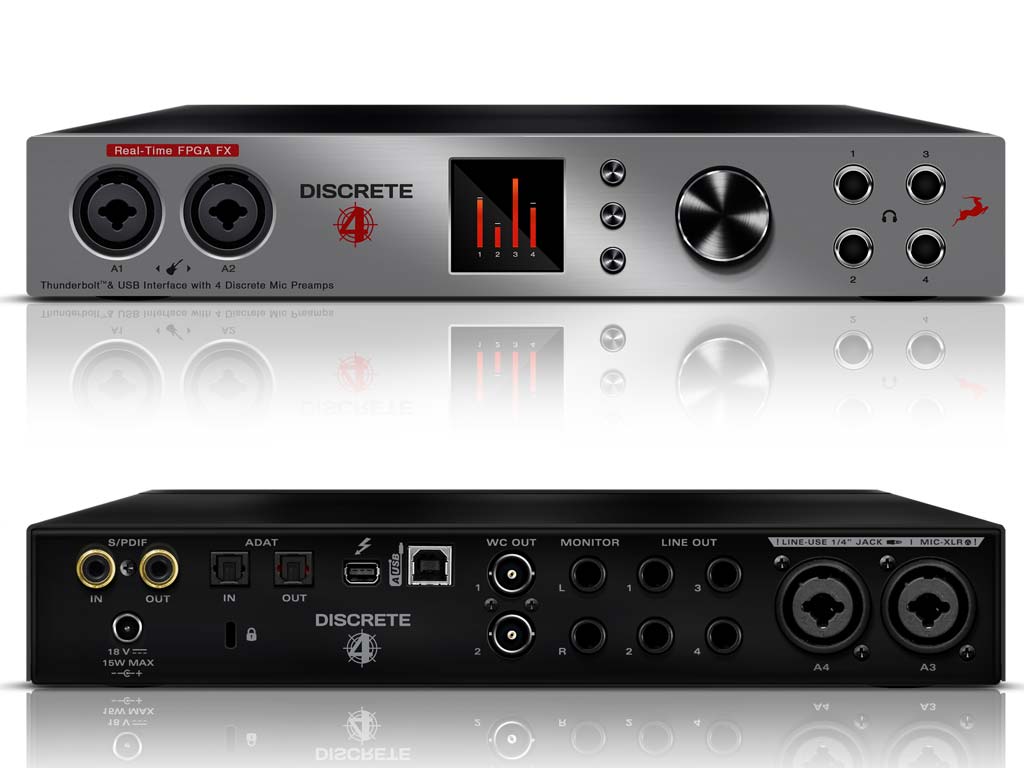

Antelope Audio’s Discrete 4 Microphone Preamp comes with 4 console grade 6-transistor discrete preamps, 121 db dynamic range conversion and rock solid clocking. Discrete 4 features the Antelope Audio premier real-time FPGA FX modeling iconic gear from BAE, Lang, Gyraf Audio and FET.
Discrete 4 includes Accusonic 3D microphone and preamp models, guitar amps, transformer and tube FX, and a huge selection of classic vintage gear, now accessible in any DAW thanks to the freshly introduced Antelope Connect AFX Plugin.

Technical sheet

DSP Yes

ANALOG
Analog Inputs
2 x Mic / Line Inputs
2 x Mic / Line / Hi-Z Inputs
Analog Outputs
1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
4 x Line Outs on TRS, +20 dBu max
4 x Stereo Headphone Outputs
Mic Preamp
EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input: +18 dBu
Gain Range: 65 dB
D/A Monitor Converter
Dynamic Range: 121 dB
THD + N: -100 dB
A/D Converter
Dynamic Range: 121 dB
THD + N: -112 dB
D/A Converters(Line Out)
Dynamic Range: 118 dB
THD + N: – 100dB
DIGITAL

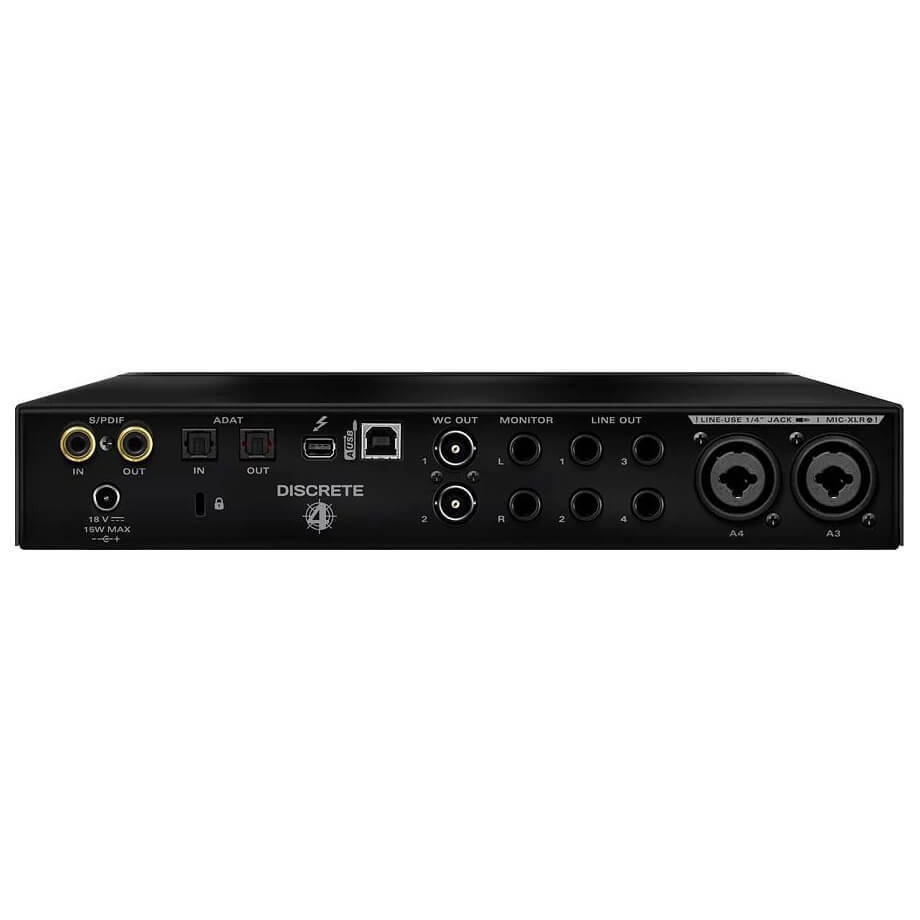

Digital Inputs
1 x ADAT (up to 16CH)
1 x S/PDIF
Digital Outputs
1 x ADAT (up to 16CH)
1 x S/PDIF
USB I/O
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
Thunderbolt™ I/O
1 x Thunderbolt, 32 channels I/O
CLOCKING
Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
Other
Operating Temperature
0-50°C, 32-122°F
Weight (Approx)
1.7 kg/ 3.7 lbs
Dimensions (Approx)
Width: 261 mm / 10.2”
Height: 44 mm / 1.7”
Depth: 208 mm /8.2”
Power Consumption
15 Watts

More specifications

Fewer specifications

Video presentation
Video presentation
Video presentation

User reviews : 1 notice

5,0 5

Leave review

posted 2019/10/07 12:56:00 FABRICE G. Certified purchase

Que du bonheur !

Il n'y a rien à ce jour qui me permette de donner un avis négatif, je suis comblé.
La transparence du son, le bas du spectre très détaillé, la dynamique des convertisseurs, les préamps et les émulations vous apportent tout ce qu'il faut pour un enregistrement optimum.
C'est un véritable couteau suisse, bravo !
