Antelope audio Discrete 8 Oryx

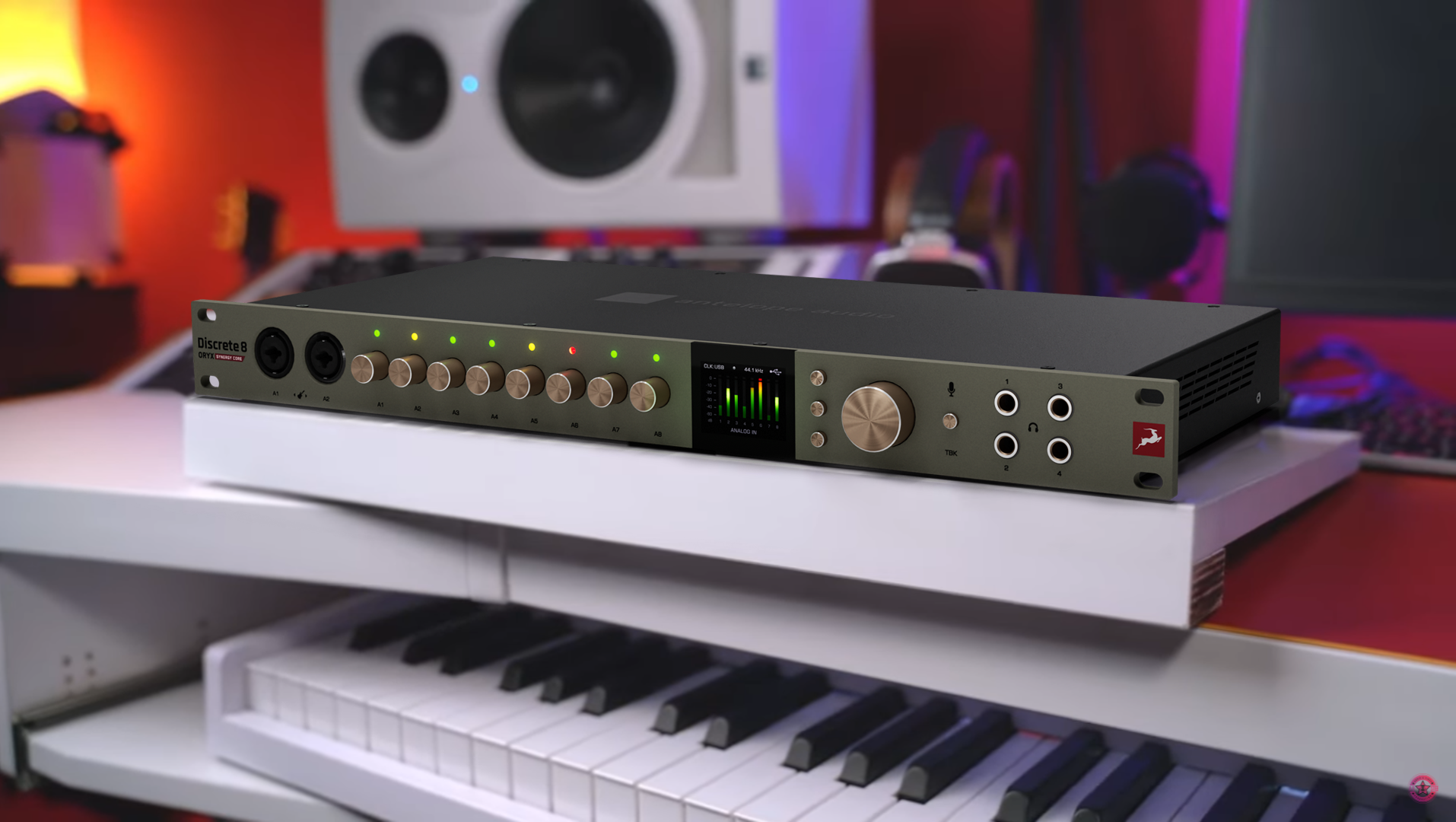

The Discrete 8 Oryx embodiesAntelope Audio 's expertise in a professional audio interface designed for producers, sound engineers and bands looking for a complete, high-performance solution.

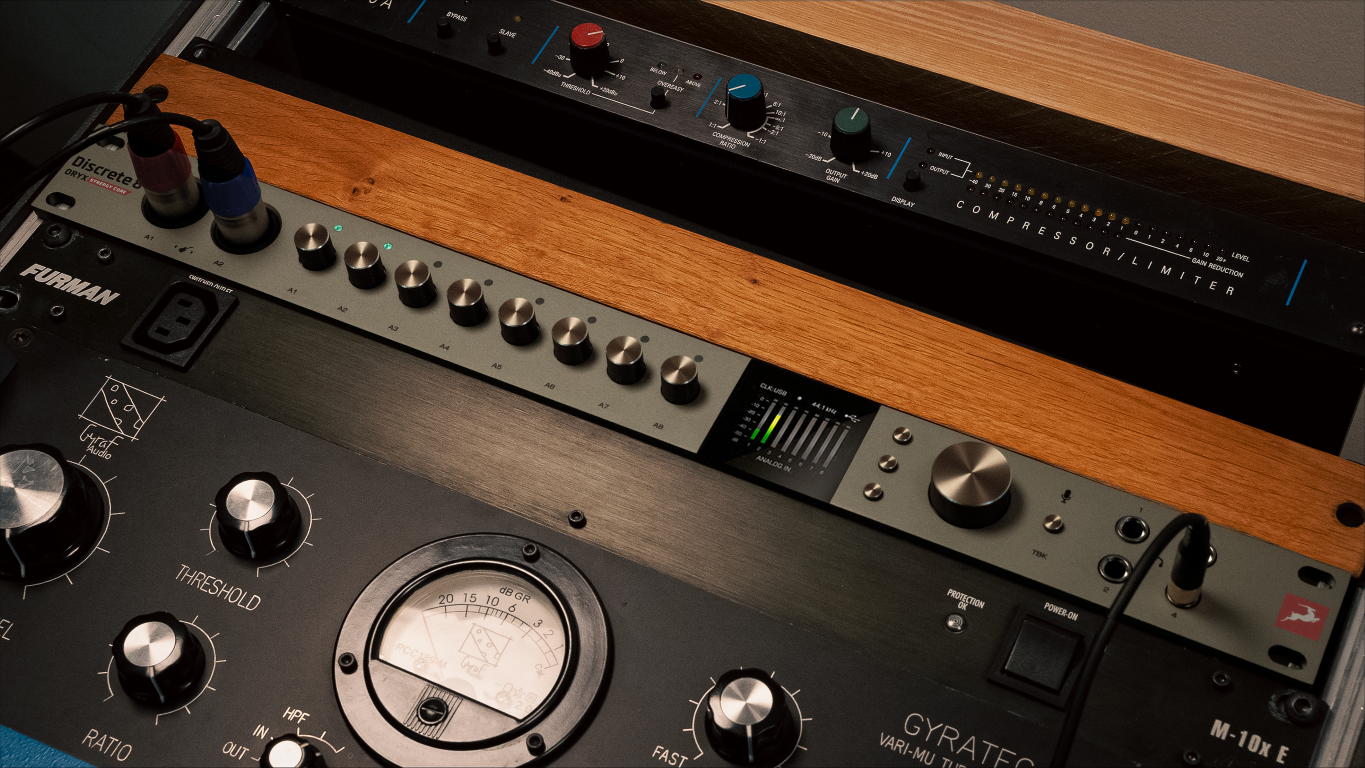

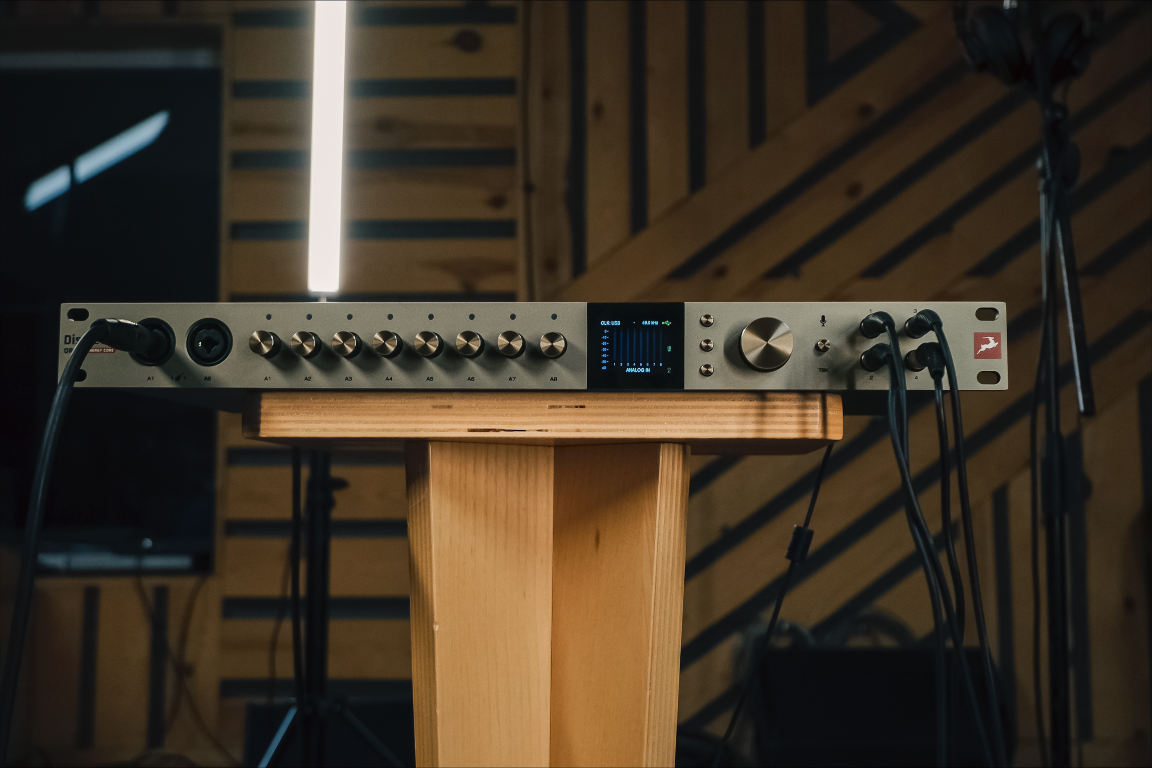

This model combines high-end audio conversion, vintage console-inspired discrete preamps, real-time effects processing and flexible routing, all in a rack-mountable 1U format. Designed for hybrid environments, it lets you record several instruments simultaneously, while enjoying impeccable sound quality and a precise, natural monitoring experience.

Key features

• Outstanding sound quality

  Latest-generation AD/DA conversion offering up to 130 dB of dynamic range, combined with 64-bit AFC™ clocking technology for expanded stereo imaging and superior definition.

• 8 high-end discrete preamps

  Six-transistor design inspired by classic analog consoles, offering up to 75 dB of gain and extremely low noise floor, ideal for any type of microphone.

• Synergy Core real-time processing

  On-board platform combining 2 DSPs and 1 FPGA, enabling the use of 37 modeled analog effects (compressors, equalizers, amps, reverbs, etc.) with no perceptible latency.

• Advanced monitoring

  Four independent headphone outputs with X-feed (crossfeed) mode and custom calibration for more realistic listening and natural stereo positioning.

• Extended connectivity

  26 inputs and 38 simultaneous outputs, including ADAT, S/PDIF, Reamp, Line and Monitor outs, for total studio flexibility.

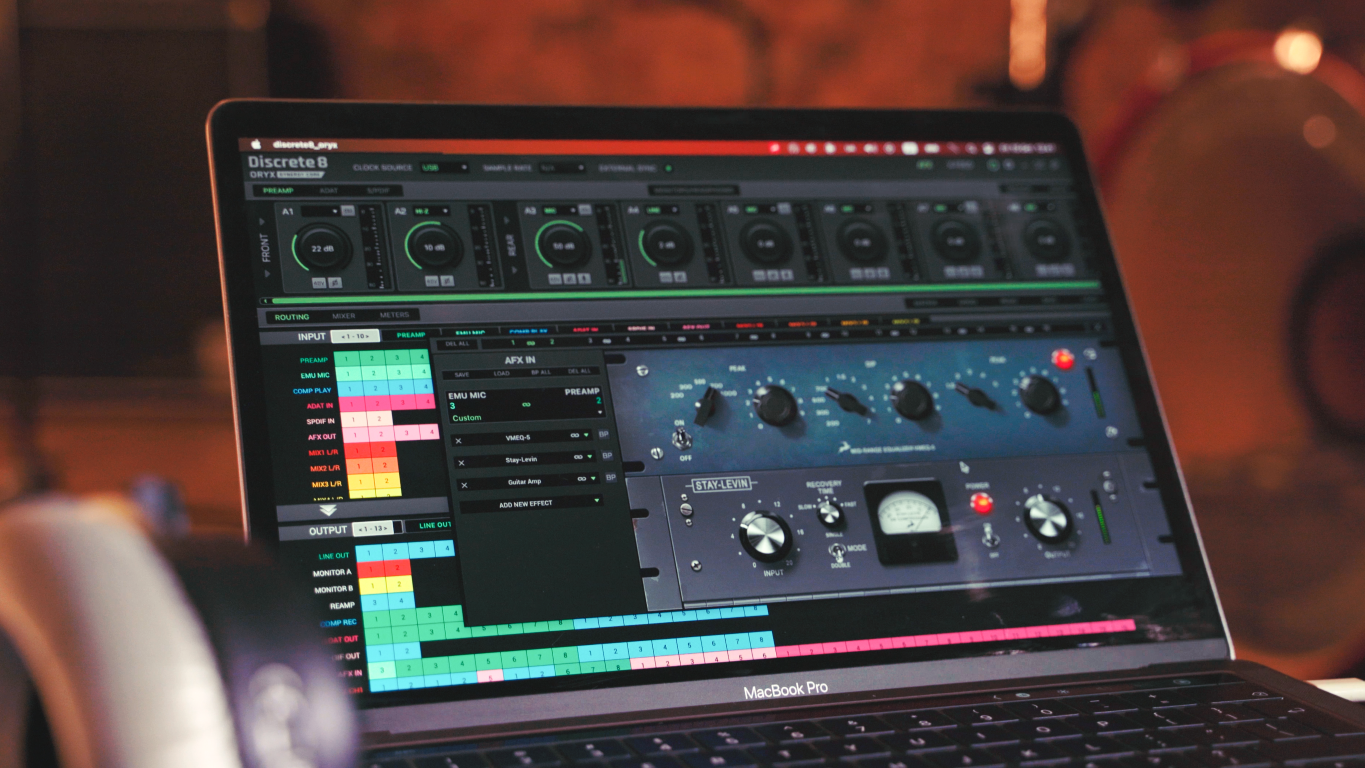

• Complete virtual routing

  Internal patchbay allows simultaneous use of all analog and digital I/Os for a smooth, intuitive workflow.

Clock and conversion

High-end AD/DA conversion up to 130 dB headroom, with maximum resolution of 24-bit / 192 kHz. Proprietary 64-bit AFC™ technology and its jitter management algorithm guarantee a stable, accurate sound image, ideal for demanding studios.

Connectivity

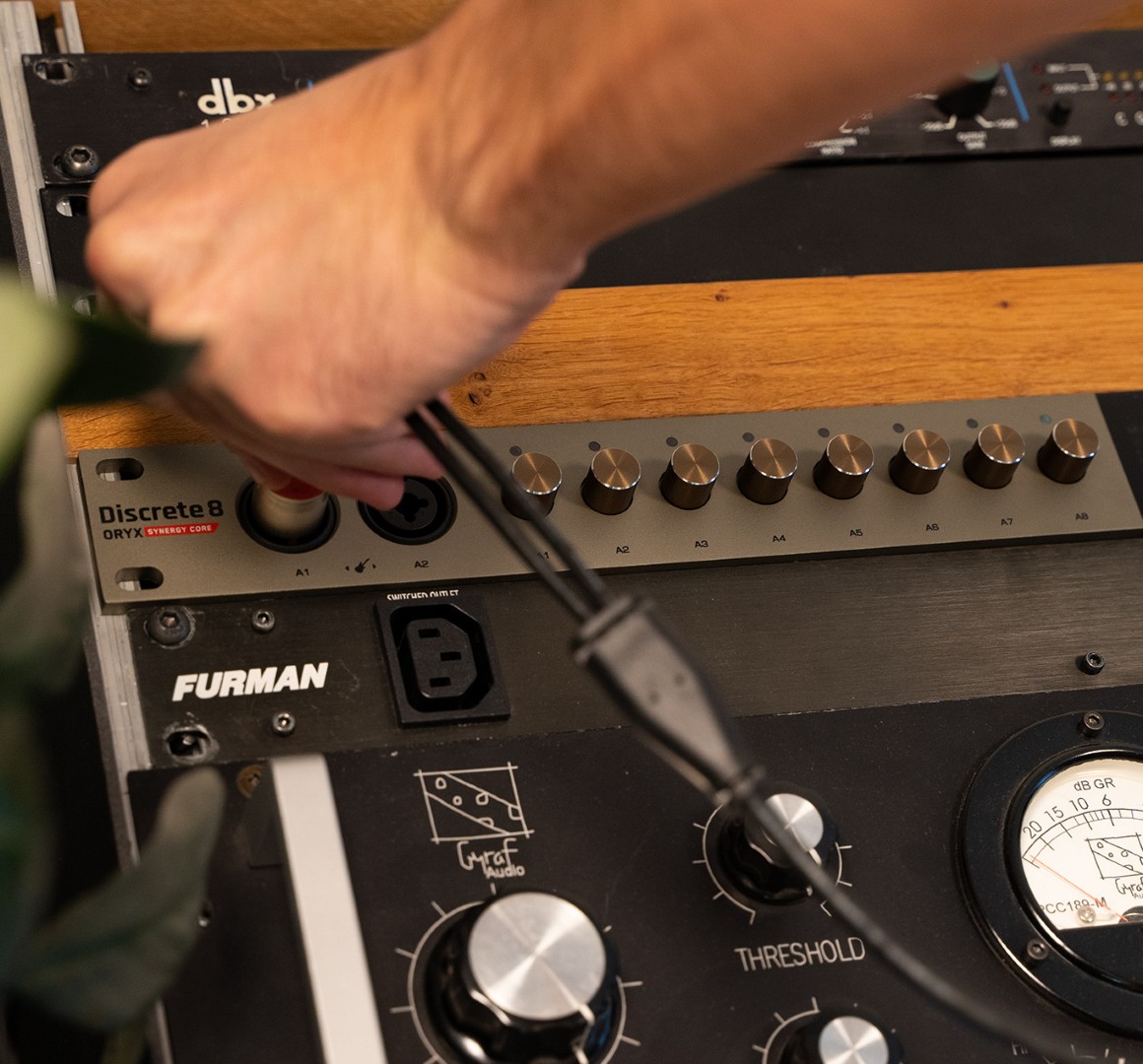

• 8 discrete preamps (mic/line, including 2 Hi-Z) on XLR combo connectors with +48V power supply
• 8 DC-coupled line inputs and 8 line outputs on D-Sub 25
• 2 ¼" TRS reamp outputs, also usable as additional monitor outputs

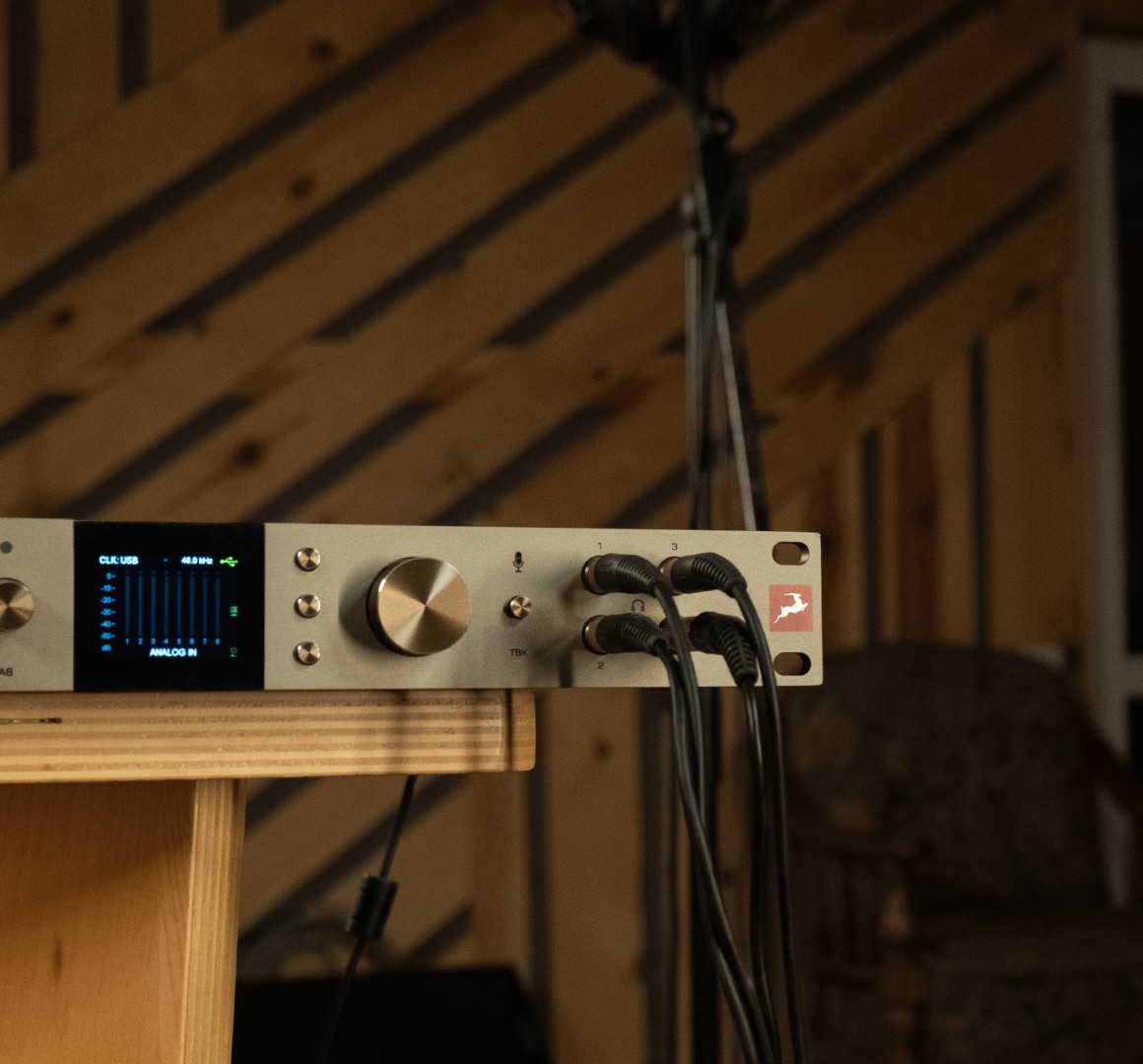

• 4 independent stereo headphone outputs with gain control
• Dedicated TRS stereo monitor outputs
• Digital extension via ADAT (16 channels) and S/PDIF (2 channels)
• 3 Word Clock outputs and 1 Word Clock input on BNC
• macOS and Windows compatible USB 2.0 Type-C port
• Footswitch input for talkback/dim control

Workflow features

• Real-time, latency-free direct monitoring with Synergy Core effects
• X-feed mode and integrated headphone calibration
• Customizable headphone mixes (volume, pan, reverb)
• Integrated talkback with on-board microphone

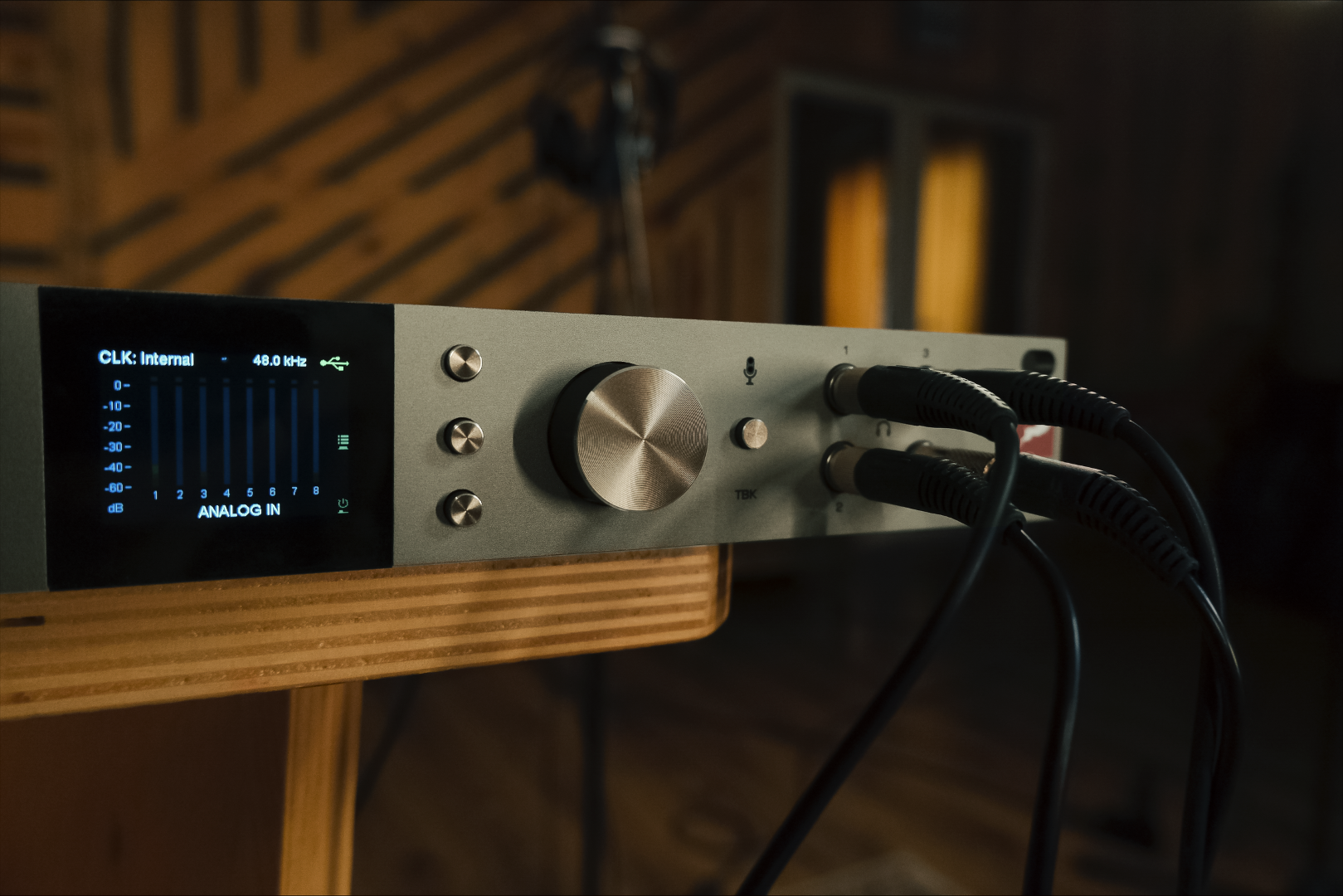

• Dedicated hardware controls: color screen, navigation buttons, gain relays
• Stand-alone mode (runs without computer)
• Remote control via another computer on the same network

Synergy Core effects included (37 effects)

• 2 preamps

  • Gyraf Gyratec IX
  • BA-31 PREAMPS

• 4 Equalizers

  • VEQ-1A
  • VMEQ-5
  • Clear Q
  • VEQ-HLF

• 5 Compressors / Limiters

  • Stay-Levin
  • FET-A76
  • VCA160
  • X903
  • PowerFFC

• 22 Guitar Amps and Cabinets

  • Bluelux 1x12
  • Plexi 59
  • Darkface 65
  • and other iconic models

• 2 Dynamic Processors

  • Expander
  • Noise Gate

• 1 Reverb

  • Auraverb

• 1 Guitar Tuner

  • A-Tuner
