Antelope audio ORION32+ GEN4

  • Read reviews (0)
  • Related accessories
  • Similar products

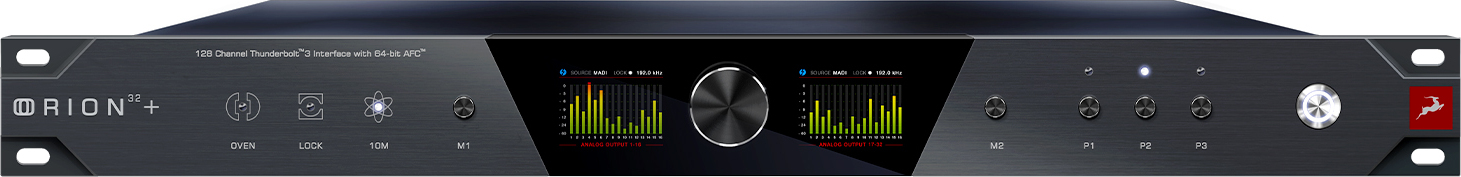

  • Antelope Audio Orion32+ Gen4 - USB audio interface - Main picture
  • Antelope Audio Orion32+ Gen4 - USB audio interface - Variation 1
  • Antelope Audio Orion32+ Gen4 - USB audio interface - Variation 2
2919,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 107257
Last one!
1 piece available.
shipped under 2/3 days
Stock in store
See availability. Store
Star's Music Paris

The brand Antelope audio

Learn more about the Antelope audio brand and discover the entire catalog.

Sound card buying guide audio interface

Through this buying guide, you will find all the information you need to make your first audio interface purchase.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Usb audio interface

For over a decade, the Orion 32 range of interfaces has revolutionised the world of professional audio recording and production. The latest revision of this iconic 1U studio centrepiece steps up the game by taking the best of its predecessors and adjusting it to the ever-increasing needs and standards of the industry. Orion 32+ Gen4 incorporates the latest Antelope Audio technology, dramatically increasing the unit's potential.

Antelope Audio interfaces are world-renowned for their industry-leading conversion and synchronisation, and the new Orion 32 is, as ever, at the forefront. Its AD/DA converters operate at up to 130dB of dynamic range, ensuring Gen4's leadership position among high-end multi-channel interfaces. The high-performance conversion is powered by the same proprietary 64-bit acoustically focused clock technology and jitter management algorithm, which over the years has proved irreplaceable for countless productions.

The Orion 32+ Gen4 offers double the Thunderbolt™ channel streaming and MADI connectivity of its predecessor. With 128 channels available, up to four units can be daisy-chained via a single IT connection, making it ideal for large recording sessions, live sound, complex post-production set-ups and broadcast installations. It's the preferred companion to large mixing consoles, hardware effects processing, analogue summers, reel-to-reel set-ups, hardware synthesizers and more.

Orion 32+ Gen4 comes not only with an updated look and vastly improved hardware, but with a redesigned software control panel for an even smoother workflow. It now features a powerful preset recall system complete with signal routing, level controls, mix parameters and monitoring controls, among others. A handy context-sensitive monitoring widget has been introduced for convenient output level control and preset recall, with functionality that's always at the top of the game. The unit's signal routing matrix is now fully customisable with a convenient patch and less complexity in mind.
Lire la suite

Technical sheet

  • DSP No
  • 128-channel Thunderbolt/USB audio interface
  • AD/DA converter with dynamic range up to 130 dB at 24 bit / 192 kHz
  • 4th generation 64-bit Antelope clock technology
  • Control panel with preset recall and customisable signal routing matrix
  • Optional surround and immersive audio functions, Dolby Atmos compatible speaker calibration and monitoring function
  • 4 zero-latency 32-channel stereo mixers for direct monitoring and signal summation
  • 128 channels of 24-bit, 192 kHz audio I/O via Thunderbolt 3
  • 32 channels of 24-bit, 192kHz audio I/O via USB 2.0 / 3.0
  • 128 channels of I/O via optical MADI with up to 48 kHz
  • 8 I/O channels via ADAT with up to 48 kHz
  • 2 I/O channels via S/PDIF with up to 192 kHz

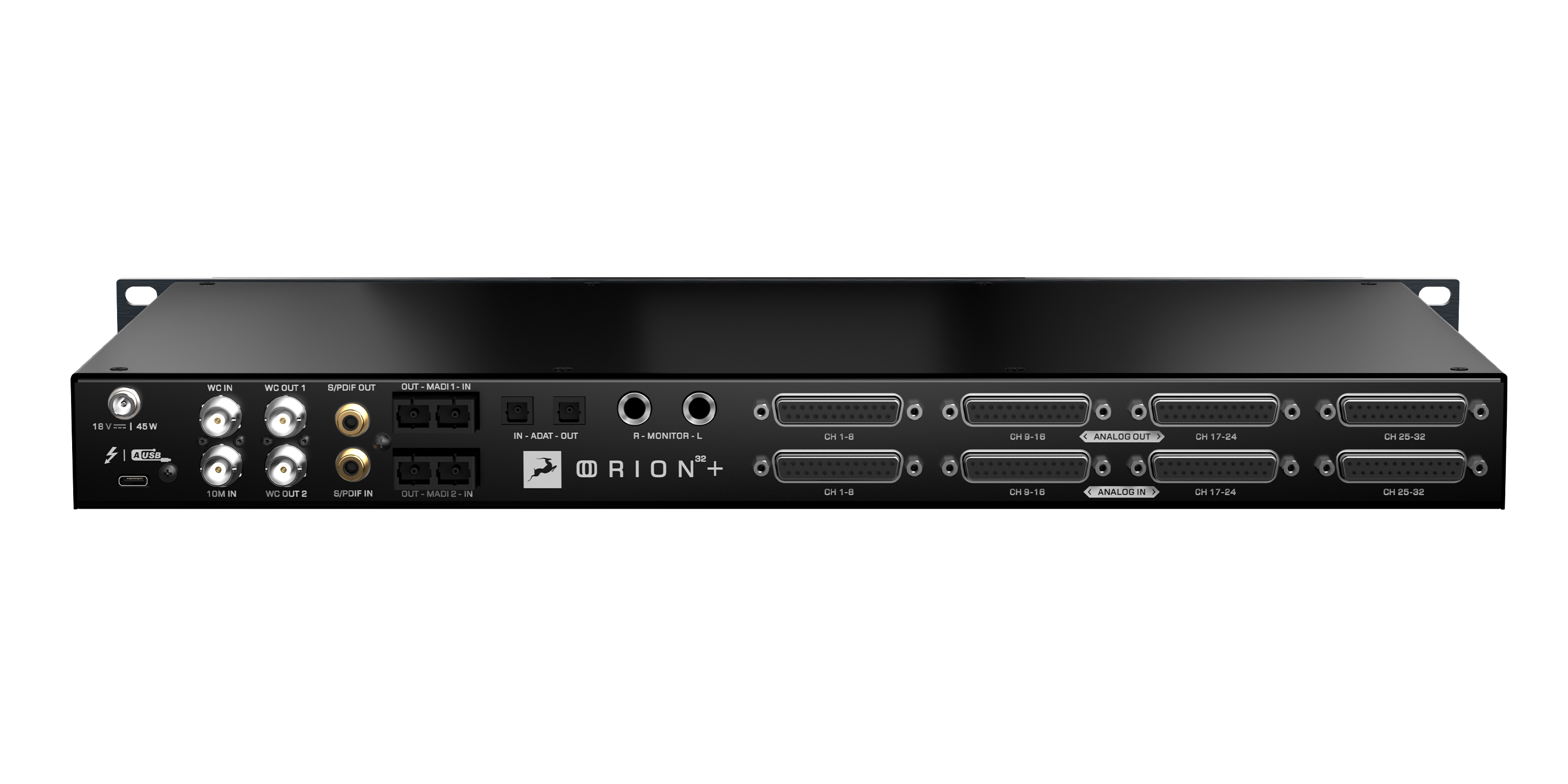

  • 32 analogue line inputs: 4x DB25
  • 32 analogue line outputs: 4x DB25
  • 2 monitor outputs: 6.3 mm jack
  • ADAT input/output
  • 2 MADI inputs/outputs
  • S/P-Dif input/output: Cinch
  • 10M input for Antelope Atomic Clock: BNC
  • Wordclock input: BNC, 75 Ohm
  • 2 Wordclock outputs: BNC, 75 Ohm
  • USB 2.0 Type-C port
  • Compatible with Antelope MRC multi-channel remote control
  • Windows 10 and Mac OSX 10.14 or higher
  • Installation size: 19"/1U
  • Included: Includes power supply and USB-C cable
  • Dimensions: 483 x 280 x 44 mm
  • Weight: 3.4 kg
