Modulation, chorus, flanger, phaser & tremolo effect pedal

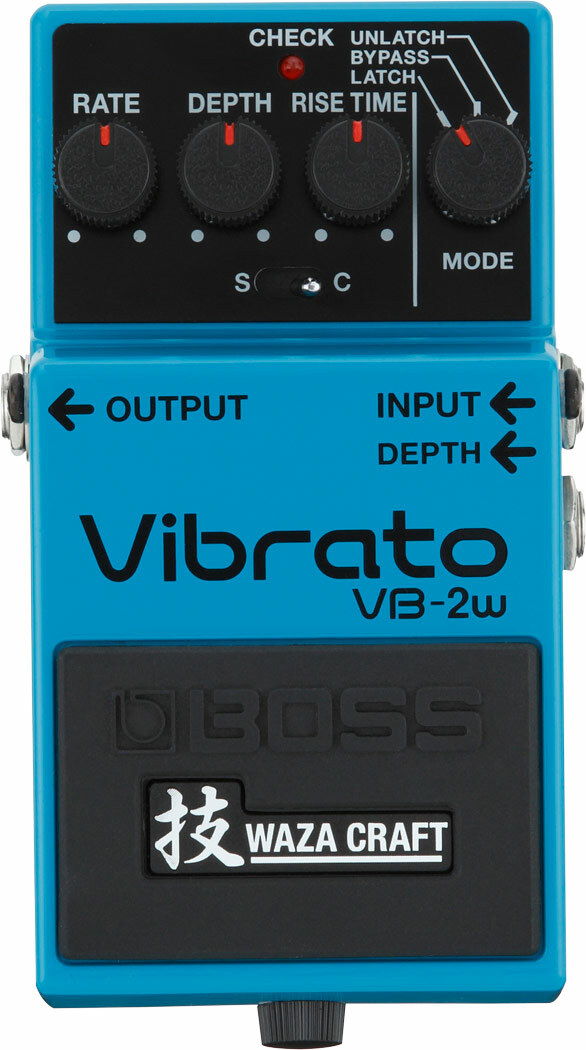

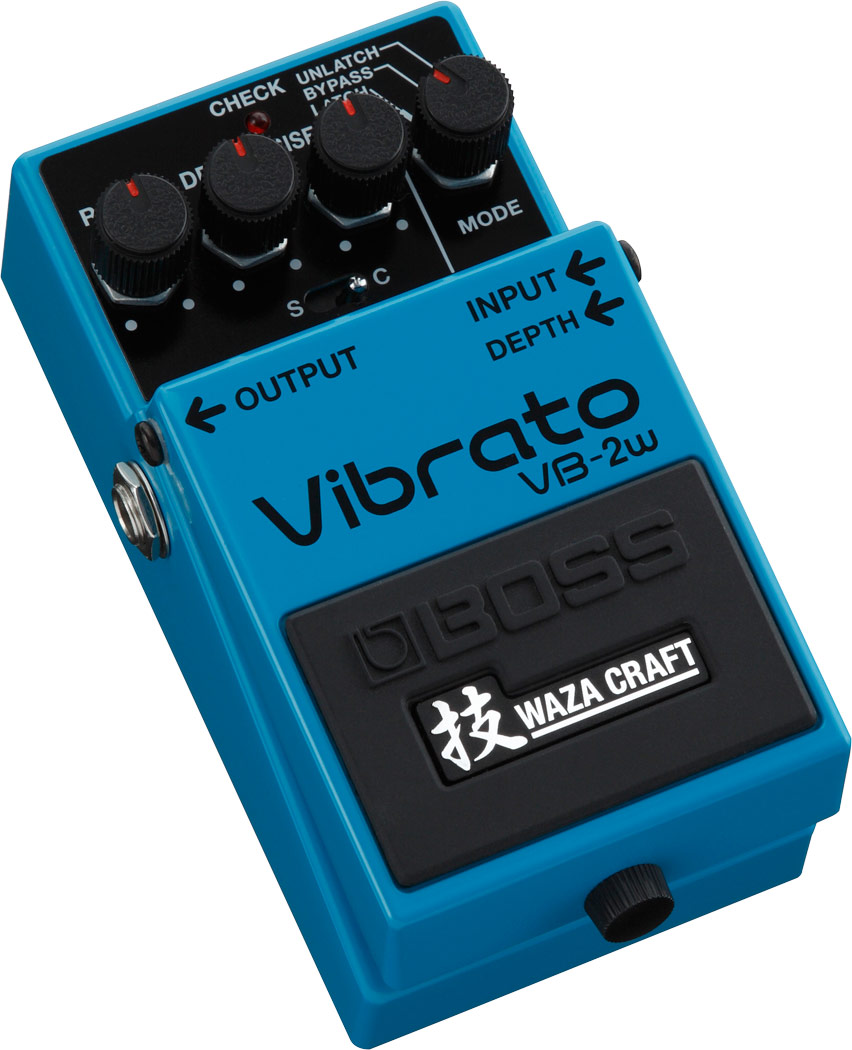

This Premium edition Waza Craft VB-2W pedal from BOSS delivers the ultimate tone experience
Its custom mode features a totally new vibrato sound with unique filter wave and whereas its standard mode provides a true reproduction of the vintage VB-2 Vibrato sound.
Using an all-analog circuit with BBD (bucket brigade) vibrato line, the VB-2W reproduces faithfully the vibrato of the VB-2.
You can control the effect depth in real time with an optional expression pedal and use the Rise Time knob to control the initial onset of the vibrato effect.
Its custom mode features a totally new vibrato sound with unique filter wave and whereas its standard mode provides a true reproduction of the vintage VB-2 Vibrato sound.
Using an all-analog circuit with BBD (bucket brigade) vibrato line, the VB-2W reproduces faithfully the vibrato of the VB-2.
You can control the effect depth in real time with an optional expression pedal and use the Rise Time knob to control the initial onset of the vibrato effect.
Technical sheet
- Specifications
- Modes:
- 3 modes
- LATCH
- UNLATCH
- BYPASS
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls:
- Pedal switch
- Standard/Custom switch
- RATE knob
- DEPTH knob
- RISE TIME knob
- MODE knob
- Indicator: CHECK indicator (Serves also as battery check indicator)
- Connectors:
- INPUT jack
- OUTPUT jack
- DEPTH jack
- DC IN jack
- Power Supply:
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC adaptor (sold separately)
- Current Draw: 35 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 22 hours
- Carbon: Approx. 4 hours
- Accessories:
- Owner's Manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
- Alkaline battery (9V, 6LR61)
- Options (sold separately):
- AC adaptor: PSA series
- Expression Pedal: FV-500H, FV-500L, Roland EV-5
- Size: 73mm x 129mm x 59mm
- Weight: 450g
