Transmitter

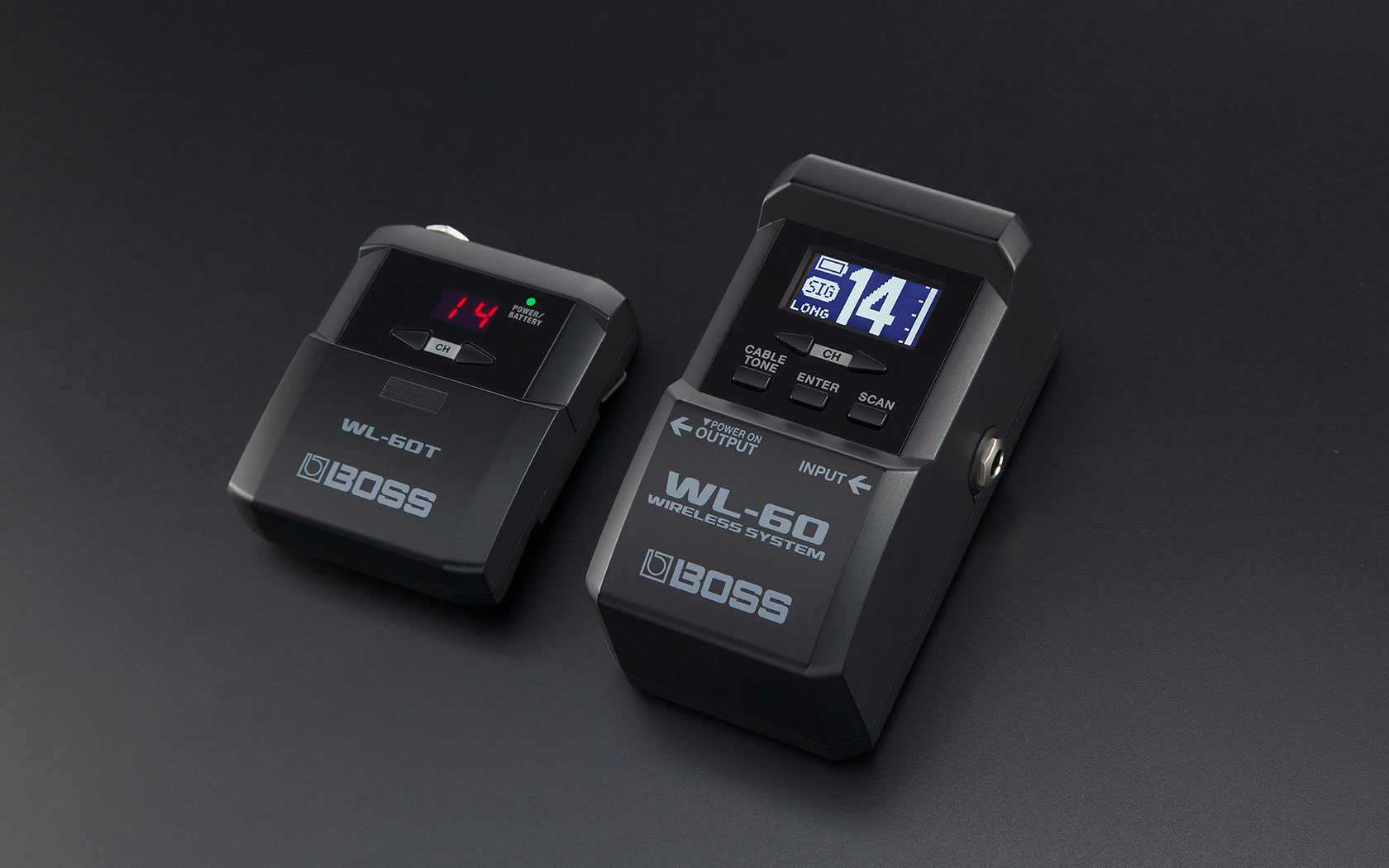

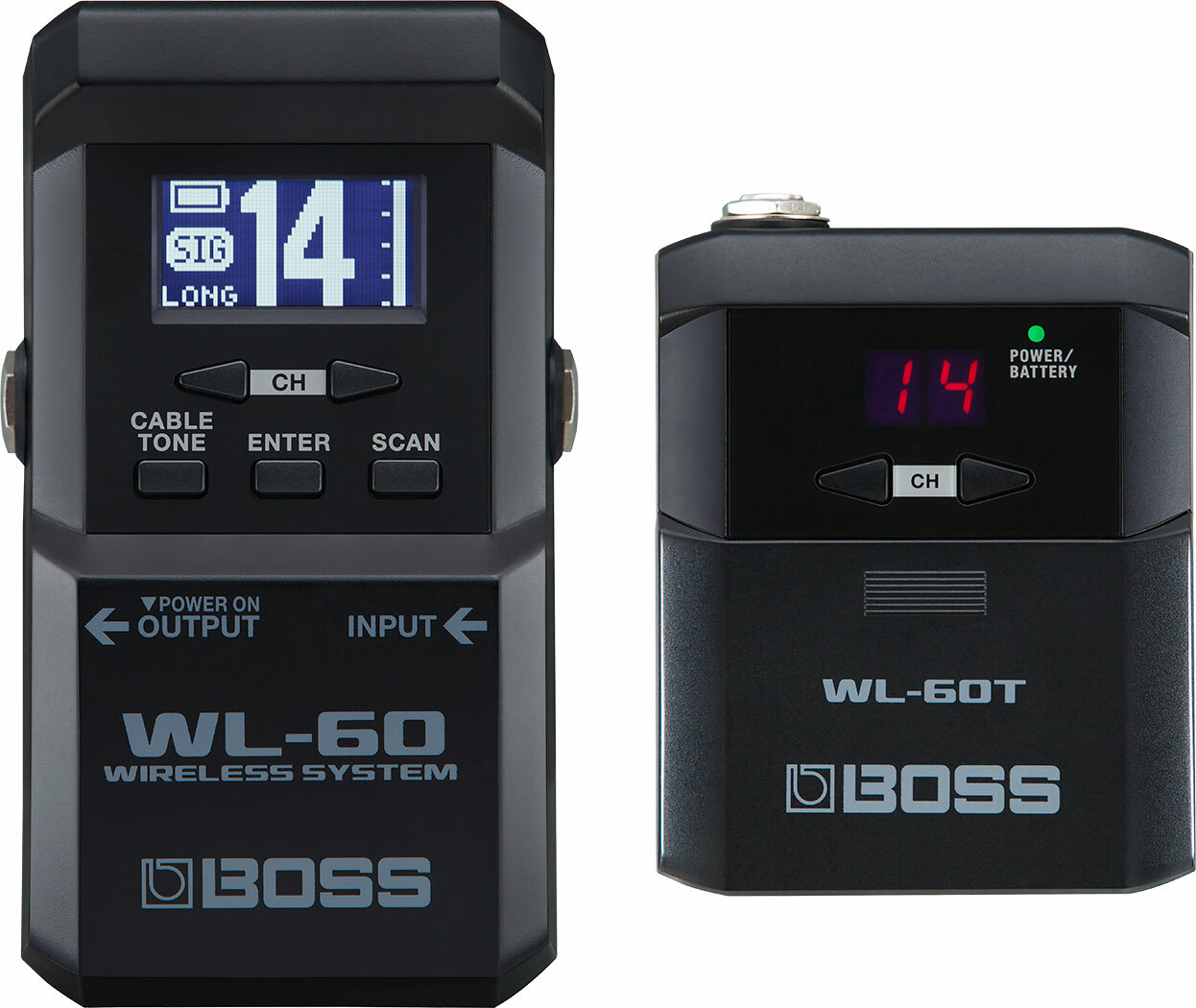

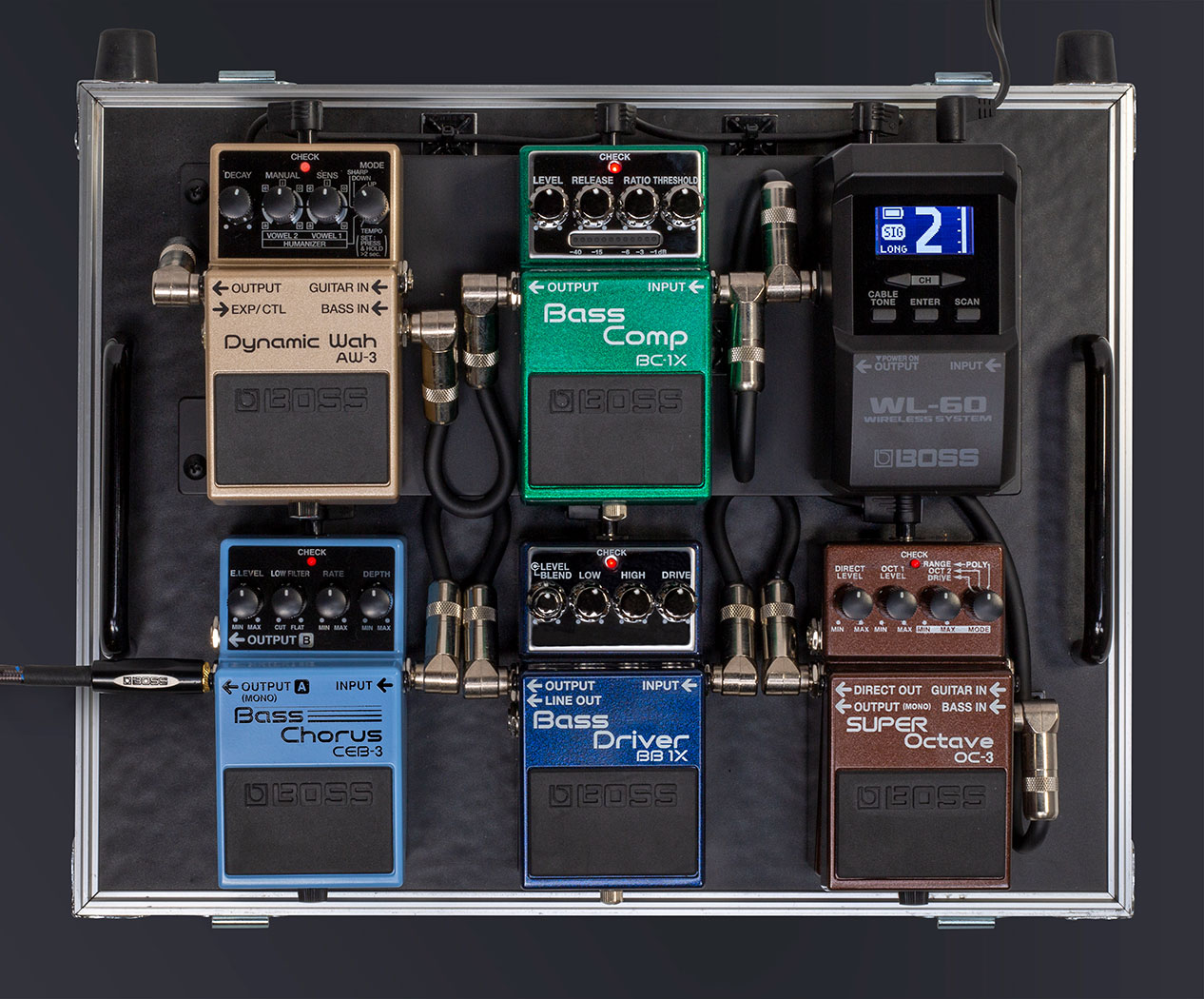

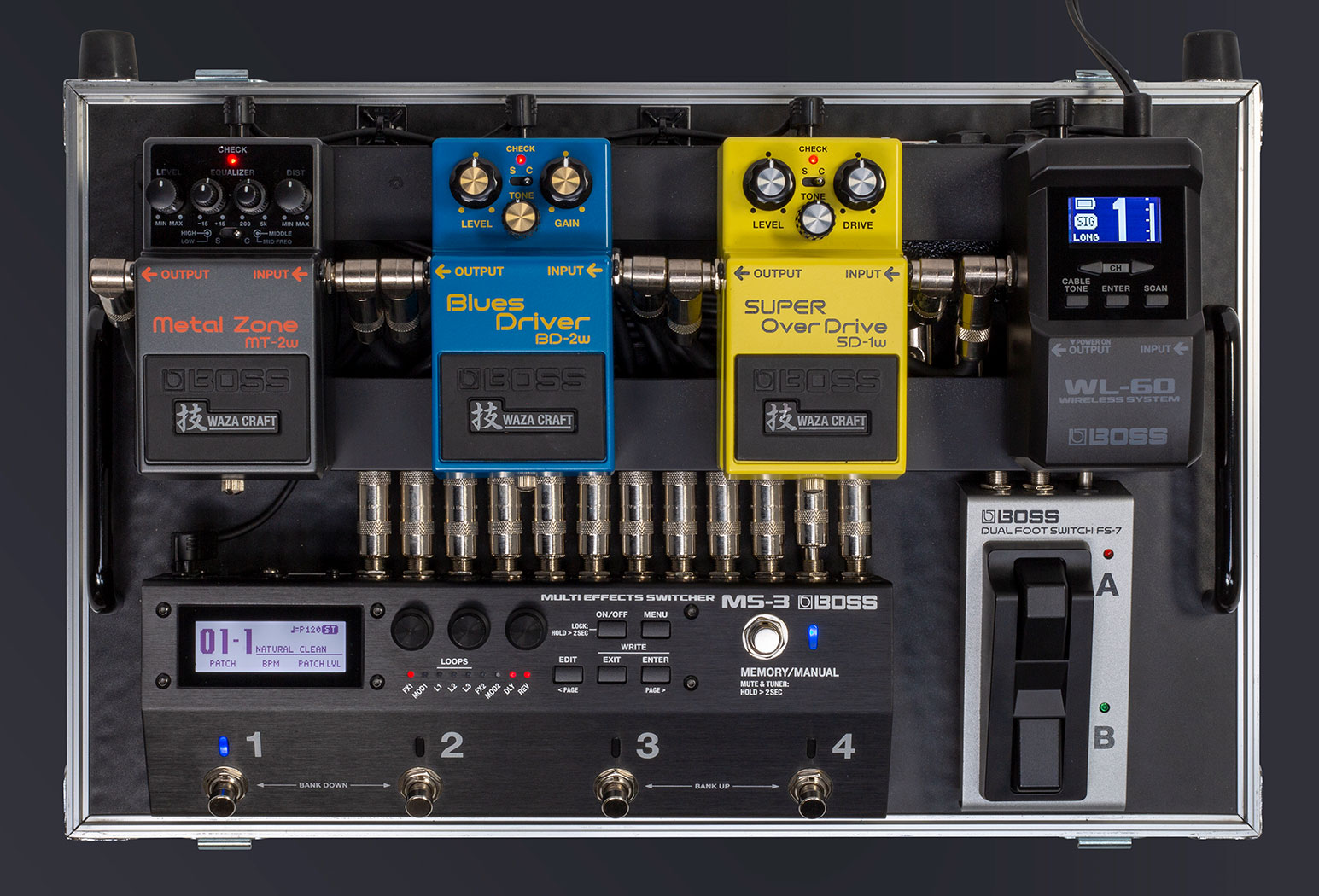

Offering great tone, ultra-low latency, and effortless set up, BOSS’s revolutionary WL series has made it easier than ever for musicians to go wireless. The WL-60 system is a great fit for serious stage performers, bridging plug-and-play simplicity with fast user-guided control. The compact receiver is tailor-made for pedalboards, and features a large visual display and direct-access buttons to quickly scan and select the best wireless channel. Rounding out the system is a rugged bodypack transmitter, which is compatible with nearly any instrument and runs for up to 25 hours on regular alkaline batteries.
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- SPECIFICATIONS (RECEIVER)
- Wireless Format: BOSS proprietary digital audio format
- Wireless carrier frequency: 2.4 GHz
- Compatible Channels: 14 (May vary due to local conditions)
- Transmission Range: 65 feet line-of-sight (May vary due to local conditions)
- Latency: 2.3 ms
- Dynamic Range: 110 dB or greater
- Frequency Response: 20 Hz--20 kHz
- Nominal Input Level: -10 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -10 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Controls : _CH button _SCAN button _ENTER button _CABLE TONE button
- Indicators: Graphic LCD 64 x 32 dots
- Connectors :
- _ INPUT jack: 1/4-inch phone type
- _ OUTPUT jack: 1/4-inch phone type
- _ IN jack
- _ OUT jack
- Power Supply:
- _ Alkaline battery (AA, LR6) x 2
- _ AC adaptor (sold separately)
- Current Draw: 70 mA
- Expected battery life under continuous use:
- _ Alkaline battery (AA, LR6): Approximately 10 hours * These figures will vary depending on the actual conditions of use.
- Accessories :
- _ Owner's Manual
- _ Leaflet USING THE UNIT SAFELY
- _ Transmitter
- _ Guitar cable
- _ Rubber foot x 4
- _ Alkaline battery (AA, LR6) x 2
- SIZE AND WEIGHT (RECEIVER)
- Width: 70 mm (2-13/16 inches)
- Depth : 120 mm (4-3/4 inches)
- Height (excluding rubber foot): 54 mm
- (2-1/8 inches)
- Height(including rubber foot): 57 mm
- (2-1/4 inches)
- Weight (excluding battery): 180 g (7 oz)
- Weight (including battery): 220 g (8 oz)

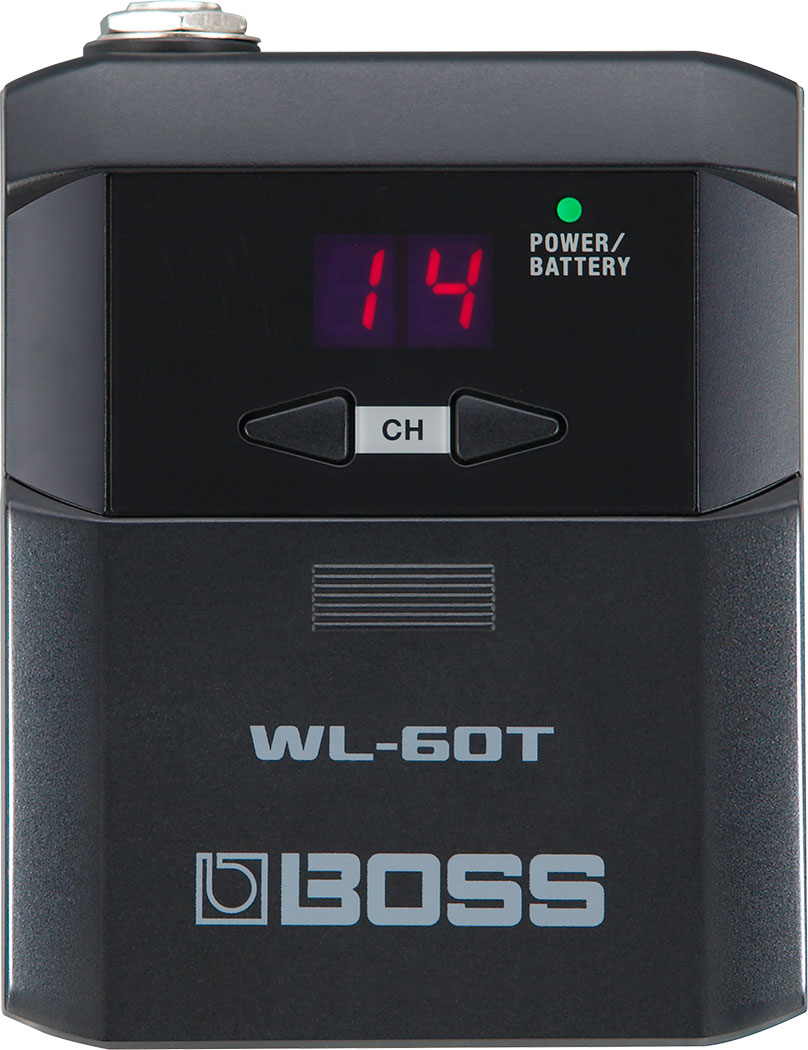

- SPECIFICATIONS (TRANSMITTER (WL-60T)
- Nominal Input Level: -10 dBu (1 M ohm)
- Controls :
- _ POWER switch
- _ CH button
- Display: 7 segments, 2 characters (LED)
- Indicator: POWER/BATTERY
- Connectors : INPUT jack: 1/4-inch phone type
- Power Supply: Alkaline battery (AA, LR6) x 2
- Current Draw: 110 mA
- Expected Battery Life Under Continuous UseAlkaline battery (AA, LR6): Approximately 25 hours* These figures will vary depending on the actual conditions of use.
- SIZE AND WEIGHT (TRANSMITTER (WL-60T)
- Width: 68 mm (2-11/16 inches)
- Depth: 88 mm (3-1/2 inches)
- Height (including strap clip): 30 mm
- (1-3/16 inches)
- Weight (including battery): 120 g
- 5 oz
- * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
