Cameo Flat Par 1 TW IR
- Read reviews (0)
- Similar products
This article is no longer available for sale.
Not available at this moment
contact us
Stock in store
Not available in store
The brand Cameo
Learn more about the Cameo brand and discover the entire catalog.
How to choose your DJ Lights Buying guide
Lighting as a whole includes many devices such as projectors, effects machines, moving heads,LED scanners ... Each of them has a very precise use, and we will try, through this guide, to enlighten you
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Description

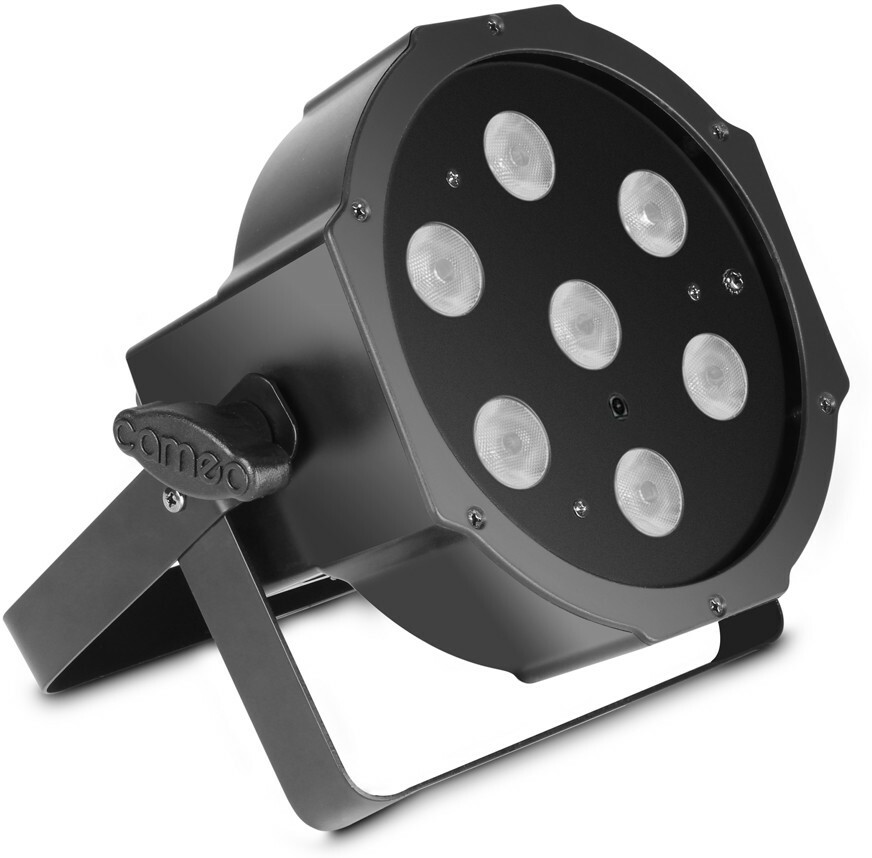

Cameo FLAT BY 1 TW IR is a 7 x 4 W high power.
High speed 20 Hz strobe, 4 DMX control modes, including automatic mode and Sound Control.
DMX and IEC power to connect in series up to 10 units.

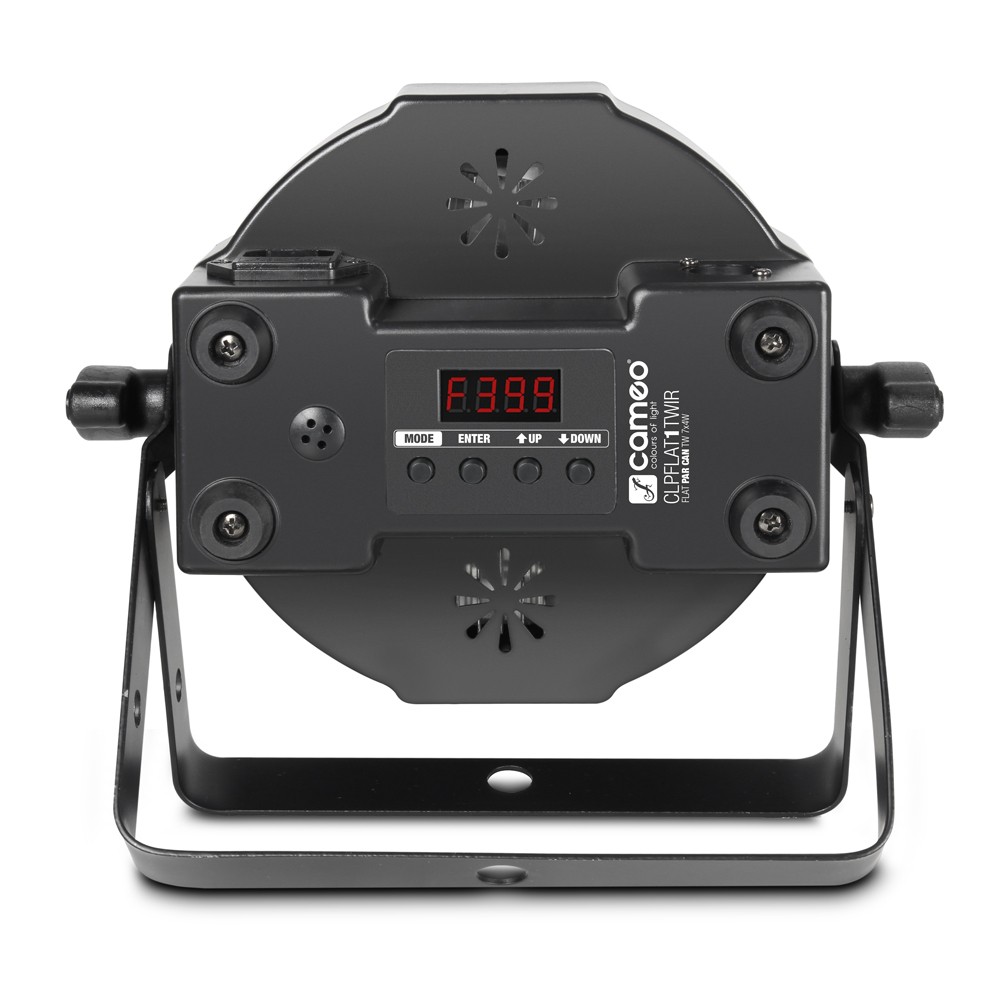

4-button LED display for intuitive configuration

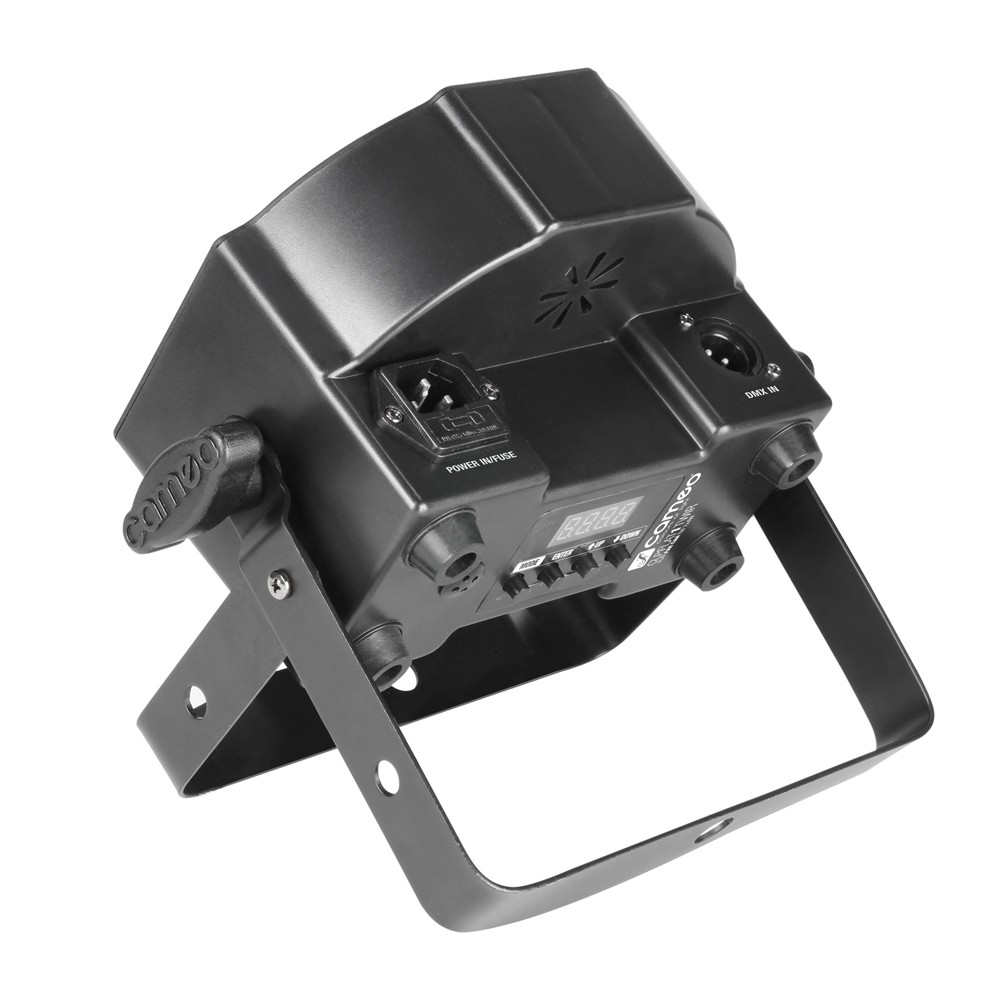

Flat and compact ABS housing
High speed 20 Hz strobe, 4 DMX control modes, including automatic mode and Sound Control.
DMX and IEC power to connect in series up to 10 units.
4-button LED display for intuitive configuration
Flat and compact ABS housing
Lire la suite
Technical sheet
- product type PAR LED spotlights
- Interior Type
- Color spectrum Warm white / Cool white
- Number of LEDs 7
- LED type 4 W
- 3000 Hz refresh rate
- 25 ° dispersion angle

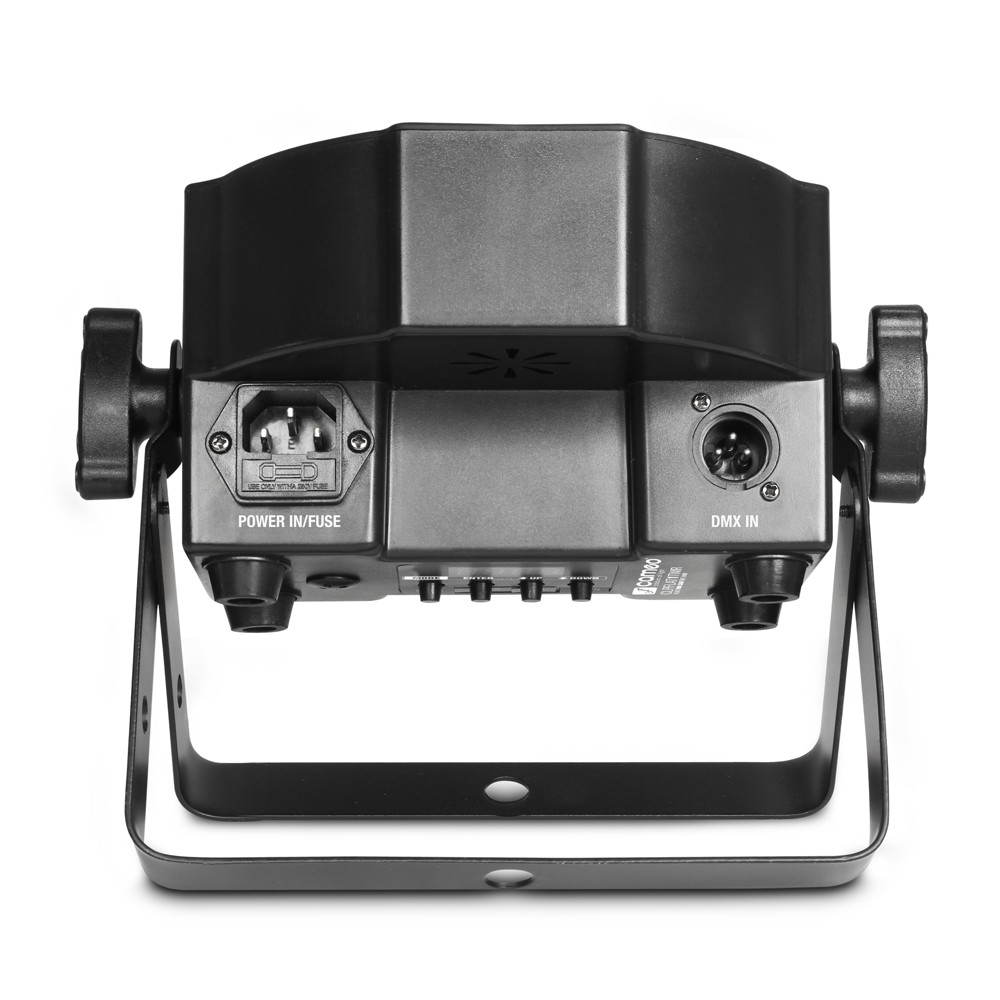

- DMX input 3-pin male XLR connector
- DMX output Connector XLR female 3 points
- RDM No
- USITT DMX-512 Protocols
- DMX modes 1 channel, 2 channels, 3 channels, 7 channels
- DMX Color Temperature Functions (17 Presets), CW, Dimmer, Dimmer Curve (8 Presets), Dimmer Response, Strobe, WW
- Wireless DMX No
- Fast strobe 1 - 20 Hz
- Standalone modes Color Temperature (17 Presets), CW, -
- Strobe, WW
- Settings Enter, Mode, Value Down, Value Up
- LED screen indicators
- Mains voltage 100 - 240 V, 50 - 60 Hz
- Power consumption 22 W
- How many devices can be connected (110 V) 7
- How many devices can be connected (240 V) 10
- IEC mains socket, male
- IEC power connector, female
- ABS plastic housing material
- Color black box
- IP class IP20
- Cooling Convexion
- Maximum operating temperature 0 - 40
- Illuminated light 6000lx @ 1m
- Luminous flux 1220 lm
- Color temperatures 3400 - 7000 K
- Average LED life 50000 hours
- Dimensions (without support)
- Width 175 mm
- Height (mm) 180 mm
- Length (mm) 115 mm
- Weight 1.2 kg
