Led bar

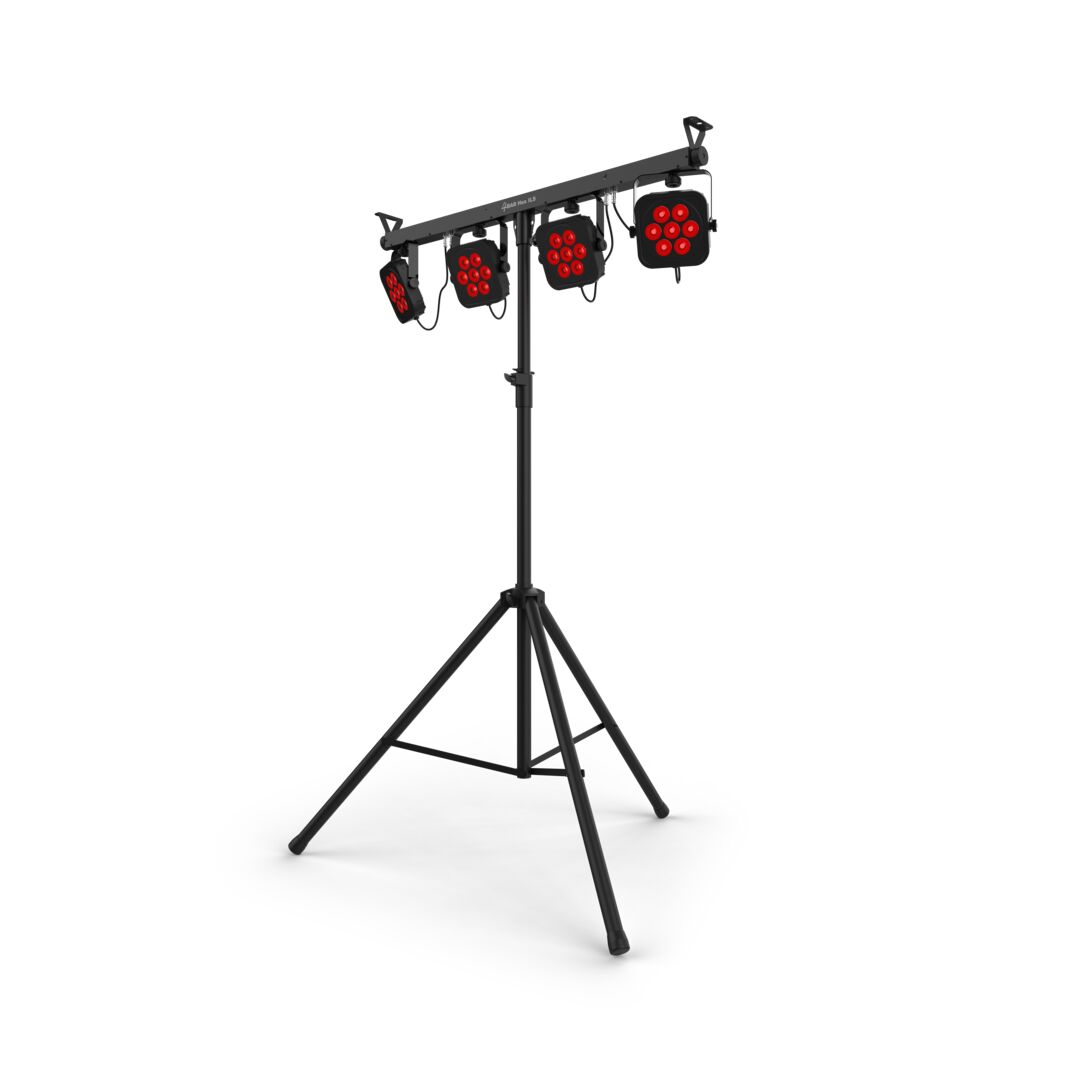

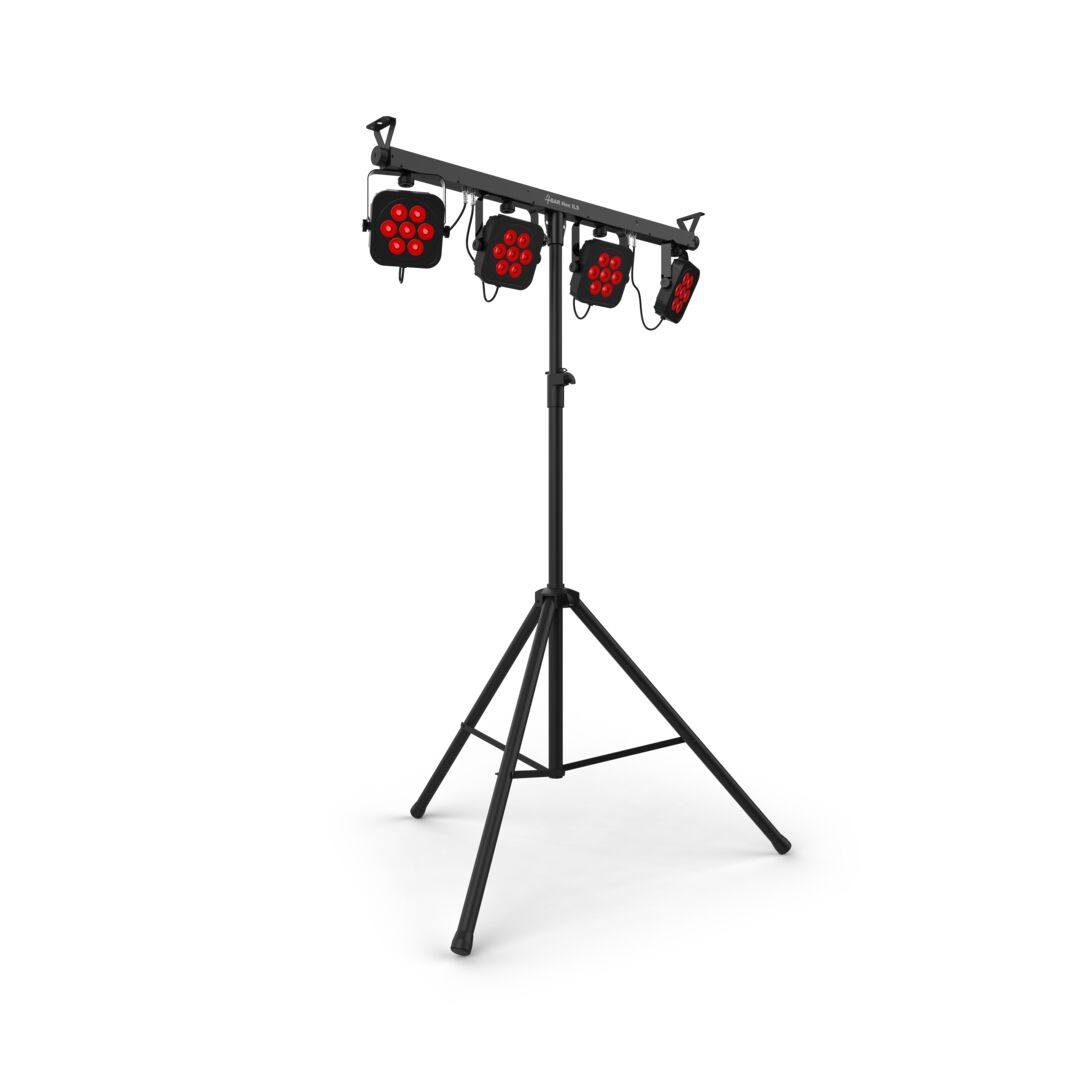

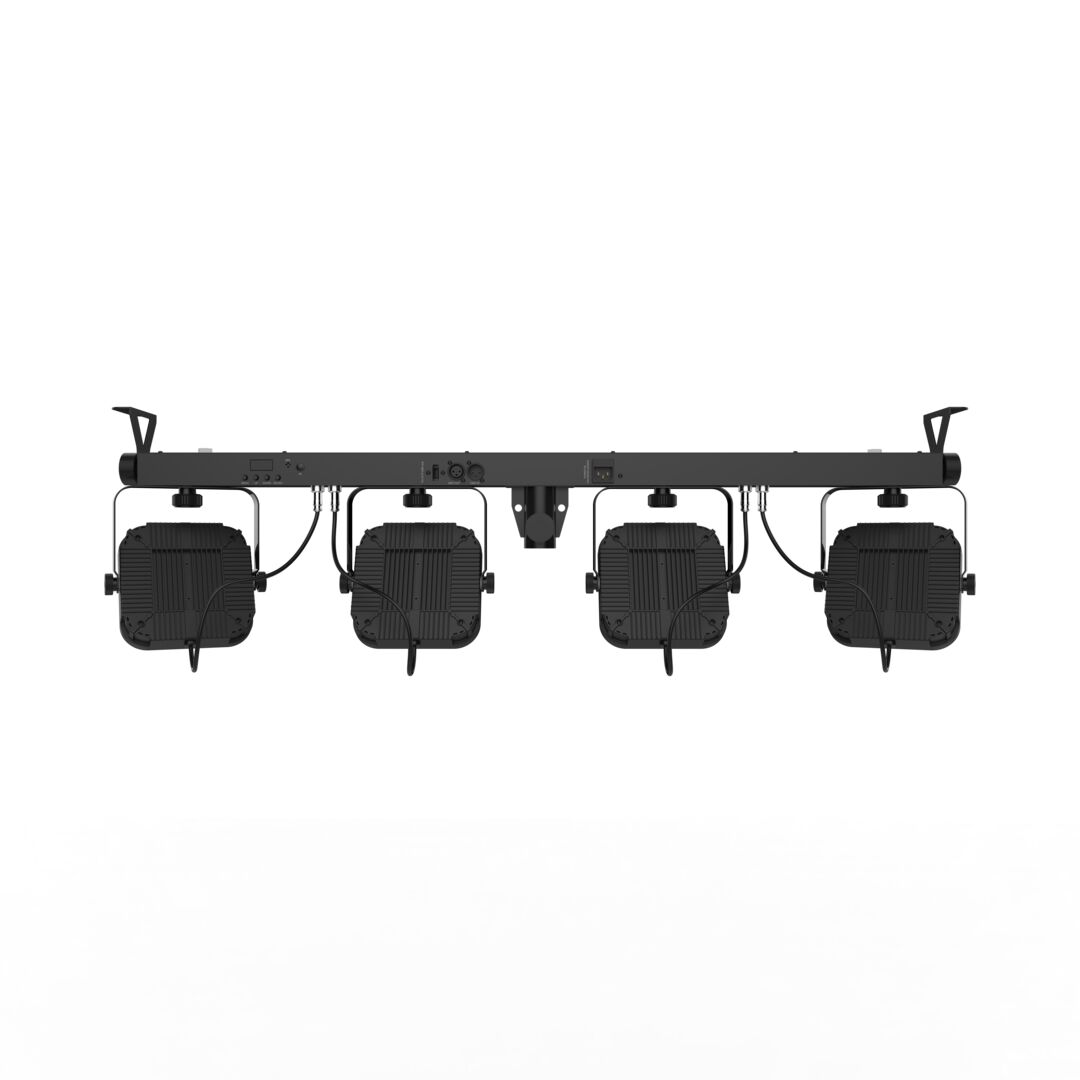

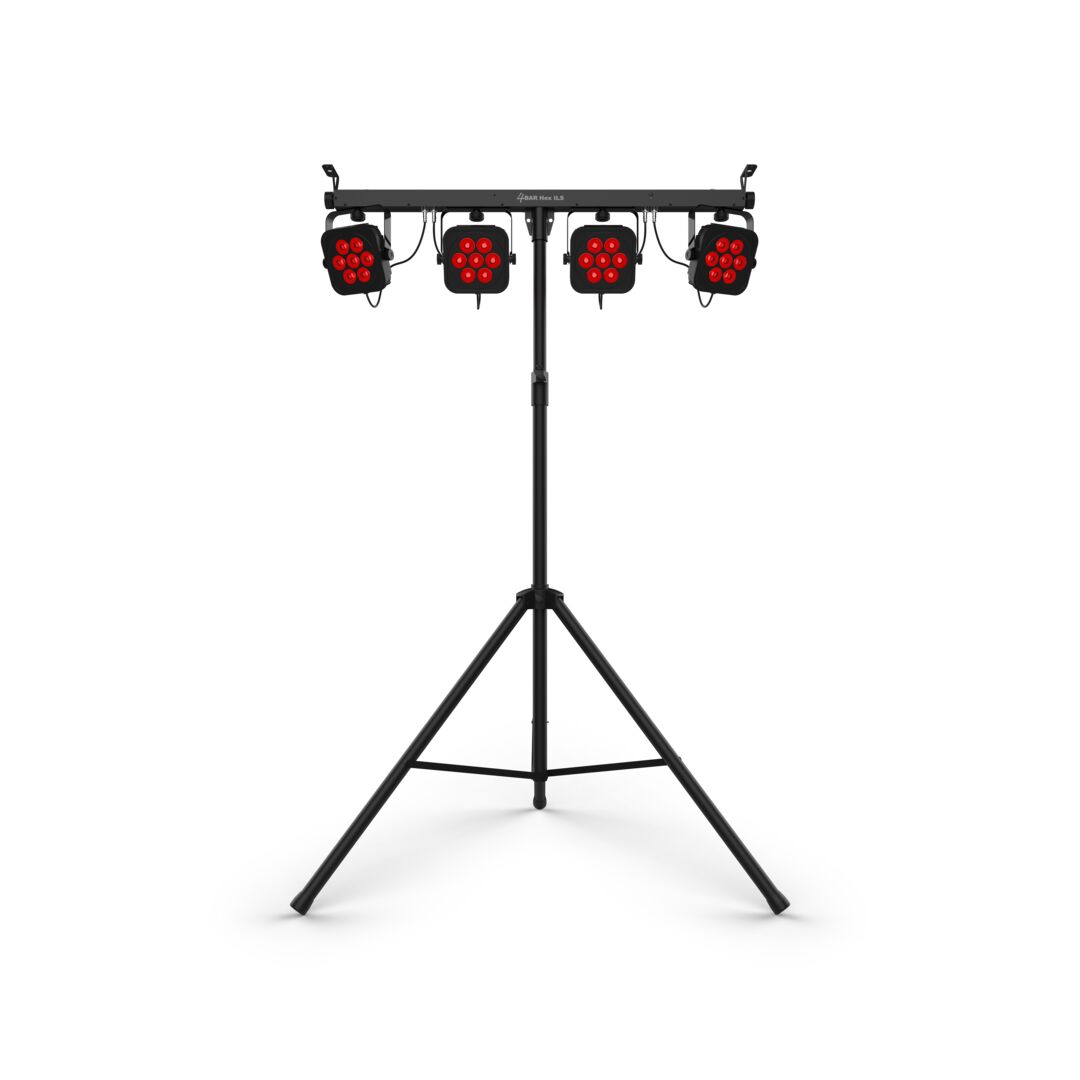

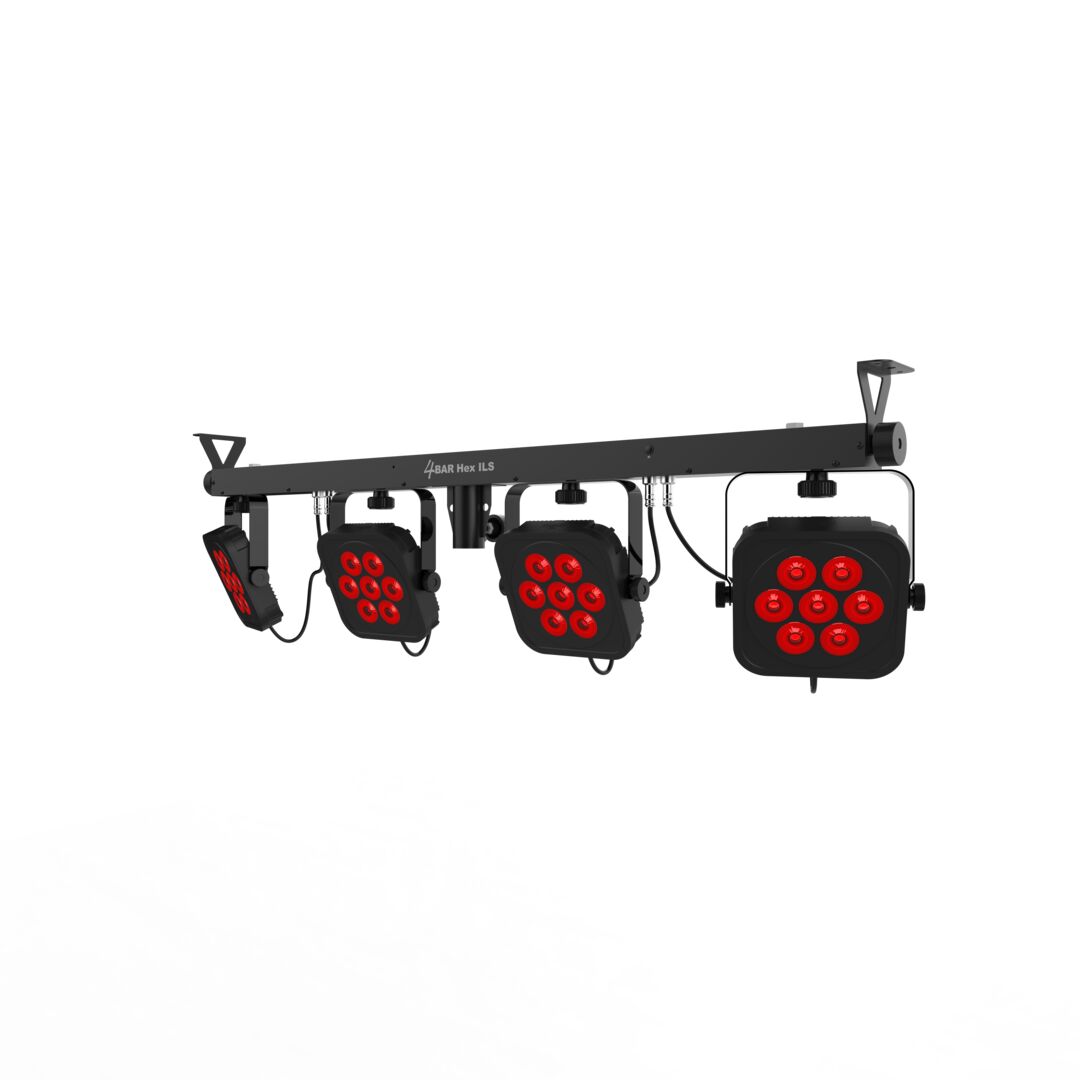

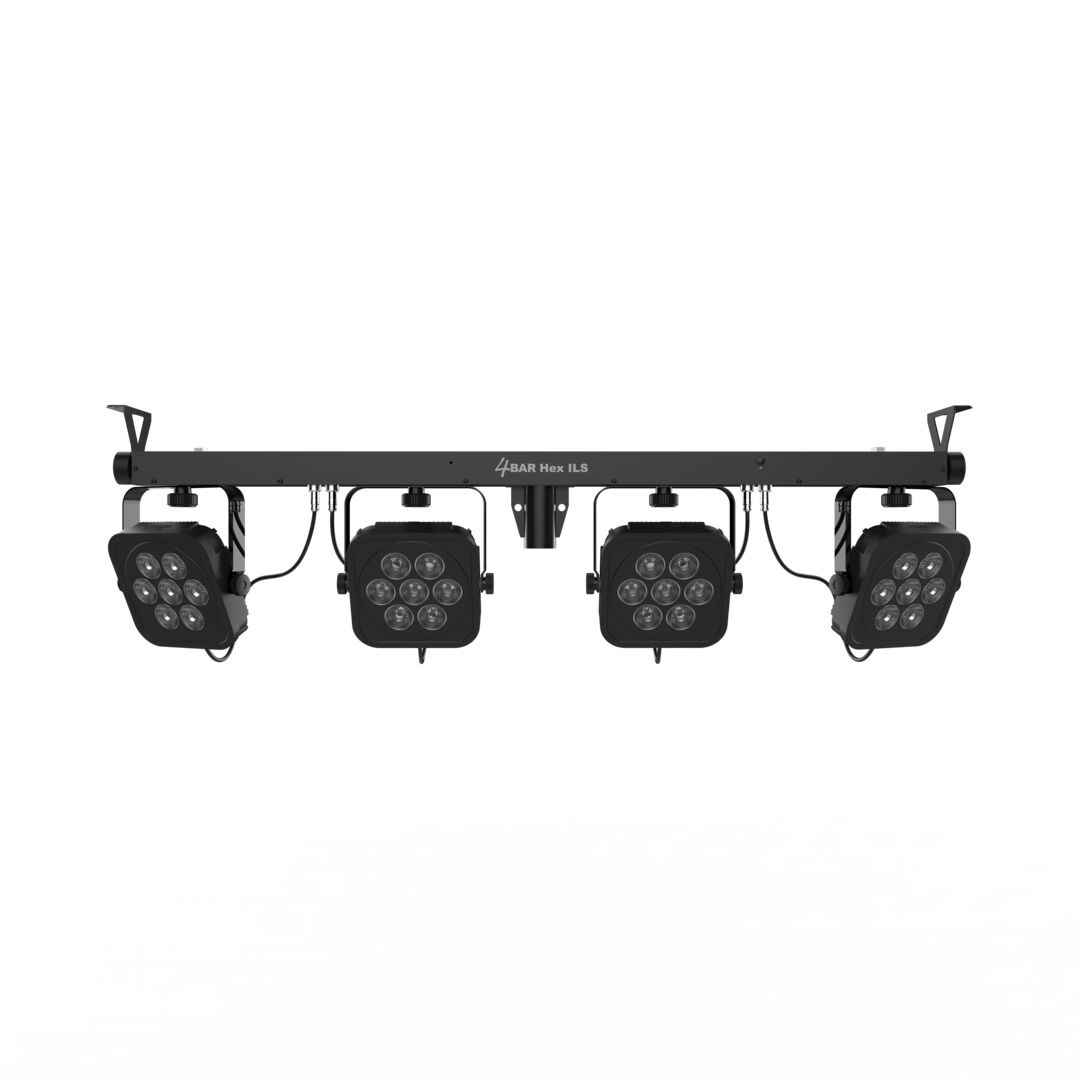

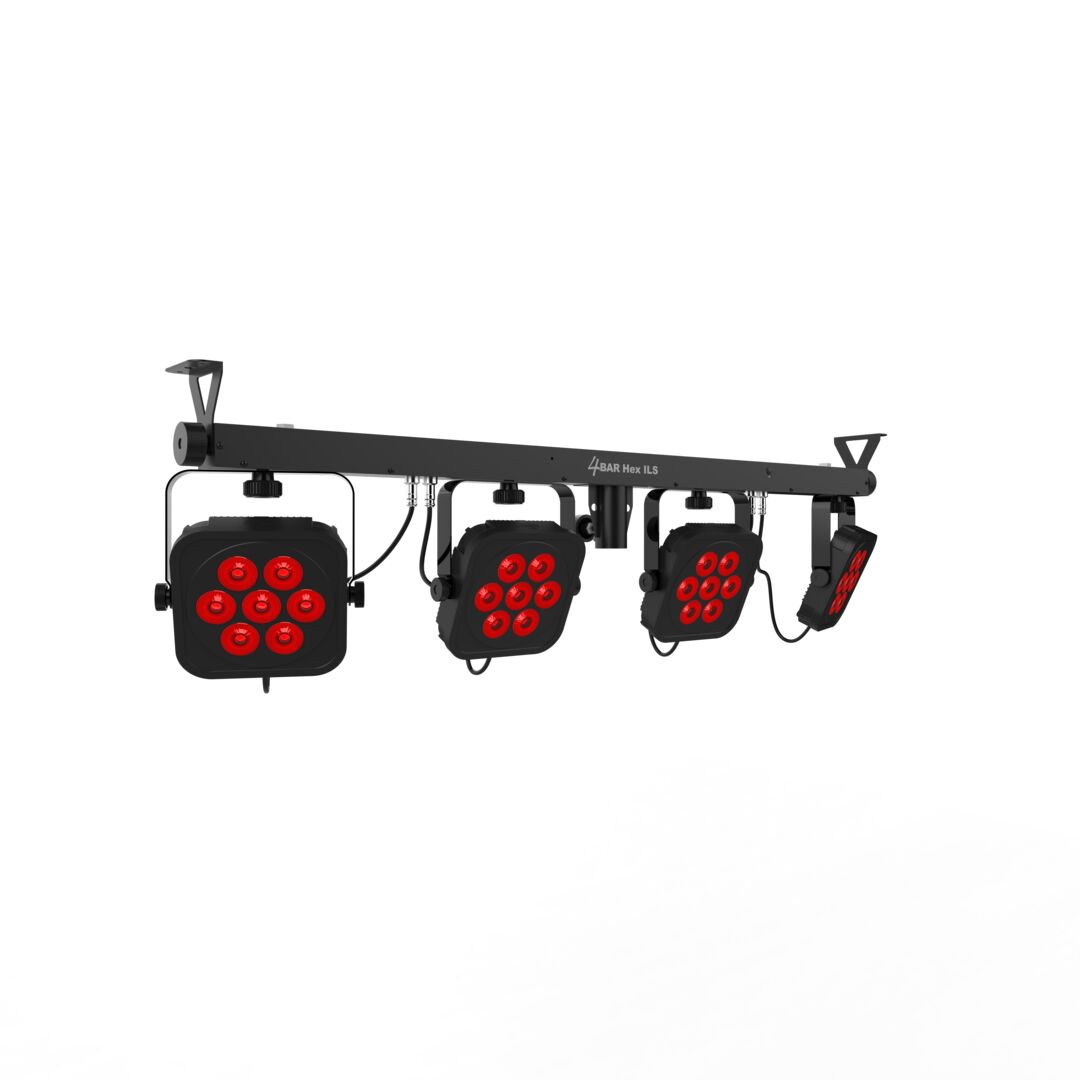

The 4Bar Hex ILS is a LED bar offered by the Chauvet DJ brand.
4BAR Hex ILS is a complete wash lighting system with high-intensity hex LEDs (RGBAW+UV), directly controllable wirelessly right out of the box, using the included footswitch or the optional IRC-6 remote control.
ILS compatibility offers unrivaled control flexibility and makes creating coordinated light shows very simple: 1, 2, 3, and go! Generate a wide spectrum of colors and impeccable lighting for all skin tones with 6-in-1 LED technology.

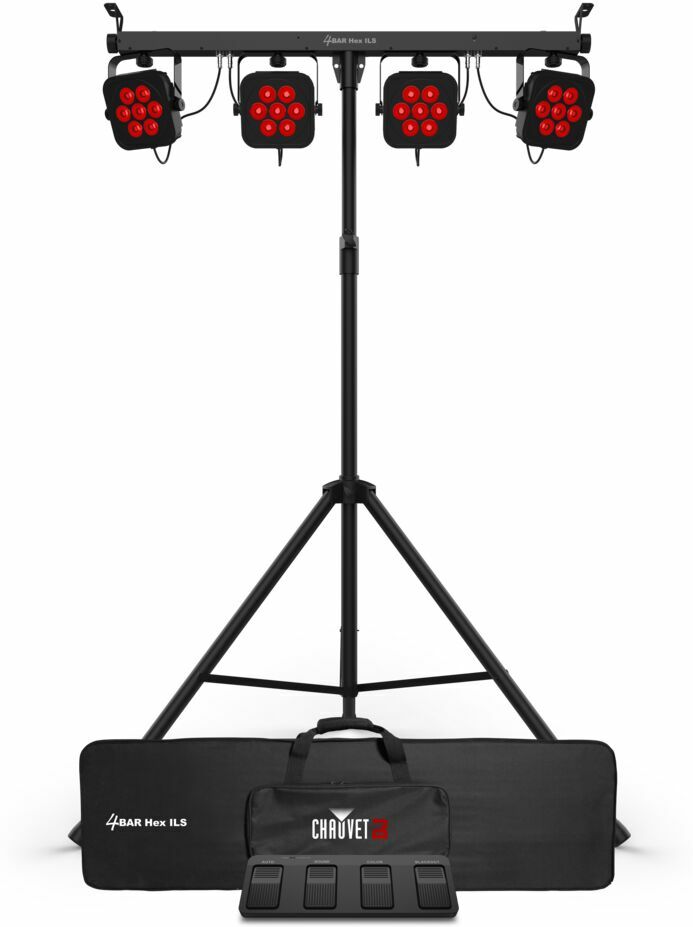

A tripod and a carrying bag are included so you can set it up, take it down, and transport it in the blink of an eye.
4BAR Hex ILS is a complete wash lighting system with high-intensity hex LEDs (RGBAW+UV), directly controllable wirelessly right out of the box, using the included footswitch or the optional IRC-6 remote control.
ILS compatibility offers unrivaled control flexibility and makes creating coordinated light shows very simple: 1, 2, 3, and go! Generate a wide spectrum of colors and impeccable lighting for all skin tones with 6-in-1 LED technology.
A tripod and a carrying bag are included so you can set it up, take it down, and transport it in the blink of an eye.
Technical sheet
- DMX compatible Yes
- DMX channels
- 6, 8, or 27
- DMX connectors
- XLR 3-pin
- Maximum distance (footswitch)
- 100 ft (30.5 m)
- Light source
- 42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), life approx. 50,000 hours
- Strobe frequency
- 0 to 20 Hz
- Beam angle
- 16°
- Field angle
- 25°
- Illuminance
- 1570 lux @ 2 m (per head)
- Input voltage
- 100 to 240 VAC, 50/60 Hz (automatic)
- Power and current
- 97 W, 1.3 A @ 120 V, 60 Hz
- 94 W, 0.7 A @ 230 V, 50 Hz
- Weight
- 12.2 lbs (5.5 kg)
- Dimensions
- 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
- Approvals
- CE, RoHS, UKCA
- Pedalboard battery
- 9 V
- Operating frequency (D-Fi)
- 2.412 to 2.484 GHz
- Operating frequency (crankset)
- 433 MHz
- Tripod height
- 7 ft 4 in (2.2 m)
- Compatible tripod diameter
- 1.5 in (36.80 mm)
- Mounting bracket size
- M10 (1.5 mm pitch)
- Weight (Crankset)
- 1.2 lb (0.6 kg)
- Size (Crankset)
- 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
- Optional controllers
- IRC-6, ILS Command
