Description

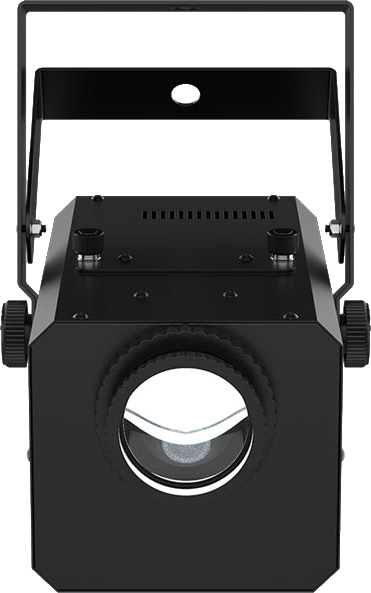

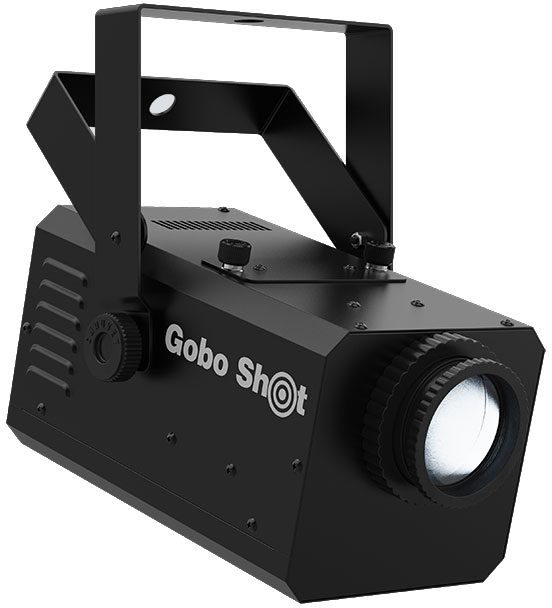

Take a shot at delighting event guests and clients with Gobo Shot for brilliant gobo projections! This super compact custom gobo projector features an easy access gobo door so changing gobos couldn’t be easier. A two-way switch is on board to control the gobo rotation. Manual focus allows a sharp image from most distances and the double bracket yoke increases mounting versatility.
Super-compact custom gobo projector
Control the gobo rotation using the two-way switch
Includes 10 popular holiday gobos
Easily change gobos using the easy access gobo door
Manual focus allows a sharp image from most distances
Increase mounting versatility with double bracket yoke

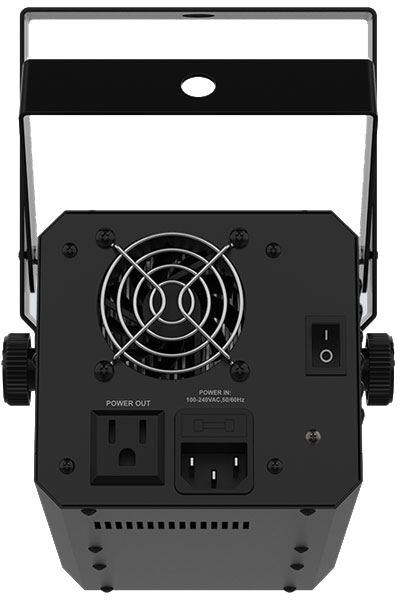

Save time running cables and extension cords by power linking multiple units
Fits best in the CHS-40 VIP gear bag
Super-compact custom gobo projector
Control the gobo rotation using the two-way switch
Includes 10 popular holiday gobos
Easily change gobos using the easy access gobo door
Manual focus allows a sharp image from most distances
Increase mounting versatility with double bracket yoke
Save time running cables and extension cords by power linking multiple units
Fits best in the CHS-40 VIP gear bag
Lire la suite
Technical sheet
- Gobos:(E): 37.3 mm outside, 22 mm image, 1 mm max thickness
- Light Source:1 LED (cool white) 32 W, (2.4 A), 50,000 hours life expectancy
- Beam Angle:17°Illuminance:4,478 lux @ 2 m
- Power Linking:14 units @ 120 V; 23 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current:42 W, 0.6 A @ 120 V, 60 Hz
- 51 W, 0.3 A @ 230 V, 50 HzWeight:3.6 lb (1.63 kg)Size:7.9 x 4.7 x 9.4 in (203 x 120 x 240 mm
- Approvals:CEBracket Mounting Hole: 13 mm
