Lyre

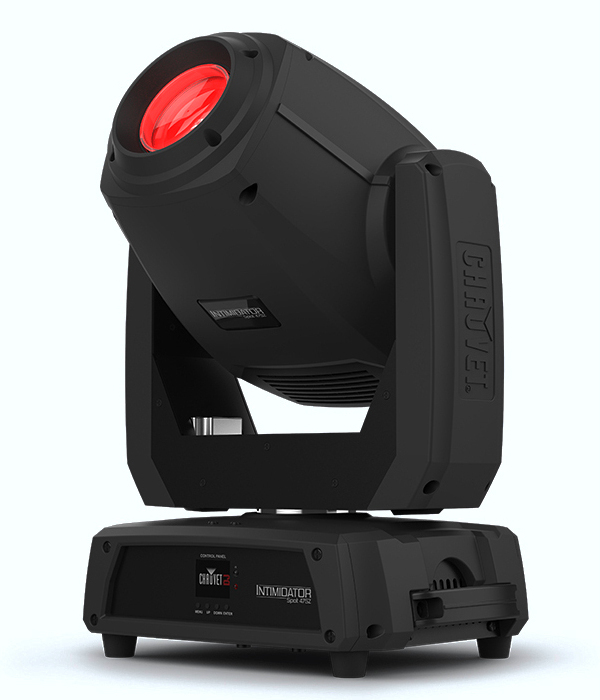

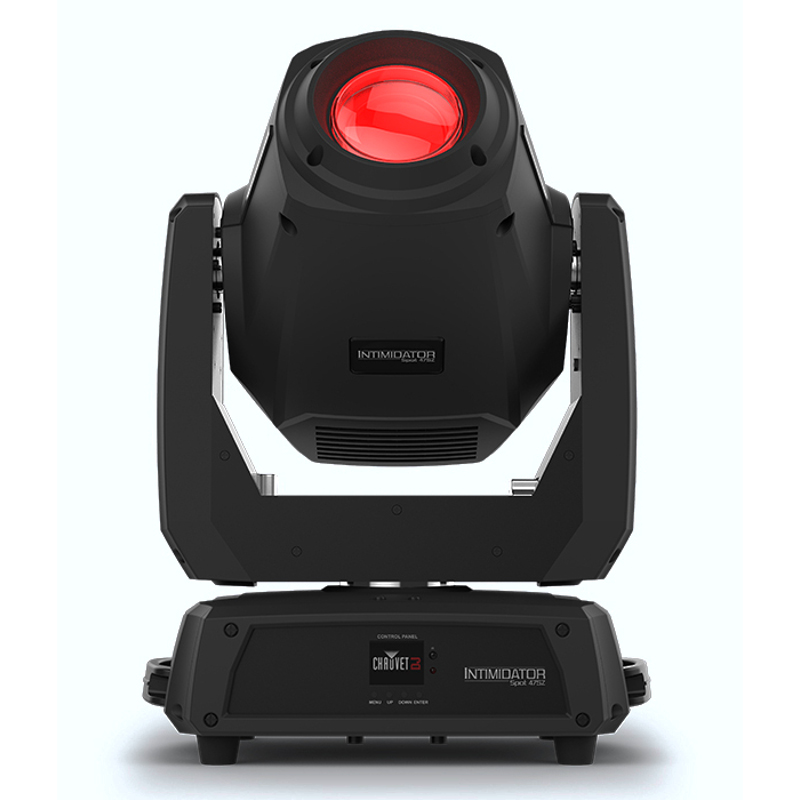

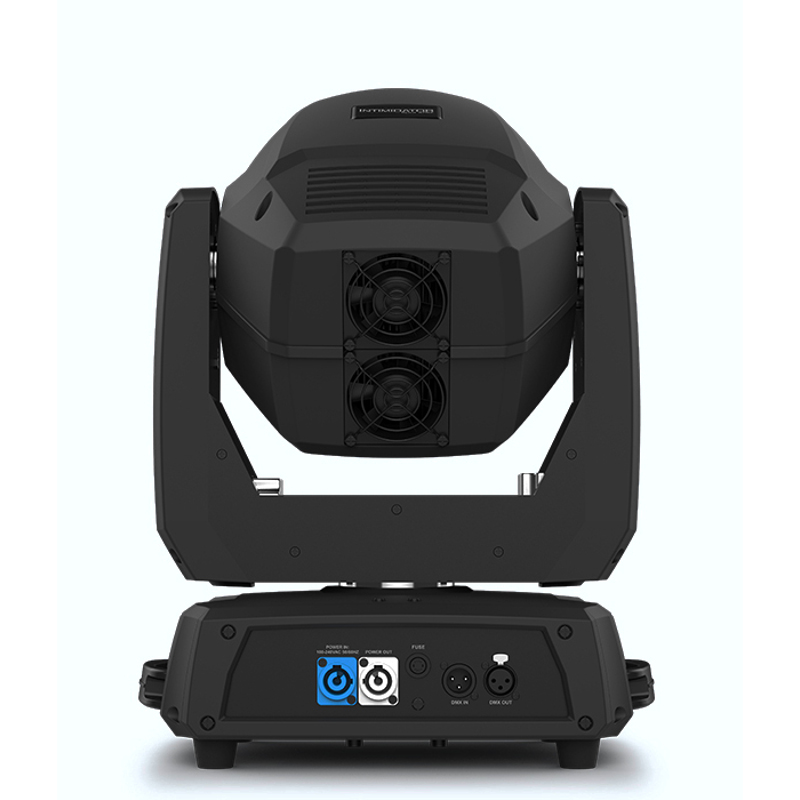

Intimidator Spot 475Z is a powerful moving head designed for spotlighting large events. This fixture can adapt to short-throw or long-throw situations, courtesy of its motorized zoom, and it is fitted with an ultra-bright 250 W LED. Achieve incredible visual effects with dual rotating prisms which split the beam, creating dramatic displays. Intimidator Spot 475Z also comes equipped with dual gobo wheels for gobo morphing and amazing mid-air projections! This feature-packed powerhouse utilizes motorized focus to channel crisp projections at almost any distance. Beams stay where you want them with built-in totem mode; the ¼-turn hanging bracket allows for single or dual clamp mounting options. The full-color LCD display lets you set, save, and recall one scene manually. Intimidator Spot 475Z has powerCON®-compatible power input/output connections for power linking. Convenient wireless non-DMX control is possible using the optional IRC-6 remote.
Lire la suite
Technical sheet
- DMX compatible Yes
- DMX Channels: 10 or 16
- DMX Connectors: 3-pin XLRPan and Tilt: 540°/270°Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 + white, split colors, continuous scroll at variable speeds
- Gobos: (1): 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, continuous scroll at variable speeds
- (2): 8 + open, continuous scroll at variable speeds
- Light Source: 1 LED (white) 250 W, (16.3 A), 50,000 hours life expectancyStrobe Rate: 0 to 20 HzPWM Frequency: 2 kHz
- Illuminance: (13°): 106,300 lux @ 2 m
- (28°): 23,680 lux @ 2 m
- (13°): 14,290 lux @ 5 m
- (28°): 3,741 lux @ 5 mPower Linking: 2 units @ 120 V; 4 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 380 W, 3.4 A @ 120 V, 60 Hz
- 378 W, 1.9 A @ 230 V, 50 Hz
- Gobo Size: 25 mm outside, 21 mm image, 1 mm max thicknessZoom Angle: (motorized): 13° to 28°Weight: 36.2 lb (16.5 kg)Size: 14.3 x 9.8 x 20.9 in (363 x 250 x 531 mm)
- Approvals: CE, METPrism: (1): 6-facet round, bidirectional rotation at variable speeds
- (2): 6-facet linear, bidirectional rotation at variable speedsOptional Controllers: IRC-6
