Chauvet dj Pinspot Bar
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 111286
In stock
shipped under 8/10 days
Stock in store
Not available in store
The brand Chauvet dj
Learn more about the Chauvet dj brand and discover the entire catalog.
How to choose your DJ Lights Buying guide
Lighting as a whole includes many devices such as projectors, effects machines, moving heads,LED scanners ... Each of them has a very precise use, and we will try, through this guide, to enlighten you
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Derby

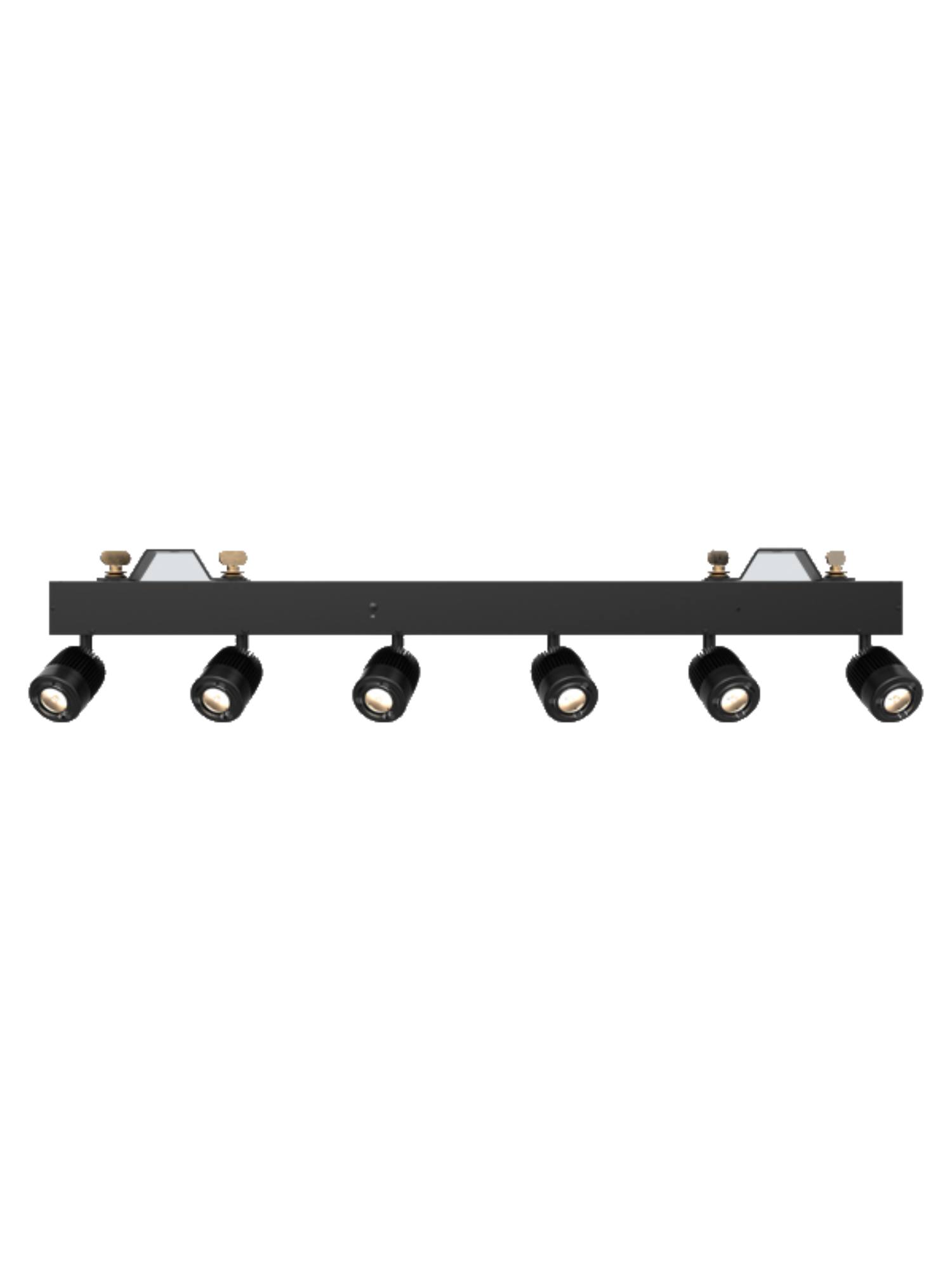

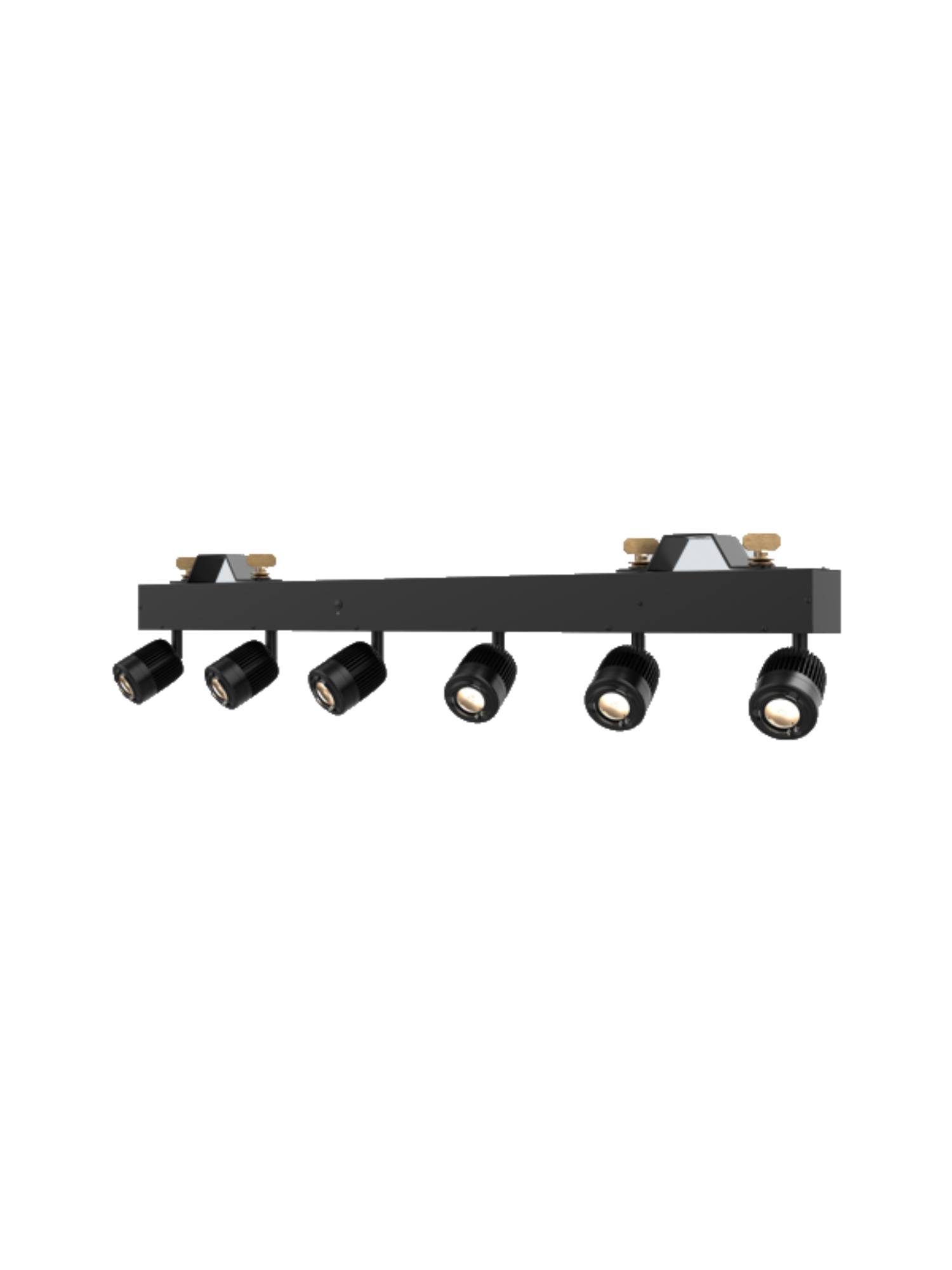

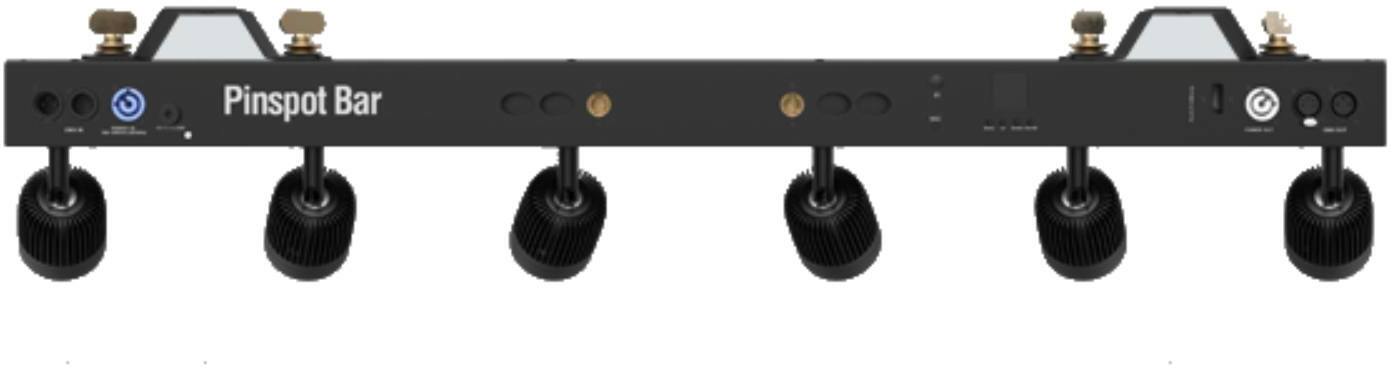

The Pinspot Bar is a 6-spot bar from Chauvet DJ.
High-output bar with 6 independent spotlights designed to replicate traditional incandescent lamps.
No messy cables ensure a clean, sleek look for any high-end event.
Independent control of each head provides true flexibility and programming capabilities.
Includes various beam diffusers and 2700K filters to help achieve the desired look.
Control via built-in digital display, DMX, IRC-6 wireless remote, or D-Fi USB dongle.
A pair of included Omega brackets allow for multiple mounting options, including piping and draping.
PowerCon compatible power input and power link save time on cable installation.
High-output bar with 6 independent spotlights designed to replicate traditional incandescent lamps.
No messy cables ensure a clean, sleek look for any high-end event.
Independent control of each head provides true flexibility and programming capabilities.
Includes various beam diffusers and 2700K filters to help achieve the desired look.
Control via built-in digital display, DMX, IRC-6 wireless remote, or D-Fi USB dongle.
A pair of included Omega brackets allow for multiple mounting options, including piping and draping.
PowerCon compatible power input and power link save time on cable installation.
Lire la suite
Technical sheet
- DMX compatible Yes
- DMX channels
- 1, 6 and 11
- DMX connectors
- XLR 3 and 5 pins
- Light source
- 6 LEDs (warm white) 15 W, (3.6 A), life 50,000 hours
- PWM frequency
- 1000 Hz
- Beam angle
- 5°
- Field angle
- 11°
- Illuminance
- 7,707 lux @ 2 m (per module)
- Electrical connection
- 8 units @ 120 V; 13 units @ 230 V
- Input voltage
- 100 to 240 V AC, 50/60 Hz (auto-ranging)
- Power and current
- 171 W, 1.4 A @ 120 V, 60 Hz
- 191 W, 0.8 A @ 230 V, 50 Hz
- Weight
- 9.4 lbs (4.3 kg)
- Size
- 39 x 4.6 x 5 inches (1000 x 119 x 131 mm)
- Approvals
- CE, RoHS
- Color temperature
- 4000 K
- CRI
- 81
- Mounting hole
- 13 mm
- Optional controllers
- IRC-6, D-Fi USB
