Derby

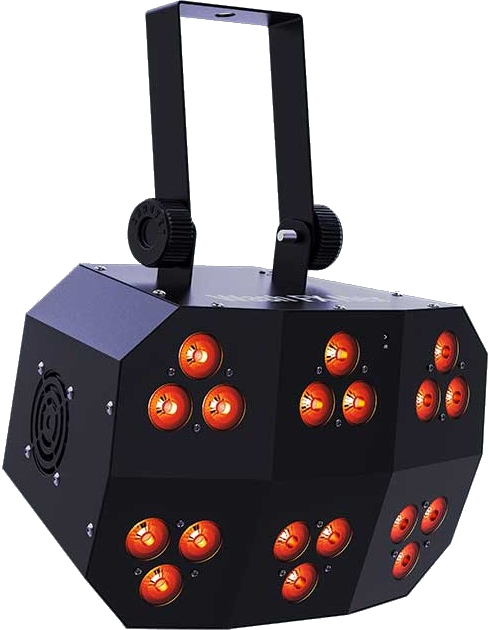

Brightness, luminosity, and versatility: 3 words to define the power of this LED color projector (RGBAW + UV)!
Wash FX Hex offers both wash and blinder effects. Its 6 chase zones can be used for a stunning wash effect: with the advanced master/slave function, all projectors synchronize for the most beautiful effects.

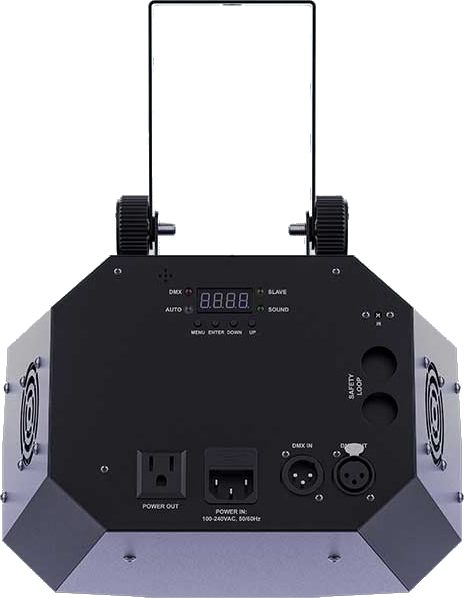

Multiple control options include standalone mode, DMX, and IR – Wash FX Hex is compatible with an optional IRC-6 wireless remote control. Save time and wiring with the ability to daisy-chain multiple units.
Wash FX Hex offers both wash and blinder effects. Its 6 chase zones can be used for a stunning wash effect: with the advanced master/slave function, all projectors synchronize for the most beautiful effects.
Multiple control options include standalone mode, DMX, and IR – Wash FX Hex is compatible with an optional IRC-6 wireless remote control. Save time and wiring with the ability to daisy-chain multiple units.
Technical sheet
- DMX compatible Yes
- DMX Channels: 3, 6, 11, or 40
- DMX Connectors: 3-pin XLR
- Light Source: 18 LEDs (RGBAW+UV hex-color) 8 W, 2.8 A, 50,000 hours life expectancy
- Strobe Rate: 0 to 24 Hz
- PWM Frequency: 1.14kHz
- Beam Angle: 41°
- Field Angle: 68°
- Illuminance: 2,422 lux at 2 m
- Power Linking: 3 units at 120 V; 5 units at 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 200 W, 2.5 A at 120 V, 60 Hz
- 194 W, 1.5 A at 230 V, 50 Hz
- Weight: 3.2 kg (7.0 lbs)
- Dimensions: 11.2 x 6.3 x 13 in (285 x 160 x 330 mm)
- Approvals: CE
- Optional Controllers: IRC-6
