The Chauvet DJ SWARM 5 fx ILS is a multi-effects projector.
Swarm 5 FX ILS can also be controlled via D-Fi USB in Master/Slave or DMX mode, or in separate colour mode or built-in programmes.

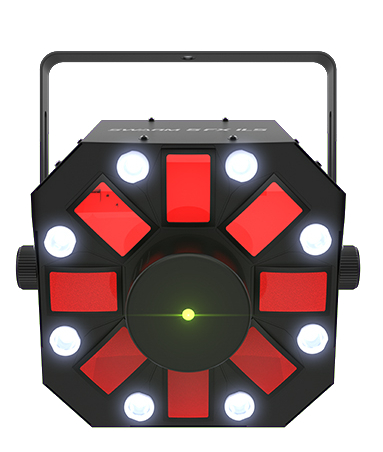

This 3-in-1 LED fixture features a rotating RGBAW derby, a red/green laser, and a white strobe ring, all compatible with the new ILS* protocol.
3-in-1 LED light that combines RGBAW rotary derby, red/green laser, and white strobe ring
ILS compatible for use in the ILS ecosystem
USB D-Fi compatible for wireless master/slave use or DMX control
Laser projects thousands of green and red beams
Operation allows separate colour and program control
Increased control options with automated programs, sound activation, master/slave mode or DMX control
Save time and wiring with chaining capabilities
Easily transported in CHS-40 VIP gear bag
Swarm 5 FX ILS can also be controlled via D-Fi USB in Master/Slave or DMX mode, or in separate colour mode or built-in programmes.
This 3-in-1 LED fixture features a rotating RGBAW derby, a red/green laser, and a white strobe ring, all compatible with the new ILS* protocol.
3-in-1 LED light that combines RGBAW rotary derby, red/green laser, and white strobe ring
ILS compatible for use in the ILS ecosystem
USB D-Fi compatible for wireless master/slave use or DMX control
Laser projects thousands of green and red beams
Operation allows separate colour and program control
Increased control options with automated programs, sound activation, master/slave mode or DMX control
Save time and wiring with chaining capabilities
Easily transported in CHS-40 VIP gear bag
Lire la suite
Technical sheet
- DMX compatible Yes
- DMX channels: 9 DMX connectors: XLR 3-pin
- Light source: (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), lifetime approx. 50,000 hours
- (strobe): 8 LEDs (white) 1 W, (300 mA), lifetime approx. 50,000 hours
- (laser): green laser diode 520 nm/30 mW (green), red laser diode 650 nm/100 mW
- Strobe frequency: 0 to 20 Hz
- Beam angle: (Strobe): 17°Field angle: (Strobe): 35°Coverage angle: (Laser): 100
- (Swarm): 65°Enluminance: (strobe): 823 lux @ 2 m
- Electrical connection: 15 units @ 120 V; 26 units @ 230 V
- Input voltage: 100 to 240 VAC, 50/60 Hz (automatic) Power and current: 62 W, 0.5 A @ 120 V, 60 Hz
- Weight: 4.5 kg
- Dimensions: 248 x 298 x 310 mm
- Approvals: CE, FDA, RoHS, UKCA
- Classified per EN/IEC 60825-Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice
