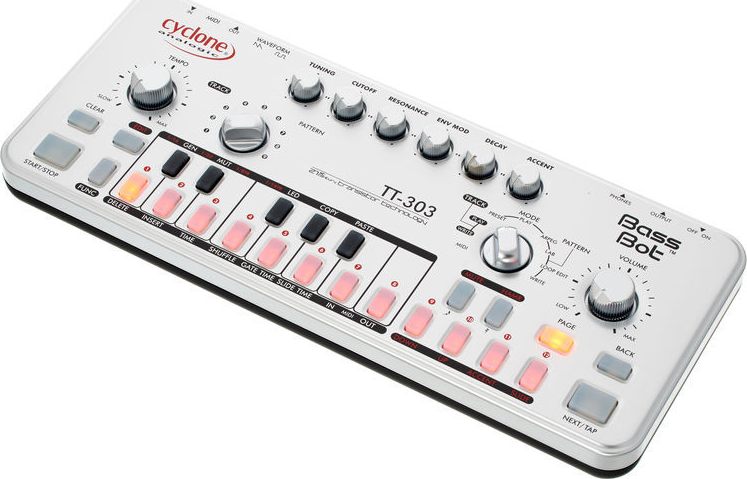

Cyclone analogic TT-303 Bass bot V2

Name: TT-303 Bass bot V2
Brand: Cyclone analogic
SKU: 25510
Availability: OutOfStock
Rating: 4.3 (1 reviews)

Read reviews (1)
Related accessories
Similar products

329,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty
Ref : 25510

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Cyclone analogic

Learn more about the Cyclone analogic brand and discover the entire catalog.

Discover

Synthetizer and drum machine buying guide

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Expander

Expander CYCLONE ANALOGIC Tt-303 bass bot v2.

Technical sheet

Type of expander Analog

VCO
Monophonic
Waveforms: Sawtooth or Square
Frequency Range: 20Hz-850Hz
Main Controls
Tempo Knob
Volume Knob
Track/Pattern Bank Selector Knob
Mode Selector Knob
Power On/Off Switch
Audio Controls
Tuning Knob
Filter Cutoff Frequency Knob
Filter Resonance Knob
Filter Envelope Modulation Amount Knob
Filter Envelope Decay Knob
Accent Amount Knob
Waveform Selector Switch
Data Storage
User Patterns: 432 (9 banks of 48 patterns)
Pattern Lab Patterns: 108 (9 banks of 12 patterns)
Preset Patterns: 108 (9 banks of 12 patterns)
User Tracks: 9
Operating Modes
Pattern Write | Loop Edit |Pattern Lab | Arpeggiator
Pattern Play | Preset | Track Play | Track Write | MIDI
Per-step Modifiers
Down Octave | Up Octave | Accent | Slide
Mute | Hammer | Rest / Tie
Pattern Features
Pattern Length: 1-64 steps
Per-step modifier assignment
Time scales: 16th note, 32nd note, 8th note triplet,
16th note triplet
Assignable pattern LED color
Pattern Copy / Paste functions
Intelligent procedural pattern generator
Pattern-based Arpeggiator
Pattern Mutate function
Track Features
Visual track programming system
Maximum Length: 144 bars | Per-bar transpose option
Global Features
Shuffle Amount | Slide Time | Gate Length |
Illuminated buttons: 26
Tap Tempo Input | Automated VCO calibration |
System LED color |
MIDI In / Out channels
Outputs
Main Mix (1/4" mono, +15dBu)
Headphone (1/4" stereo, +10dBu)
VCO Waveform (1/8”, Sawtooth: 5Vp-p, Square: 3.7Vp-p)
Control Voltage (1/8”, 1V/octave, range 1V5V)
Gate (1/8”, 0V12V)
Accent On (1/8”, 0V5.5V)
Clock (1/8”, DIN Sync compatible, 0V5V)
Start/Stop (1/8”, DIN Sync compatible, 0V5V)
MIDI Out / Thru
Inputs
Filter In (+4dBu nominal, 100kΩ input impedance)
Power (9VDC, 300mA) | MIDI In
PC Functions
Cyclone Studio application for PC & Mac enables Bass Bot software update and user data backup & restore using MIDI SysEx transfer.
Physical
Dimensions: L310mm x W130mm x H35mm | Weight: Unit 783g (Boxed with accessories) 1.332kg
Included Accessories
100-240v Universal Power Adapter | Near Invisible Force Field | Case Transporter | Printed User Manual
