Analog mixing desk

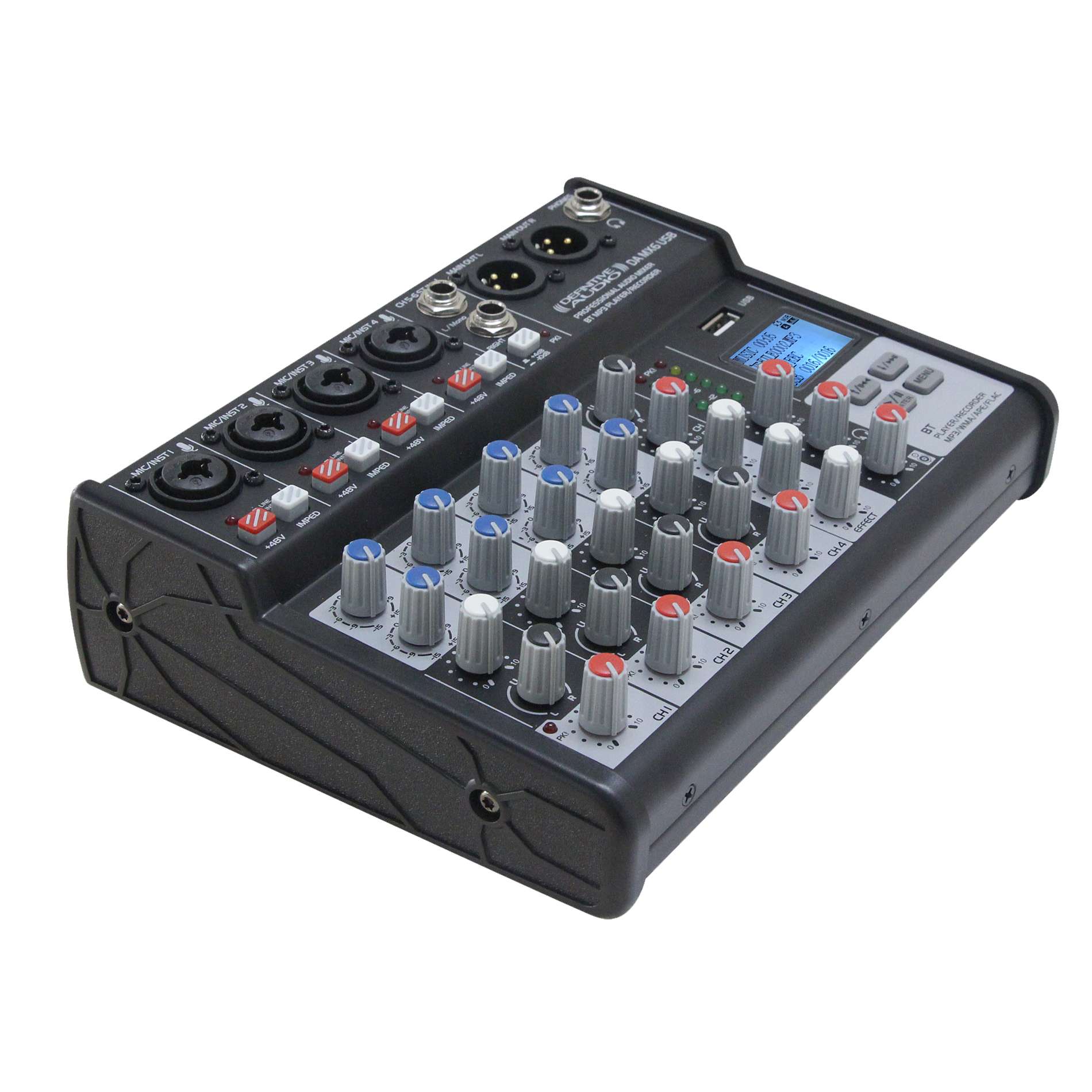

The Defintive Audio DA MX 6usb is a 5-channel analog mixer.

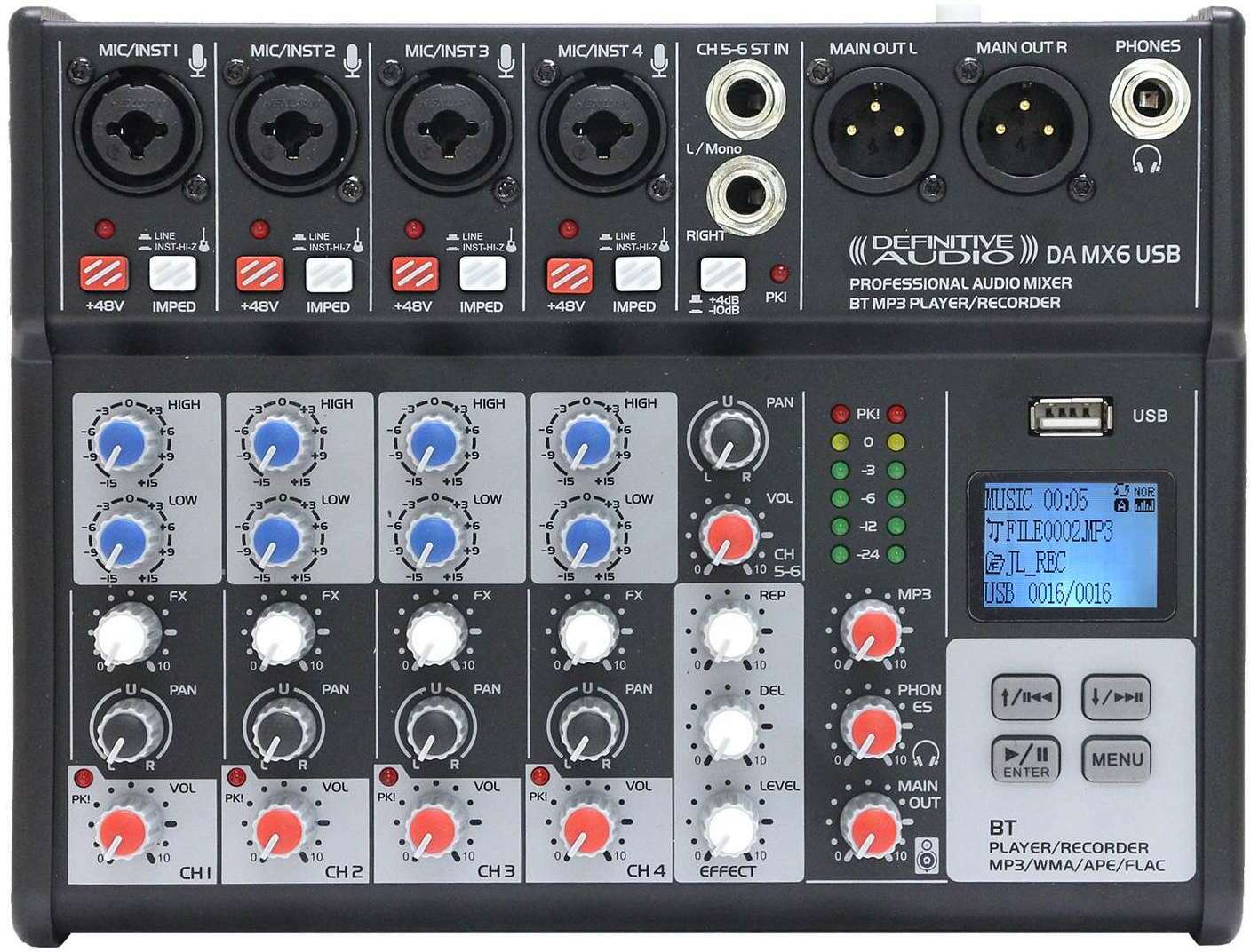

The DA MX 6 USB is a 5-channel analog mixing console, including 4 XLR/Jack 6.35mm combo inputs and a stereo input on 6.35mm jack.

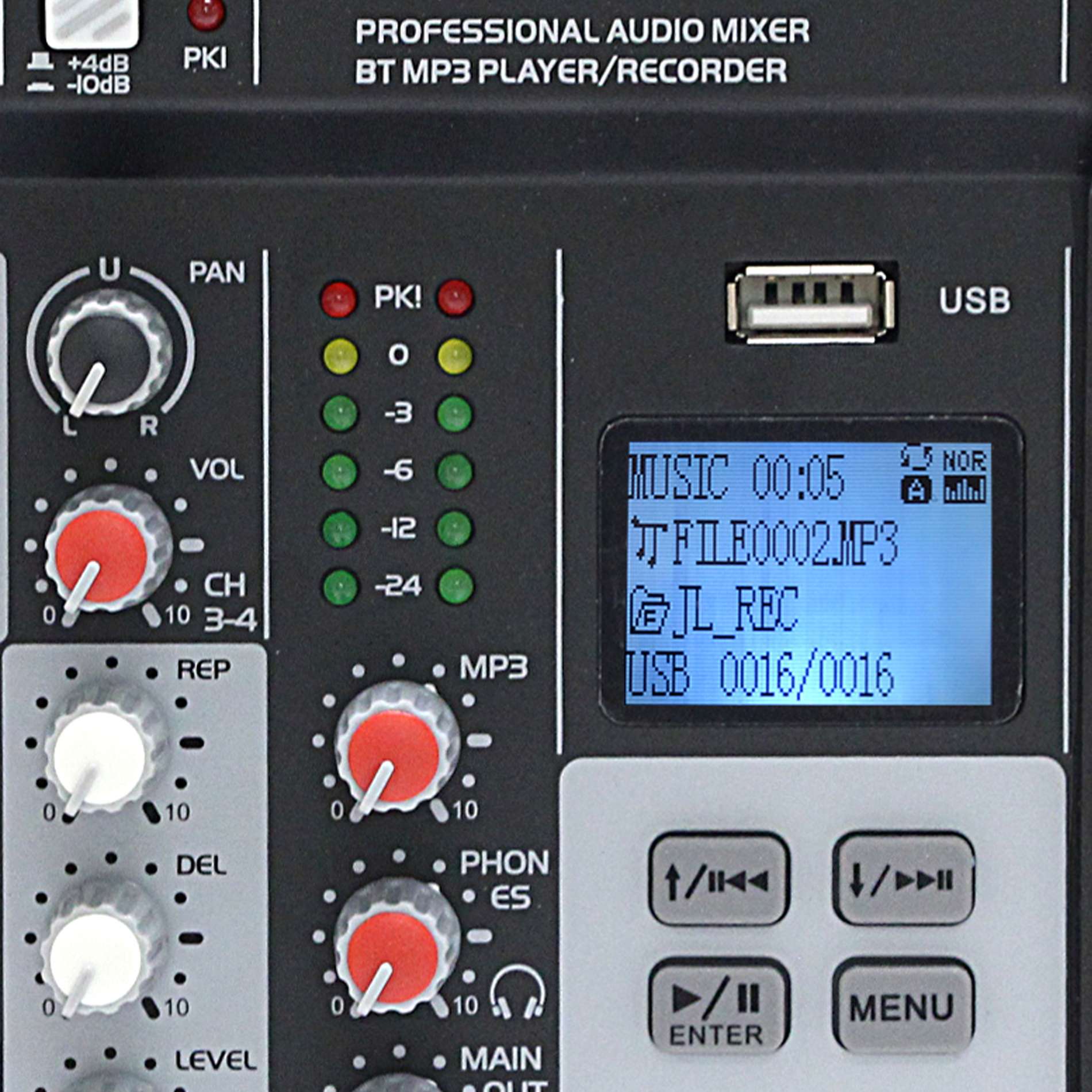

It integrates very high quality microphone preamps to offer you impeccable performance. It is equipped with a very complete multimedia reader/recorder for a very modern use.
The DA MX 6 USB is a 5-channel analog mixing console, including 4 XLR/Jack 6.35mm combo inputs and a stereo input on 6.35mm jack.
It integrates very high quality microphone preamps to offer you impeccable performance. It is equipped with a very complete multimedia reader/recorder for a very modern use.
Lire la suite
Technical sheet
- Mixer connectivity USB
- Number of channel mixing desk 4 channels and less
- Number of channels 4 channels
- 5-channel mixer
- Inputs: 4 XLR/Jack combos and 2 mono 6.35mm Jacks
- Outputs: 2 x XLR male and 1 x 6.35mm headphones
- Mono channels 1 and 2 :
- Gain: -14 - + 40dB
- Eq 2 bands 80Hz and 12KHz +/- 15dB
- 48V with indicator per led
- Selector switch: Microphone/line
- Led saturation indicator
- Stereo channel
- Adjustable sensitivity
- Adjustable scale
- Led saturation indicator
- General level indicator: 2 x 6 LEDs (4 green, 2 yellow and 2 red)
- Max output level: 3 Vrms
- Frequency response +/- 0.5 dB : 20 - 20000Hz
- Dynamic: 102 dB
- THD: <0.03%

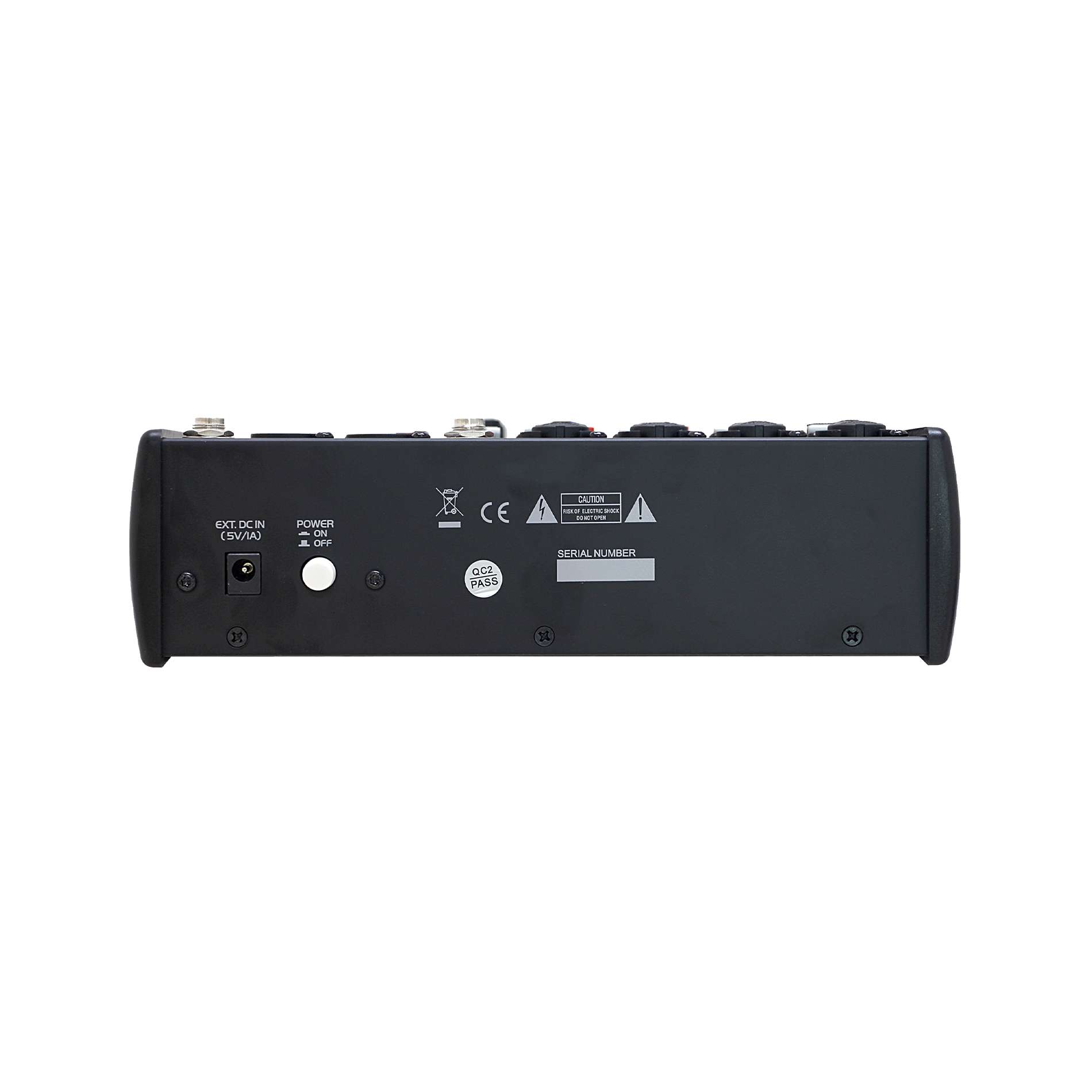

- Power supply: DC 5V, 1A
- Power consumption: Max 5W
- Dimensions: 220 x 66 x 165mm
- Weight: 1,17 Kg
More specifications
Fewer specifications
Often purchased with Mixing Desk & Controller
-
X-TONE

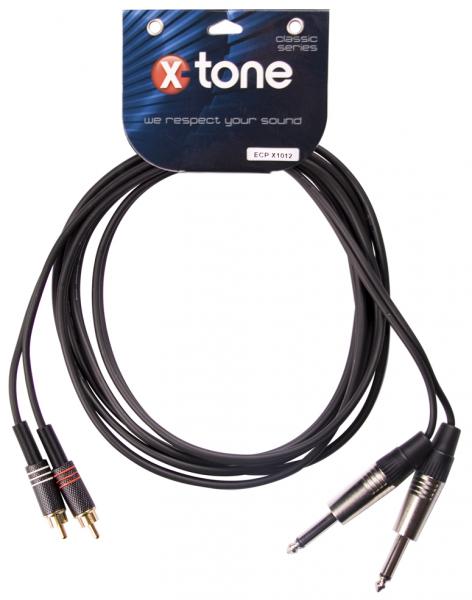

X1012-3M - 2 Jack(M) 6.35 Mono / 2 RCA(M)
14.00 € -
X-TONE

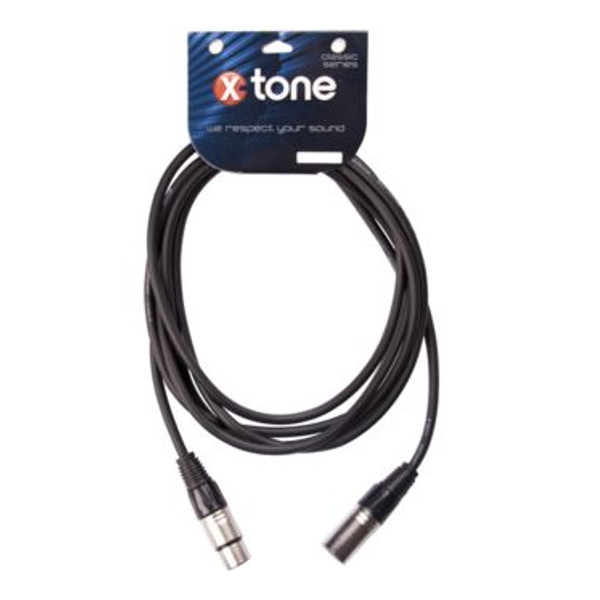

X1002-3M XLR (M) / XLR (F)
10.00 € -
X-TONE

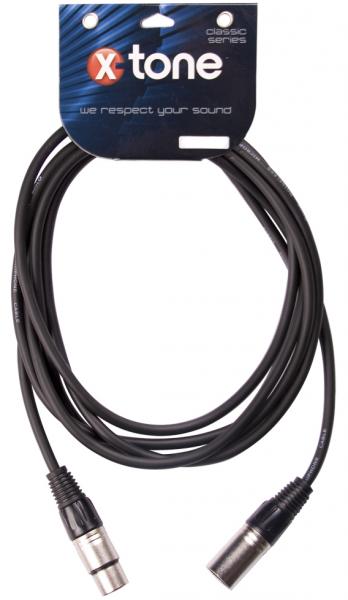

X1004-10M XLR (M) / XLR (F)
18.00 € -
X-TONE

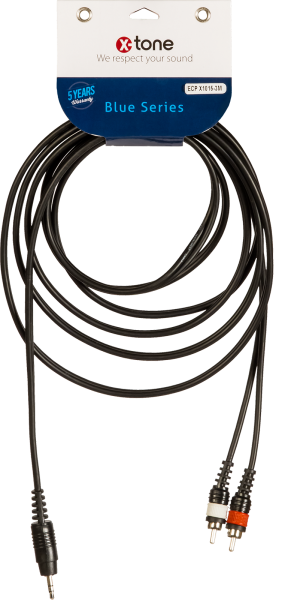

X1015-3M - Jack(M) 3,5 Stereo / 2 RCA(M)
