Definitive audio DA MX14 FX2

  • Read reviews (0)
  • Related accessories
  • Similar products

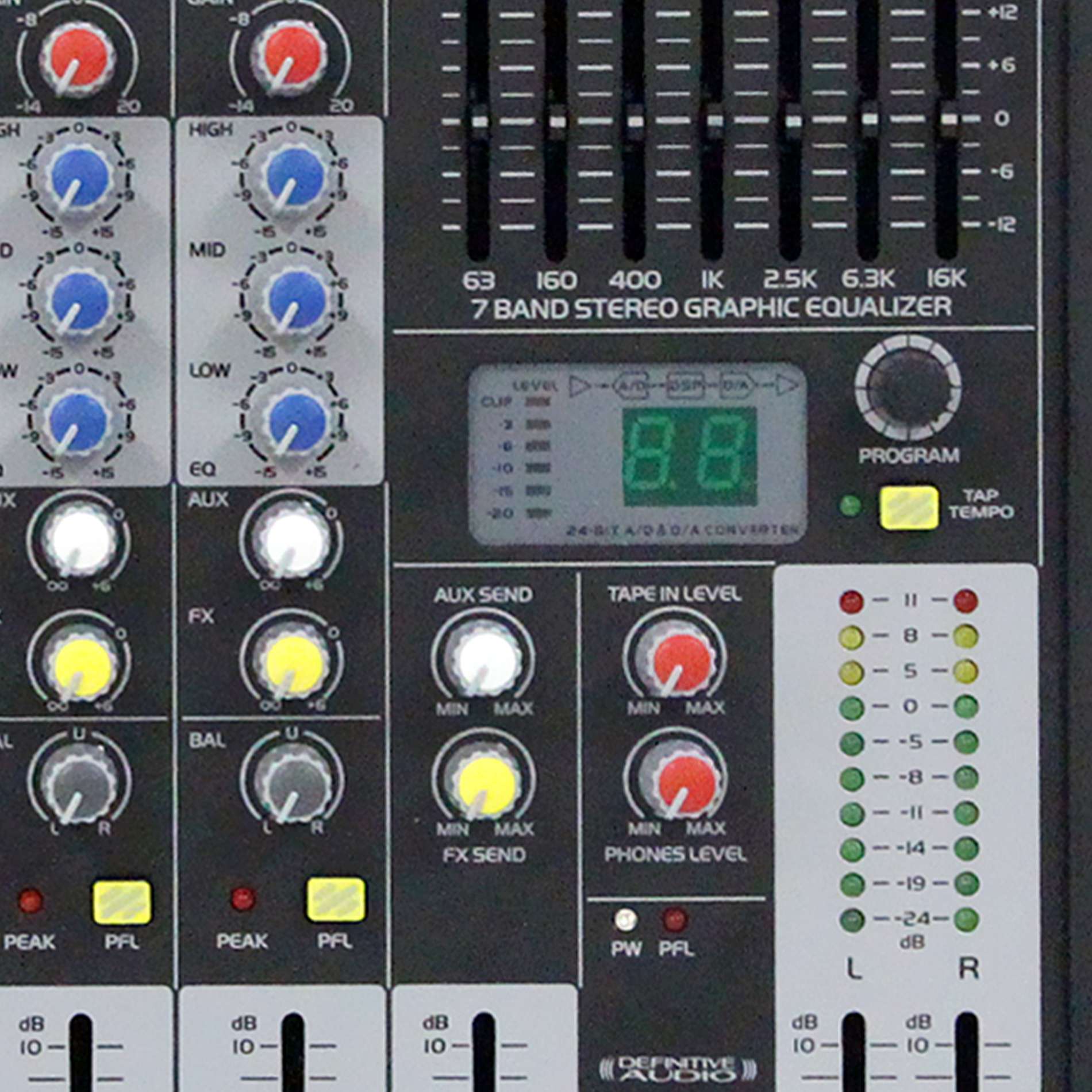

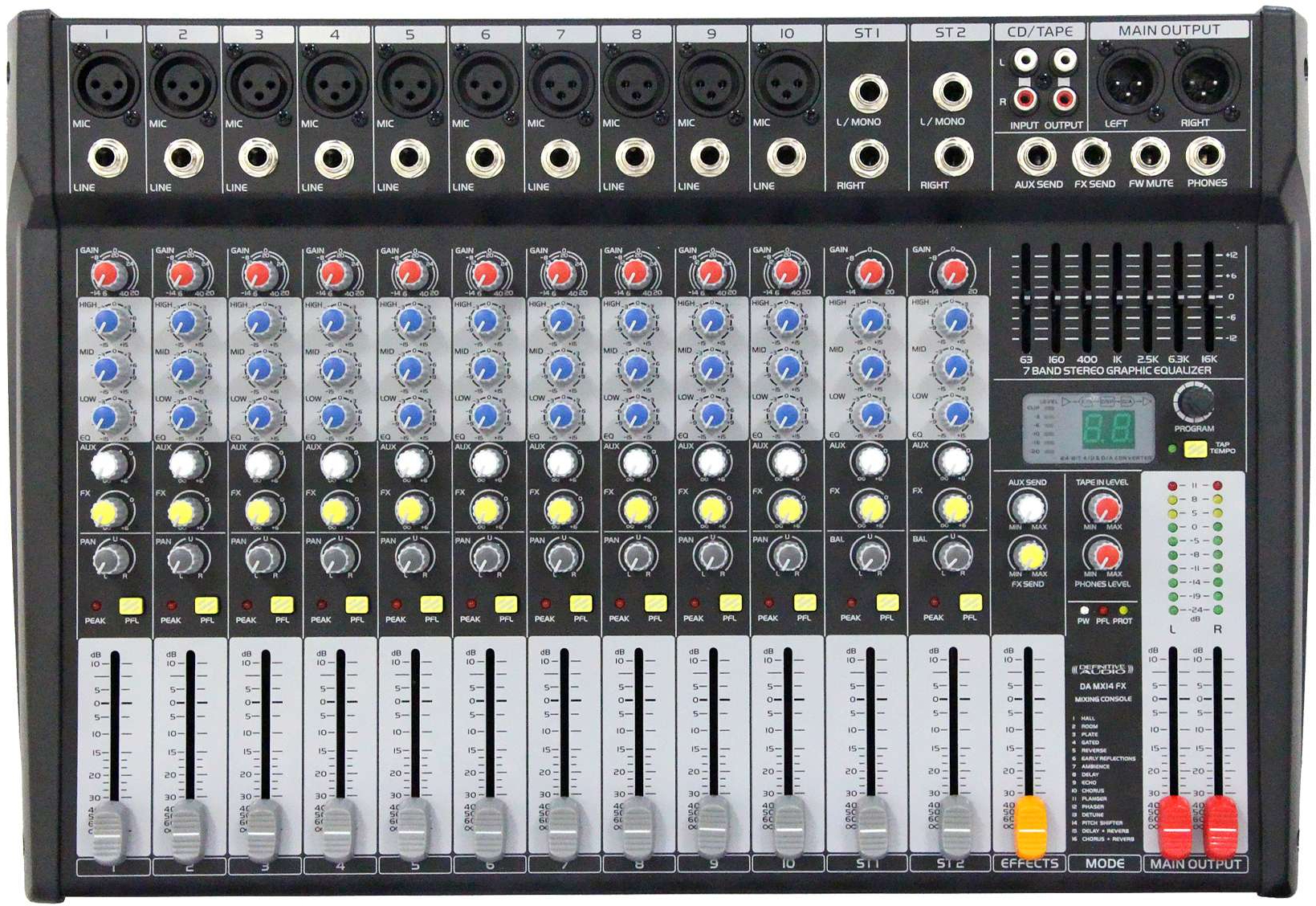

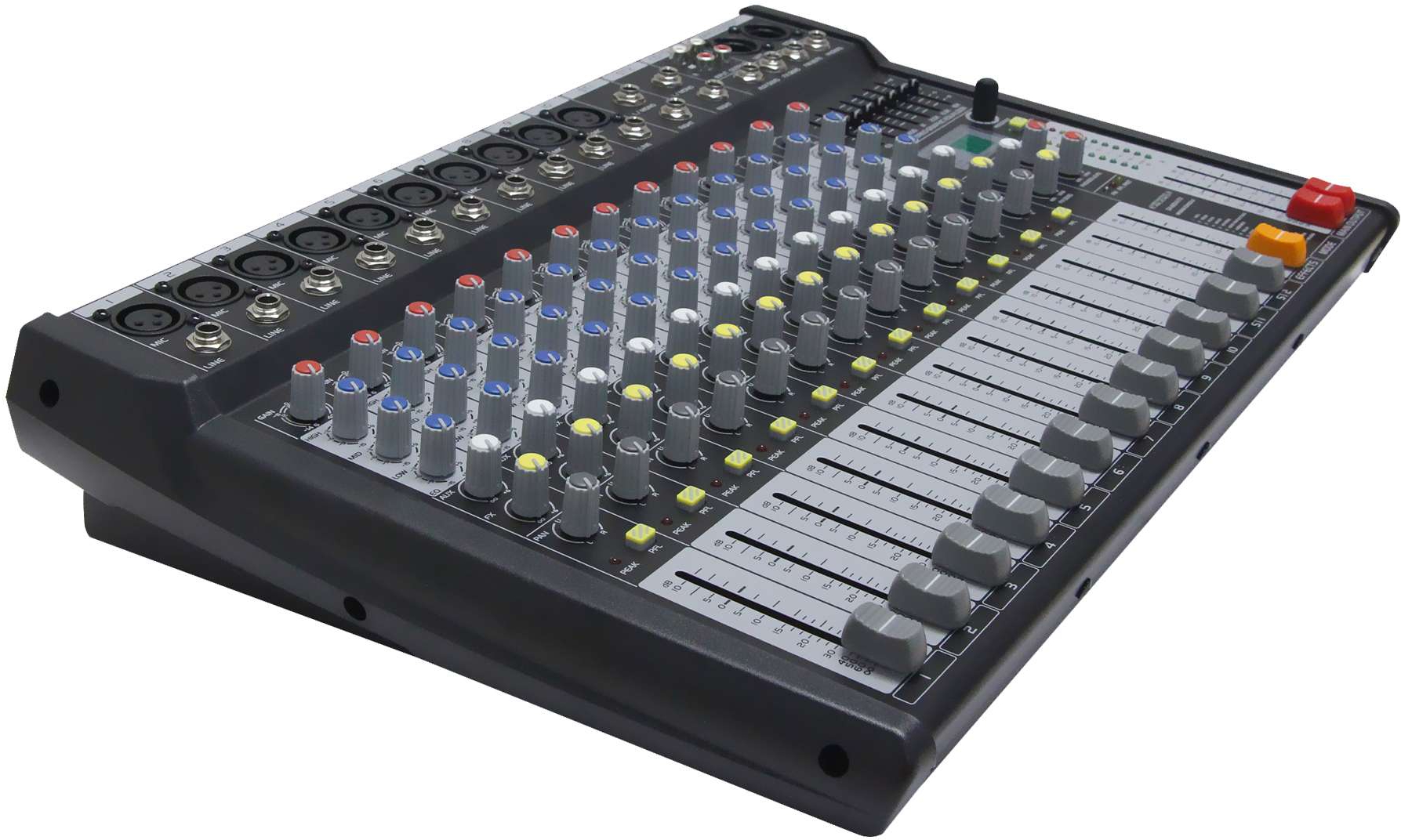

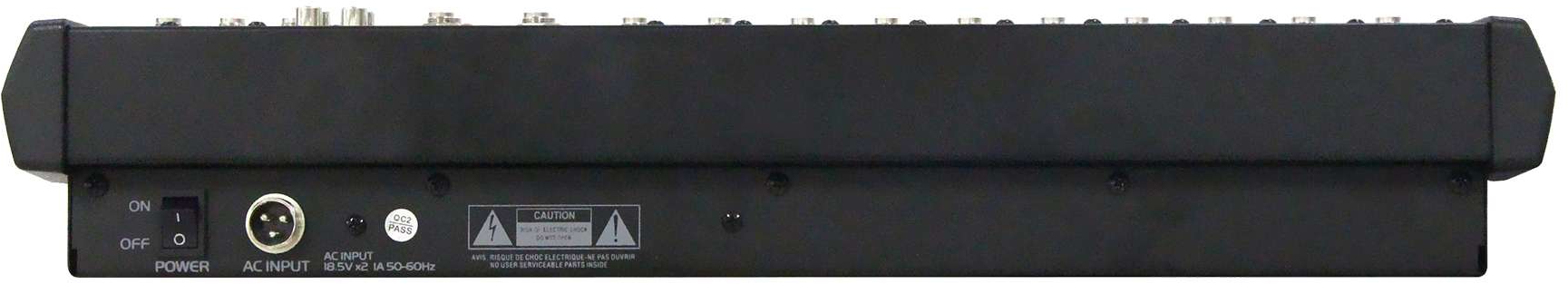

  • Definitive Audio Da Mx14 Fx2 - Analog mixing desk - Main picture
  • Definitive Audio Da Mx14 Fx2 - Analog mixing desk - Variation 1
  • Definitive Audio Da Mx14 Fx2 - Analog mixing desk - Variation 2
  • Definitive Audio Da Mx14 Fx2 - Analog mixing desk - Variation 3
329,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 103858
In stock
1 piece available.
deliverable in 24 hours
Stock in store
Not available in store
Other version(s) or associated product(s)

The brand Definitive audio

Learn more about the Definitive audio brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

The Definitive Audio DA MX14 FX2 is a 14 channel mixer.

Definitive Audio introduces a new range of analogue mixing consoles: the DA MX FX2. The range includes 2 models: 10 channel mono inputs + 2 groups of stereo inputs, 6 channel mono inputs + 2 groups of stereo inputs. The DA MX FX2 range contains many features, two AUX sends, two main channel outputs, a DSP digital effects processor, a 7-band graphic equalizer, a high quality, high precision 60mm long fader for fine tuning of the channel level. These mixers offer superior sonic performance with a high cost/performance ratio. Rack mounting brackets included for maximum flexibility.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 10 to 22 channels
  • Phantom power supplied
  • Maximum input level: Mic input: +22dBu; other inputs: +20dBu
  • Maximum output level: XLR: +28 dBu; other outputs: +22 dBu
  • Sensitivity: 0VU=+4dBu
  • Main measurement: 10 segments; -24dB + 11dB
  • Frequency response: +/- 1 dB, 20 Hz 30KHz
  • Mic CMRR 1kHz: >75dB
  • T.H.D + n at 140dBu at 1kHz: Mic to output: <0.01
  • Interference: (@1kHz) Progressive attenuation > 80dB
  • Noise: Mic E.I.N input (maximum gain) : -122 dBu
  • Linear volume faders
  • EQ (mono/stereo input): HF: 12 KHz +/- 15 dB, MF: +/-15 dB, 2.5 KHz, LF: +/-15 dB, 80 Hz
  • DSP processor: 24bit converter - 40 kHz sampling
  • Power supply: 230 VAC, 50-60Hz
  • Dimensions: 371 x 322 x 153 mm
  • Weight: 5,5 Kg
More specifications
Fewer specifications
