Analog mixing desk

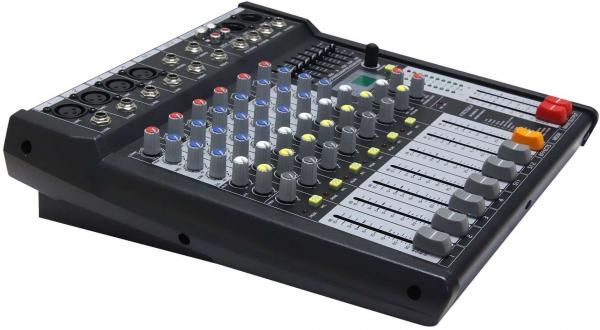

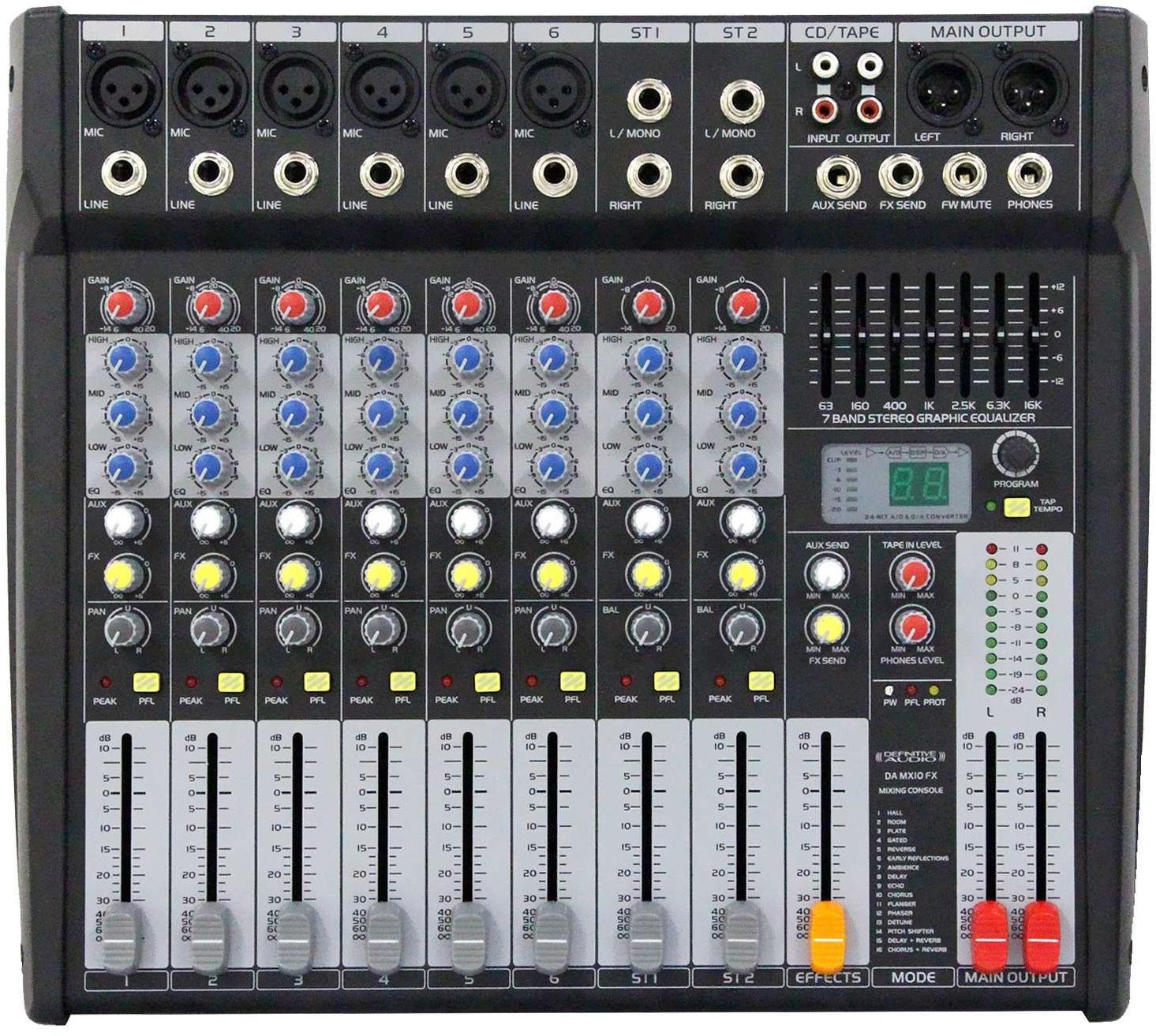

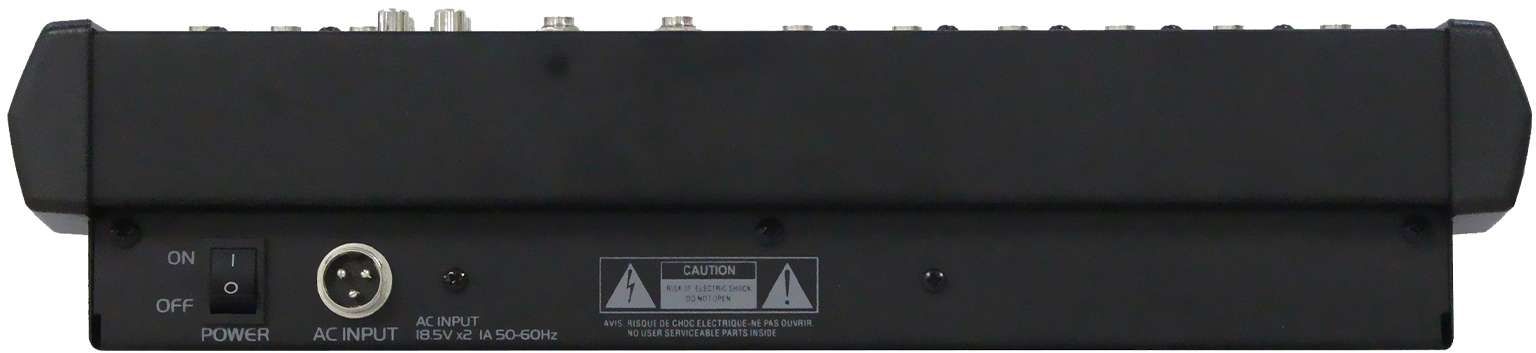

The Definitive Audio Da MX10FX2 is a 10 channel mixer.

The DA MX FX2 series contains many features, two AUX sends, two main channel outputs, a DSP digital effects processor, a 7-band graphic equalizer, a high quality, high precision 60mm long fader for fine tuning of the channel level. These mixers offer superior sonic performance with a high cost/performance ratio. Rack mounting brackets (not included) for maximum flexibility.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 10 to 22 channels
  • Phantom power supplied
  • Maximum input level: Mic input: +22dBu; other inputs: +20dBu
  • Maximum output level: XLR: +28 dBu; other outputs: +22 dBu
  • Sensitivity: 0VU=+4dBu
  • Main measurement: 10 segments; -24dB + 11dB
  • Frequency response: +/- 1 dB, 20 Hz 30KHz
  • Mic CMRR 1kHz: >75dB
  • T.H.D + n at 140dBu at 1kHz: Mic to output: <0.01
  • Interference: (@1kHz) Progressive attenuation > 80dB
  • Noise: Mic E.I.N input (maximum gain) : -122 dBu
  • Linear volume faders
  • EQ (mono/stereo input): HF: 12 KHz +/- 15 dB, MF: +/-15 dB, 2.5 KHz, LF: +/-15 dB, 80 Hz
  • DSP processor: 24bit converter - 40 kHz sampling
  • Power supply: 230 VAC, 50-60Hz
  • Dimensions: 371 x 322 x 153 mm
  • Weight: 5,5 Kg
