Definitive audio DAM 8 FX

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Definitive Audio Dam 8 Fx - Analog mixing desk - Main picture
  • Definitive Audio Dam 8 Fx - Analog mixing desk - Variation 1
  • Definitive Audio Dam 8 Fx - Analog mixing desk - Variation 2
  • Definitive Audio Dam 8 Fx - Analog mixing desk - Variation 3
205.00 €
179,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 103853
In stock
deliverable in 24 hours
Stock in store
See availability. Store
•
Star's Music Bordeaux
•
Star's Music Lille
•
Star's Music Toulouse

The brand Definitive audio

Learn more about the Definitive audio brand and discover the entire catalog.
Logo Definitive audio

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

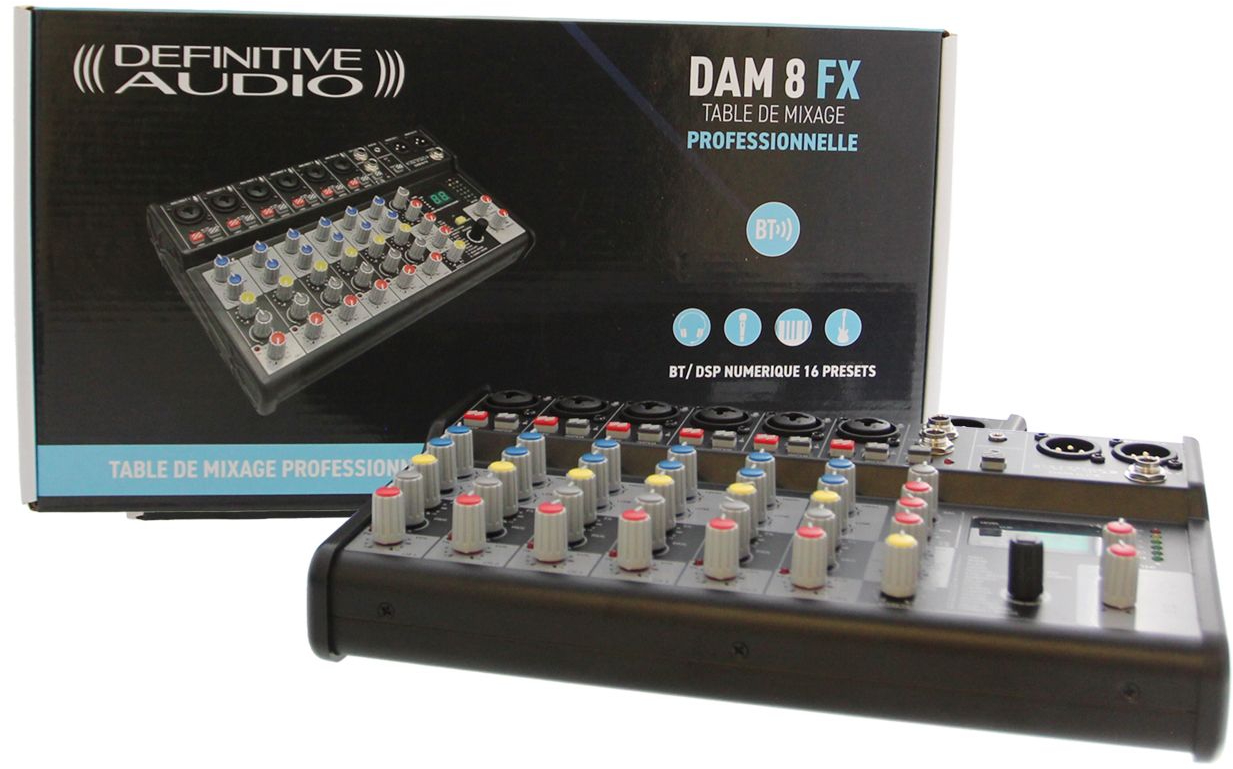

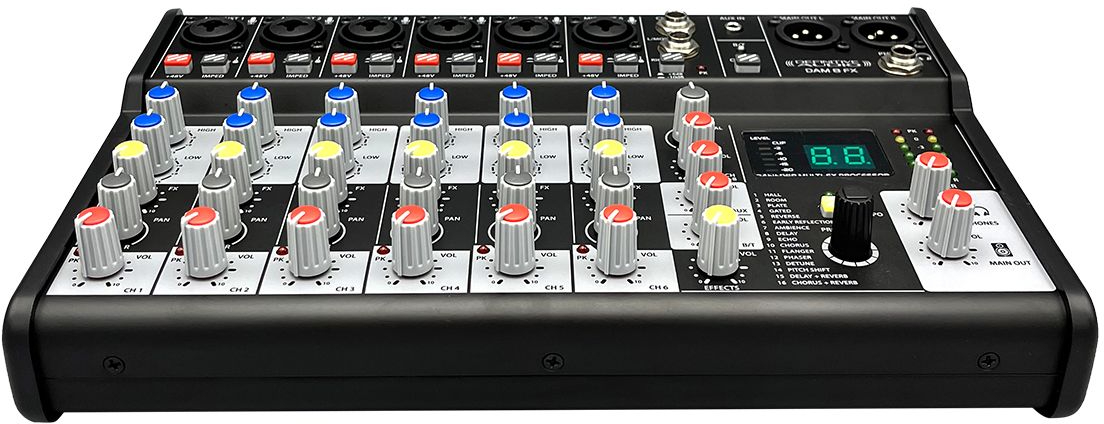

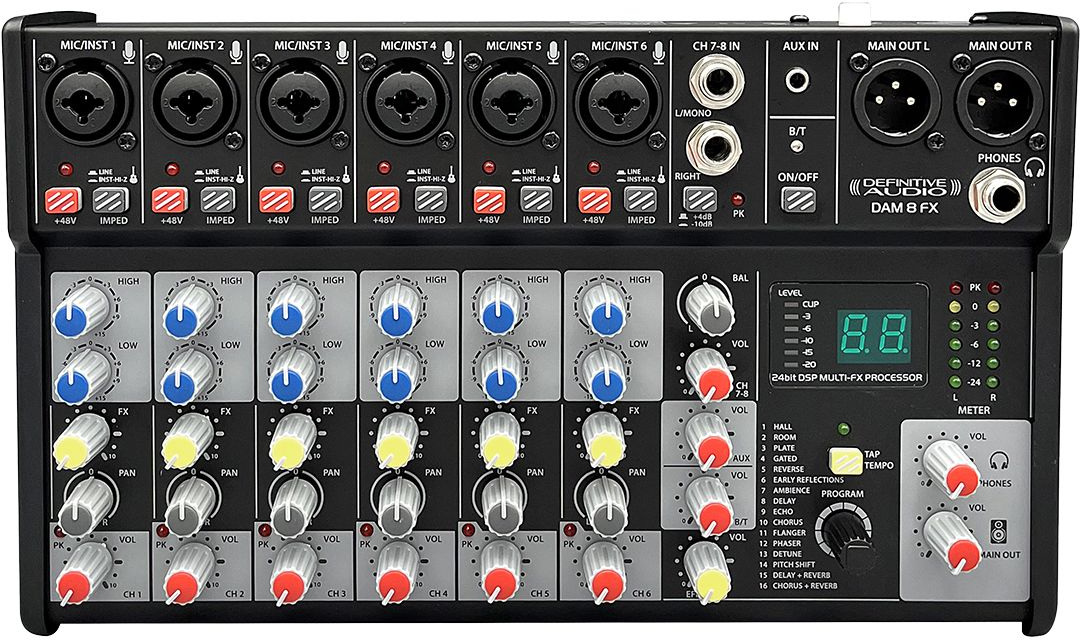

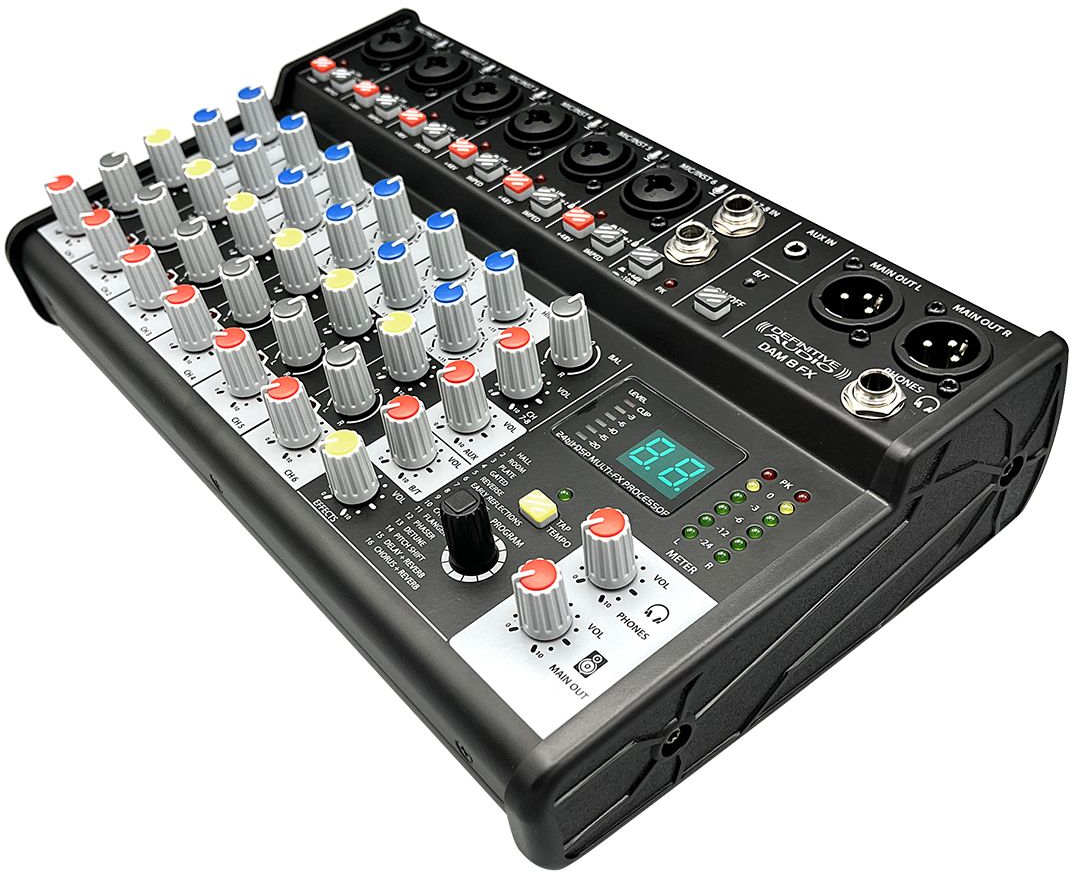

The Definitive Audio DAM 8 fx is an effects mixer.

The DAM 8 FX is a 9 channel analogue mixer, including 6 XLR/Jack 6.35mm inputs, a stereo input on Jack 6.35mm, an AUX input on Jack 3.5mm Stereo and a Bluetooth receiver. The mic preamps are of the highest quality to give you the best possible performance. It is equipped with a digital multi-effects with 16 presets including the main effects needed for classic use.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 6 and 8 channels
  • 9-channel mixer
  • Inputs: 4 XLR/Jack combos, 2 mono 6.35mm jacks, 1 AUX 3.5 jack
  • Integrated Bluetooth receiver
  • Outputs: 2 x XLR male and 1 x 6.35mm headphones
  • Gain : -14 - + 40dB
  • Eq 2 bands 80Hz and 12KHz +/- 15dB
  • +48V with LED indicator
  • Selector switch: Mic/line
  • LED saturation indicator
  • Stereo channel
  • Adjustable sensitivity
  • Adjustable balance
  • LED saturation indicator
  • General level indicator: 2 x 6 LEDs (4 green, 2 yellow and 2 red)
  • Max output level : 3 Vrms
  • Frequency response +/- 0.5 dB : 20 - 20000Hz
  • Dynamic range : 102 dB
  • THD: <0.03%.
  • Power supply : DC 5V, 1A
  • Power consumption : Max 5W
  • Dimensions : 274 x 66 x 165mm
  • Weight : 1,45 Kg
