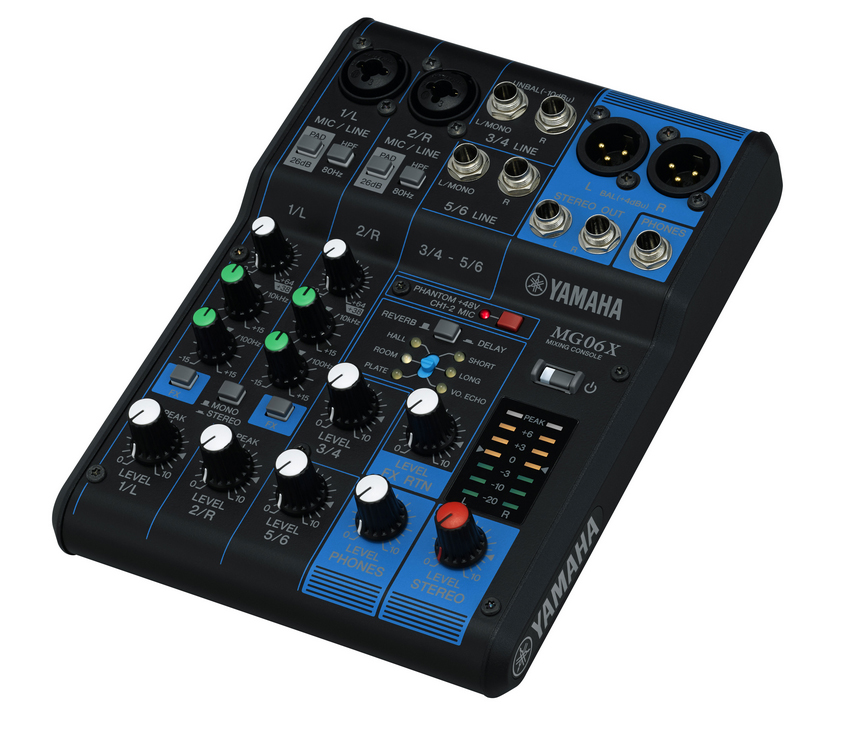

Ref : 34650
- Mixer connectivity : without computer connection
- Number of channel mixing desk : 6 and 8 channels
Mixing capability
- On-board processors : SPX algorithm: 6 programs
I/O
- Phantom power : +48 V
Input Channels
- Mono[MIC/LINE] 2
- Stereo[LINE] : 2
Output Channels
- STEREO OUT : 2
- PHONES : 1
Bus
- Stereo: 1
Input Channel
Function
- PAD : 26 dB (Mono)
- HPF : 80 Hz, 12 dB/oct (Mono)
- EQ HIGH : (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ LOW : (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter : 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
General specifications
- Total harmonic distortion : 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
- Frequency response : +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level :
- Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
- Crosstalk : -88 dB
- Power requirements : PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
- Power consumption : 12 W
Dimensions
- W : 149 mm (5.9")
- H : 62 mm (2.4")
- D : 202 mm (7.9")
- Net weight : 0.9 kg (1.98 lbs.)
Accessories
- Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others
- Operating Temperature: 0 to +40?C
