Definitive audio TML 10 BU DSP

  • Read reviews (0)
  • Related accessories
  • Similar products

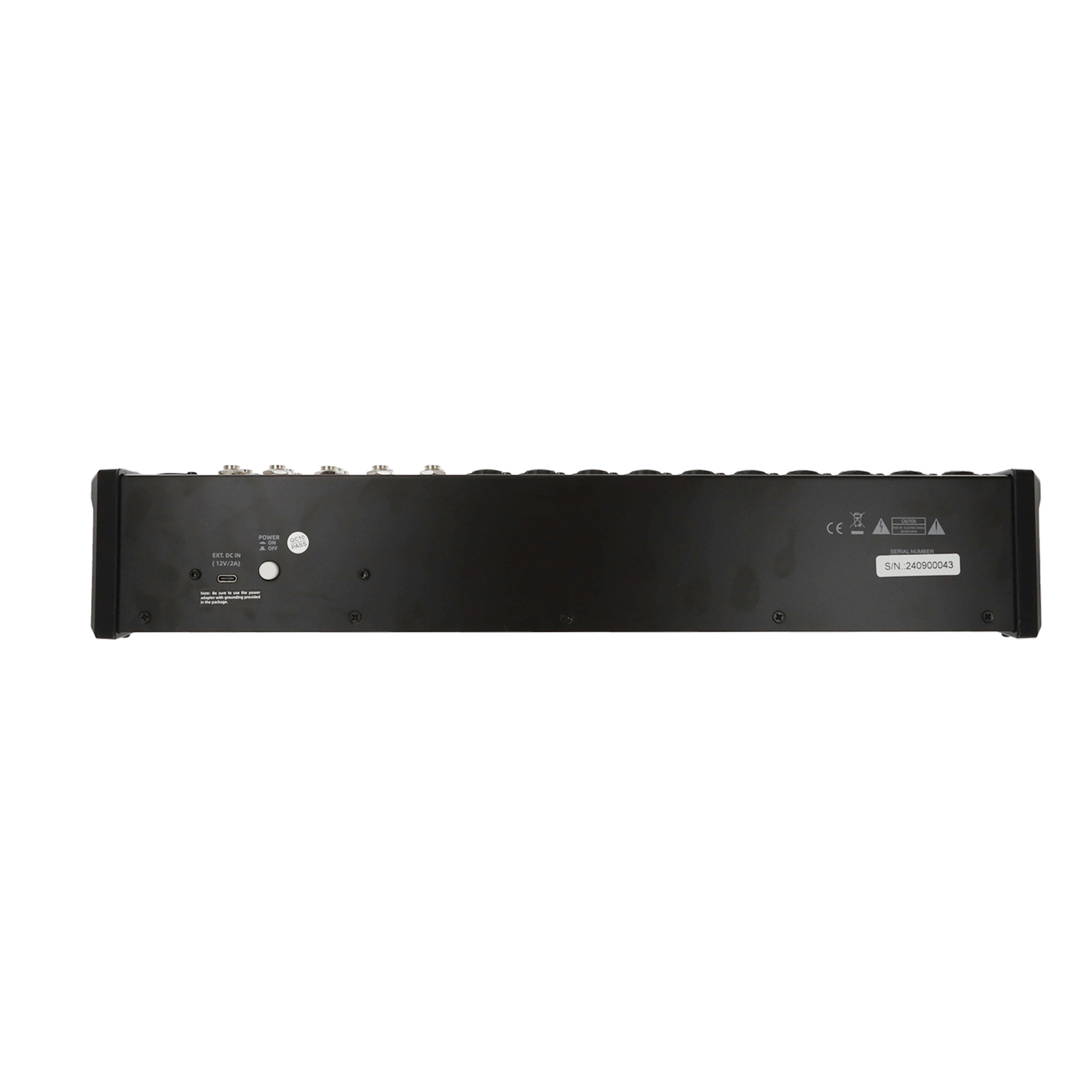

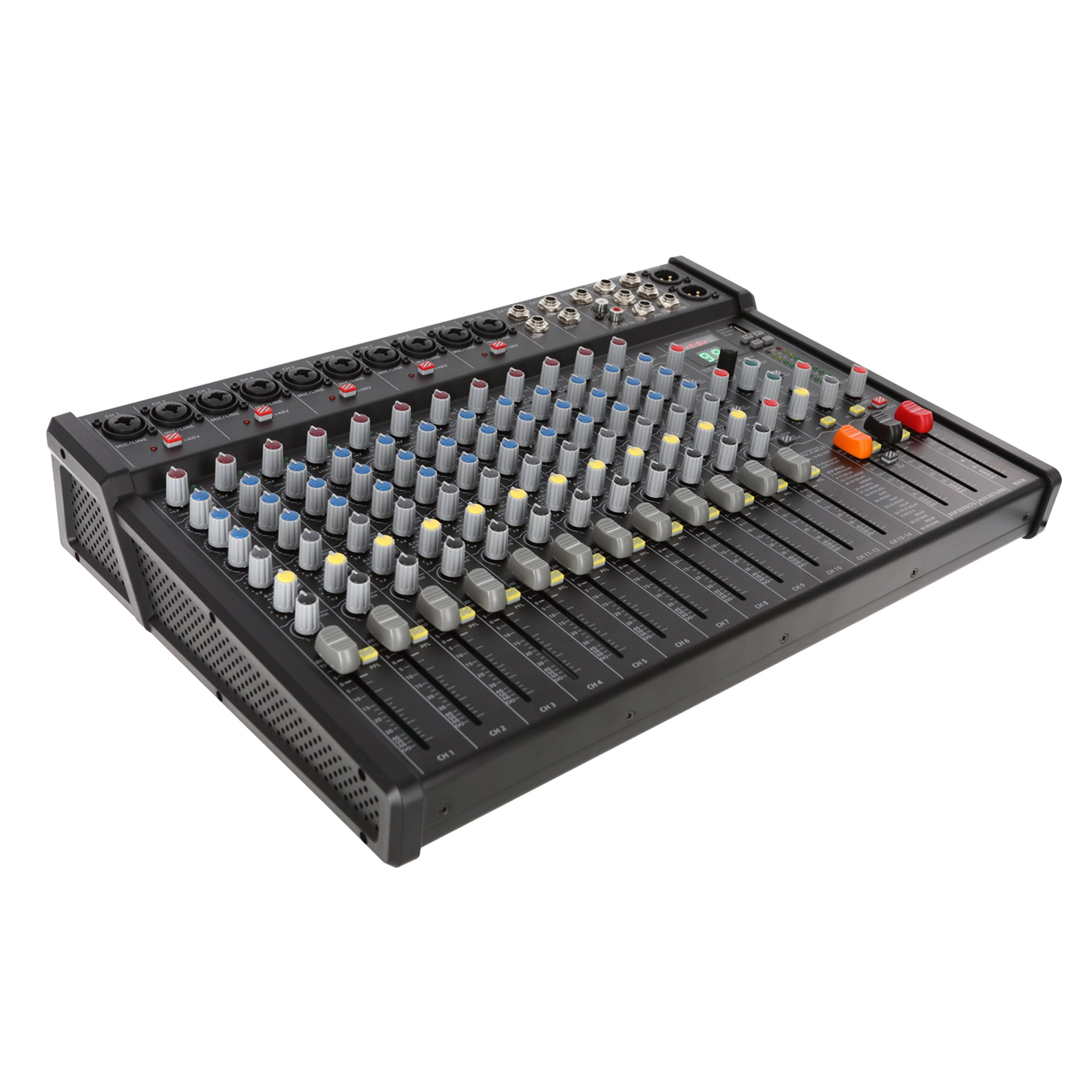

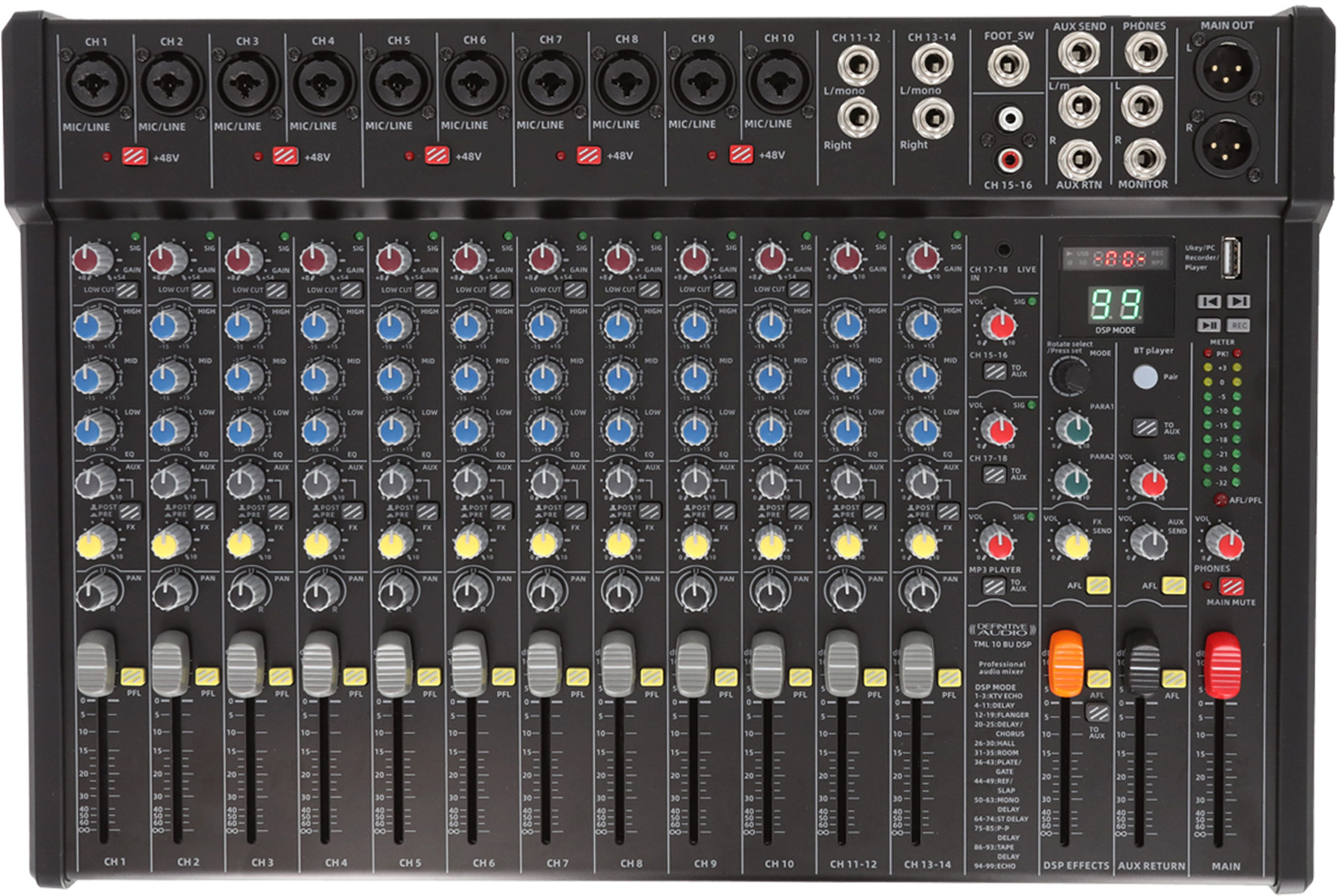

  • Definitive Audio Tml 10 Bu Dsp - Analog mixing desk - Main picture
  • Definitive Audio Tml 10 Bu Dsp - Analog mixing desk - Variation 1
  • Definitive Audio Tml 10 Bu Dsp - Analog mixing desk - Variation 2
  • Definitive Audio Tml 10 Bu Dsp - Analog mixing desk - Variation 3
  • Definitive Audio Tml 10 Bu Dsp - Analog mixing desk - Variation 4
  • Definitive Audio Tml 10 Bu Dsp - Analog mixing desk - Variation 5
  • Ref : 116773
279,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 5/7 days
Stock in store
See availability. Store
•
Star's Music Lyon

The brand Definitive audio

Learn more about the Definitive audio brand and discover the entire catalog.
Logo Definitive audio

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

The TML 10 BU DSP is an 18-channel analog mixer designed to meet the demands of both live performance and studio sessions. It features a DSP effects processor with 99 presets, a Bluetooth module, and a handy USB reader/writer for capturing or playing back your mixes.
It offers 10 XLR/Jack combo inputs with 60 mm linear faders, plus balanced XLR outputs for professional broadcasting. Compact, complete and intuitive, this mixer is an ideal choice for musicians, sound technicians or DJs looking for versatility and reliability.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 10 to 22 channels
  • Number of channels 10 channels
  • Number of channels
  • 18 channels (10 mono, 4 stereo)
  • Preamps
  • Superior sound quality

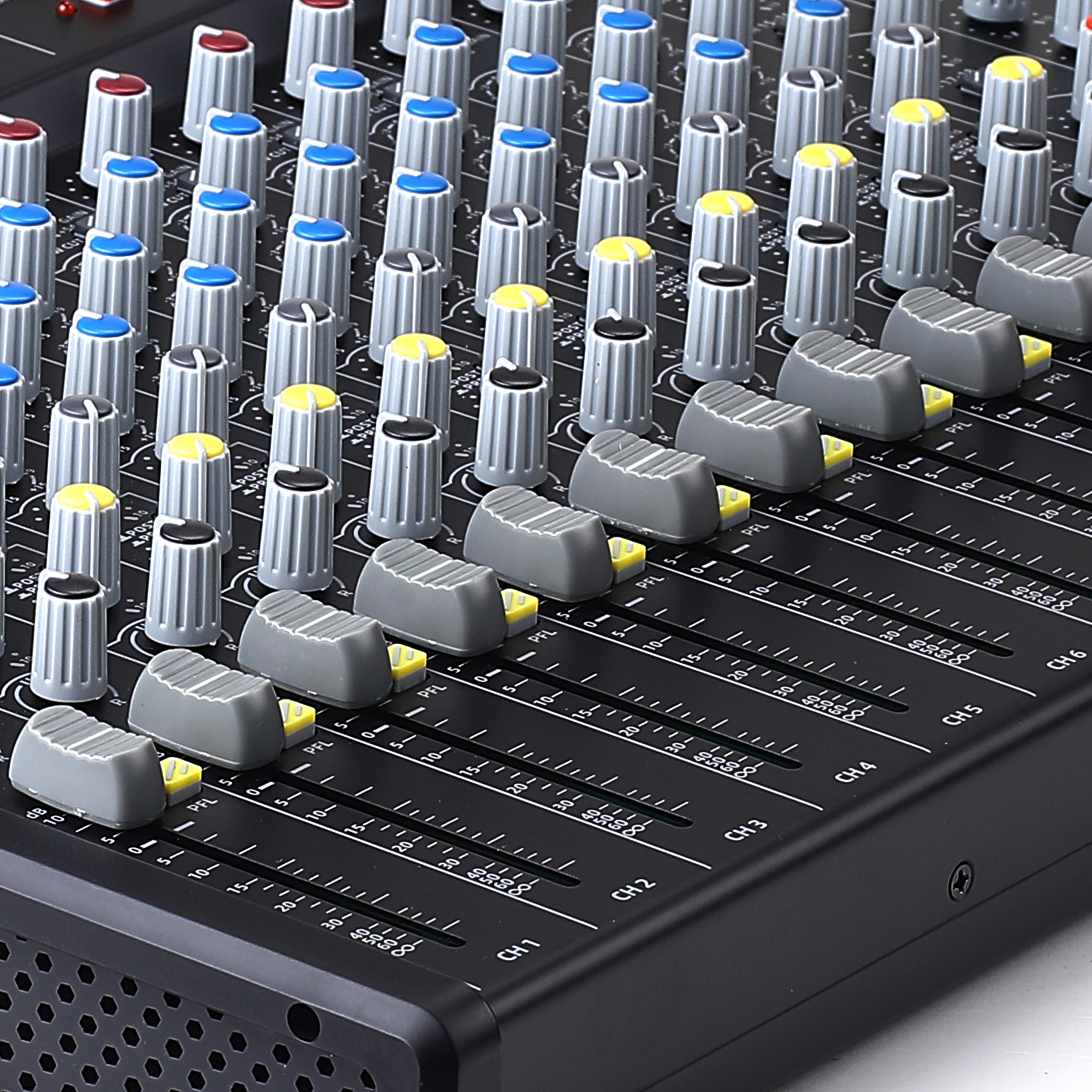

  • Faders
  • 60 mm linear faders on 10 combo inputs
  • Mic/line inputs
  • 10 XLR/Jack combo with +48V phantom powering
  • Stereo inputs
  • 2 x 6.35 mm jack | 1 x 3.5 mm jack | 1 x RCA
  • Mic input controls
  • Gain, 3-band EQ, low-cut, panning, auxiliary and effects sends, monitoring
  • Bluetooth receiver
  • Bluetooth 5.1 + BR + EDR + BLE

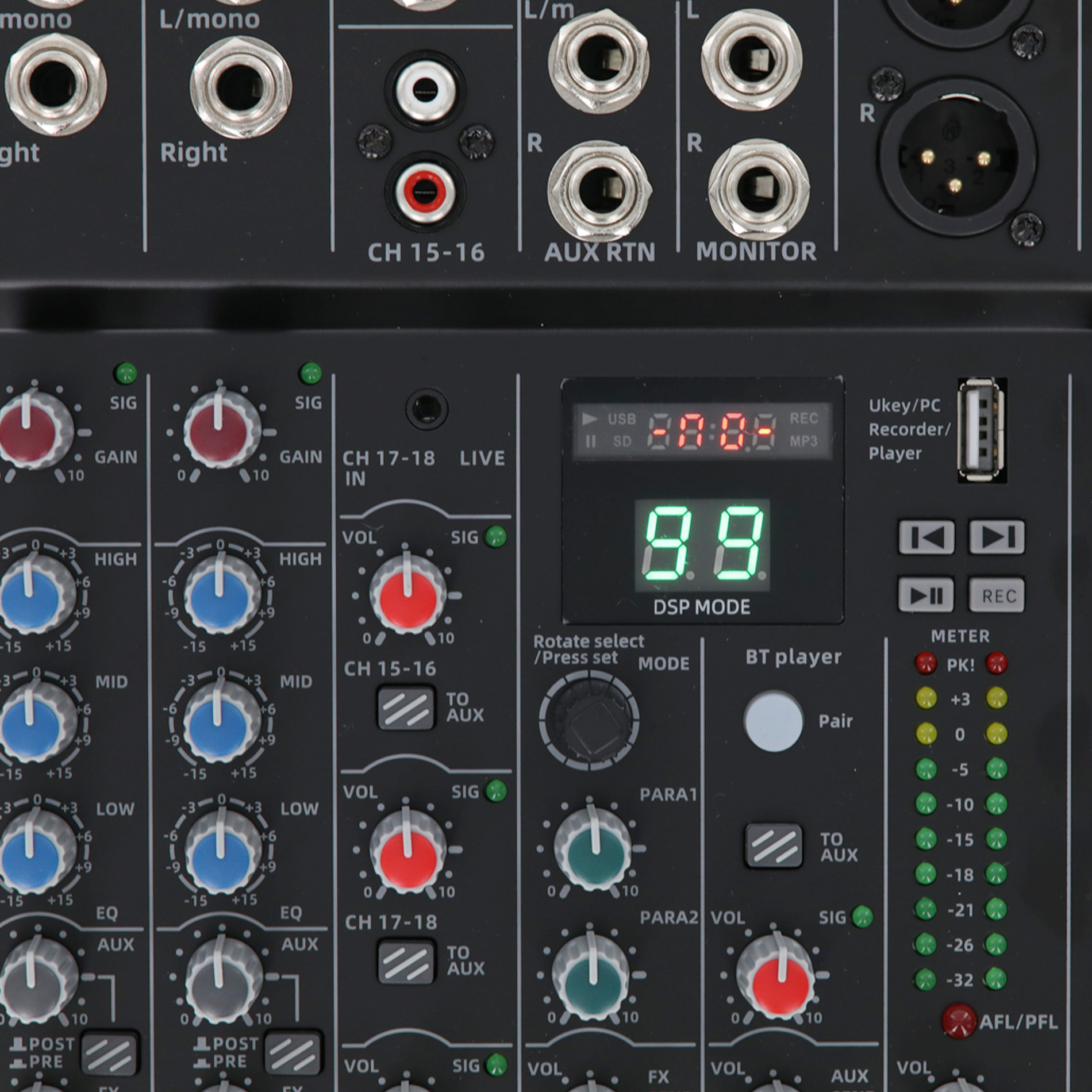

  • DSP effects
  • 99 effects, 24bit/48kHz resolution, LED display

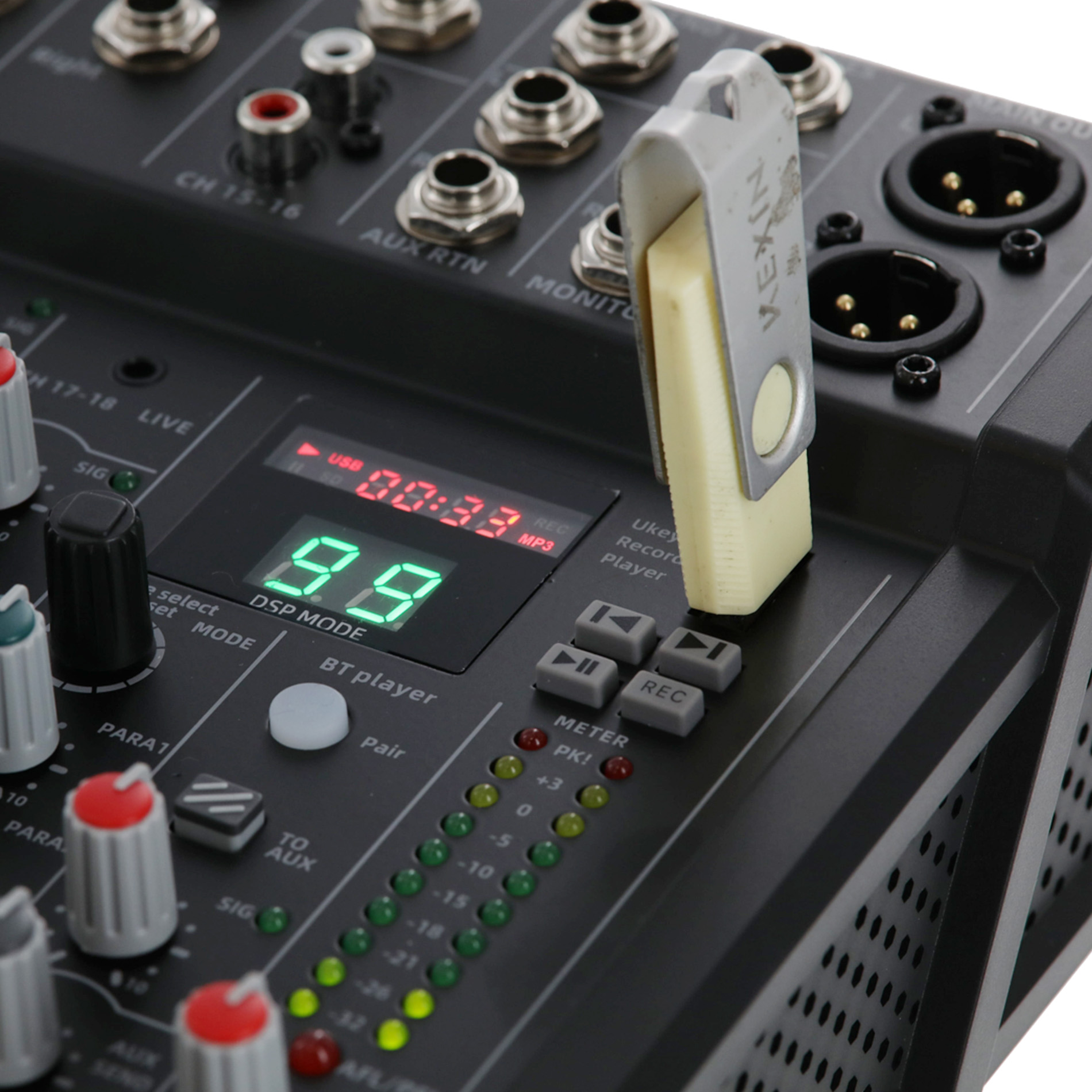

  • Player / Recorder
  • USB 1.1, compatible formats: MP3, WAV, APE, FLAC
  • Input levels
  • MIC +10dBu | Line +22dBu
  • Output levels
  • XLR : +22dBu | TRS : +20dBu
  • Displays
  • 6-segment VU meter, 3-color LED signal indicator, 10 bands
  • Frequency response
  • 20Hz - 22kHz ±1dB
  • CMRR ratio
  • >75dB (MIC @1kHz)
  • Distortion (THD+N)
  • < 0.05% (mixed channel)
  • Mono channel connection
  • XLR balanced: 2KΩ, -60 to +10dBu | TRS balanced: 10KΩ, -20 to +20dBu
  • Mono channel equalization
  • Treble ±15dB 12kHz | Midrange ±15dB 2.5kHz | Bass ±15dB 80Hz
  • Stereo 1/2 connection
  • TRS unbalanced: 20KΩ, -20 to +20dBu
  • EQ stereo 1/2
  • Treble ±15dB 12kHz | Midrange ±15dB 2.5kHz | Bass ±15dB 80Hz
  • 3/4" stereo connectors
  • Jack 6.35 mm TRS unbalanced
  • Power supply
  • DC 12V / 2A - 24W
  • Dimensions
  • 451 x 84 x 309 mm
  • Weight
  • 9 kg
