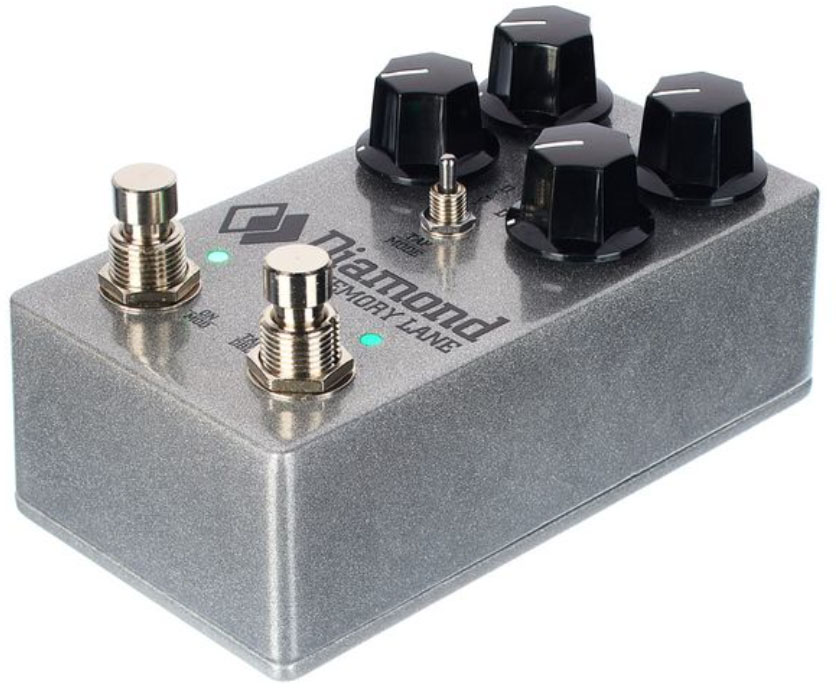

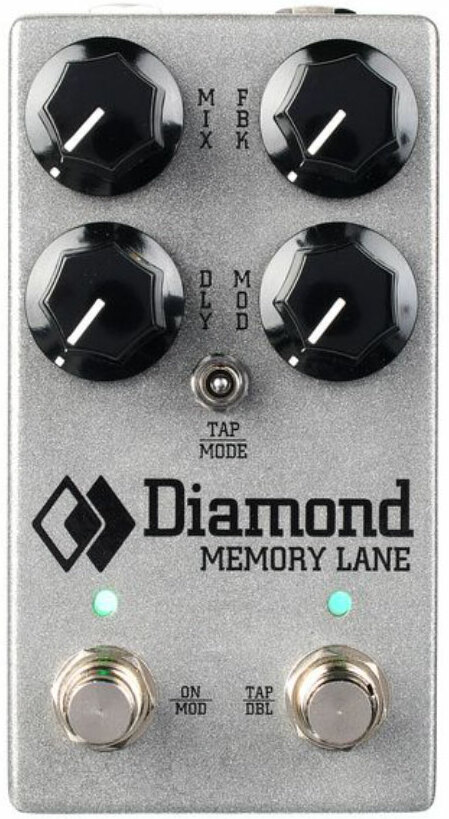

Reverb, delay & echo effect pedal
Blending analog companding, anti-aliasing|reconstruction filters with a innovative digital Bucket Brigade Delay technology (dBBD), DIAMOND Memory Lane Delay effect pedal is the Memory Lane Jr. circuit reincarnated.
Basically what we’re saying is, you get all the goodness of the original Memory Lane in a smaller footprint, over double the delay time, extended frequency response, higher SNR, and at a fraction of the current draw.
This innovative progression of the Memory Lane is defined by 3 distinct delay lines to offer modern or vintage sounds. The Memory Lane's original fixed sampling rate delay line has been augmented with a new warm delay mode offering vintage BBD style variable sampling rate, warmer repeats and a 1200ms maximum delay time for gorgeous ambient delays as well as a new vintage mode designed to capture the magic of analog BBD delay pedals. Variable sampling rate, snappier repeats and 50ms-550ms delay times inspired by yesterday's big box delays.
Features include top mounted jacks, Burr-Brown equipped buffered bypass with optional trails, tap tempo with subdivisions, AutoDiv, Doubler, momentary or latching modulation and more.
Basically what we’re saying is, you get all the goodness of the original Memory Lane in a smaller footprint, over double the delay time, extended frequency response, higher SNR, and at a fraction of the current draw.
This innovative progression of the Memory Lane is defined by 3 distinct delay lines to offer modern or vintage sounds. The Memory Lane's original fixed sampling rate delay line has been augmented with a new warm delay mode offering vintage BBD style variable sampling rate, warmer repeats and a 1200ms maximum delay time for gorgeous ambient delays as well as a new vintage mode designed to capture the magic of analog BBD delay pedals. Variable sampling rate, snappier repeats and 50ms-550ms delay times inspired by yesterday's big box delays.
Features include top mounted jacks, Burr-Brown equipped buffered bypass with optional trails, tap tempo with subdivisions, AutoDiv, Doubler, momentary or latching modulation and more.
Lire la suite
Technical sheet
- DIAMOND Memory Lane Delay
- SKU Diamond DIMEM
- Analog delay
- Compact effect pedal
- Made in Canada
- 2023
- Bucket Brigades circuits
- Up to 1200ms delay time with modulation
- 3x algorithms Modern/Warm/Vintage
- Modern : 50-1200ms
- Warm : 150-1200ms
- Vintage : 65-550ms
- Burr-Brown equipped buffered bypass with optional trails, tap tempo with subdivisions, AutoDiv, Doubler, momentary or latching modulation
- True-Bypass or Buffered with Delay Trails
- Powered with optional 9VDC, min. 45 mA
- Doesn't work with battery
- 67 x 122 x 40 mm
- 300 g
