Reverb, delay & echo effect pedal

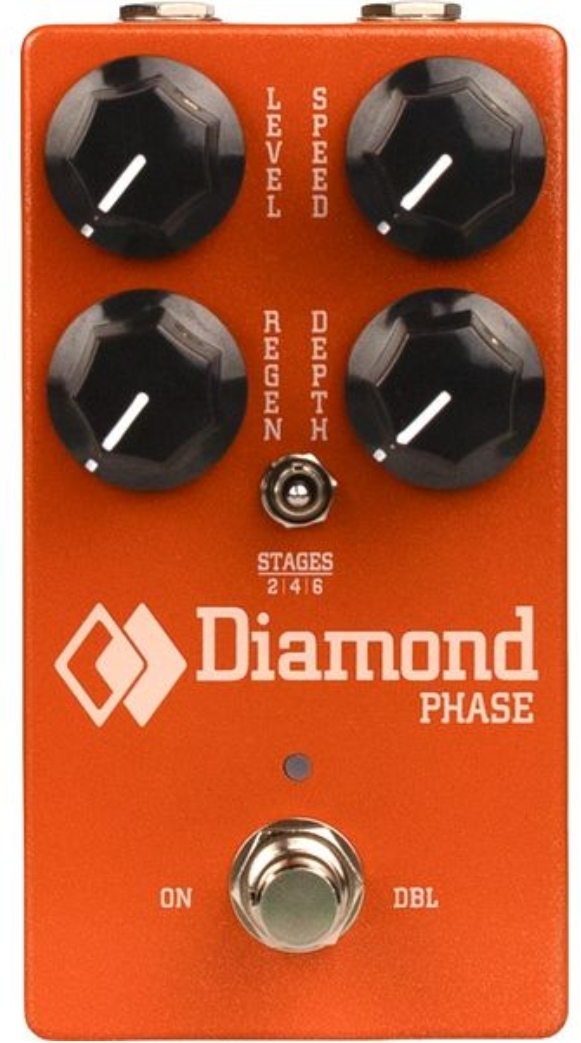

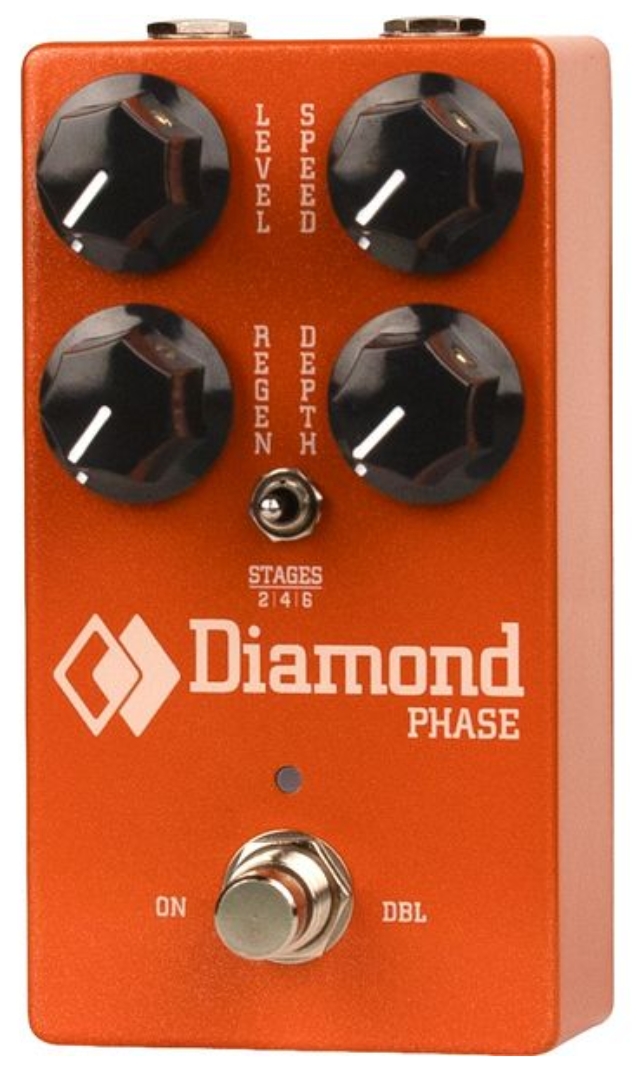

The DIAMOND Phase pedal is the second version of 2008's Diamond PSH-1, whose phasing effects were unanimously acclaimed. Built on the platform of a 100% analog signal path and six rigorously selected and matched JFET transistors, the Diamond Phase produces modulations that are deep, warm, clear, organic and progressive.
The circuit topology gives you three options with 2, 4 or 6 stages for maximum flexibility: - 2 stages - discreet modulation, subtle movement - 4 stages - traditional phasing - 6 stages - more pronounced phasing, with deeper character Whichever mode you choose, the phasing remains homogeneous, natural, with no abrupt transitions. In addition, the feedback circuit has been optimized, making the Diamond Phase ideal for musicians looking for a versatile, high-performance phaser that enriches and enhances their sound with optimum musicality.
The circuit topology gives you three options with 2, 4 or 6 stages for maximum flexibility: - 2 stages - discreet modulation, subtle movement - 4 stages - traditional phasing - 6 stages - more pronounced phasing, with deeper character Whichever mode you choose, the phasing remains homogeneous, natural, with no abrupt transitions. In addition, the feedback circuit has been optimized, making the Diamond Phase ideal for musicians looking for a versatile, high-performance phaser that enriches and enhances their sound with optimum musicality.
Lire la suite
Technical sheet
- for electric guitar Yes
- Phaser Yes
- DIAMOND Phase
- SKU Diamond DIPHA
- Versatile phaser
- Compact effects pedal
- Made in Canada
- 100% analog circuit
- Sweep speed from 0.1 Hz to 10 Hz
- Optimized feedback circuit
- 3x selectable stage options (2/4/6)
- Internal trimpot for fine-tuning of JFET bias
- Internal charge pump to boost voltage to 15V
- Dual-function true bypass switch (permanent or momentary)
- Controls: see pictures

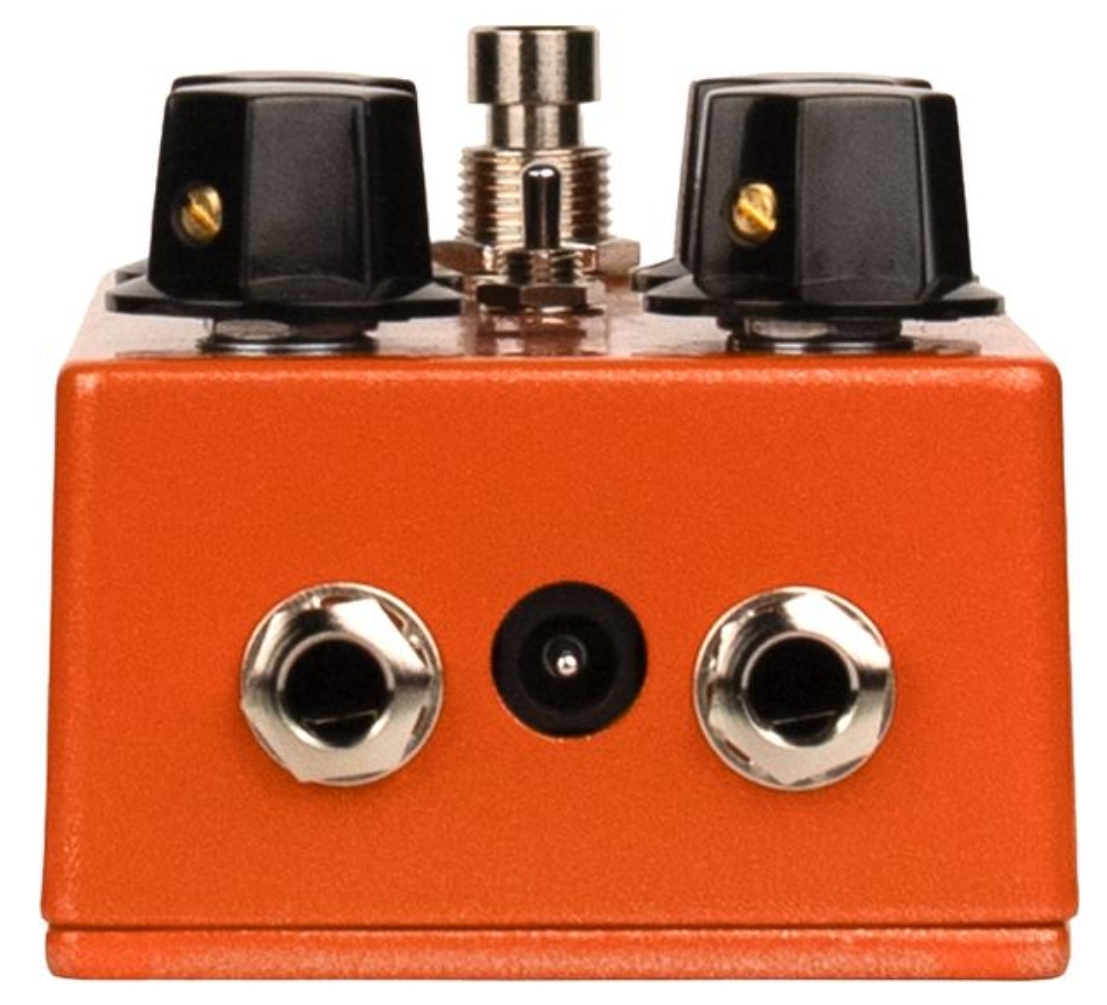

- Connections: see images
- Works with optional 9/15V DC power supply (2.1 x 5.5 mm cylindrical plug, negative polarity inside)
- Current draw 80 mA
- 122 x 66.98 x 39.64 mm
- 300 g
- English manual: https://tinyurl.com/55z4rsrs
