Dpa 3506A

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Dpa 3506a - - Wired microphones set - Main picture
  • Dpa 3506a - - Wired microphones set - Variation 1
  • Ref : 68222
6513,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Dpa

Learn more about the Dpa brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Wired microphones set

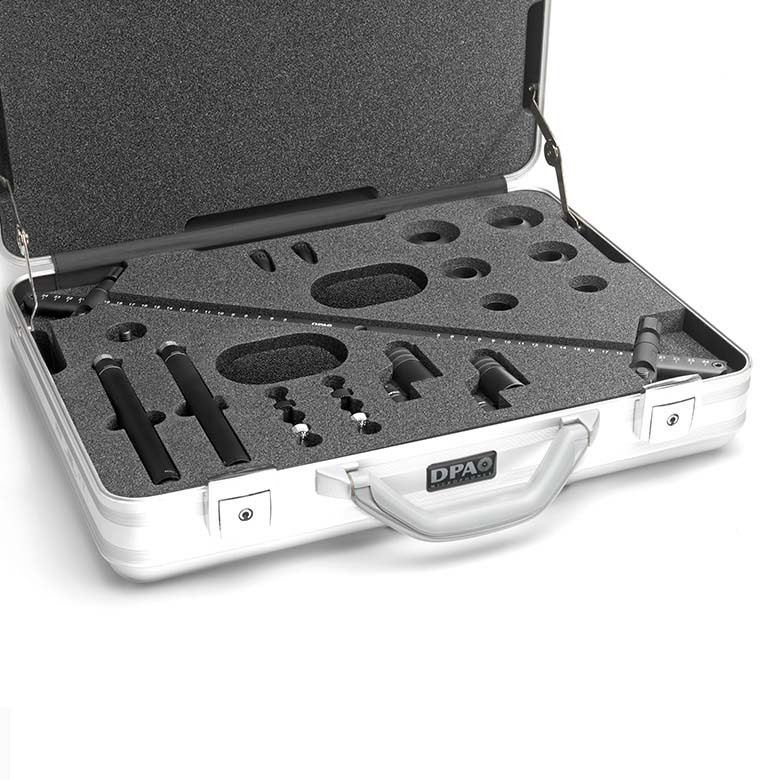

d:dicate™ 3506A Stereo Kit with 4006A Omnidirectional is a complete stereo kit with two carefully factory-matched phantom powered omnidirectional condenser microphones.
Even though the standard tolerances on our d:dicate™ series are extremely low, a stereo match is even closer. These specially selected d:dicate™ 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity.

For reference stereo recording, there is no better choice than a d:dicate™ 4006A Microphone. These omnidirectional condenser microphones are linear and true in character. They come as a hand-matched pair that offers the truest capture of stereo sound available.
Lire la suite

Technical sheet

  • Hand Microphone No
  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 10 Hz - 20 kHz
  • Frequency range, ±2 dB: 10 Hz - 20 kHz
  • Sensitivity, nominal, ±2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
  • -Equivalent noise level, A-weighted: Typ. 27 dB (max. 29 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
  • Total harmonic distortion (THD): < 1% up to 139 dB SPL peak
  • Dynamic range: Typ. 124 dB
  • Max. SPL, peak before clipping: 146 dB
  • Switchable attenuator, filters etc.: 0 dB / -20 dB
  • Output impedance: 200 Ω
  • Minimum load impedance: 2 kΩ
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common mode rejection ratio (CMRR): > 60 dB
  • Power supply (for full performance): 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
