Neumann TLM 170 R mt Stereo Set

  • Read reviews (1)
  • Related accessories
  • Similar products
  • Neumann Tlm 170 R Mt Stereo Set - Wired microphones set - Main picture
  • Neumann Tlm 170 R Mt Stereo Set - Wired microphones set - Variation 1
  • Neumann Tlm 170 R Mt Stereo Set - Wired microphones set - Variation 2
6771,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 68211
In stock
shipped under 5/10 days
Stock in store
Not available in store
Other version(s) or associated product(s)

The brand Neumann

Learn more about the Neumann brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Wired microphones set

The TLM 170 R was the first microphone to use the successful fet 100 technology. Along with a balanced, transformerless output stage it features extremely low self-noise and an impressive dynamic range.

Five directional characteristics are selectable by means of a rotary switch. In the sixth position, marked "R", the directional patterns can be controlled remotely with the N 248 power supply. There is no special cable necessary for this purpose.

The microphone has at its rear a 10 dB attenuation switch for extremely high sound pressure levels, and a high-pass filter to suppress structure born noise.
Lire la suite

Technical sheet

  • Hand Microphone No

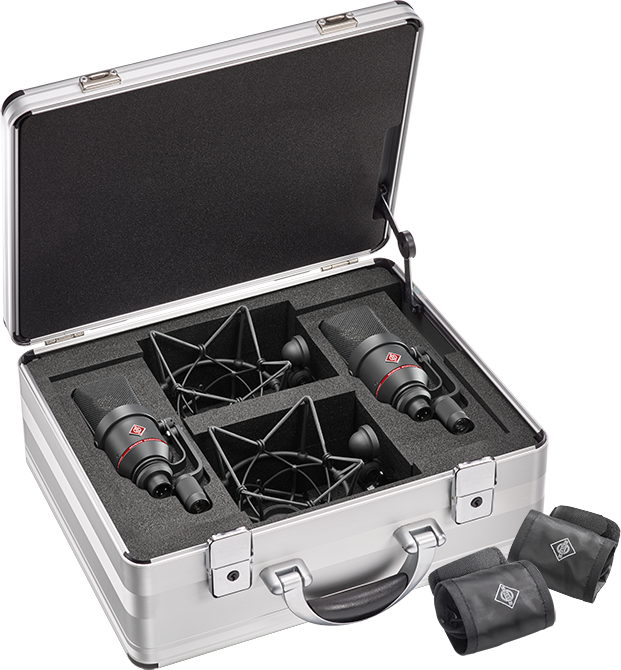

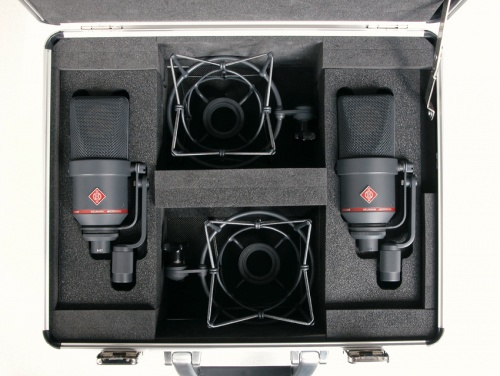

  • TLM 170 R stereo set
  • 2 x Microphone TLM 170 R (mt)
  • 2 x Elastic suspension EA 170 (mt)
  • 2 x Dust cover
  • Aluminium case
  • Specs
  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
  • Frequency range: 20 Hz ... 20 kHz
  • Sensitivity at 1 kHz into 1 kohm: 8 mV/Pa
  • Rated impedance: 50 ohms
  • Rated load impedance: 1 kohms
  • Equivalent noise level, CCIR1): 26 dB
  • Equivalent noise level, A-weighted1): 14 dB-A
  • Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 68 dB
  • Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 80 dB
  • Maximum SPL for THD 0.5%2): 144 dB
  • Maximum SPL for THD 0.5% with preattenuation2): 154 dB
  • Maximum output voltage: 10 dBu
  • Supply voltage (P48, IEC 61938): 48 V ± 4 V
  • Current consumption (P48, IEC 61938): 3 mA
  • Matching connector: XLR3F
  • Weight: 625 g
  • Diameter: 60 mm
  • Length: 152 mm
More specifications
