Wired microphones set
The TLM 170 R was the first microphone to use the successful fet 100 technology. Along with a balanced, transformerless output stage it features extremely low self-noise and an impressive dynamic range.

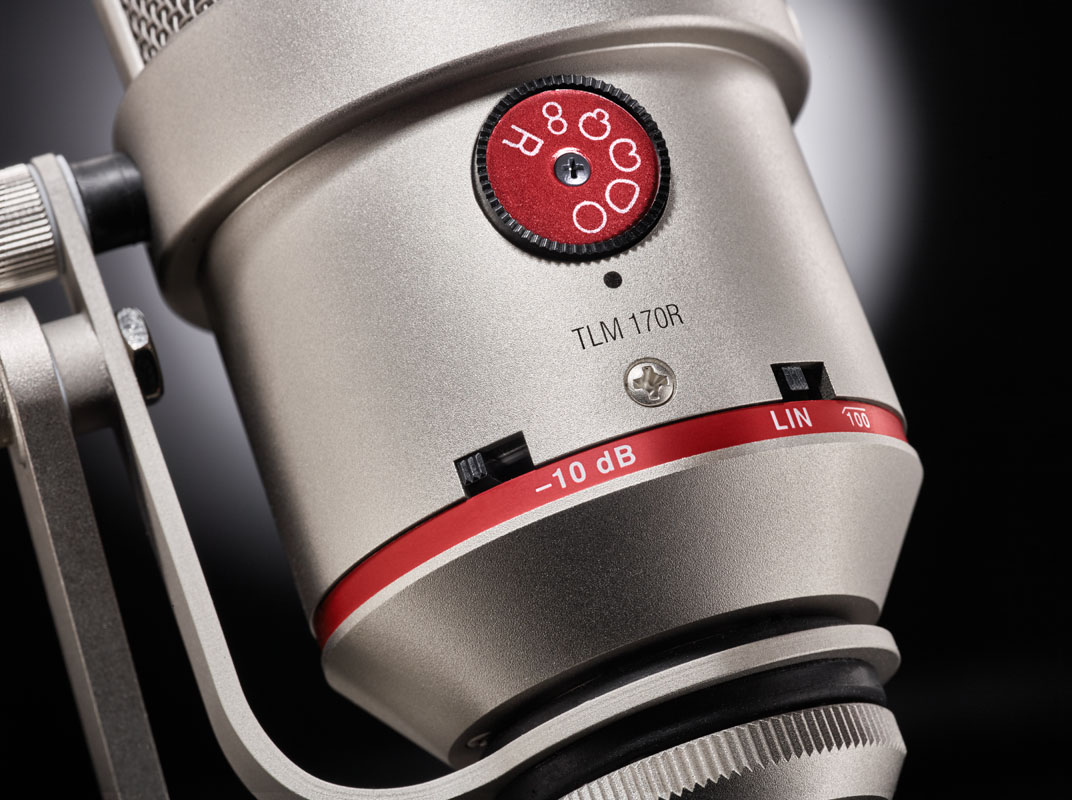

Five directional characteristics are selectable by means of a rotary switch. In the sixth position, marked "R", the directional patterns can be controlled remotely with the N 248 power supply. There is no special cable necessary for this purpose.
The microphone has at its rear a 10 dB attenuation switch for extremely high sound pressure levels, and a high-pass filter to suppress structure born noise.
Five directional characteristics are selectable by means of a rotary switch. In the sixth position, marked "R", the directional patterns can be controlled remotely with the N 248 power supply. There is no special cable necessary for this purpose.
The microphone has at its rear a 10 dB attenuation switch for extremely high sound pressure levels, and a high-pass filter to suppress structure born noise.
Lire la suite
Technical sheet
- Hand Microphone No

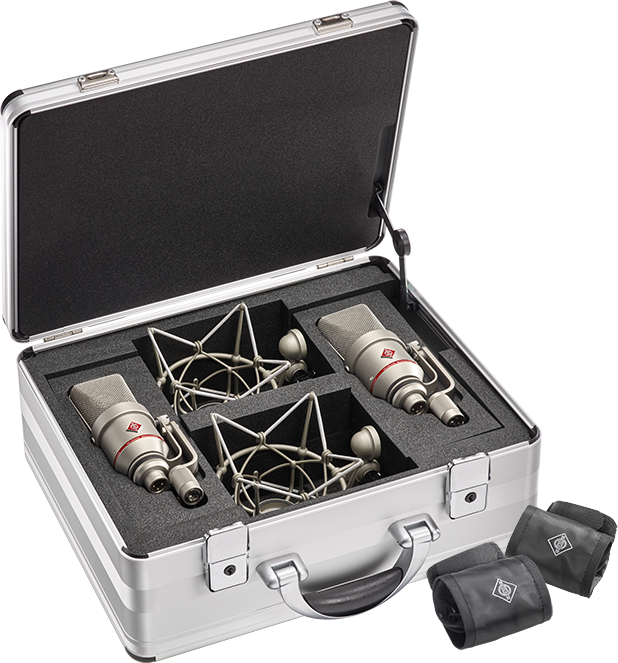

- TLM 170 R stereo set
- 2 x Microphone TLM 170 R (mt)
- 2 x Elastic suspension EA 170 (mt)
- 2 x Dust cover
- Aluminium case
- Specs
- Acoustical operating principle: Pressure gradient transducer
- Directional pattern: Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
- Frequency range: 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 8 mV/Pa
- Rated impedance: 50 ohms
- Rated load impedance: 1 kohms
- Equivalent noise level, CCIR1): 26 dB
- Equivalent noise level, A-weighted1): 14 dB-A
- Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 68 dB
- Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 80 dB
- Maximum SPL for THD 0.5%2): 144 dB
- Maximum SPL for THD 0.5% with preattenuation2): 154 dB
- Maximum output voltage: 10 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3 mA
- Matching connector: XLR3F
- Weight: 625 g
- Diameter: 60 mm
- Length: 152 mm
