Wired microphones set

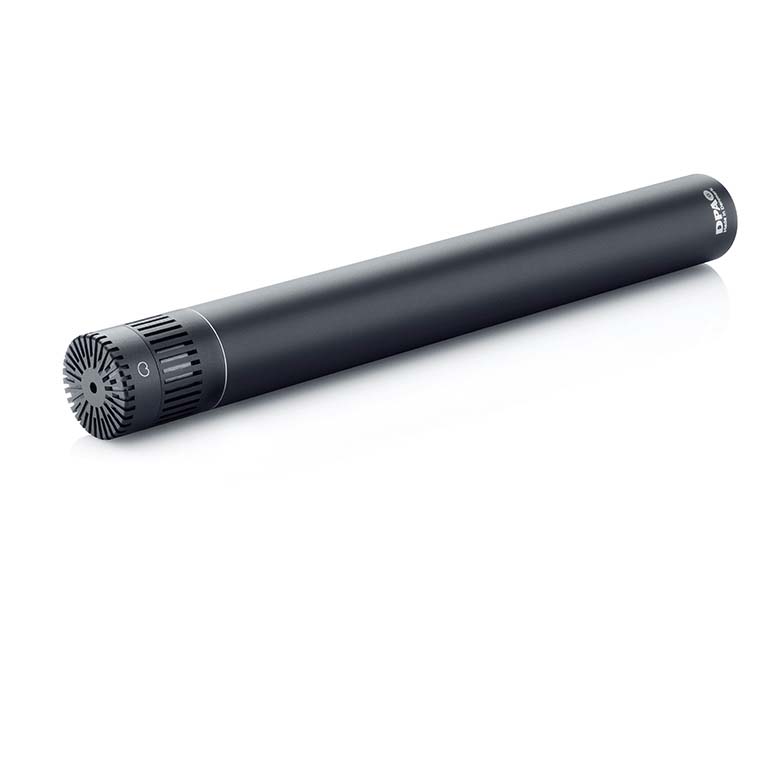

The 4011A Cardioid Microphone is part of the flexible d:dicate™ Microphone Series. The MMC4011 Cardioid Microphone Capsule coupled with the MMP-A Preamplifier is the worldwide reference standard for extreme sound level handling. For another option, match the MMC4011 Cardioid Microphone Capsule with the MMP-C Compact Preamplifier for compact and precise close-miking of the majority of instruments.
Lire la suite
Technical sheet
- Hand Microphone No
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 20 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz:10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
- Total harmonic distortion (THD): < 1% up to 139 dB SPL peak
- -Dynamic range: Typ. 121 dB
- Max. SPL, peak before clipping: 159 dB
- Switchable attenuator, filters etc.: 0 dB / -20 dB
- Output impedance: 200 Ω
- Minimum load impedance: 2 kΩ
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common mode rejection ratio (CMRR)> 60 dB
- Power supply (for full performance): 48 V Phantom power (± 4 V)
- Current consumption: 2.8 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
