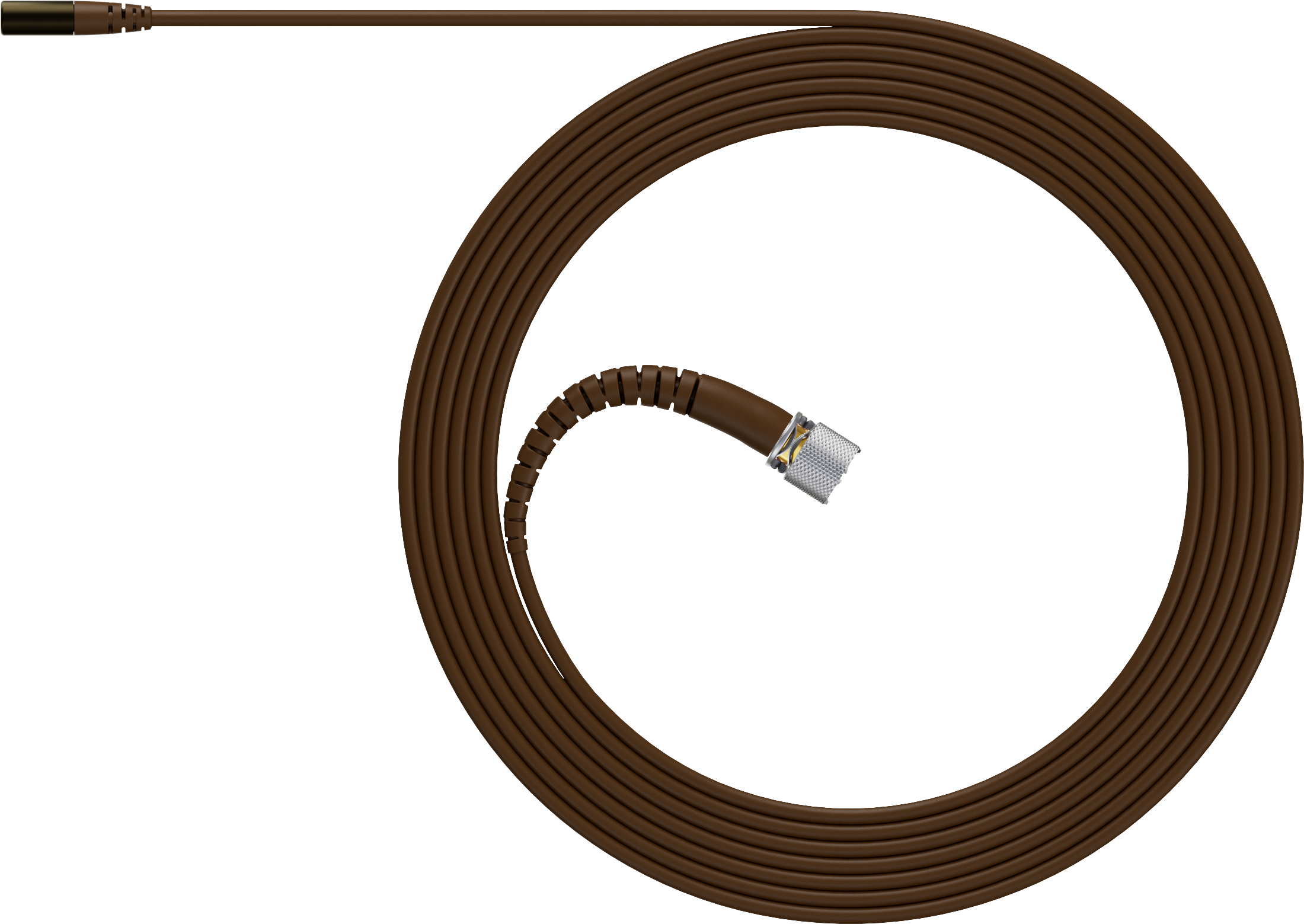

Lavalier microphone
micro omni Submini CORE 6060, Loud SPL, Brown, MicroLock
Lire la suite
Technical sheet
- Microphone connector Other connectors
- Type of microphone Dynamic
Directional Pattern - Omnidirectional
Principle of Operation - Pressure
Cartridge Type - Pre-polarized condenser
Frequency Range - 20 Hz - 20 kHz
Frequency Range ±2 dB - 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz - 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent Noise Level, A-weighted - Typ. 24 dB(A) re. 20 ?Pa (max. 26 dB(A))
S/N Ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. - 68 dB(A)
Total Harmonic Distortion (THD) - < 1% up to 128 dB SPL peak
Dynamic Range Typ. - 102 dB
Max. SPL, peak before clipping - 144 dB
Output Impedance - From microLock: 30 - 40 Ω
- From DAD6001-BC: 100 Ω (optional for 48V phantom)
Cable Drive Capability - Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power Supply (for full performance) - Min. 5 V to max. 10 V through DPA adapter for wireless systems
- With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
Available Connectors - MicroDot
- TA4F Mini-XLR
- 3-pin LEMO
- Mini-Jack
Color - Black or beige
Weight - 8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone Head Size (H x W x D) - 3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule Diameter - 3 mm (0.12 in)
Cable Length - 1.8 m (5.9 ft)
Polarity - Positively increasing sound pressure produces positive going voltage on microLock pin
Temperature Range - -40°C to 45°C (-40°F to 113°F)
Relative Humidity (RH) - Up to 90%
