Multieffect for electric guitar
Earthquaker Devices has decided to further explore the weird and wonderful world of modular synthesizers, this time creating a unique and complex oscillator module with seven audio outputs, a host of exciting features and a unique wave transform circuit.

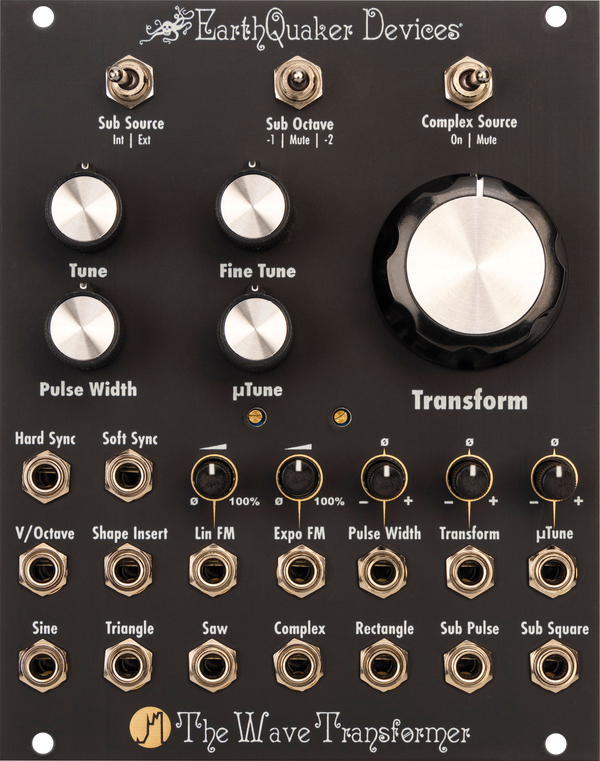

The Wave Transformer is a unique and complex oscillator with 7 audio outputs. Its waveform shaping method differs from other complex oscillators in that it's not based on a classic folding common in West Coast synthesis, or a filtration common in East Coast synthesis. The Transform control lets you vary the Complex output from a simple waveform to a complex, tortuous mass of audio mutations.
The Wave Transformer is a unique and complex oscillator with 7 audio outputs. Its waveform shaping method differs from other complex oscillators in that it's not based on a classic folding common in West Coast synthesis, or a filtration common in East Coast synthesis. The Transform control lets you vary the Complex output from a simple waveform to a complex, tortuous mass of audio mutations.
Lire la suite
Technical sheet
- for electric guitar Yes
- Multi-effects Yes
- 100% analog circuitry
- Over 8 octaves of pitch tracking from A-1 (13.75 Hz), covering more than the full range of a traditional piano keyboard
- 7 simultaneous waveform outputs.
- Dedicated attenuators/inverters for each CV input
- Exponential and linear frequency modulation inputs.
- Hard and soft synch inputs
- Pulse width control between 0% and 100%.
- Fixed -1 octave suboctave pulse output, with 25% duty cycle
- Sub Square output switchable between 1 and 2 octaves downwards
- The Mute switch on the complex source allows simultaneous control of volume and timbre up to audio frequencies via the Transform CV input.
- Lifetime warranty
- Dimensions: 20HP / Maximum depth: 1" / 25.4 mm
- Current consumption: 90 mA max from +12v rail, 90 mA max from -12v rail
- Standard Eurorack 10-pin power connector with negative pin indication
- Reverse voltage protection
- Overcurrent protection on all outputs
- Skiff-friendly - less than 1" (25.4 mm) behind the panel with power connector installed.
