Overdrive, distortion & fuzz effect pedal
Free The Tone's Overdriveland consists of two main sections. The first is the Normal Channel circuit, through which the signal passes when the Normal Channel is selected. This circuit includes the Tone circuit (including the EQ ON/GLASS switch) and Gain characteristics adjustment with the ROCK/JAZZ switch.
By adjusting the harmonic components of the input guitar signal, Overdriveland offers a unique sound that balances well across all strings, from the 1st to the 6th (or 7th) string. It becomes an instrument that can expand the possibilities of expression.
The pedal is equipped with a power supply switching feature. When you select DC9V, power is supplied to the audio circuit from the power supply connected to the DC jack. When you select "Int.PS (STANDARD)" or "VARI (CUSTOM SHOP)," the power supply is connected to the internal boost circuit, and power is supplied to Overdriveland's audio circuit through this boost circuit. The specifications differ between the STANDARD version and the CUSTOM version.
By adjusting the harmonic components of the input guitar signal, Overdriveland offers a unique sound that balances well across all strings, from the 1st to the 6th (or 7th) string. It becomes an instrument that can expand the possibilities of expression.
The pedal is equipped with a power supply switching feature. When you select DC9V, power is supplied to the audio circuit from the power supply connected to the DC jack. When you select "Int.PS (STANDARD)" or "VARI (CUSTOM SHOP)," the power supply is connected to the internal boost circuit, and power is supplied to Overdriveland's audio circuit through this boost circuit. The specifications differ between the STANDARD version and the CUSTOM version.
Lire la suite
Technical sheet
- Controls : NOR LEVEL, DRV LEVEL, TONE, GAIN, PUSH, HI CUT, DRIVE, EQ ON/GLASS switch, ROCK/JAZZ switch, DC9V/Int.PS switching switch

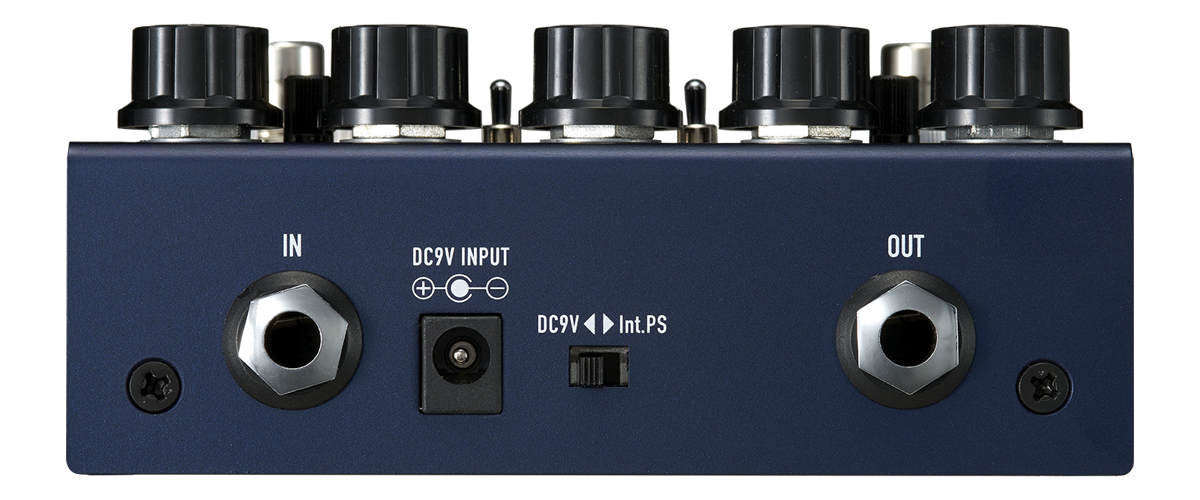

- Connectors : 1/4-inch standard phone jacks (input, output), DC9V input jack (AC adapter jack)
- Equipped with a ROCK/JAZZ switch for toggling gain and frequency characteristics (Normal Channel).
- Features a "GLASS" switch to bypass the TONE circuit and achieve a glass-like sound (Normal Channel).
- Independent output level adjustments for Normal Channel and Drive Channel.
- Power Supply : DC9V battery (9V type 006P), AC adapter
- Current Consumption : DC9V 95mA? *When turning on the power, a significant current flows, so please use a power supply that can deliver a current of 200mA or more.
- Size : 97(D) × 120(W) × 51(H)mm (including protrusions like footswitches and jacks)
- Weight : Approximately 350g (excluding battery)
