Active full-range speaker

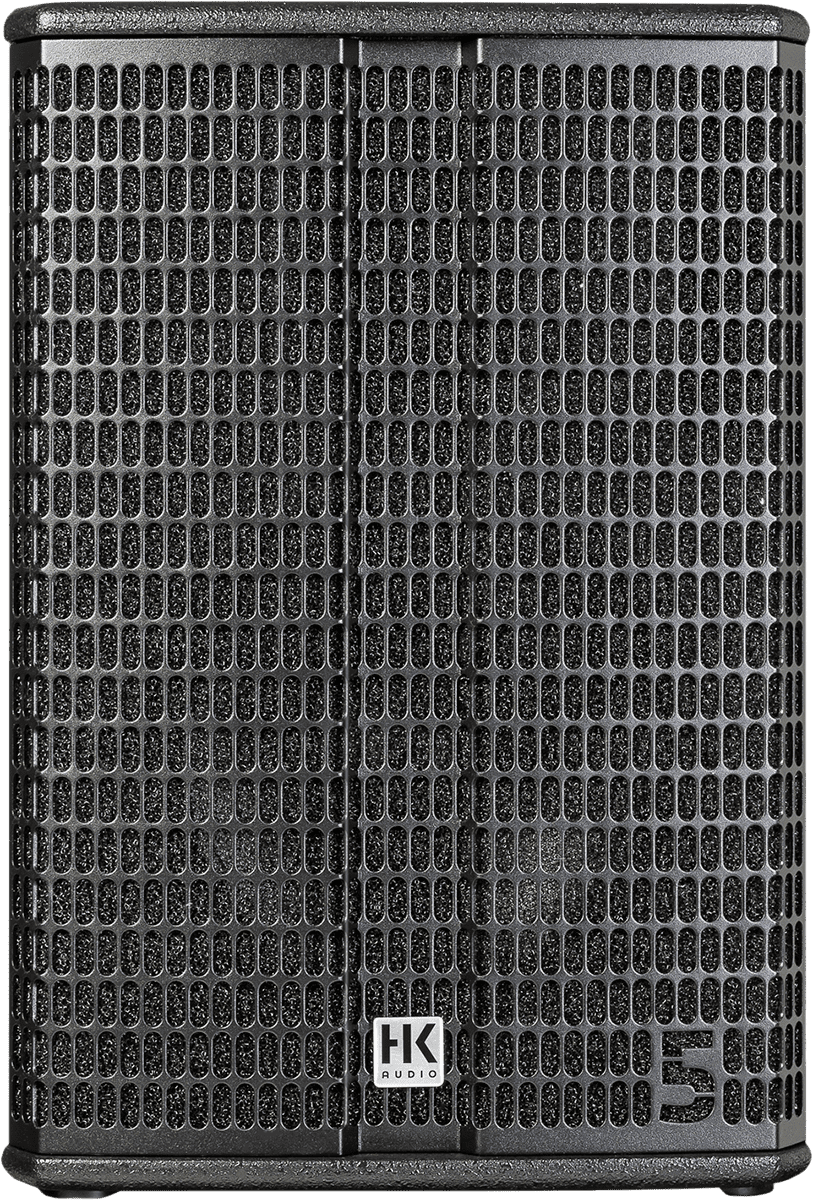

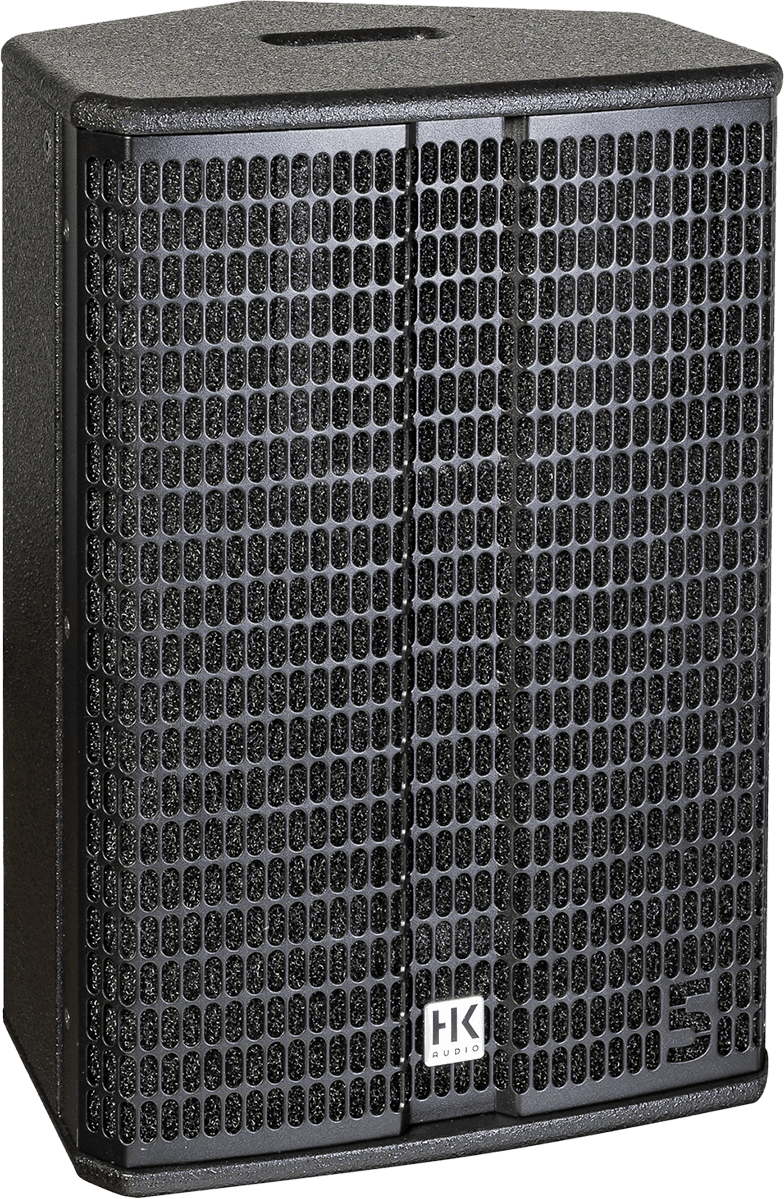

The HK audio L5 MKII-110 XA is an amplified PA speaker.
The LINEAR 5 MK II 110 XA is a compact, flexible multifunctional mid/ high unit with 10" woofer and tweeter with 1.4" voice coil. With its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80° x 60°, it covers an enormously wide range of system configurations. Its space-saving dimensions and narrow, horizontal dispersion allow low feedback, directional monitoring, even on small stages – even without turning the horn.
In addition to crystal-clear, assertive sound and impressive range, the LINEAR 5 MK II 110 XA features a remote-controllable high-performance DSP with integrated, directly selectable presets and DSP Out, which can route the processed signal from the speaker to a non-networked speaker, as well as a wide range of accessories.
The LINEAR 5 MK II 110 XA is a compact, flexible multifunctional mid/ high unit with 10" woofer and tweeter with 1.4" voice coil. With its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80° x 60°, it covers an enormously wide range of system configurations. Its space-saving dimensions and narrow, horizontal dispersion allow low feedback, directional monitoring, even on small stages – even without turning the horn.
In addition to crystal-clear, assertive sound and impressive range, the LINEAR 5 MK II 110 XA features a remote-controllable high-performance DSP with integrated, directly selectable presets and DSP Out, which can route the processed signal from the speaker to a non-networked speaker, as well as a wide range of accessories.
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker Stage & FOH monitor
- Max. SPL @ 10 % THD 127 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL Peak @ 10 % THD 135 dB half space*
- Frequency response +/-3 dB 74 Hz – 12 kHz
- Frequency response -10 dB 68 Hz – 19 kHz
- Power amp output (RMS/Peak) 600 / 1,200 W
- Amplifier type Class D – bi-amped
- Woofer -
- Low/mid speaker 1 x 10", 2" voice coil
- HF driver 1", 1.4" voice coil
- Horn characteristics 80° x 60° CD horn, rotatable
- Active x-over frequency 2.1 kHz FIR X-over with 72 dB/oct.
- Maximum input level 20 dBu

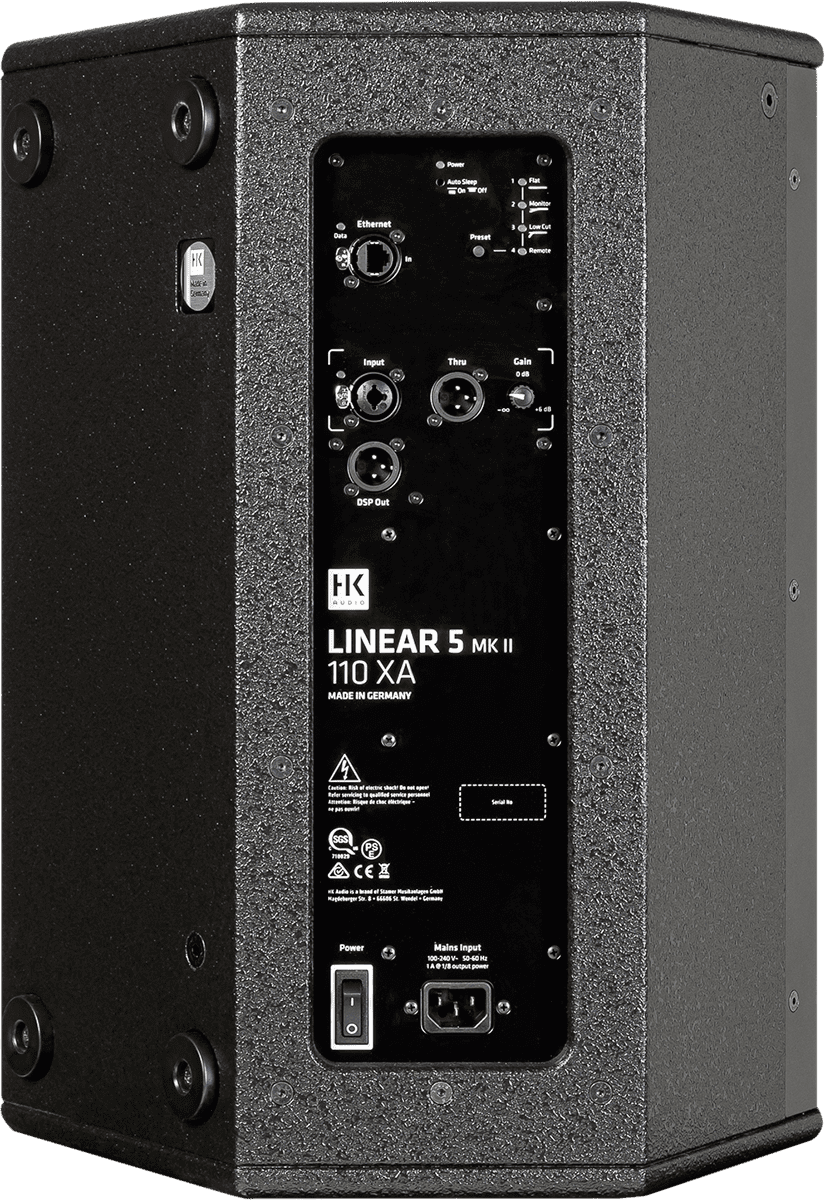

- Analogue inputs 1 x XLR combo balanced
- Analogue Thru 1 x XLR balanced
- DSP Out 1 x XLR balanced
- Network port EtherCON RJ45, 1 x In
- Filter presets Flat, Monitor, Low Cut, Remote
- Remote software DSP CONTROL (Windows, macOS)
- DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter,
- Mute
- Sample rate 48 kHz
- System latency Less than 2 ms
- Mains connection 1x IEC connector with V-Lock securing system, 100-240 V
- Power consumption 1 A / 100–240 V nominal according to EN 62368-1
- Set-up angle (Monitor mode) 31°
- Pole mount DuoTilt 3°/7°
- Rigging points 3x M8 (AP-8)
- Carrying handles 1 x SingleGrip
- Housing Hybrid (birch multiplex/MDF)
- Surface Black acrylic enamel
- Front grille 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD) 36 x 52.5 x 30 cm
- 14-1/16 x 20-43/64 x 11-13/16"
- Weight 14.9 kg / 32.85 lbs
