Expander

The Kodamo Mask1EX MK2 is a polyphonic desktop digital synthesizer designed and assembled in France, based on proprietary Bitmask synthesis technology. Compact, lightweight, and extremely powerful, it is ideal for both sound designers and live musicians looking for an expressive and innovative instrument.

At the heart of the instrument are two Bitmask digital oscillators per voice, capable of generating up to 512 different waveforms. This unique architecture allows for the creation of a very wide sonic palette, ranging from raw digital textures to more organic and evolving timbres.

The Mask1EX MK2 offers 14-voice polyphony and a multitimbral structure, allowing for the simultaneous playing of multiple layers or parts. It also incorporates an advanced dynamic articulation system (slur, poly-mono, hybrid modes, etc.), which modifies the sonic behavior according to playing style (legato, staccato, intervals), providing an expressiveness rarely found on this type of synthesizer.

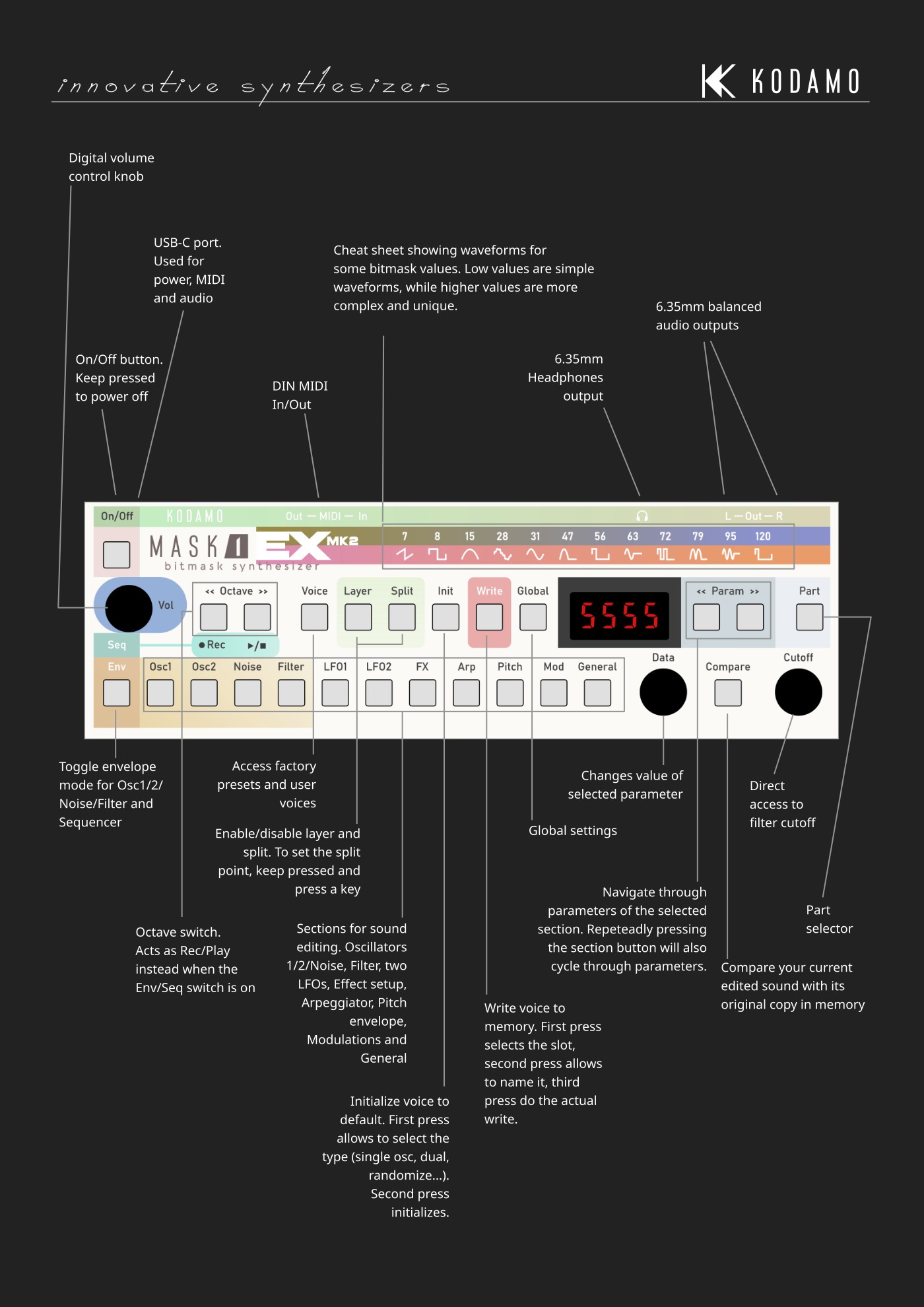

Designed for modern sound creation, it features a comprehensive modulation matrix, high-quality built-in effects, and a powerful arpeggiator. Its minimalist interface, based on illuminated buttons and encoders, allows for an intuitive and immediate approach to sound design.

Ultra-portable, it operates via USB-C with very low power consumption (1.5W), enabling use with a power bank, computer, or even a smartphone. Its near-instant startup time (0.5 seconds) makes it an instrument that's always ready to play.

Unique and highly creative Bitmask synthesis technology
Wide sonic palette thanks to 512 waveforms
14-voice polyphony with multitimbrality
Dynamic articulation system for expressive playing
Built-in effects and a comprehensive modulation matrix
Ultra-compact, lightweight, and USB-powered
Instant startup and fast workflow
Made in France with a robust design
Lire la suite

Technical sheet

  • Type of expander Analog
  • Polyphony
    • 14 voices
  • Oscillators
    • 2 digital Bitmask oscillators
    • 512 waveforms (Masks)
    • 9-bit resolution with 8x oversampling per voice
  • Noise generator
    • With adjustable Sample & Hold rate
  • Filters
    • 2 multimode filters with resonance
    • Low-pass, band-pass, high-pass, notch
    • Configuration: 2 x 12 dB/oct or 1 x 24 dB/oct
  • Modulation
    • 2 LFOs with 7 waveforms
    • 16 selectable modulation targets
  • Envelopes
    • 4 ADSR envelopes (oscillators, noise, filter)
    • Loop function
  • Effects
    • 1 insert effect per part (up to 4)
    • 1 Master effect
    • Reverb, delay, distortion, bitcrush, ring modulator, chorus, phaser, tremolo, comb filter
  • Playing modes
    • 9 modes: polyphonic, monophonic, paraphonic, portamento, retrig
    • Arpeggiator with 26 patterns
    • Layer/Split mode with 2 x 2 parts
  • Presets
    • 377 factory presets
    • 200 user presets
  • Controls
    • 25 illuminated buttons
    • 3 encoders
  • Outputs
    • Stereo line output: 2 x 6.3 mm jack
    • Headphone output: 6.3 mm jack
  • Connectivity
    • MIDI In/Out (5-pin DIN)
    • USB-C (USB-MIDI and power supply)
  • Dimensions
    • 296 x 101 x 56 mm
  • Weight
    • 632 g
  • Included accessories
    • Power supply
    • USB-C cable
