Active full-range speaker

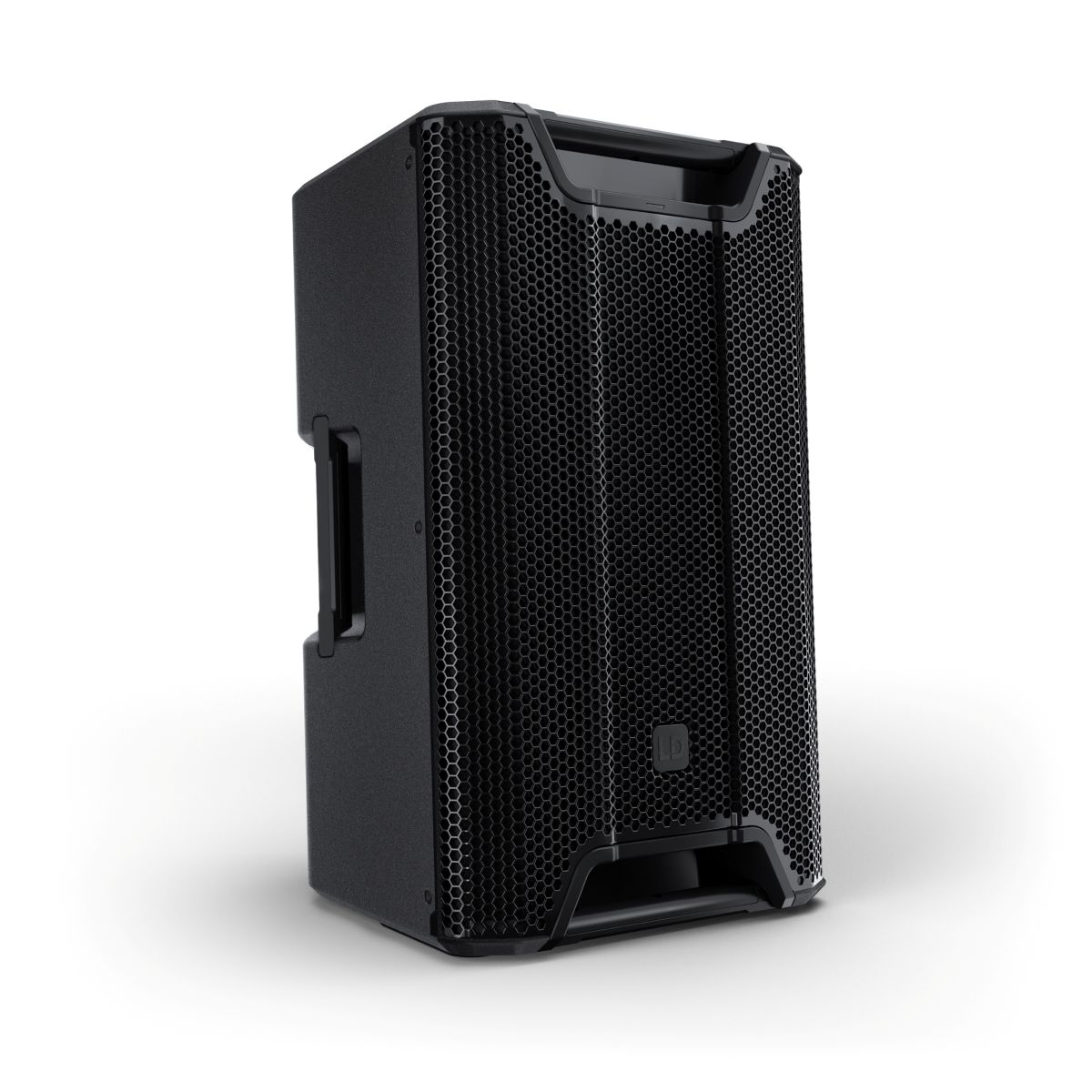

TheICOA PRO 12 A combines the sonic precision of a true coaxial system with the flexibility of a compact 12" loudspeaker. Its professional power, extended bandwidth and robust design make it ideal for a wide range of applications, from live concerts to fixed installations.
ICOA PRO 12 A highlights
- High-end coaxial system for ultra-precise point source sound.
- Custom 12" woofer and titanium tweeter for natural, detailed reproduction.
- BEM-optimized pivoting horn for controlled, effective dispersion, even in difficult environments.
- Powerful Class D amplification: 1000 W RMS, 2000 W peak, up to 133 dB SPL.
- Advanced SysCore® DSP with FIR/IIR filters, intelligent limiter and four user presets.
- Bluetooth 5.1 streaming, TWS, control via ICOA PRO app and intuitive color display.
- Robust construction (ABS/steel), four ergonomic handles, flexible horizontal/vertical installation.
Key features of the ICOA PRO 12 A
Professional coaxial sound
With its coaxial 12" driver and titanium diaphragm tweeter, the ICOA PRO 12 A delivers natural, coherent and precise sound, thanks to Common Motor Design technology for perfect control of phase and timing.

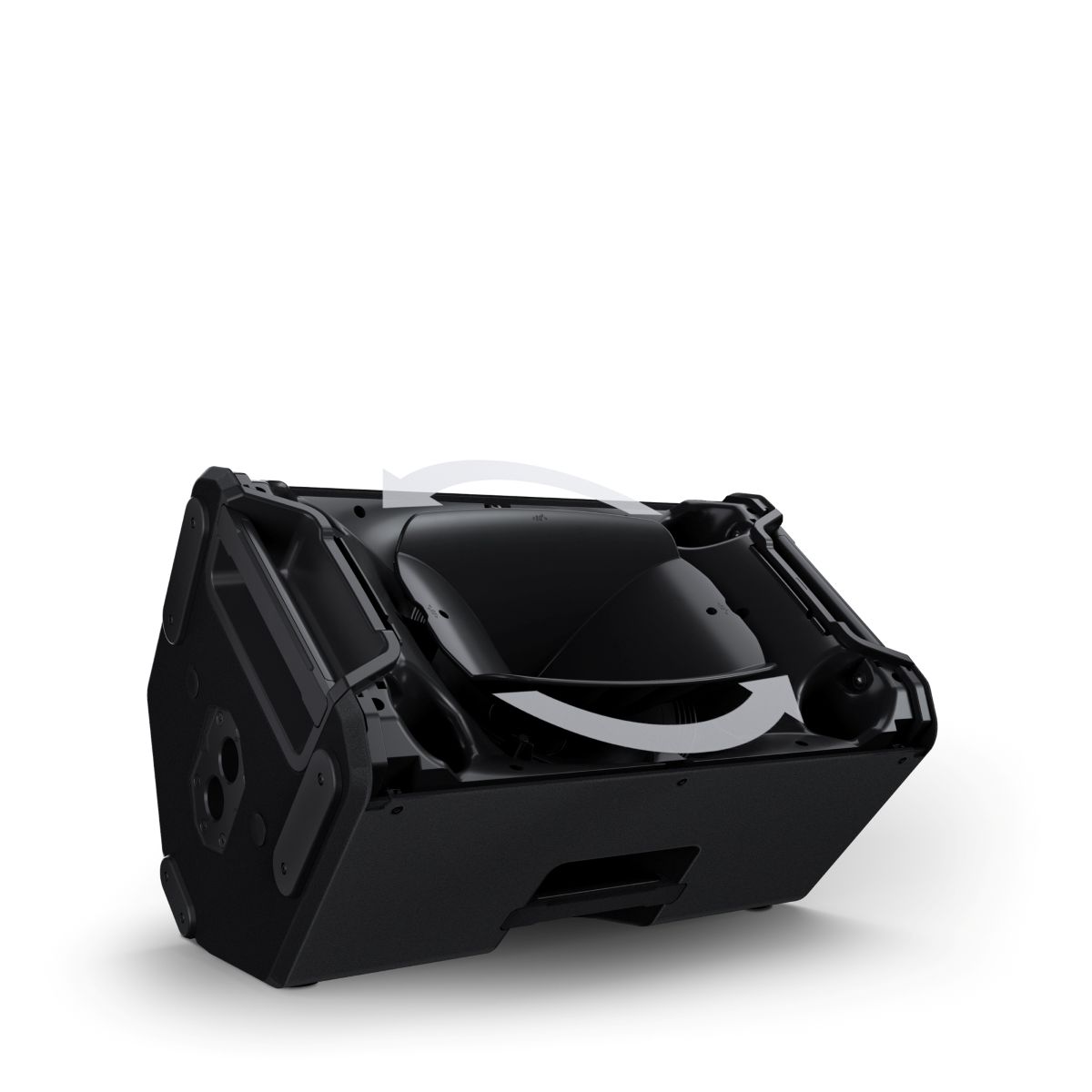

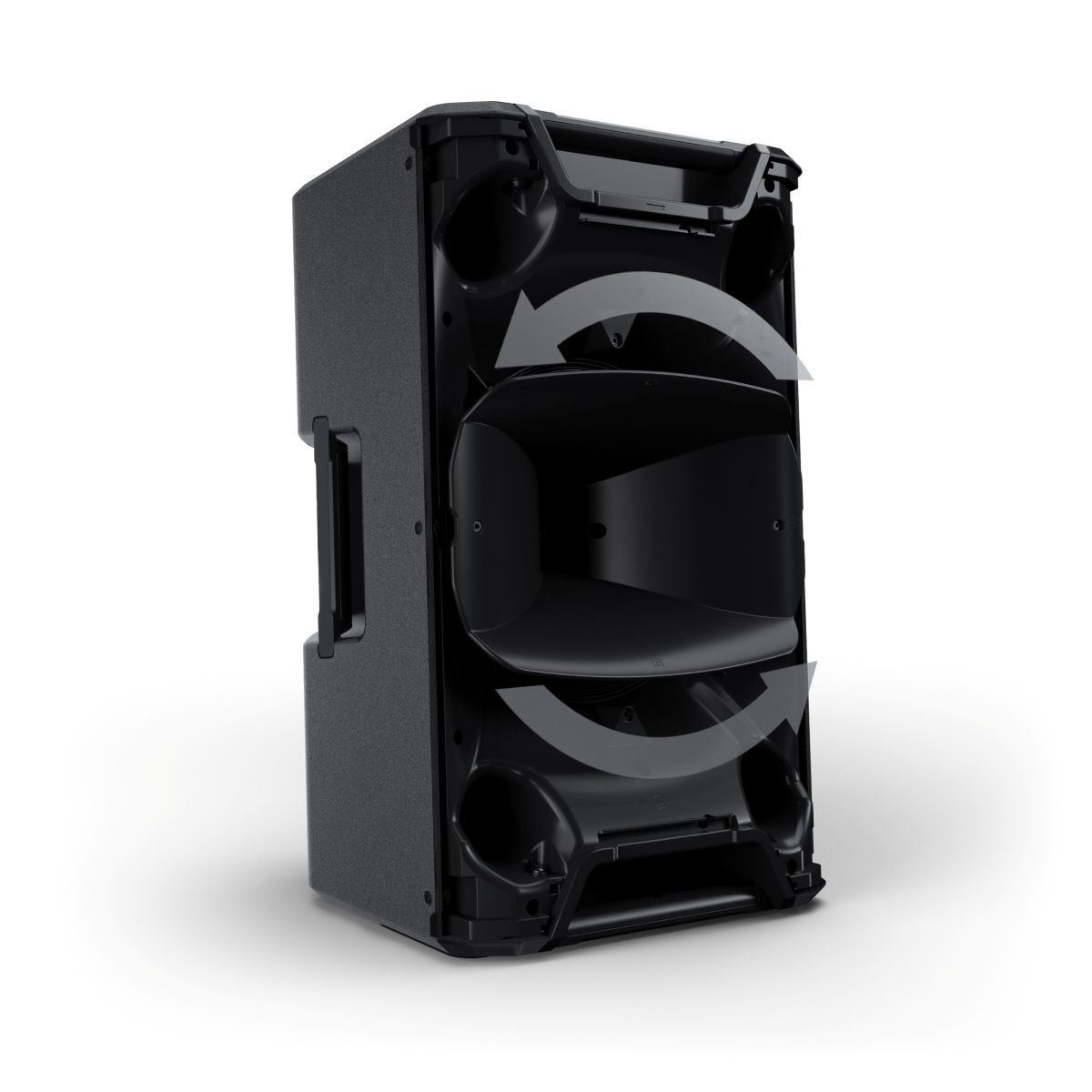

Pivoting horn & optimized dispersion
The pivoting BEM horn provides 90° x 50° dispersion, concentrating sound energy where it's needed and maintaining clarity all the way to the midrange. Perfect for both front-of-house and monitor installations.
Powerful bass-reflex
Optimized bass-reflex vents deliver solid bass down to 53 Hz for a full-range experience, even in demanding spaces.
Intelligent SysCore® DSP
Complete digital processing: FIR/IIR filters, multiband limiter, four presets (including low latency), 4-band parametric EQ and delay function for a secure, tailor-made sound.
Advanced connectivity

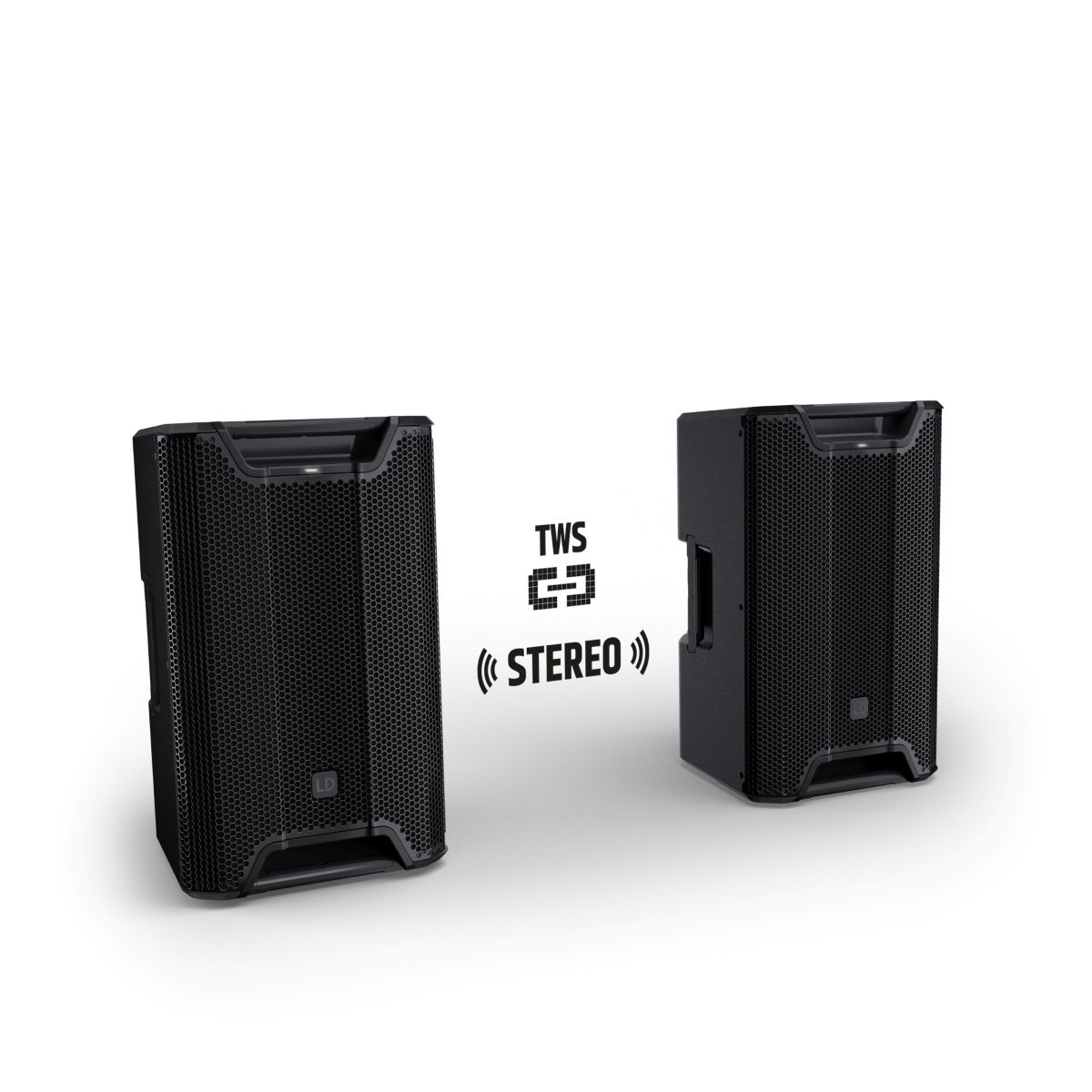

Two XLR Line/Mic combo inputs, XLR Mix output and Bluetooth 5.1 with TWS streaming. The ICOA PRO app enables full remote control and multi-speaker management in stereo with subwoofers.

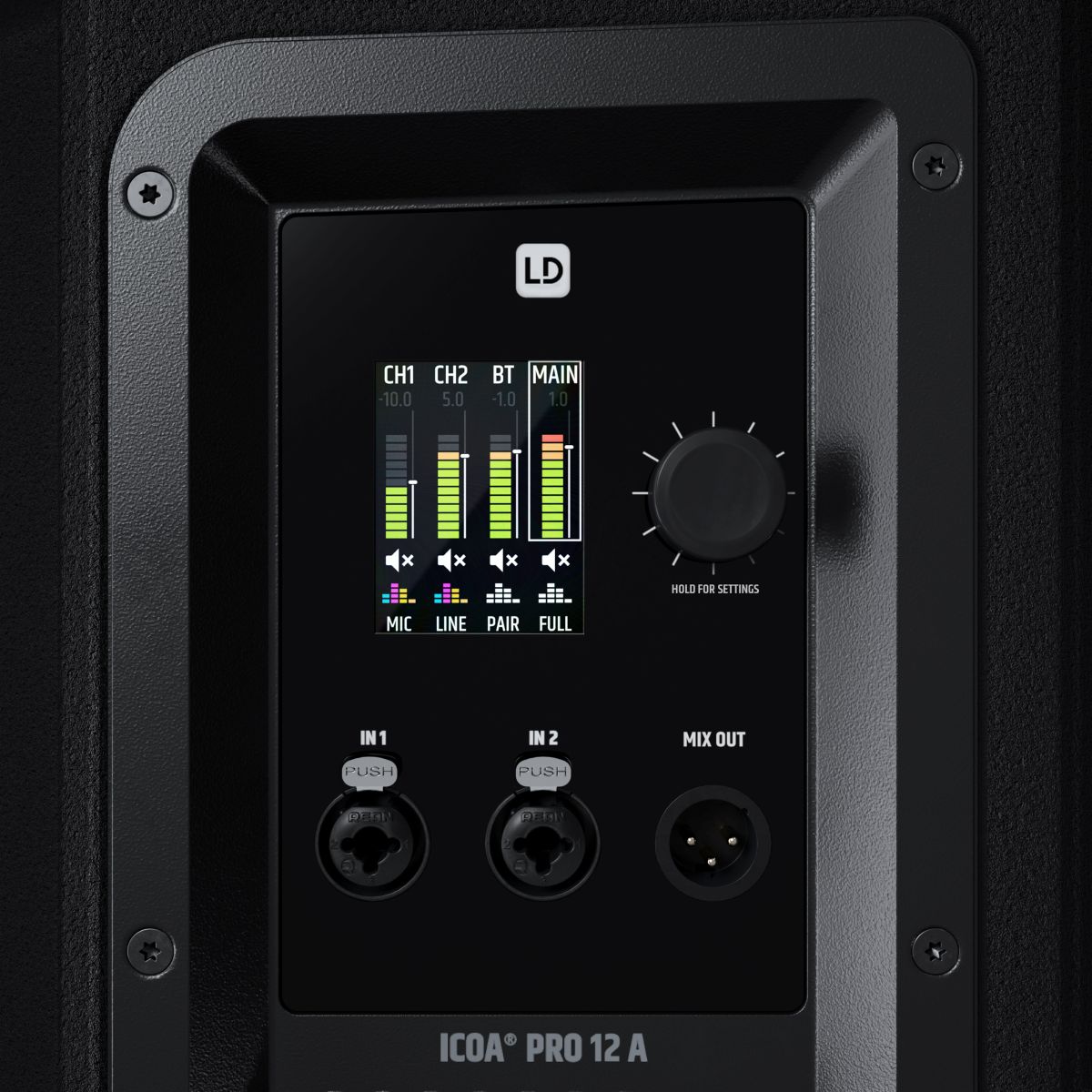

Modern user interface
Intuitive color display with simple menu and single encoder. Quick access to all settings, presets and audio processing parameters.
Robust & flexible design

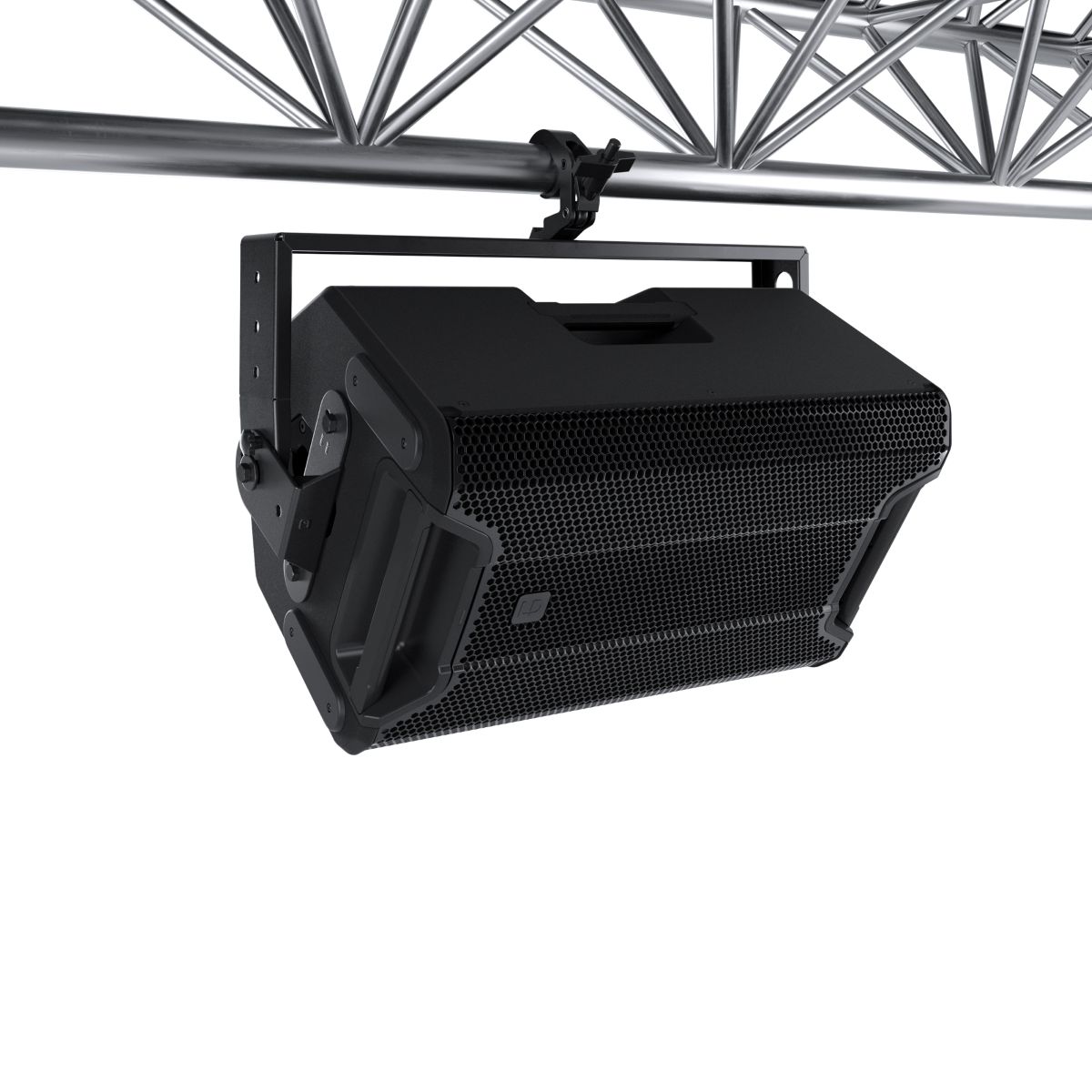

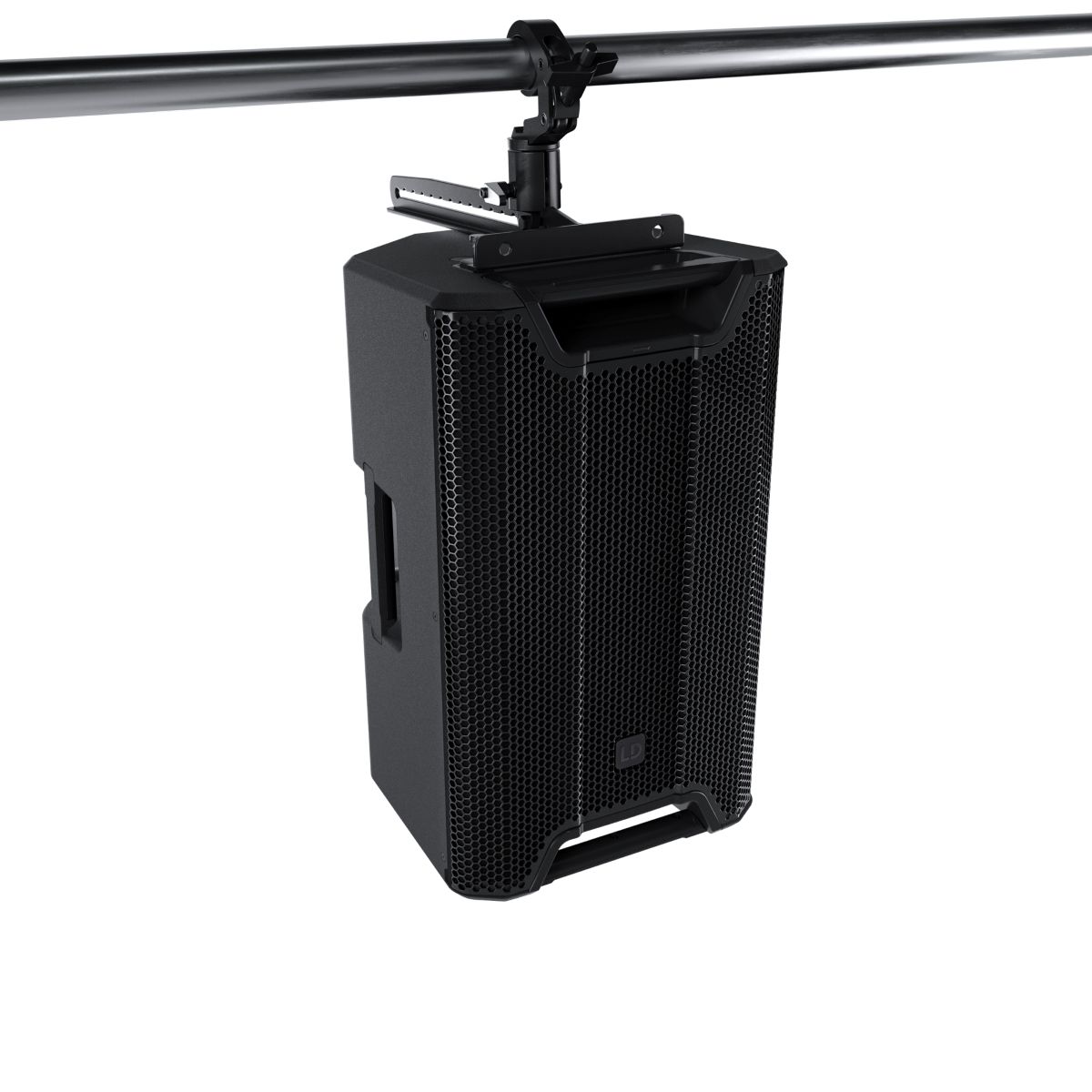

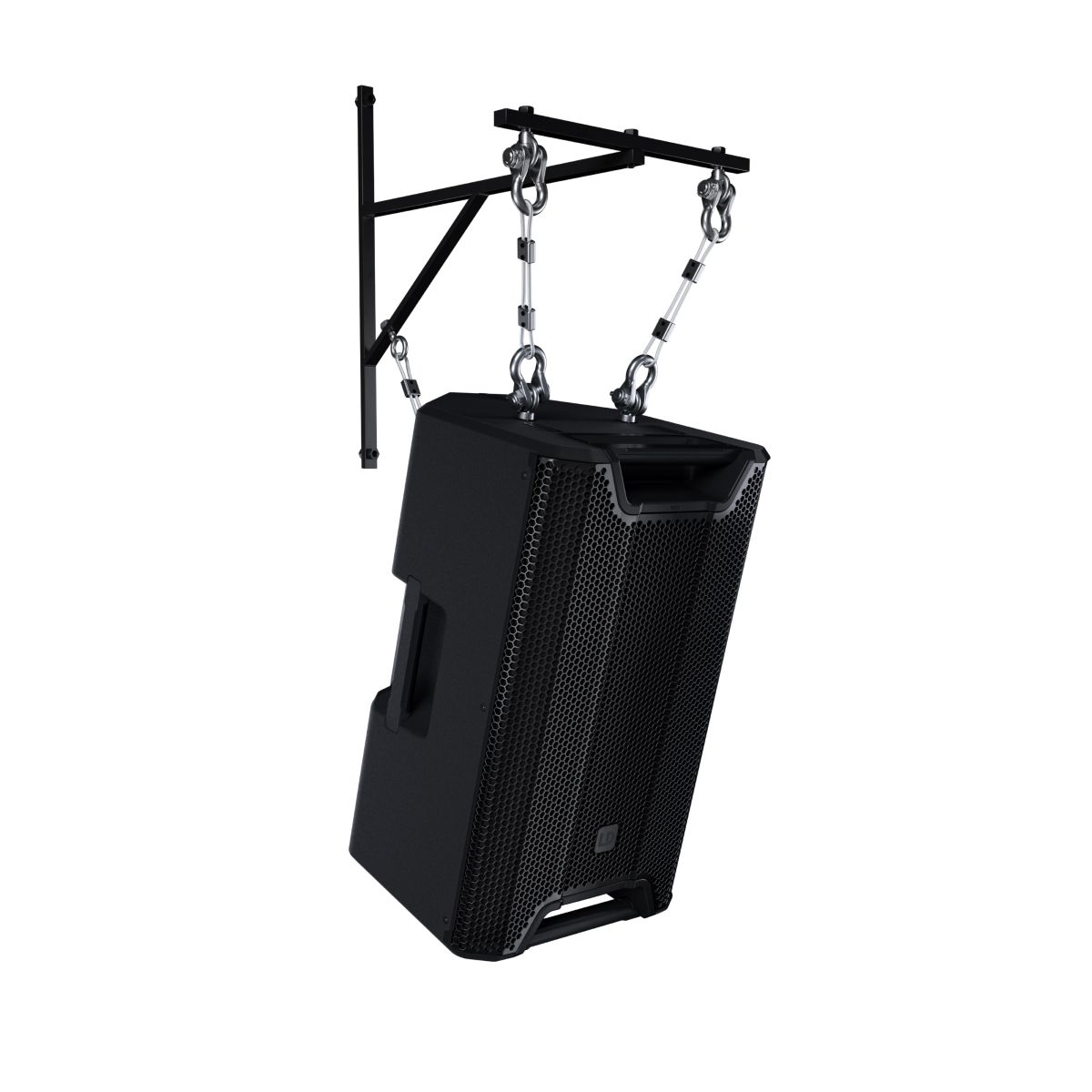

Steel-reinforced ABS housing, sturdy front grille, four ergonomic handles. Stand mounting (0°/5°), 50° monitor angle, pivoting horn, six M10 mounting points and EasyMount® mounting for all configurations.
Practical accessories
Waterproof, padded covers and storage compartment available to protect and transport the speaker in complete safety.
Expert advice
- Natural, detailed and powerful sound, even at high volume.
- Bluetooth connectivity and control via app particularly appreciated in professional use.
- Easy to transport and install, highly versatile for any stage.
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker Stage & FOH monitor
- Type
- Active loudspeaker
- Maximum output power
- 2?000?W
- RMS output power
- 1?000?W
- Amplifier class
- D
- Max. peak SPL (sine burst, fullspace/1?m, THD ??10?%)
- 127 dB
- Max. peak SPL (pink noise, fullspace/1?m, CF 4)
- 133 dB
- Max. average SPL (sine burst, BW, fullspace/1?m, THD ??10?%)
- 118 dB
- Frequency response (±10?dB)
- 50 Hz - 20 kHz
- Speaker type
- 2-way coaxial system (Common Motor Design)
- Crossover frequency
- 800 Hz
- Dispersion (H x V)
- 90° x 50°

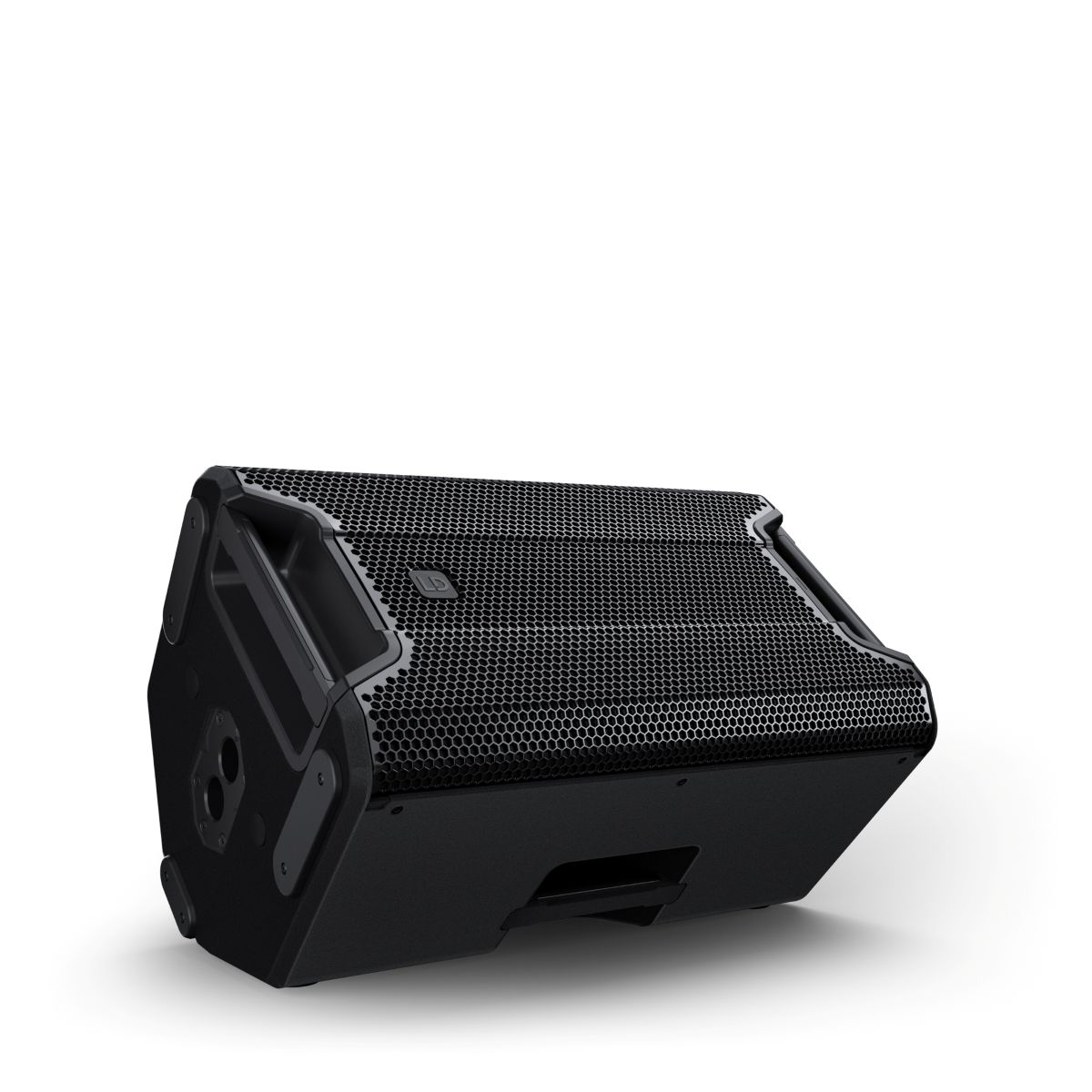

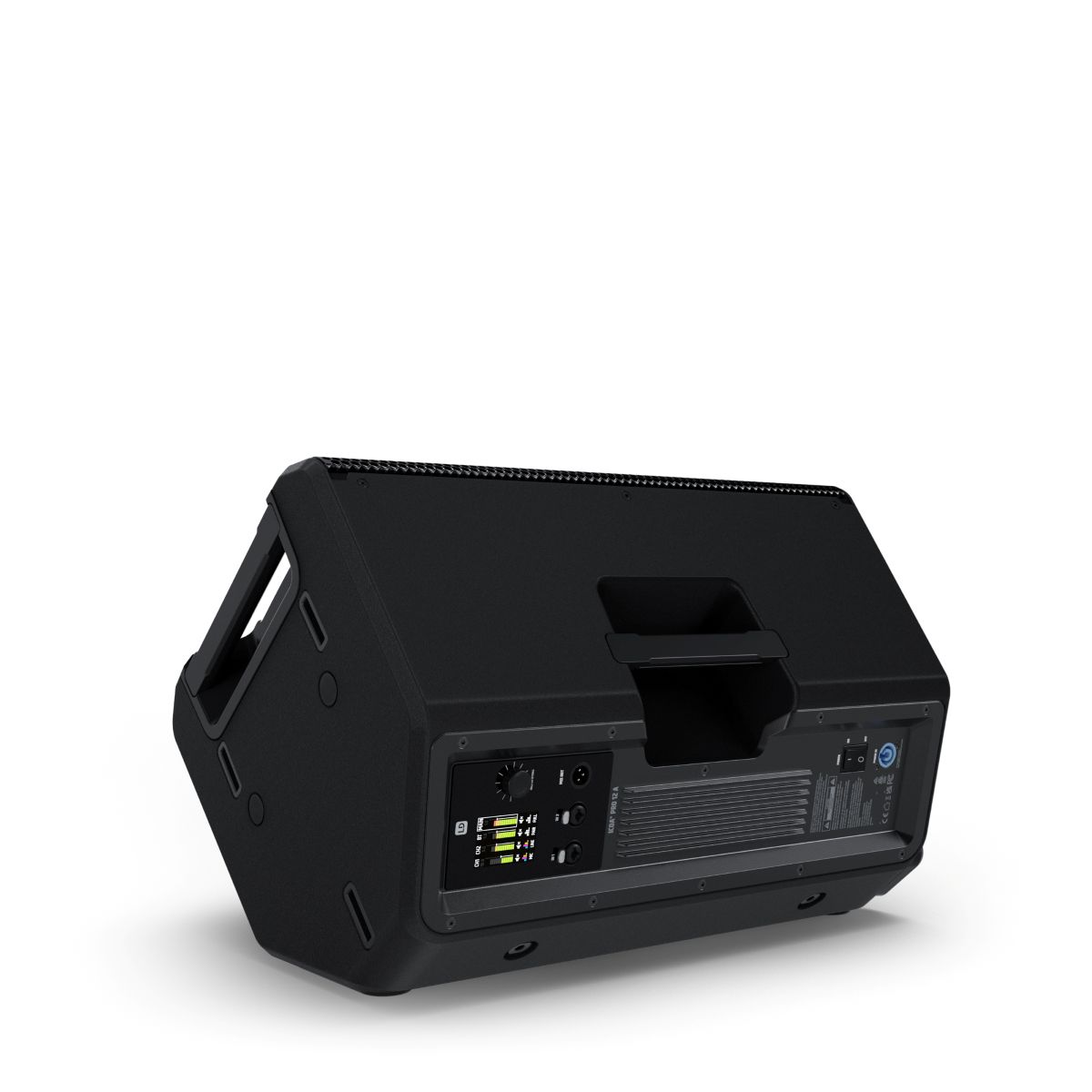

- Monitor mode angle
- 50°
- Protection
- Multiband limiter, short-circuit, overtemperature, DC protection
- Color
- Black
- Bluetooth
- Version 5.1
- Audio streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, application control
- Codecs supported: SBC, AAC
- Inputs
- Number of mic/line inputs: 2
- Connector type: XLR combo
- Outputs
- Number of line outputs: 1
- Connector type: Combo XLR
- Signal processing
- AD/DA converter: 24-bit, 48 kHz
- Signal-to-noise ratio (SNR): ??108?dB
- Bass
- Size: 12" (312.3?mm)
- Magnet: Ferrite
- Coil diameter: 3
- Treble
- Size: 3" (312?3?mm)
- Output diameter: 36.68?mm
- Magnet: Ferrite
- Coil diameter: 3
- Power supply
- Voltage: 100-240 V AC / 50-60 Hz
- Rated power: 650 W
- Type: Switching power supply (SMPS)
- Fuse: T6.3AH / 250?V
- Design & Construction
- Body type: Bass reflex
- Number of handles: 4
- Number of mounting points: 6

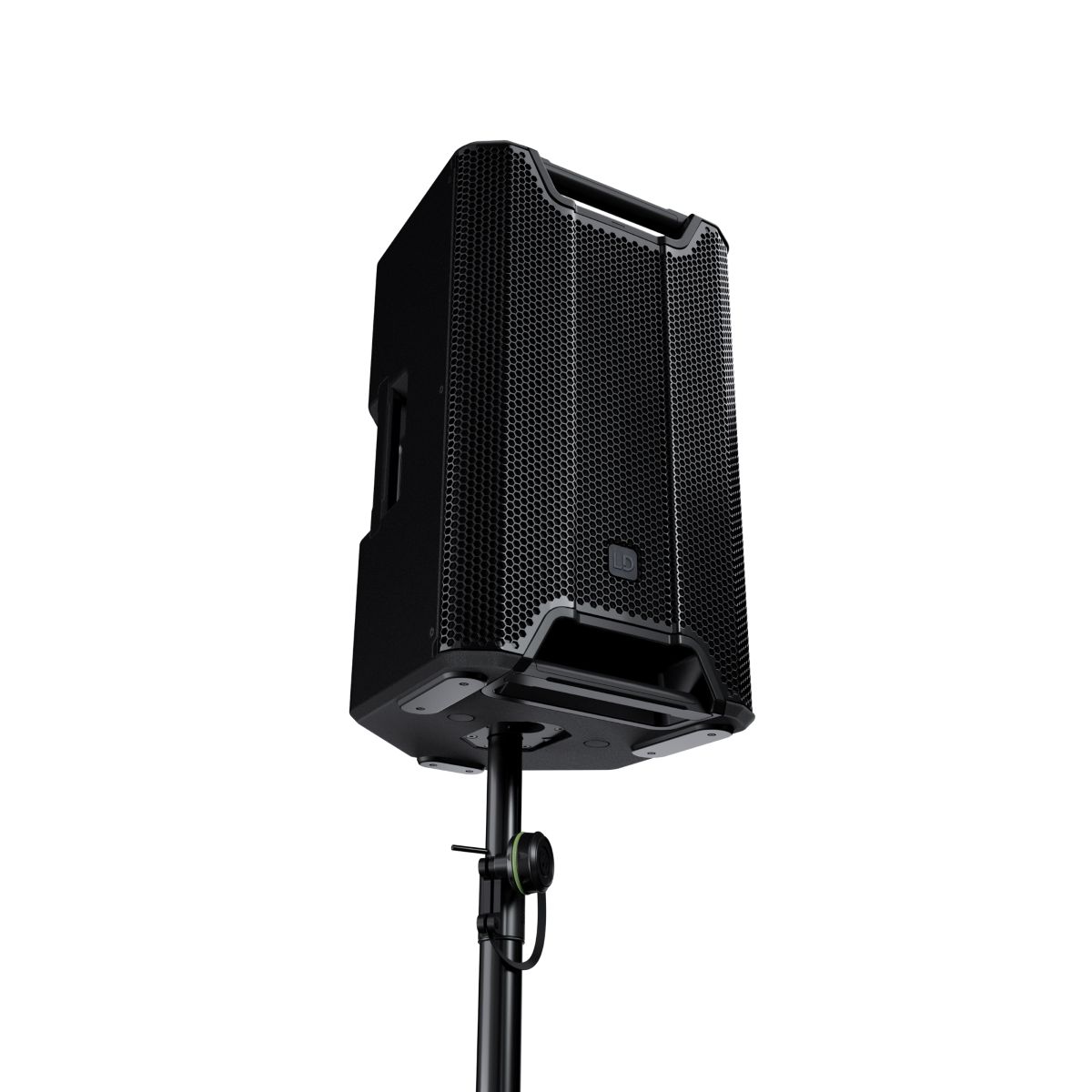

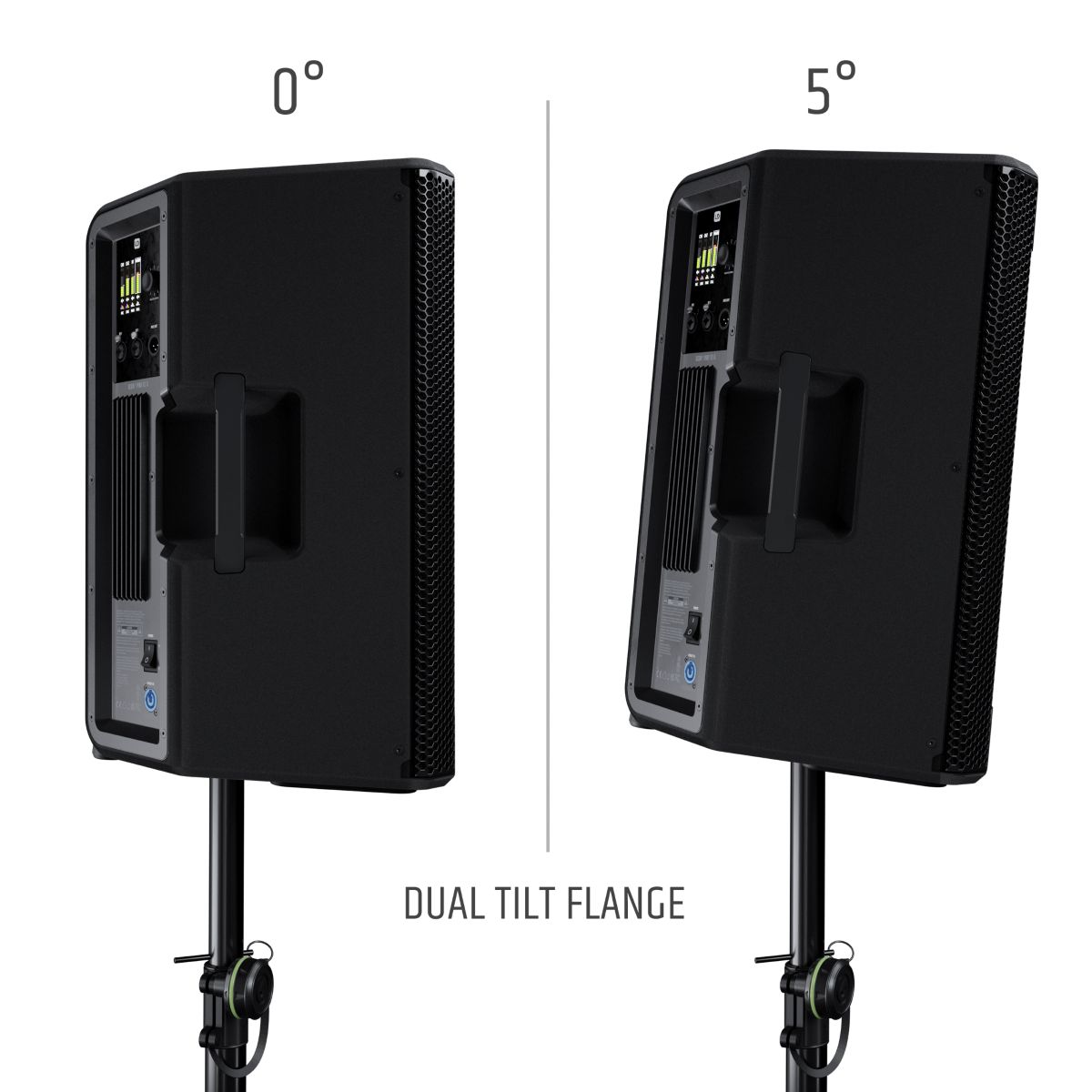

- Stand flange: 35 mm (0° / 5°)
- Chassis material: ABS
- Cooling
- Convection cooling
- Operating conditions
- Ambient temperature: 0-40°C
- Max. humidity (non-condensing): 80%.
- Dimensions & Weight
- Width: 376 mm
- Height: 627.8 mm
- Depth: 393.6 mm
- Weight: 23.1 kg
