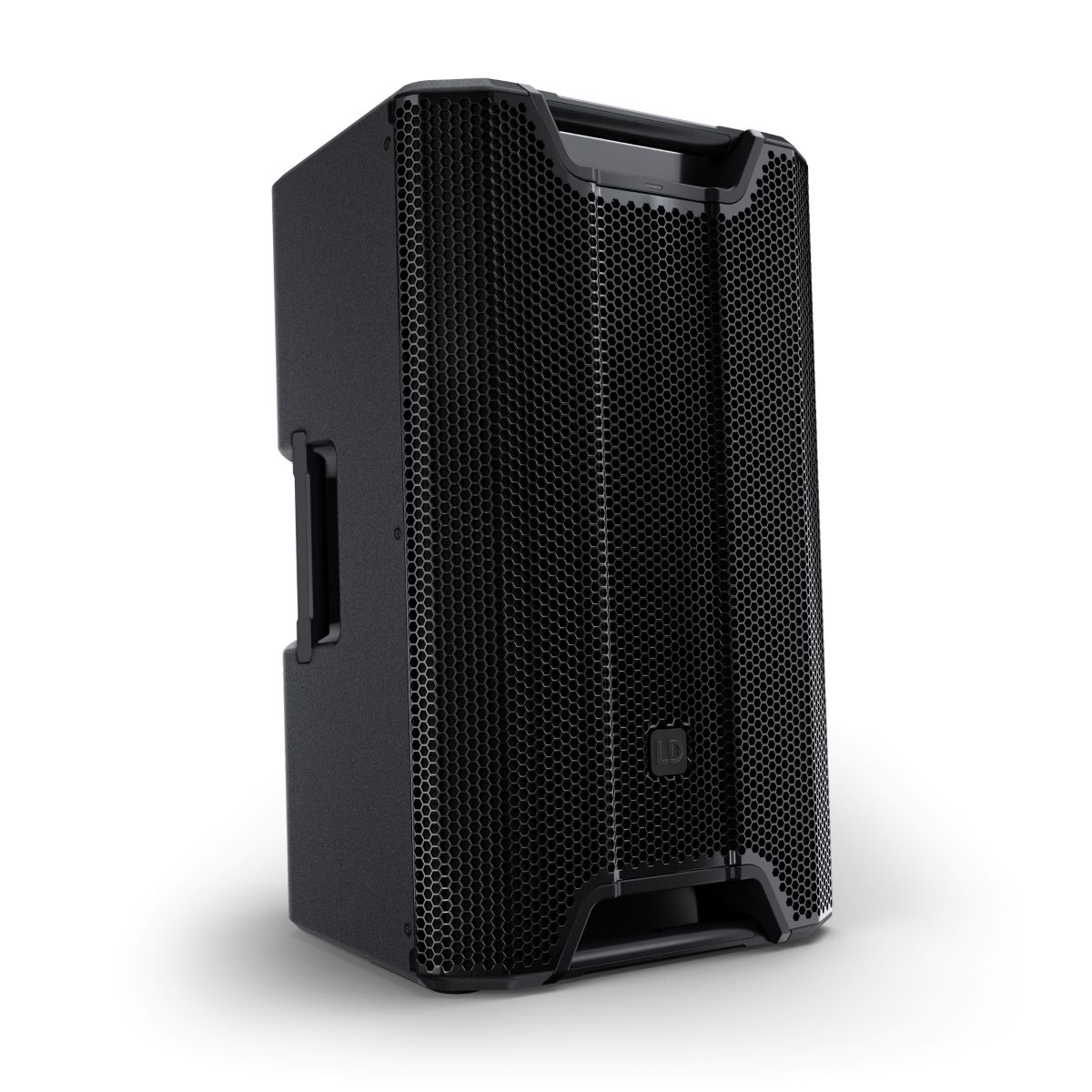

Active full-range speaker

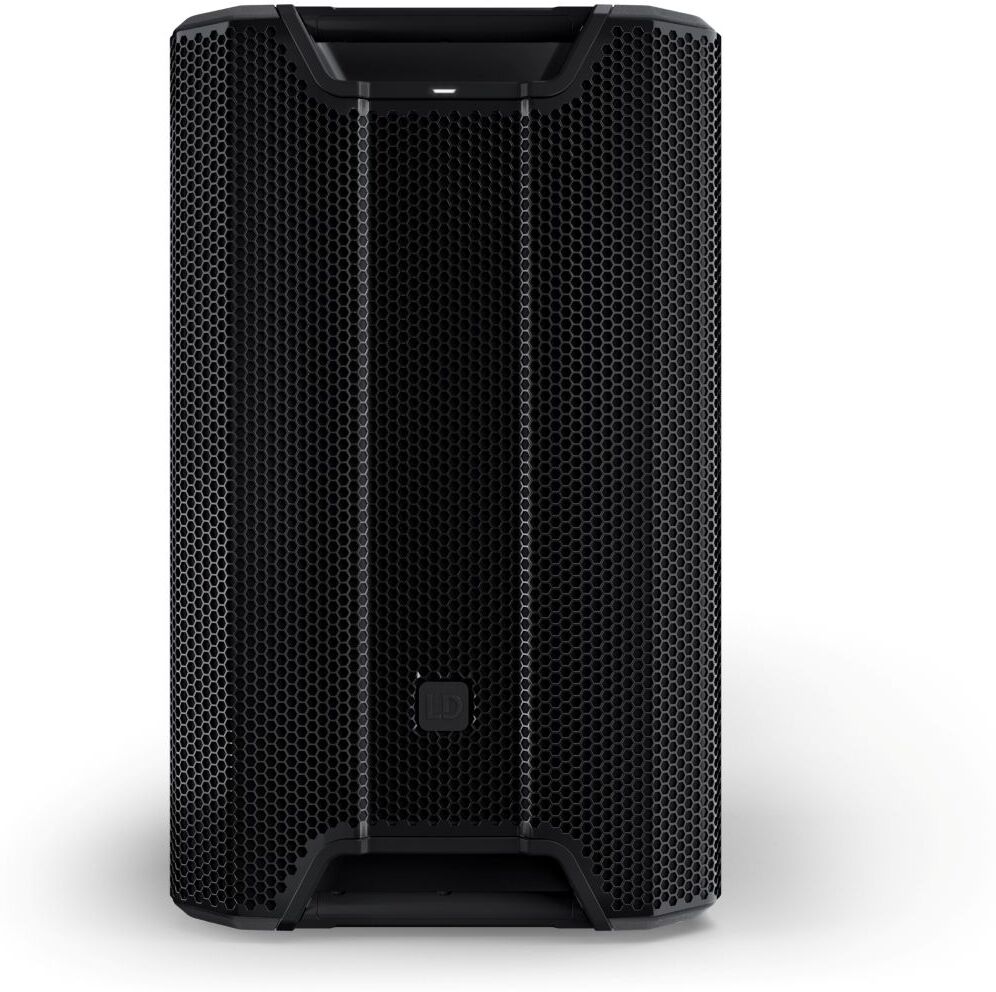

TheICOA PRO 15 A is a professional amplified loudspeaker that combines power, precision and flexibility. Designed to meet the needs of musicians, sound technicians, DJs and installers, it features a coaxial design, impressive audio performance and advanced connectivity.

ICOA PRO 15 A highlights

Coaxial system with 15" driver for point source sound and ultra-natural rendering.
Class D amplifier delivering 1500 W RMS and up to 3000 W peak for a maximum SPL of 135 dB.
BEM-optimized pivoting horn for precise diffusion even in the midrange.
SysCore® DSP with FIR/IIR filters and limiters for distortion-free audio management.

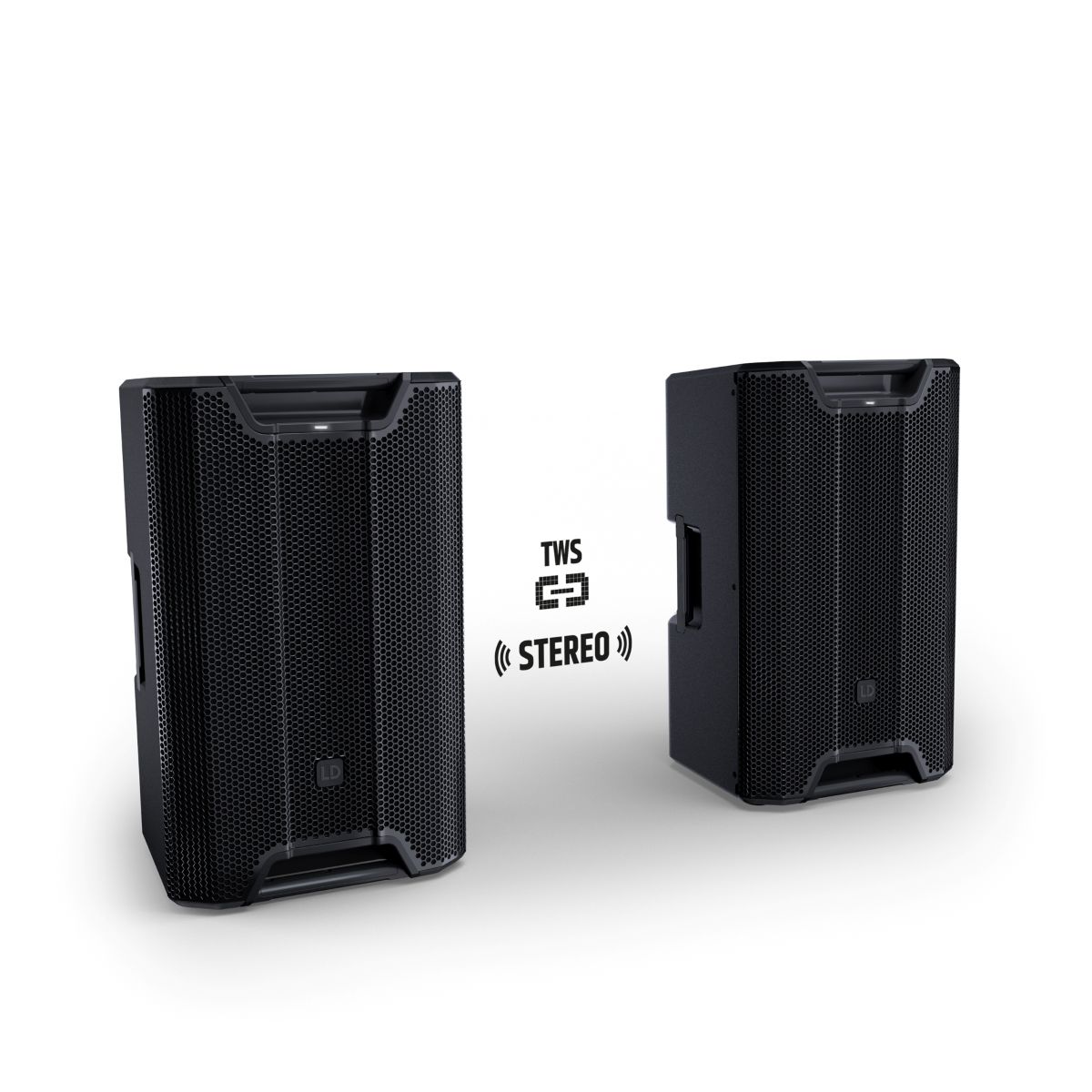

Audio streaming via Bluetooth 5.1 with TWS and free "ICOA PRO" mobile app for wireless control.

Key features of the ICOA PRO 15 A

Advanced coaxial design

Thanks to its 15" driver with 3" voice coil and a titanium tweeter also coaxially mounted, the ICOA PRO 15 A offers a unique sound source guaranteeing excellent phase coherence and homogeneous sound reproduction across the entire frequency range.

Power and sonic precision

With 1500 W RMS (3000 W peak) and 135 dB SPL, this loudspeaker delivers powerful, clear sound reproduction. Its frequency response extends down to 50 Hz, ideal for full-range coverage without an additional cabinet.

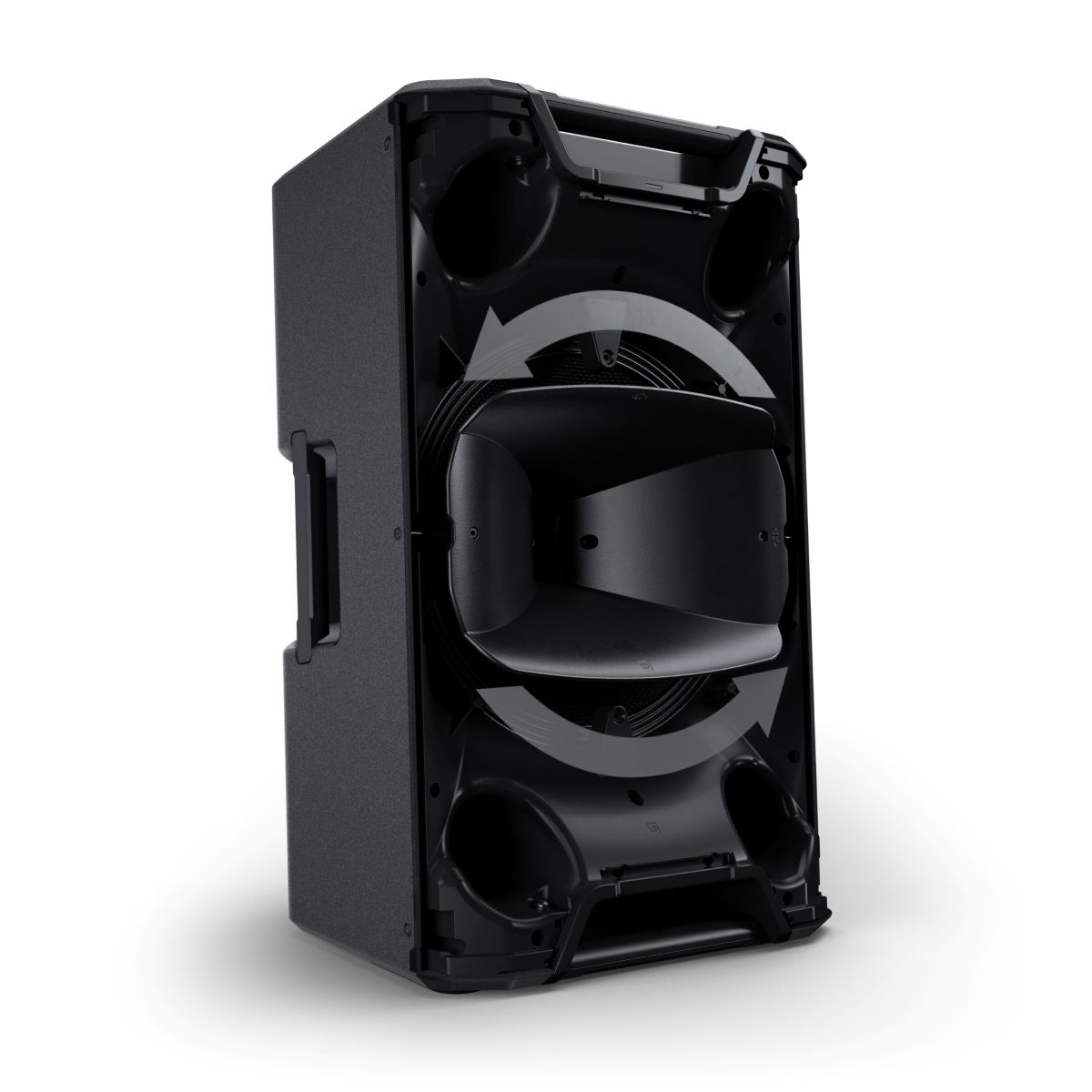

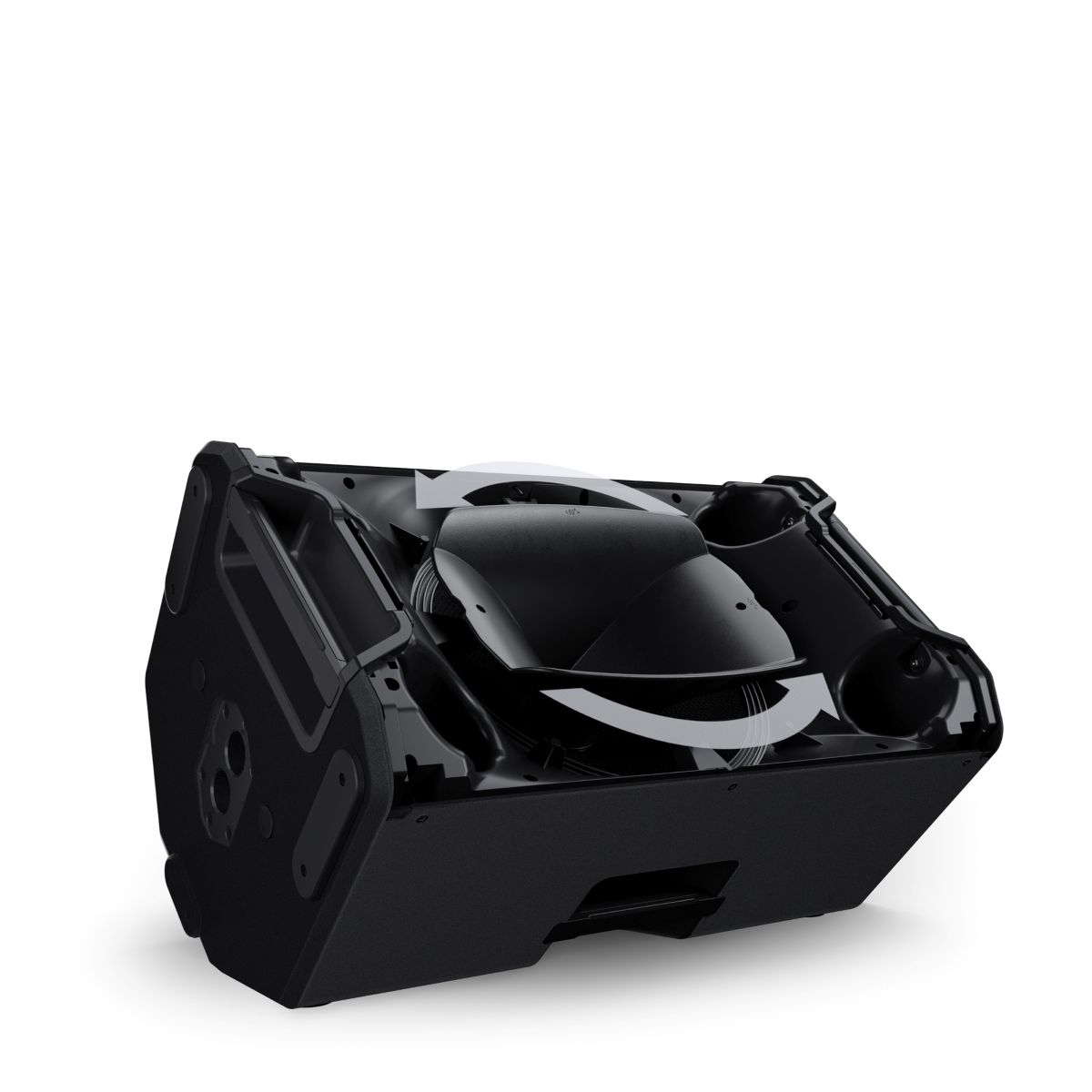

Optimized diffusion and BEM horn

The double-loaded horn, optimized by BEM modeling, concentrates acoustic energy in the midrange (?600 Hz), ensuring controlled diffusion in difficult environments.

SysCore® DSP and total control

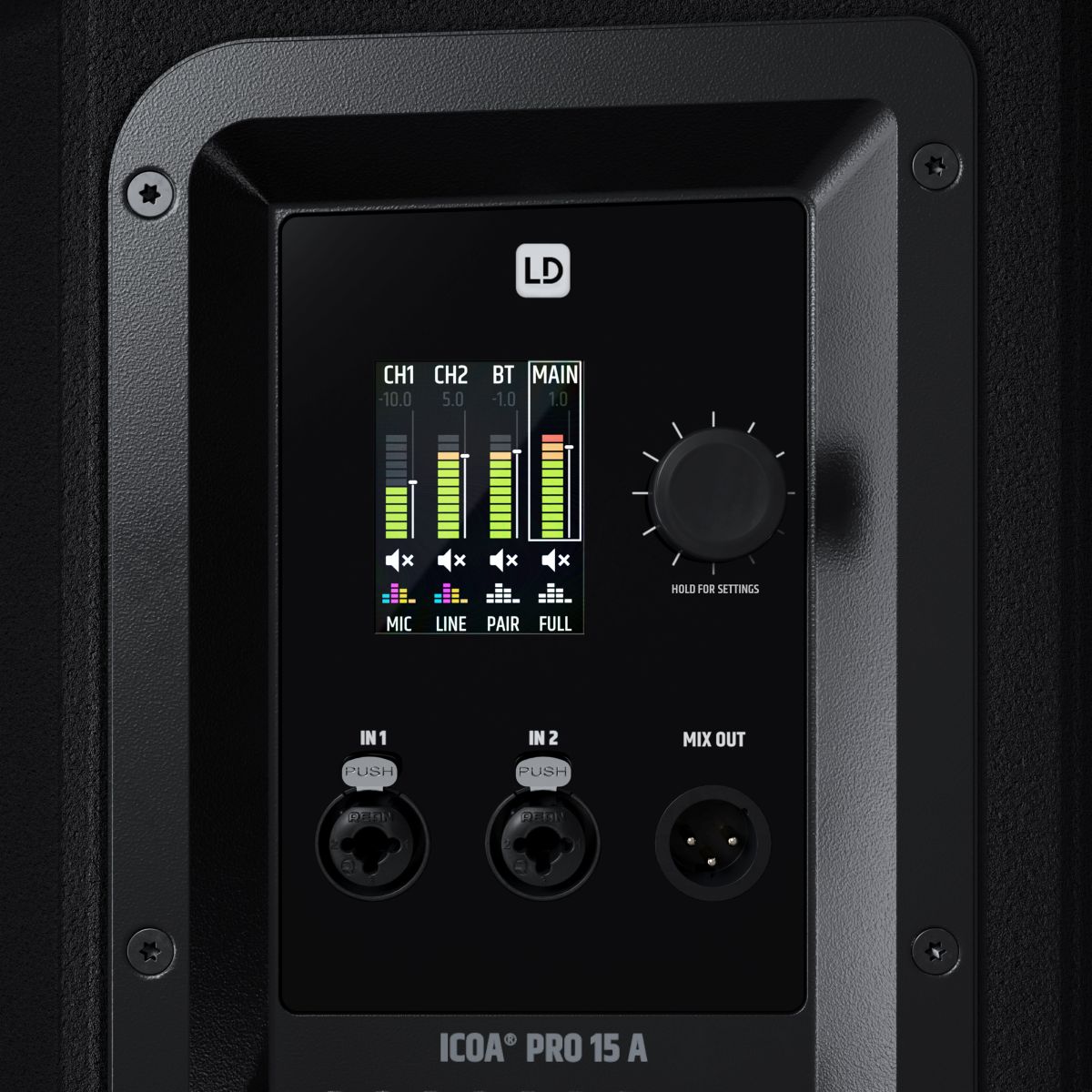

Equipped with a state-of-the-art DSP featuring 4-band equalization, FIR/IIR filters, adjustable delay and limiters, the ICOA PRO 15 A offers complete and secure sound management. The interface via color screen and single encoder ensures smooth navigation.

Wireless control via app

With the free "ICOA PRO" app, easily control settings, pair multiple speakers and manage Bluetooth 5.1 music streaming with TWS. An ideal solution for contractors on the move.

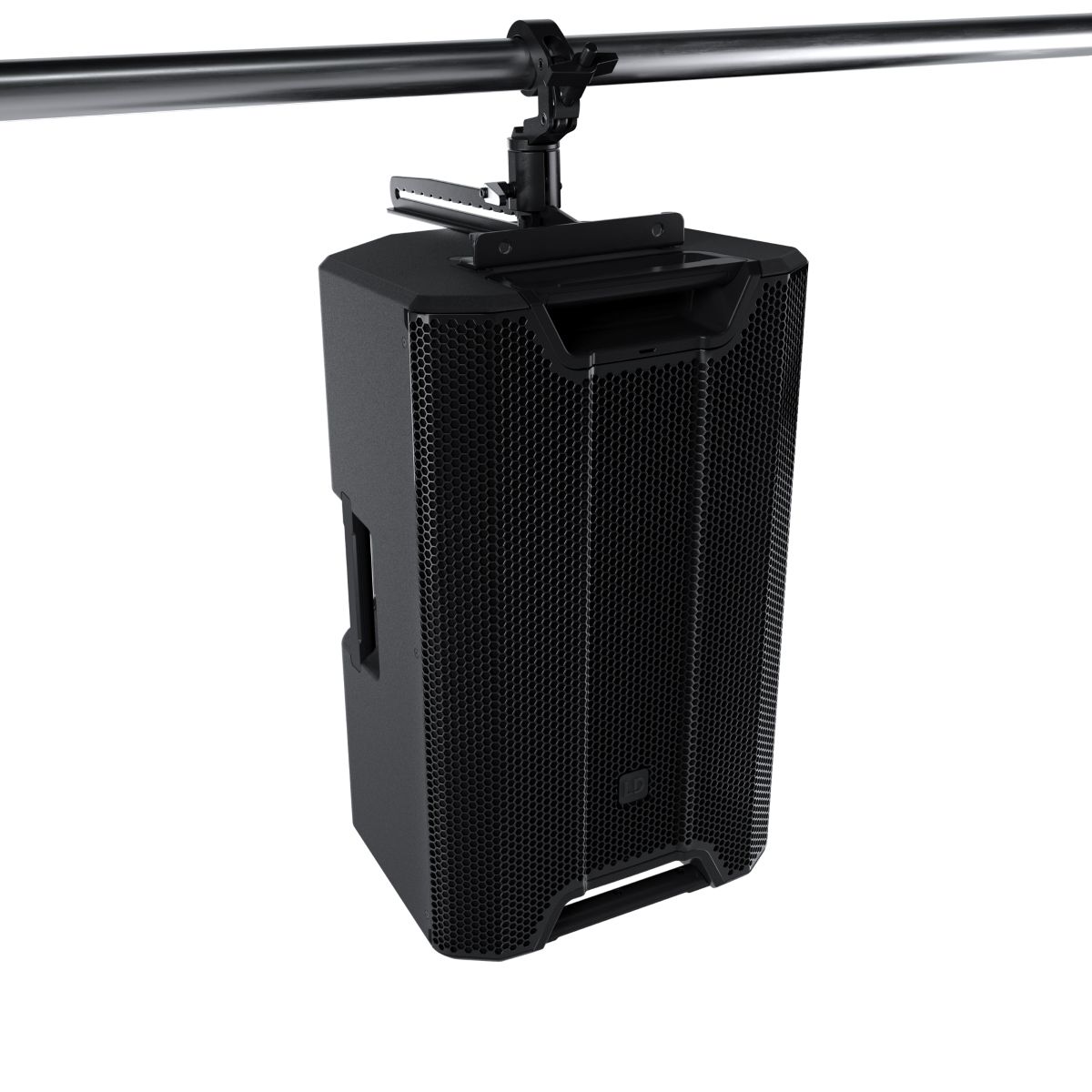

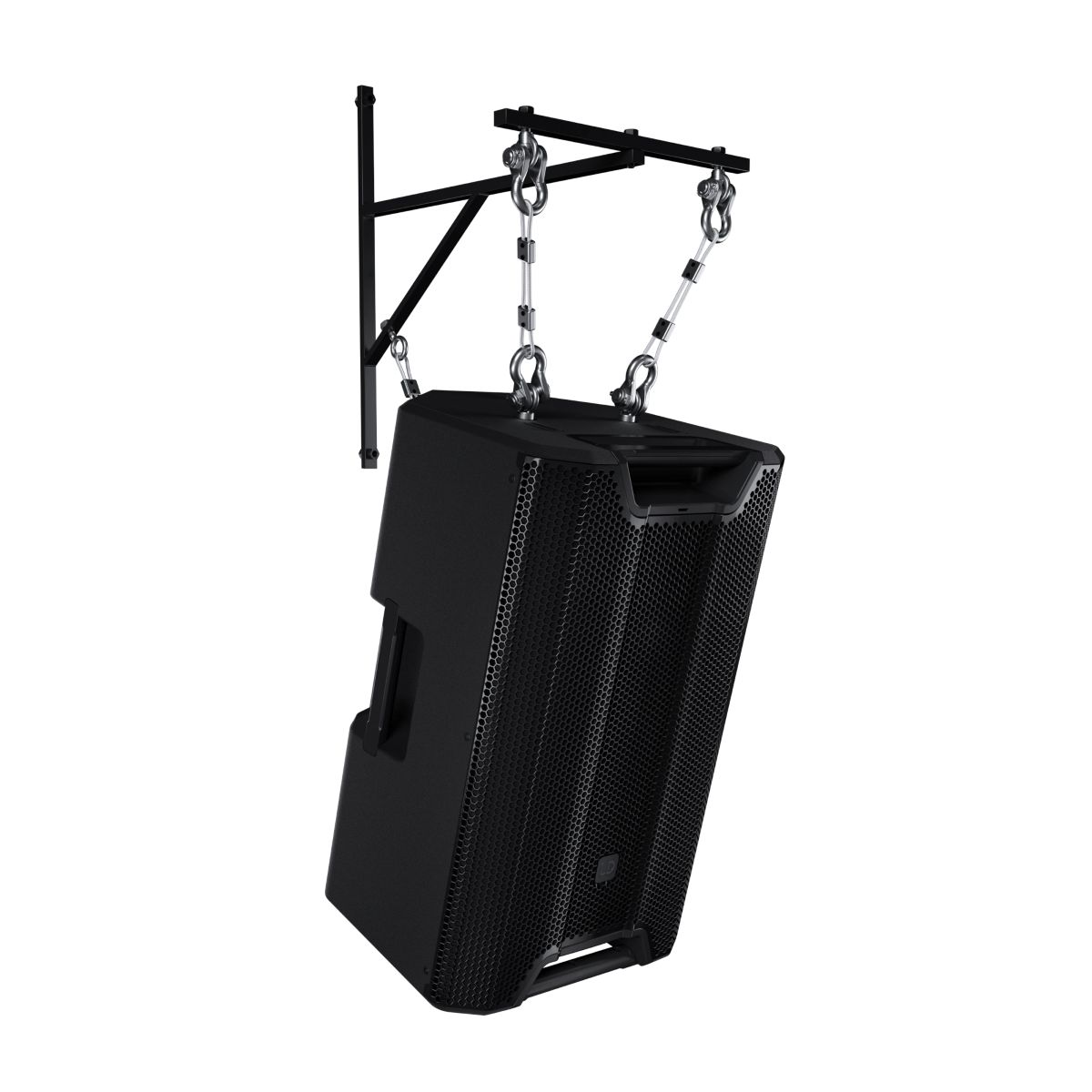

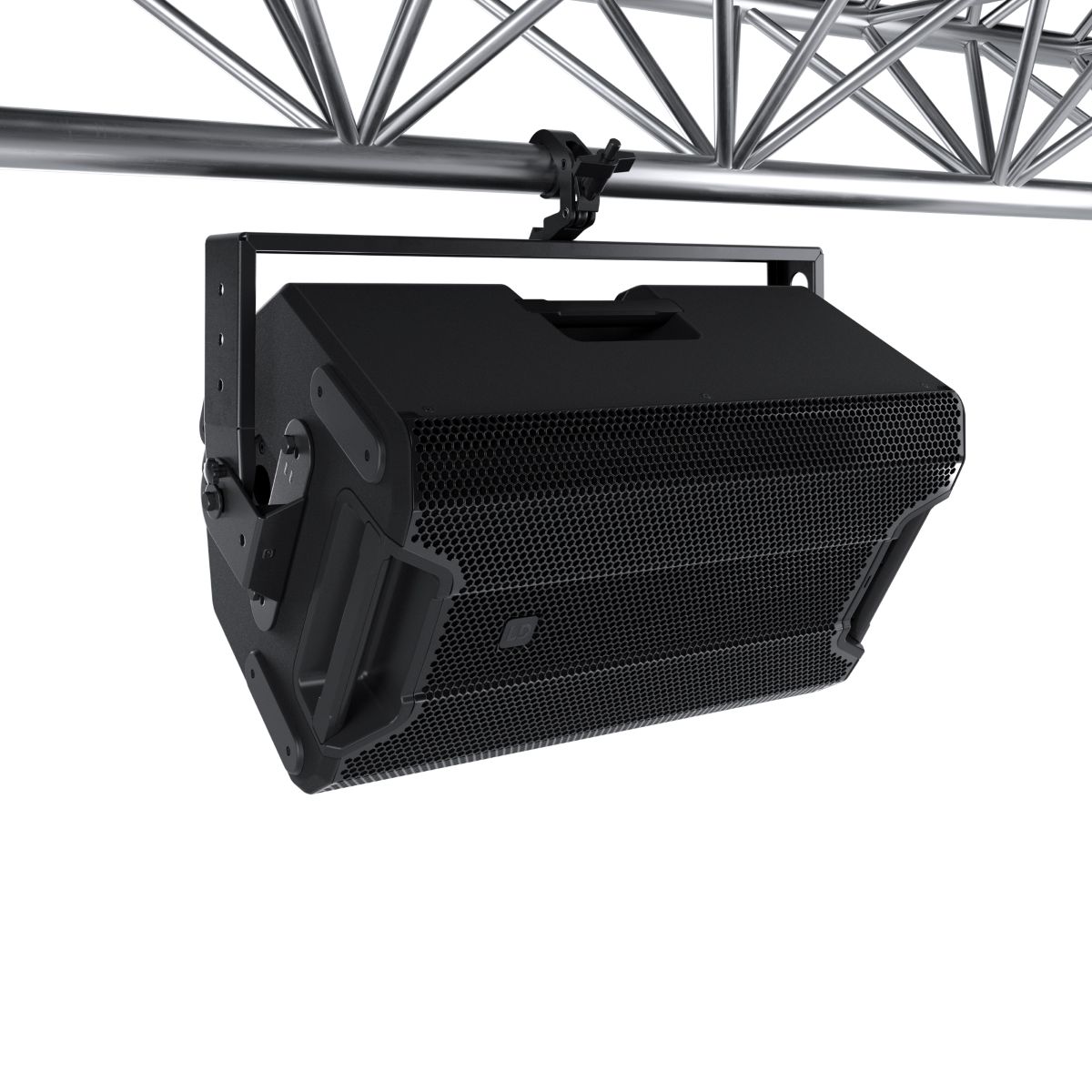

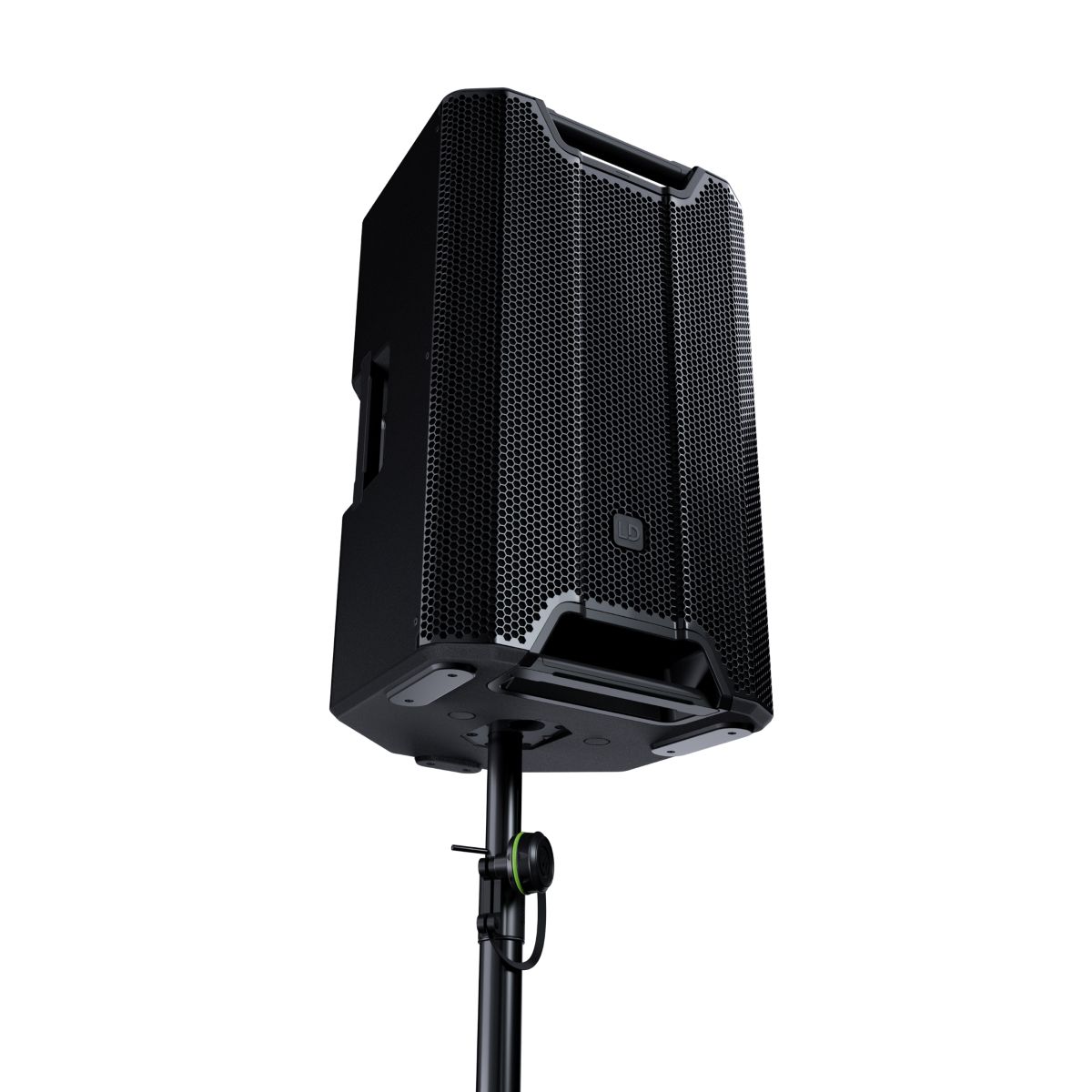

Mounting versatility

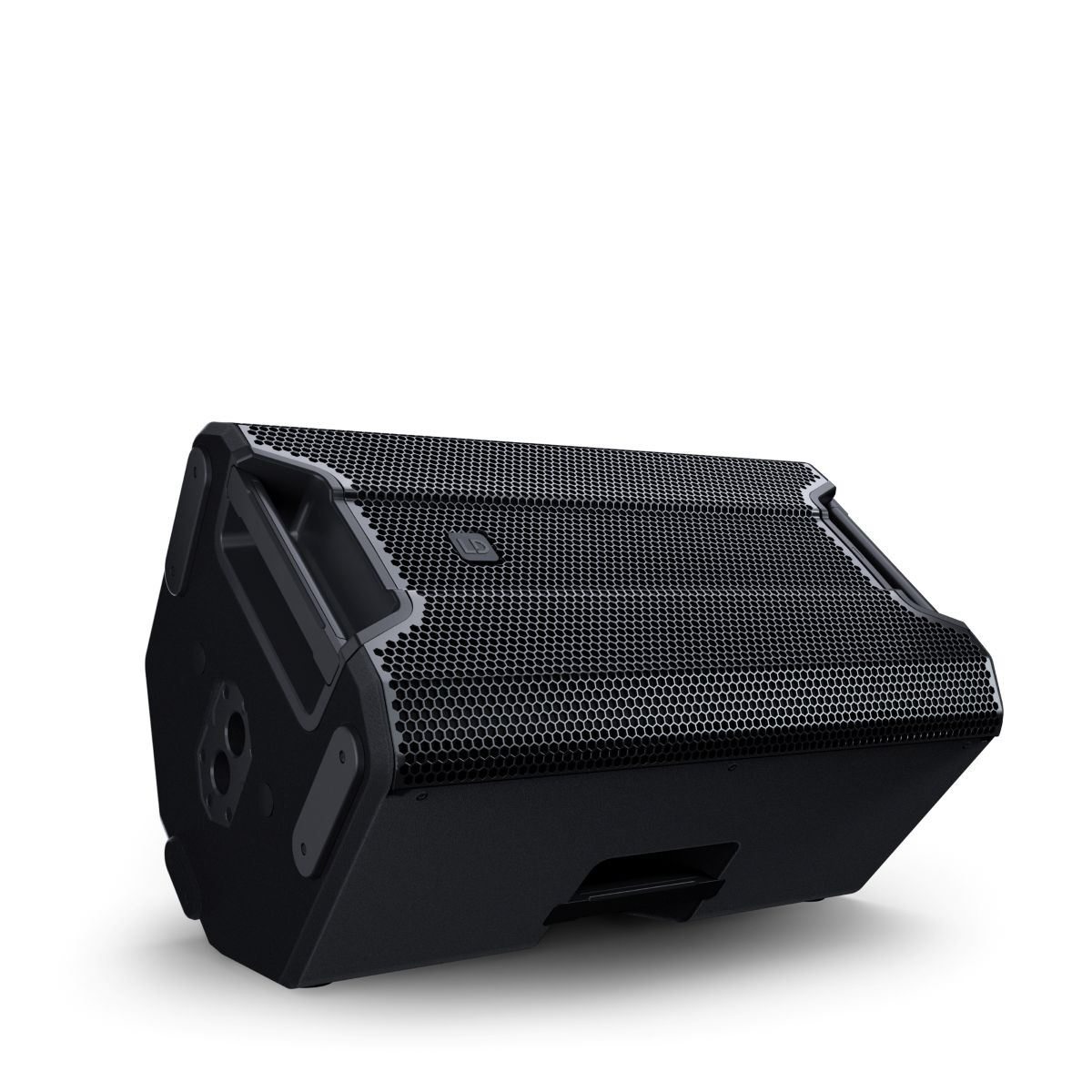

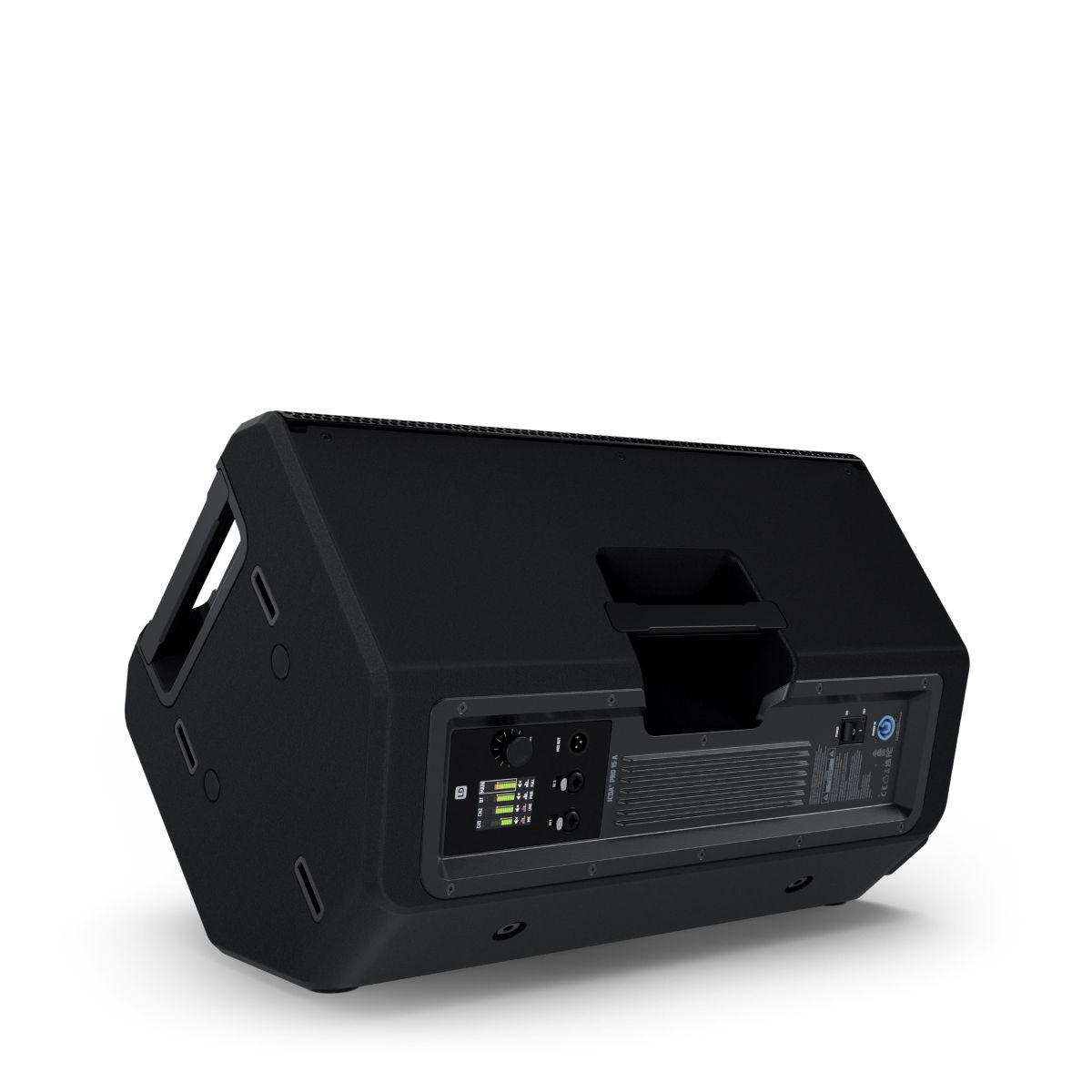

Thanks to its 6 M10 mounting points, 50° monitor angle and compatibility with EasyMount® brackets, this loudspeaker can be adapted to any configuration, whether horizontal or vertical, free-standing or suspended.

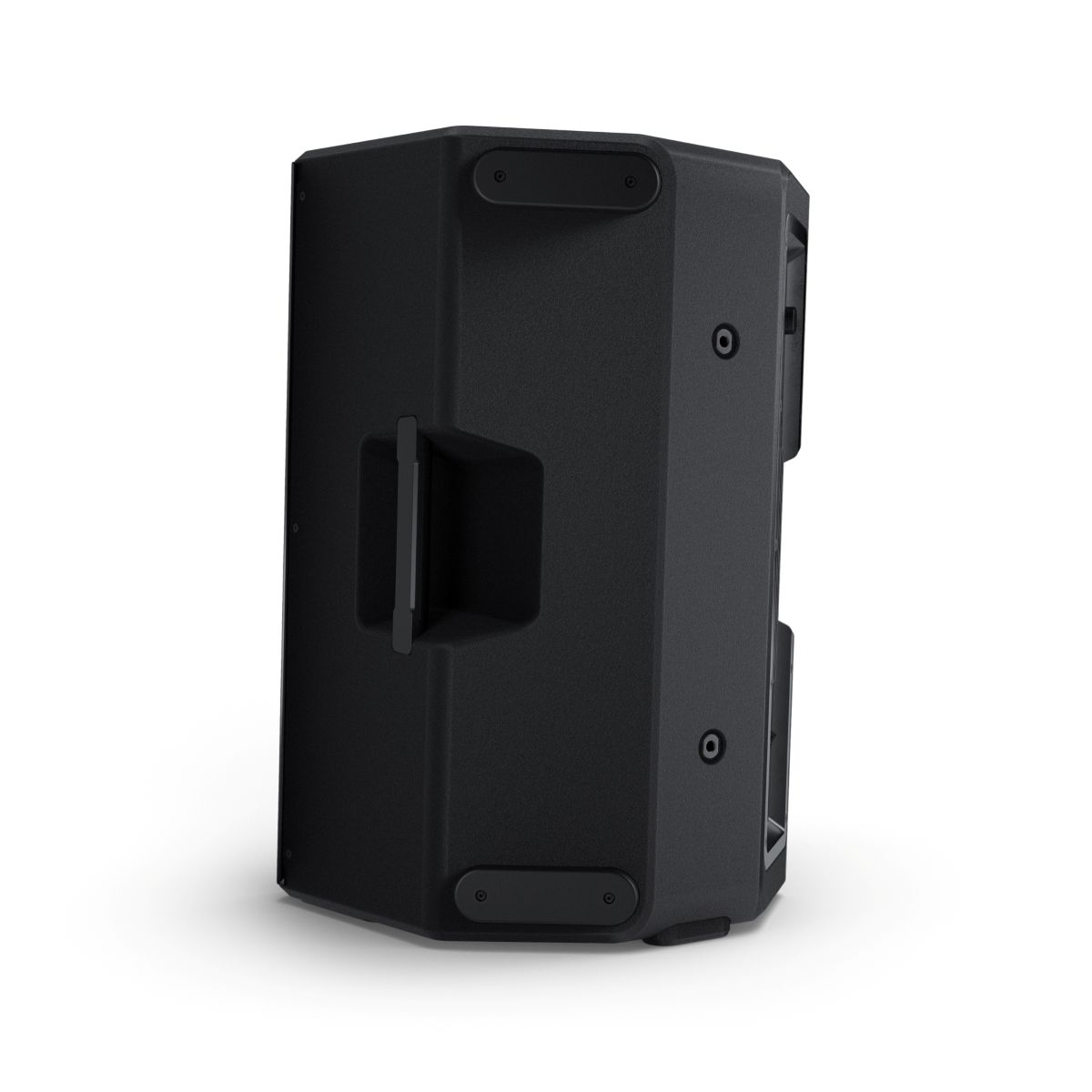

Robust and practical

The reinforced ABS cabinet, ergonomic handles and steel grille guarantee durability and ease of transport. Optional padded carrying cases are also available.

Expert advice

Faithful, powerful sound reproduction thanks to professional coaxial design.
Excellent power/compactness ratio for both stage and fixed installations.
Intuitive control interface and handy mobile app for live performance.

Technical sheet

PA power speaker 1501 to 2000 watts RMS
Type of PA speaker Stage & FOH monitor

Type
- Active loudspeaker
Power
- Maximum power: 3000 W
- RMS power: 1500 W
- Amplification class: Class D
Audio performance
- Peak SPL (sine burst, 1 m, THD ? 10%): 130 dB
- Peak SPL (pink noise, 1 m, CF 4): 135 dB
- Average SPL (sine burst, bandwidth, 1 m): 120 dB
- Frequency response (-10 dB): 50 Hz - 20 kHz
- System: 2-way coaxial with common motor
- Crossover frequency: 800 Hz
- Dispersion: 90° (H) / 50° (V)
- Monitor angle: 50
- Protections: Multiband limiter, short-circuit, overtemperature, DC protection
Bluetooth
- Bluetooth® Version: 5.1
- Features: A2DP, TrueWireless™ Stereo, TrueWireless™ Mirroring, control via app
- Codecs supported: SBC, AAC

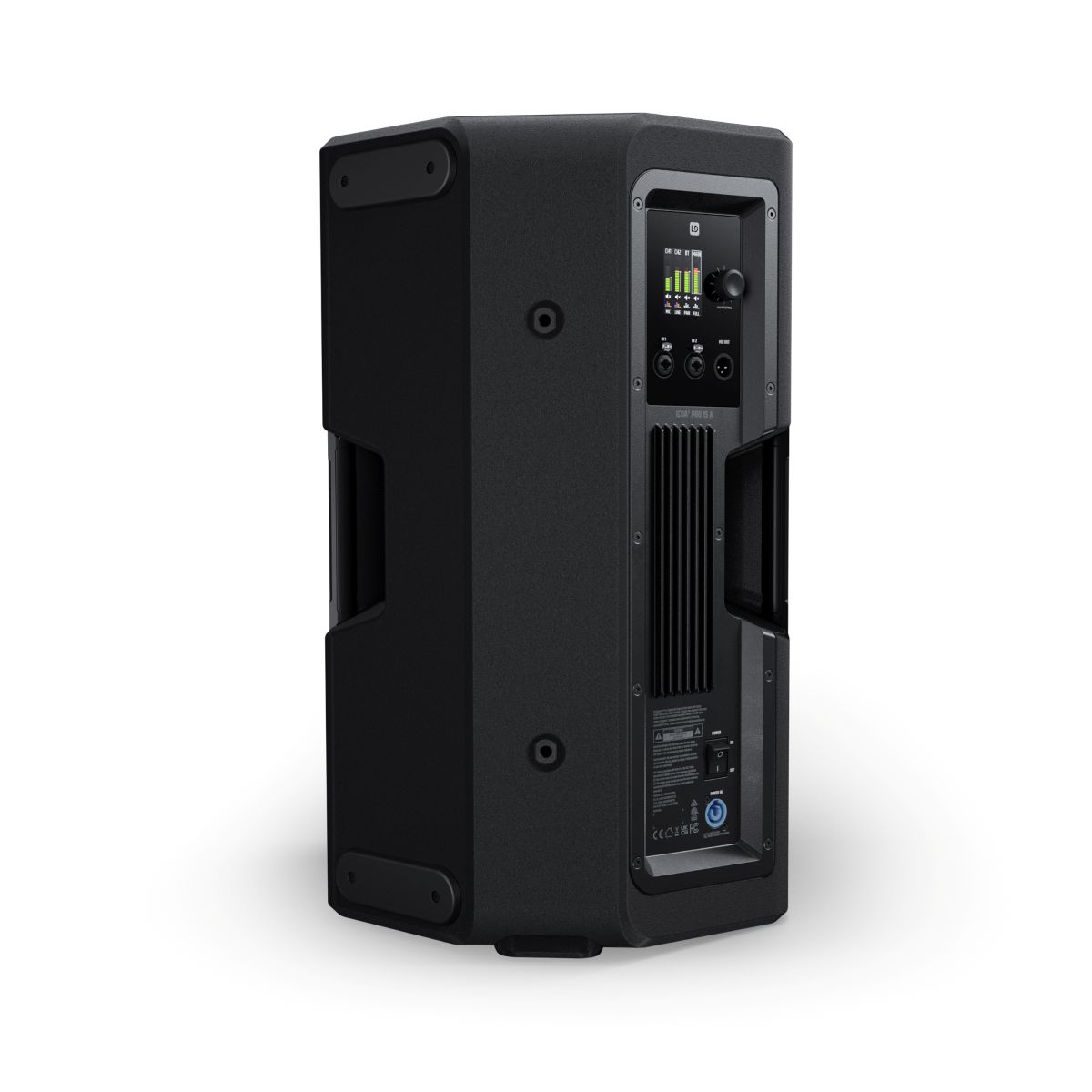

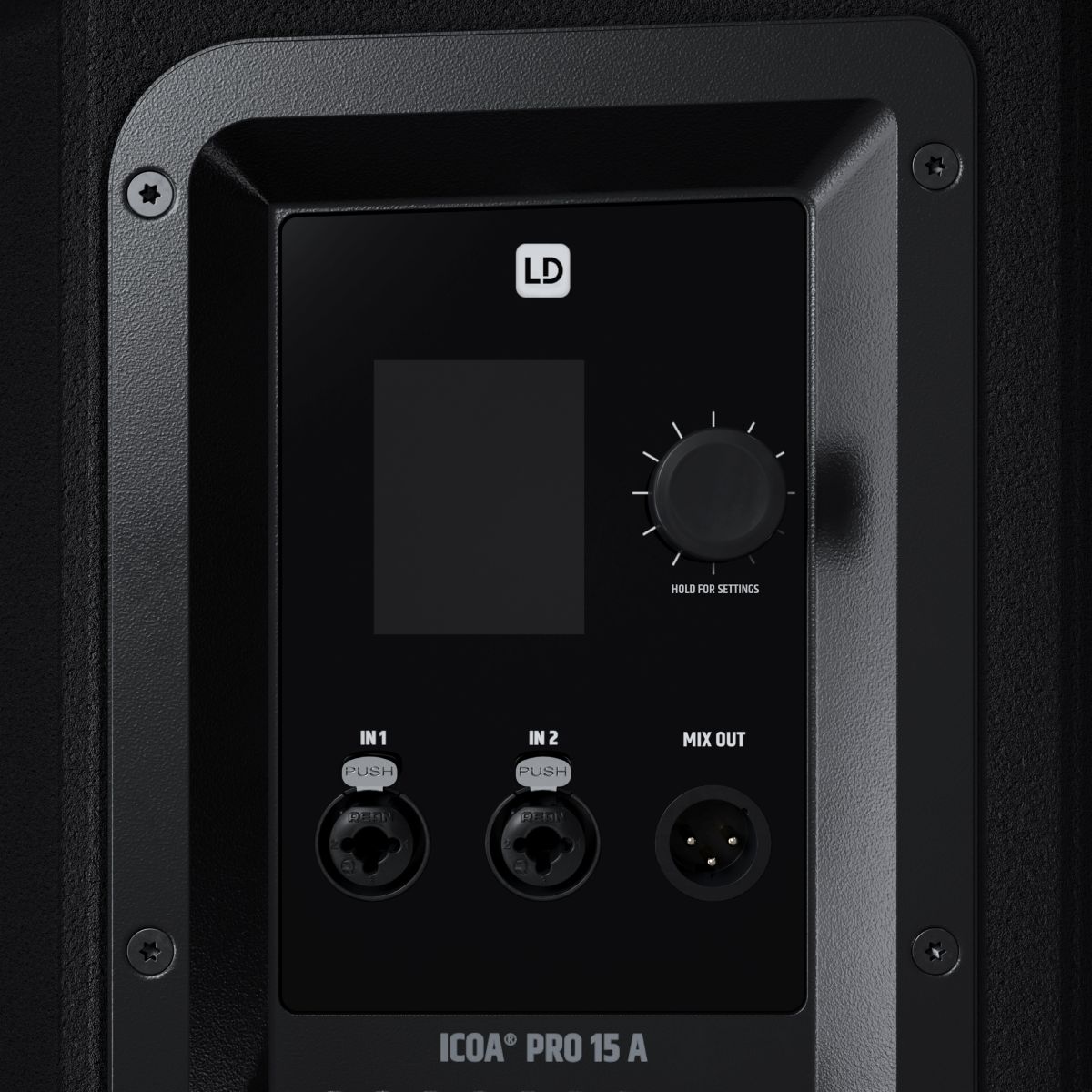

Connections
- Mic/line inputs: 2 (XLR combo)
- Line input: 1
- Line out: 1 (3-pin male XLR)
Digital processing
- AD/DA converter: 24 bit / 48 kHz
- Signal-to-noise ratio: ? 108 dB
Bass speaker
- Size: 15" (386.3 mm)
- Magnet : Ferrite
- Coil: 3"
Tweeter
- Motor size: 3"
- Output diameter: 36.68 mm
- Magnet : Ferrite
- Coil size: 3"
Power supply
- Voltage: 100 - 240 V AC / 50 - 60 Hz
- Power rating: 950 W
- Type: SMPS (switch-mode power supply)
- Mains connector: indoor + PowerCON® socket
- Fuse: T10AH / 250 V
Design & Housing
- Type : Bass reflex
- Handles: 4
- Mounting points: 6
- Base: 35 mm (0°/5°)
- Material: black ABS
Cooling
- System: Natural convection (without fan)
Operating conditions
- Temperature: 0 to 40°C
- Maximum humidity (non-condensing): 80%.
Dimensions & weight
- Width: 417 mm
- Height: 690.7 mm
- Depth: 414.8 mm
- Weight: 25.8 kg
